Front CV Axle & Wheel Bearing for Polaris Sportsman & Scrambler 550 850 & 1000

Location on vehicle: Front,Left,Right

PO-312/WB-1628
This is a new Front CV axle & wheel bearing for a Polaris ATV.

They fit the following 4x4 models:

2010-2015 ... Sportsman 850

2009-2014 ... Sportsman XP 850

(includes 'Touring' models)

2014-2015 ... Scrambler 1000

2010-2014 ... Sportsman 550

2010-2014 ... Sportsman X2 550

2009 ... Sportsman XP 550

2013-2015 ... Scrambler XP 850

2015 ... Scrambler 850

2015 ... Sportsman XP 1000

Front, Left or Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

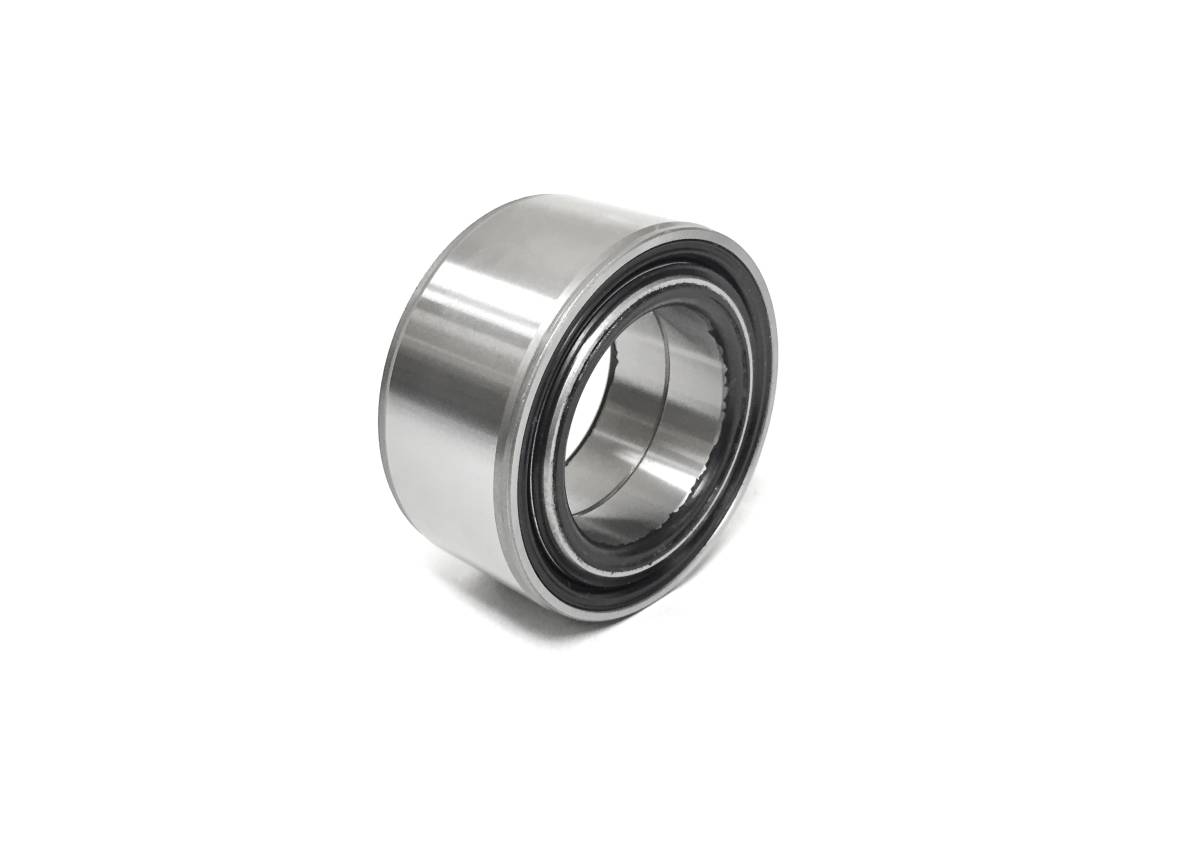

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 22
  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 558 mm
  • Replaces Polaris OEM # (axle) 1332383, 1332873, 2203743, 2203844 (bearing) 3514627, 3514699
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $97.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2013-2015 Scrambler 850, 2014-2015 Scrambler 1000, 2009-2014 Sportsman 550 / X2 550, 2009-2015 Sportsman 850, 2015 Sportsman 1000 (excluding High Lifter).
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Replaces Polaris OEM # (axle) 1332383, 1332873, 2203743, 2203844 (bearing) 3514627, 3514699. Compressed Length - 558 mm, Inboard Spline Count - 22, Outboard Spline Count - 26.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

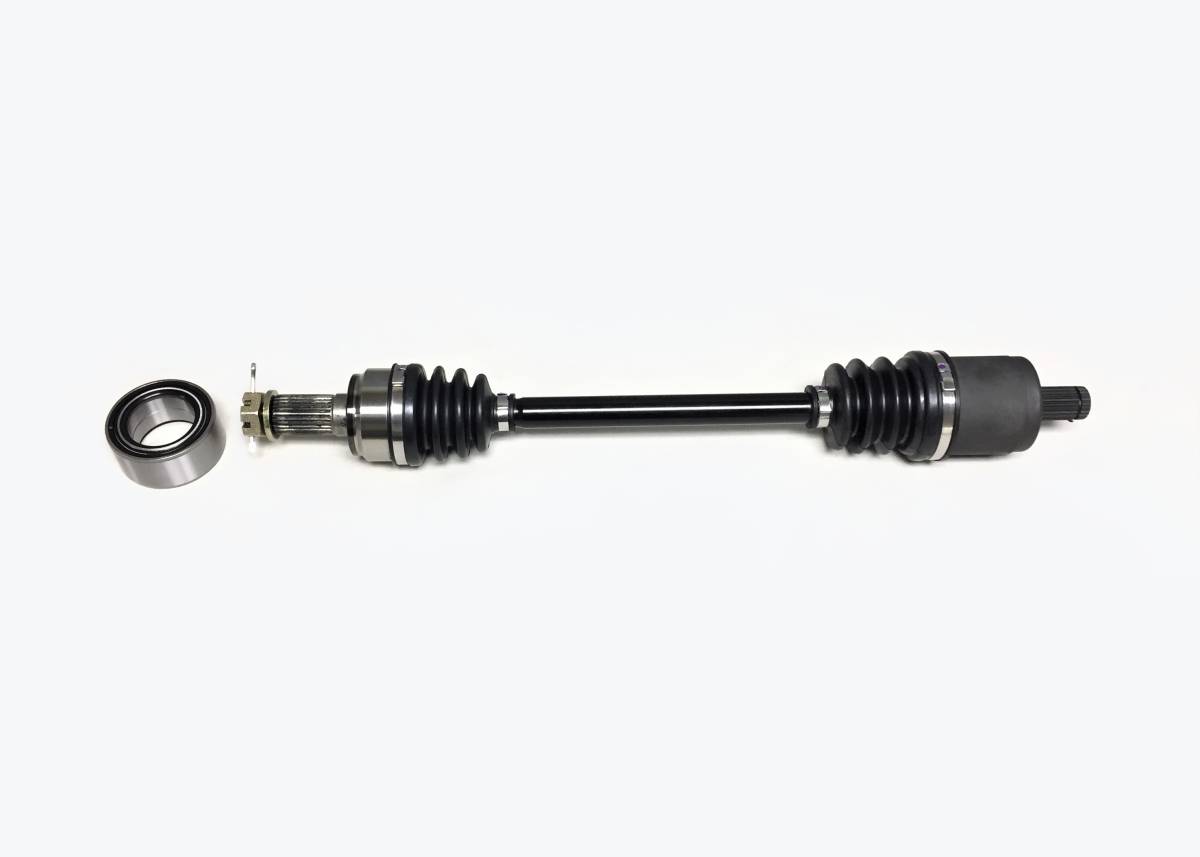

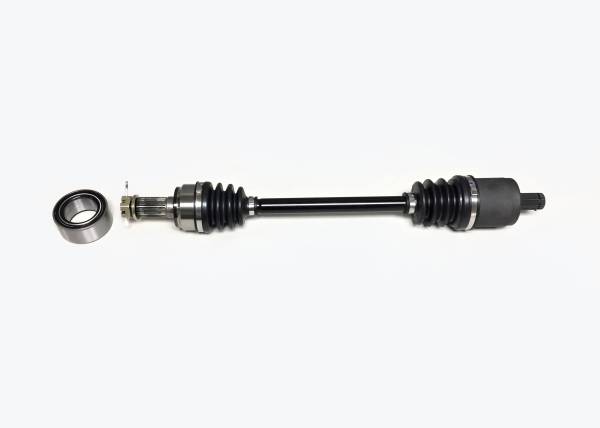

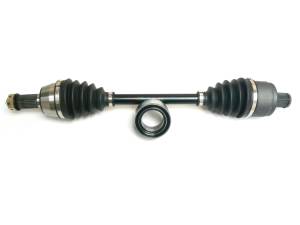

  • 1 CV axle & 1 wheel bearing
  • Application List

    YearMakeModelSubmodelNotes
    2015PolarisScrambler 850--
    2015PolarisScrambler XP 850--
    2014PolarisScrambler XP 850--
    2014PolarisScrambler XP 850HO
    2014PolarisScrambler XP 850LE HO EPS
    2013PolarisScrambler XP 850HO
    2013PolarisScrambler XP 850LE HO EPS
    2015PolarisScrambler XP 1000EPS
    2014PolarisScrambler XP 1000EPS
    2014PolarisSportsman 550EFI
    2014PolarisSportsman 550EPS
    2014PolarisSportsman 550Forest
    2014PolarisSportsman 550LE Browning EPS
    2014PolarisSportsman 550Pursuit EPS
    2014PolarisSportsman 550Touring EPS
    2013PolarisSportsman 550--
    2013PolarisSportsman 550EPS
    2013PolarisSportsman 550Forest
    2013PolarisSportsman 550LE
    2013PolarisSportsman 550LE Browning EPS
    2013PolarisSportsman 550Touring EPS
    2012PolarisSportsman 550--
    2012PolarisSportsman 550EPS
    2012PolarisSportsman 550Forest
    2012PolarisSportsman 550LE
    2012PolarisSportsman 550LE Browning EPS
    2012PolarisSportsman 550Touring EPS
    2011PolarisSportsman 550Browning
    2011PolarisSportsman 550Browning EPS
    2011PolarisSportsman 550EFI
    2011PolarisSportsman 550EFI EPS
    2011PolarisSportsman 550Forest
    2011PolarisSportsman 550Pursuit EPS
    2011PolarisSportsman 550Touring EFI EPS
    2010PolarisSportsman 550Browning EPS
    2010PolarisSportsman 550EFI
    2010PolarisSportsman 550EFI EPS
    2010PolarisSportsman 550Touring EFI EPS
    2015PolarisSportsman 850--
    2015PolarisSportsman 850Pursuit
    2014PolarisSportsman 850Forest
    2014PolarisSportsman 850LE Touring HO EPS
    2014PolarisSportsman 850Touring EPS
    2013PolarisSportsman 850Forest
    2013PolarisSportsman 850LE Touring HO EPS
    2013PolarisSportsman 850Touring EPS
    2013PolarisSportsman 850Touring HO EPS
    2012PolarisSportsman 850Forest
    2012PolarisSportsman 850Touring EPS
    2012PolarisSportsman 850Touring HO EPS
    2011PolarisSportsman 8502 Passenger
    2011PolarisSportsman 850Forest
    2011PolarisSportsman 850Touring EFI EPS
    2010PolarisSportsman 850Touring EFI EPS
    2014PolarisSportsman X2 550EPS
    2013PolarisSportsman X2 550--
    2012PolarisSportsman X2 550--
    2011PolarisSportsman X2 550--
    2010PolarisSportsman X2 550--
    2009PolarisSportsman XP 550EFI
    2009PolarisSportsman XP 550EFI EPS
    2014PolarisSportsman XP 850--
    2014PolarisSportsman XP 850Browning
    2014PolarisSportsman XP 850HO EPS
    2014PolarisSportsman XP 850LE Browning HO EPS
    2014PolarisSportsman XP 850LE HO EPS
    2014PolarisSportsman XP 850Pursuit HO EPS
    2013PolarisSportsman XP 850HO
    2013PolarisSportsman XP 850HO EPS
    2013PolarisSportsman XP 850LE
    2013PolarisSportsman XP 850LE Browning HO EPS
    2012PolarisSportsman XP 850HO
    2012PolarisSportsman XP 850HO EPS
    2012PolarisSportsman XP 850LE Browning HO EPS
    2012PolarisSportsman XP 850Pursuit
    2011PolarisSportsman XP 850Browning
    2011PolarisSportsman XP 850Browning EPS
    2011PolarisSportsman XP 850EFI
    2011PolarisSportsman XP 850EFI EPS
    2011PolarisSportsman XP 850Pursuit
    2010PolarisSportsman XP 850Browning EPS
    2010PolarisSportsman XP 850EFI
    2010PolarisSportsman XP 850EFI EPS
    2010PolarisSportsman XP 850Touring EPS
    2009PolarisSportsman XP 850EFI
    2009PolarisSportsman XP 850EFI EPS
    2016PolarisSportsman XP 1000--
    2016PolarisSportsman XP 1000High Lifter Edition
    2016PolarisSportsman XP 1000Hunter Edition
    2016PolarisSportsman XP 1000Touring
    2016PolarisSportsman XP 1000Touring Limited
    2015PolarisSportsman XP 1000--
    2015PolarisSportsman XP 1000Pursuit
    2015PolarisSportsman XP 1000Titanium Matte Metallic LE
    2015PolarisSportsman XP 1000Touring
    2015PolarisSportsman XP 1000Touring Pearl White LE

    Details

    • PO-312/WB-1628
    • PO-312/WB-1628
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 11.0 lbs.
    • W5.0000” x H5.0000” x L24.0000”
