Front CV Axle Pair for Can-Am Maverick X3 Turbo, 705401686 705401687

Location on vehicle: Front,Left,Right

CA-124/CA-224

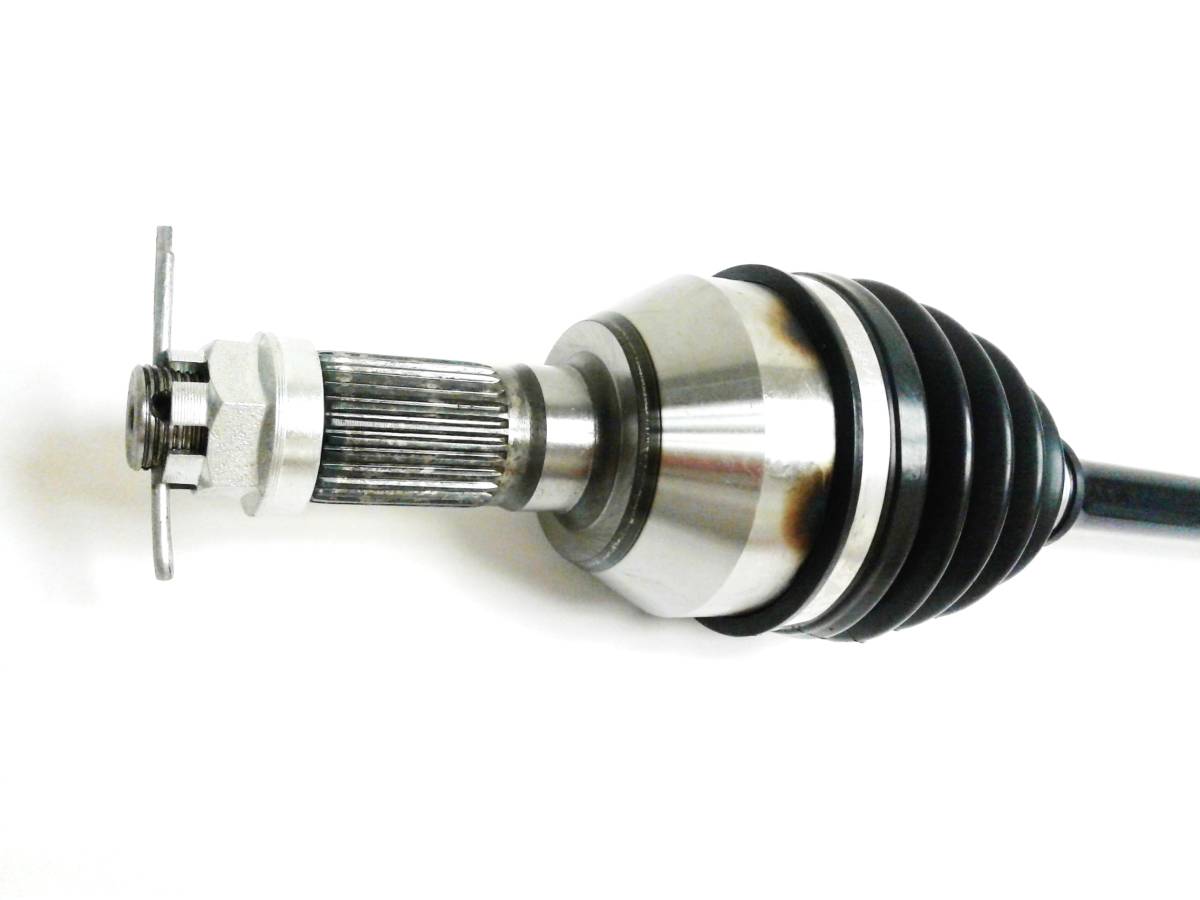

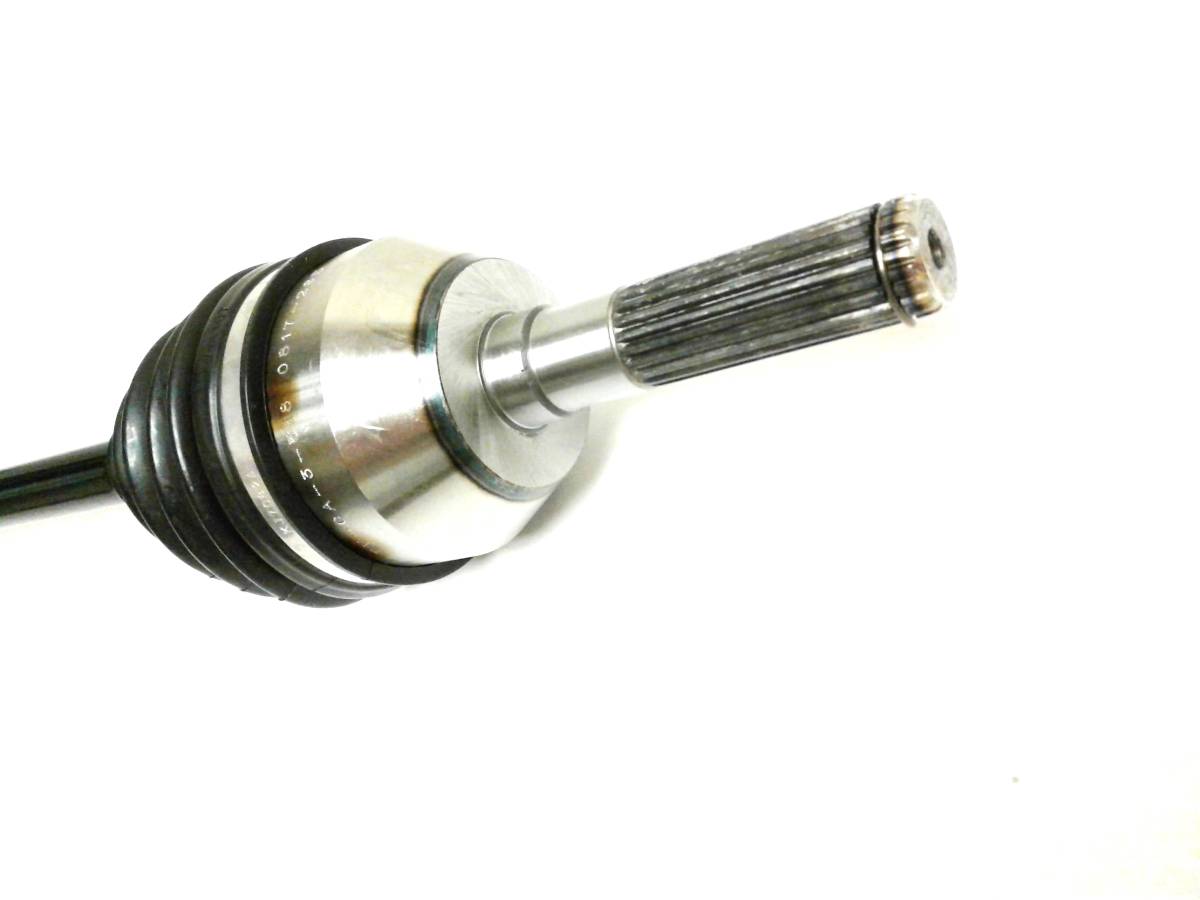

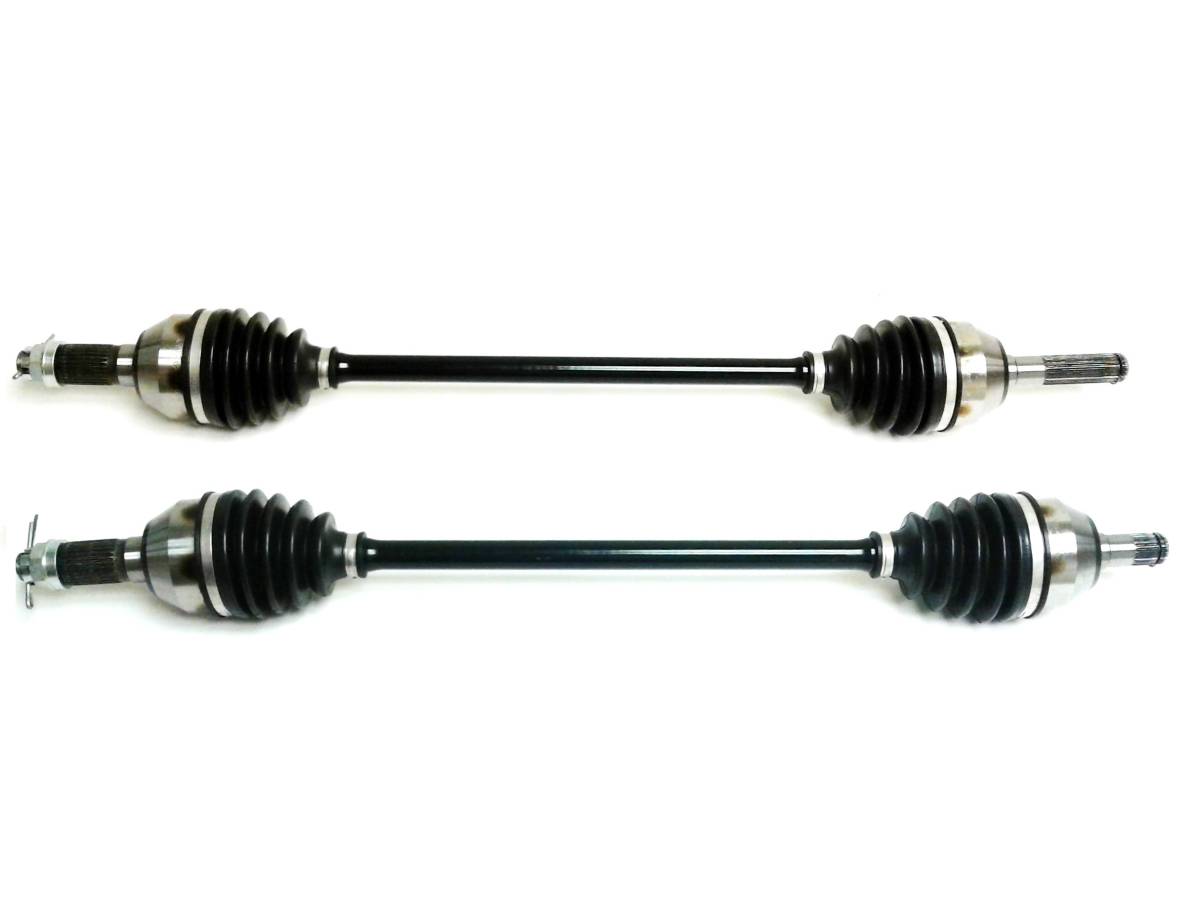

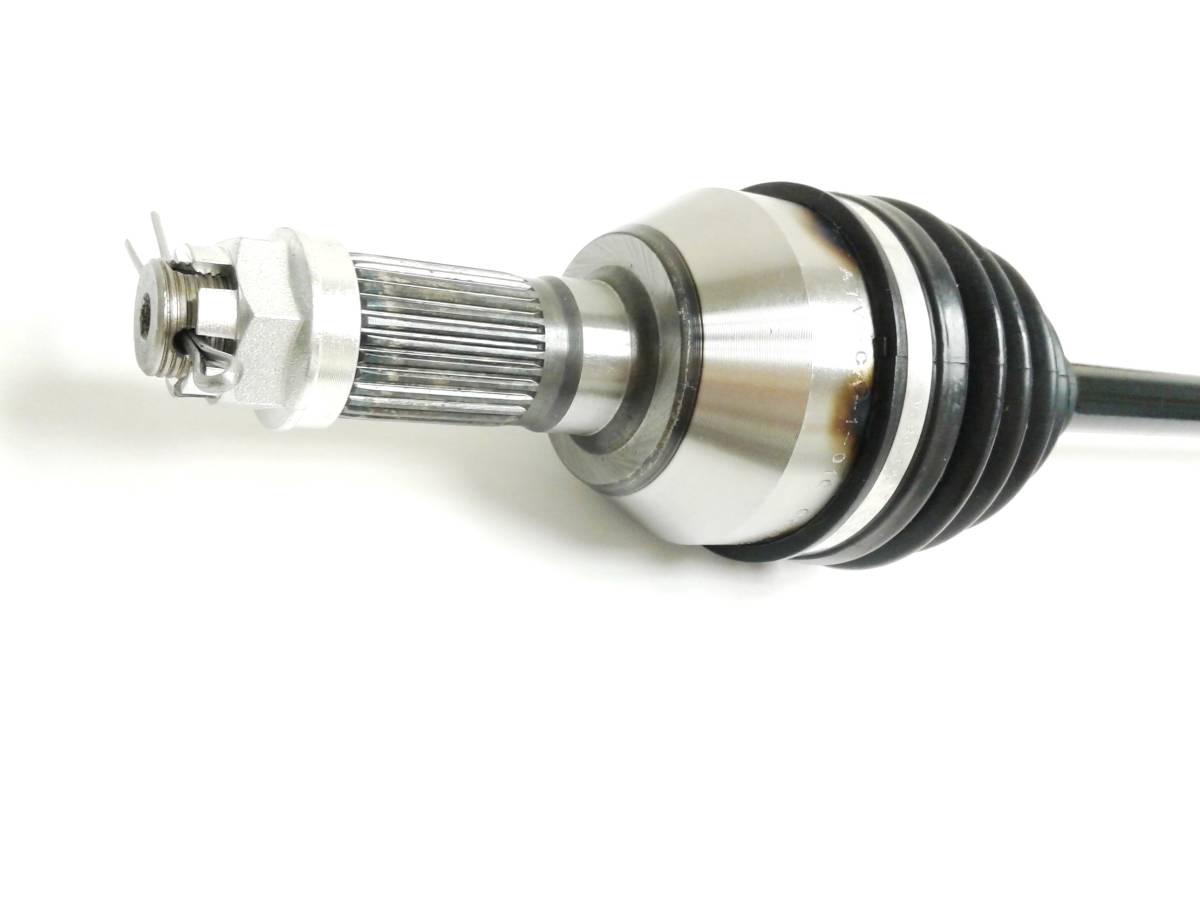

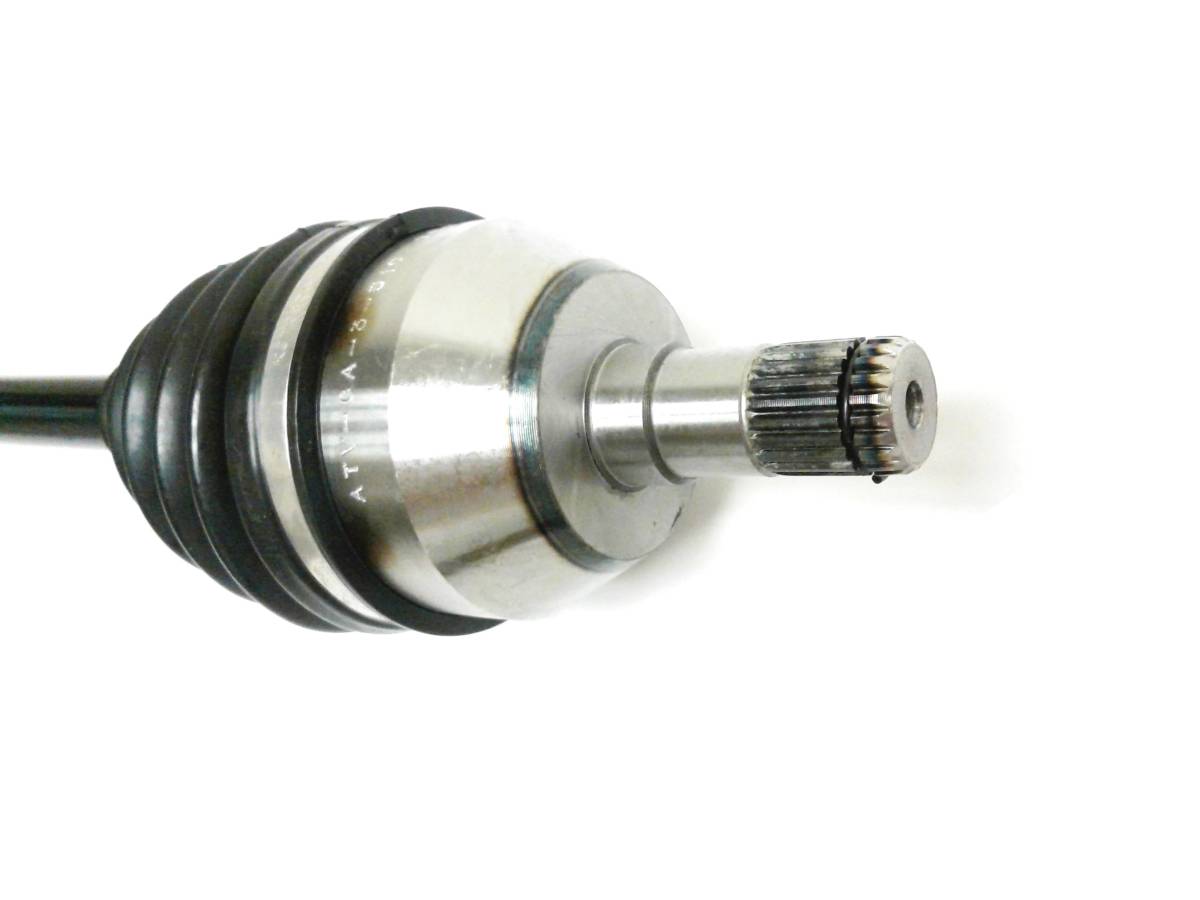

This is a pair of new Front CV axles for a Can-Am Maverick X3.

They fit the following 4x4 models:

2017-2018 ... Maverick X3/X3 Turbo STD & XDS-DPS

2017-2018 ... Maverick X3 Max/X3 Max Turbo STD & XDS-DPS

2018 ... Maverick X3 900 HO

2019 ... Maverick X3 Turbo/Turbo R STD

2019 ... Maverick X3 Max Turbo R

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 29 (both)
  • Compressed Length: Left - 778 mm, Right - 735 mm
  • Replaces Can-Am OEM # (left) 705401686, 705402097, (right) 705401687, 705402098
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $154.99
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT & RIGHT: 2017-2018 Maverick X3/X3 Turbo STD & XDS-DPS, 2017-2018 Maverick X3 Max/X3 Max Turbo STD & XDS-DPS, 2018 Maverick X3 900 HO, 2019 Maverick X3 Turbo/Turbo R STD, 2019 Maverick X3 Max Turbo R.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length: Left - 778 mm, Right - 735 mm, Inboard Spline Count - 21 (both), Outboard Spline Count - 29 (both).
  • Replaces Can-Am OEM # (left) 705401686, 705402097, (right) 705401687, 705402098.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2019Can-AmMaverick X34x4 Turbo DPS
    2018Can-AmMaverick X34x4 Turbo DPS
    2019Can-AmMaverick X3 Max R4x4 Turbo DPS
    2017Can-AmMaverick X3 Max R4x4 Turbo DPS
    2017Can-AmMaverick X3 Max R4x4 XDS Turbo DPS
    2019Can-AmMaverick X3 R4x4 Turbo DPS
    2019Can-AmMaverick X3 R4x4 XDS Turbo DPS
    2018Can-AmMaverick X3 R4x4 XMR Turbo DPS
    2017Can-AmMaverick X3 R4x4 Turbo DPS
    2017Can-AmMaverick X3 R4x4 XDS Turbo DPS

    Details

    • CA-124/CA-224
    • CA-124/CA-224
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 28.0 lbs.
    • W10.0000” x H5.0000” x L32.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
