CV Axle Set for Honda Rancher 420 IRS 4x4 2009-2014

Location on vehicle: Front,Rear,Left,Right

HO-306/HO-306/HO-321/HO-322

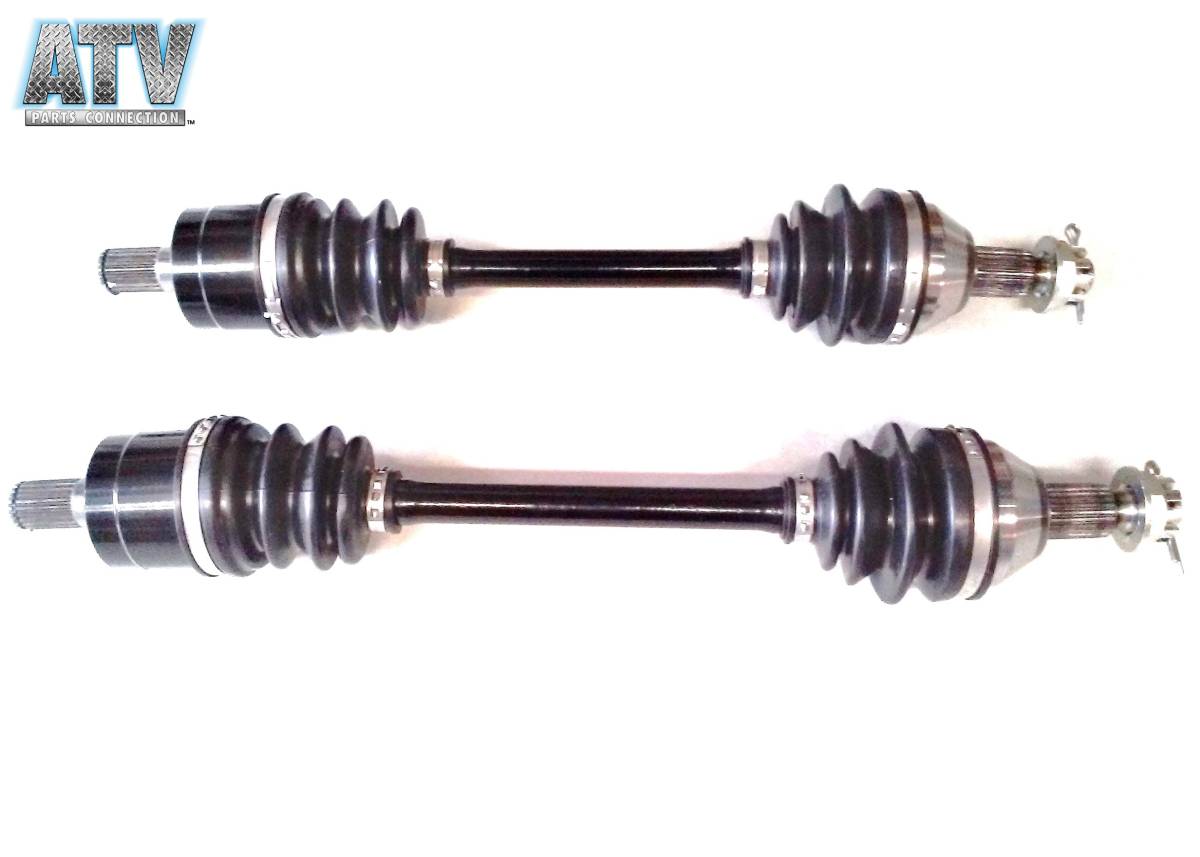

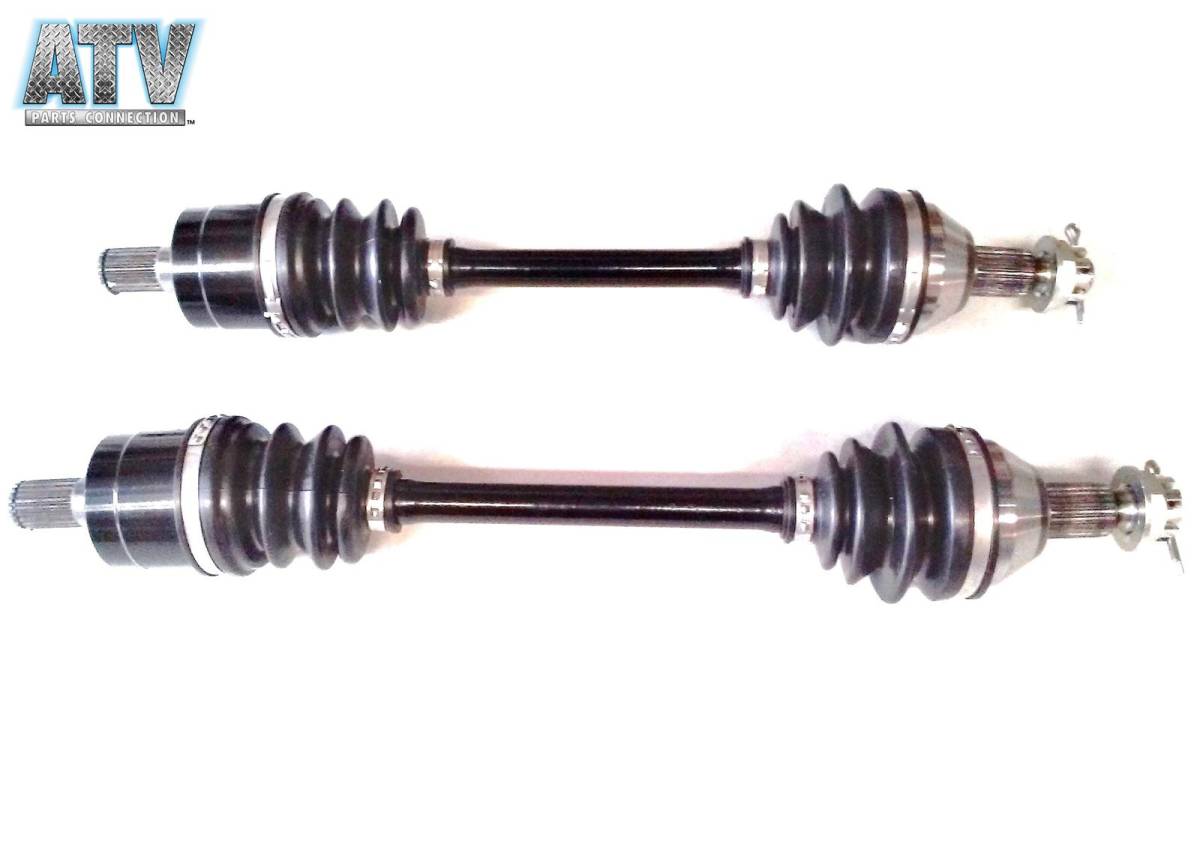

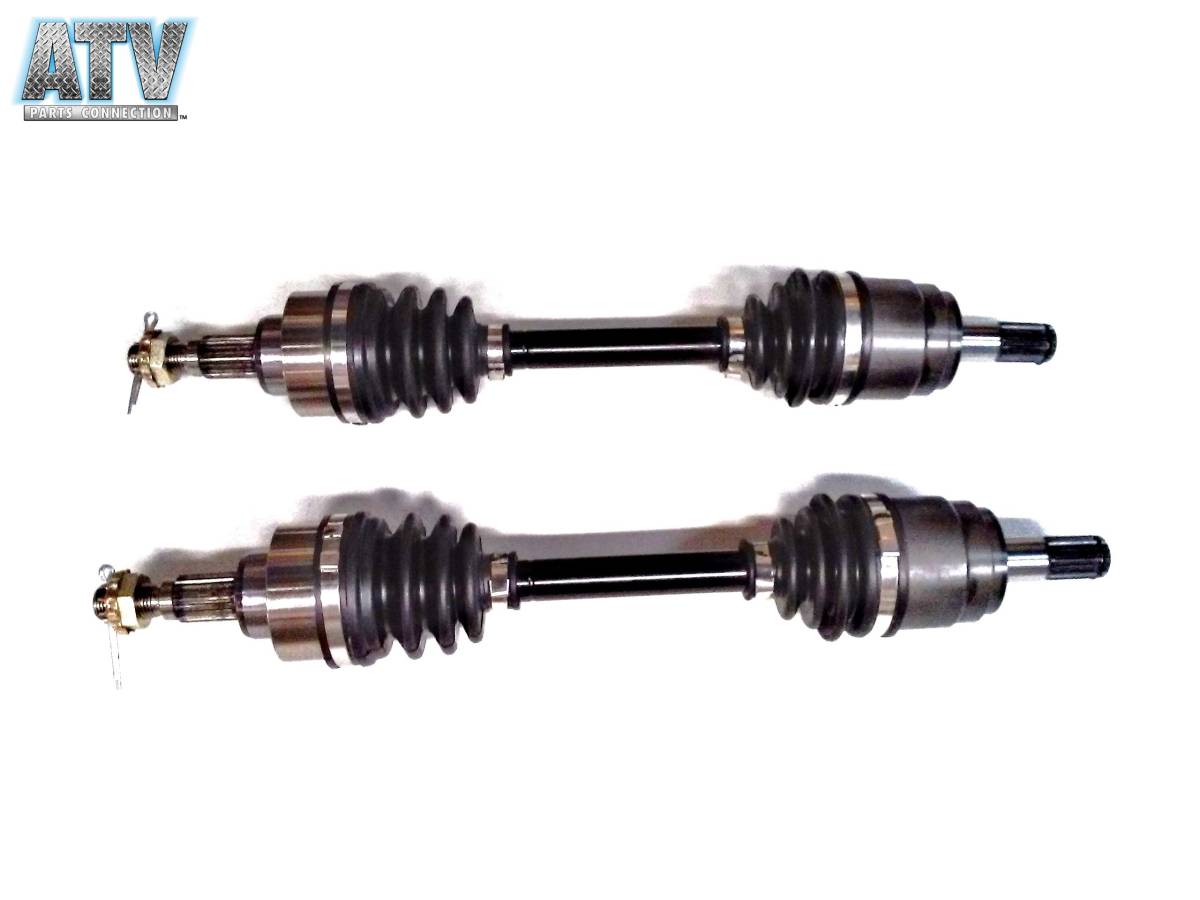

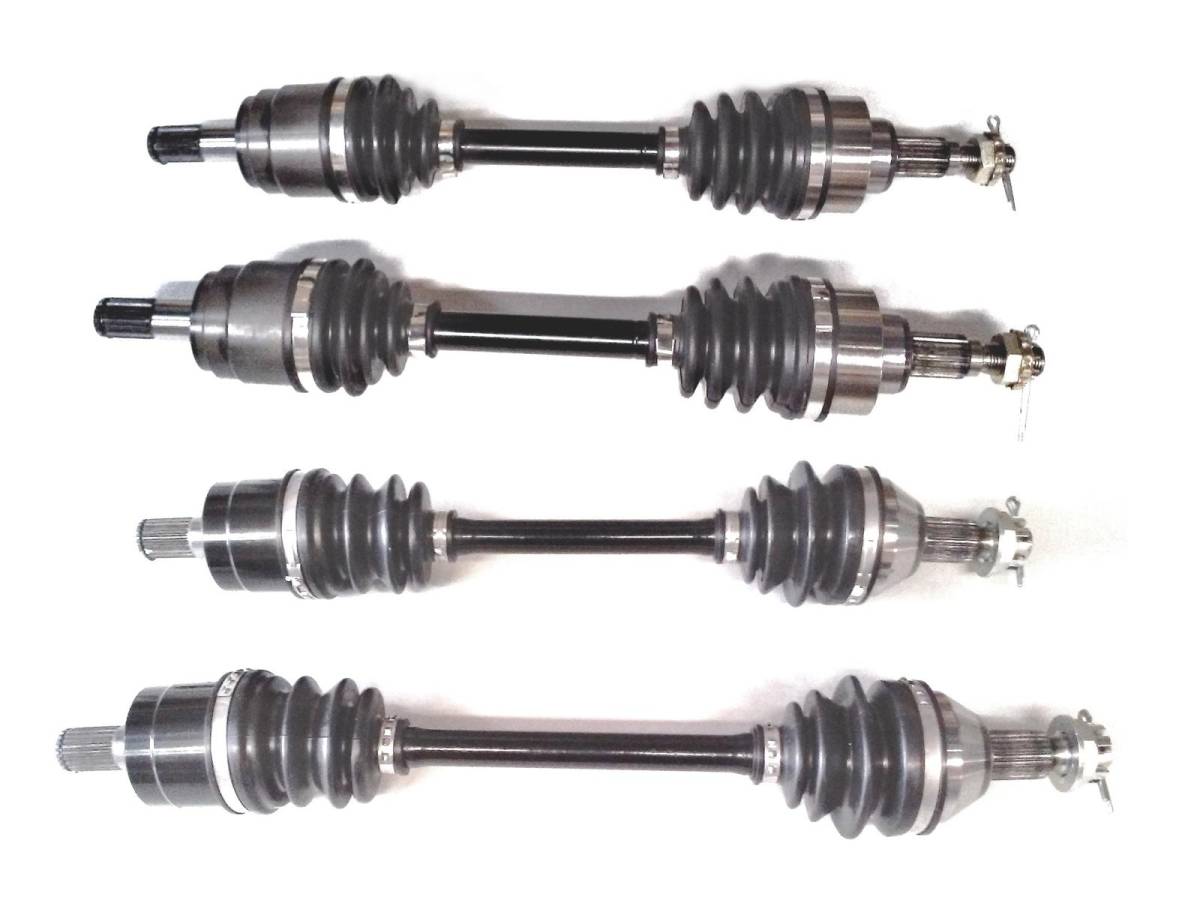

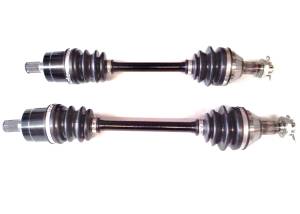

This is a set of 4 new CV axles for a Honda ATV.

They will fit the following models:

2009-2013 Rancher 420 IRS

*made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: Fronts - 20, Rears - 22
  • Outboard CV joint spline count: Fronts - 21, Rears - 24
  • Compressed overall axle length (mm): FL- 455.5, FR- 455.5, RL- 472, RR- 500.5
Limited Supply: only 5 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $199.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits the 2009-2014 Honda Rancher 420 IRS 4x4 ATV. Set includes 4 CV axles.
  • Features stronger than OEM chromoly-forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Inboard CV joint spline count: Fronts- 20, Rears- 22, Outboard CV joint spline count: Fronts- 21, Rears 24, Compressed overall axle length (mm): FL- 455.5, FR- 455.5, RL- 472, RR- 500.5.
  • Replaces Honda OEM # (fronts) 42250-HN5-671, 42350-HN5-671, 42220-HM7-830, 42220-HM7-003, (rears) 42350-HP7-A01, 42220-HP7-A01, 42250-HP7-A01.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Application List

    YearMakeModelSubmodelNotes
    2014HondaRancher 420TRX420FA 4x4 AT
    2014HondaRancher 420TRX420FPA 4x4 AT EPS
    2013HondaRancher 420TRX420FA 4x4 AT
    2013HondaRancher 420TRX420FPA 4x4 AT EPS
    2012HondaRancher 420TRX420FA 4x4 AT
    2012HondaRancher 420TRX420FPA 4x4 AT EPS
    2011HondaRancher 420TRX420FA 4x4 AT
    2011HondaRancher 420TRX420FPA 4x4 AT EPS
    2010HondaRancher 420TRX420FA 4x4 AT
    2010HondaRancher 420TRX420FPA 4x4 AT EPS
    2009HondaRancher 420TRX420FA 4x4 AT
    2009HondaRancher 420TRX420FPA 4x4 AT EPS

    Details

    • HO-306/HO-306/HO-321/HO-322
    • HO-306/HO-306/HO-321/HO-322
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 32.0 lbs.
    • W10.0000” x H10.0000” x L26.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
