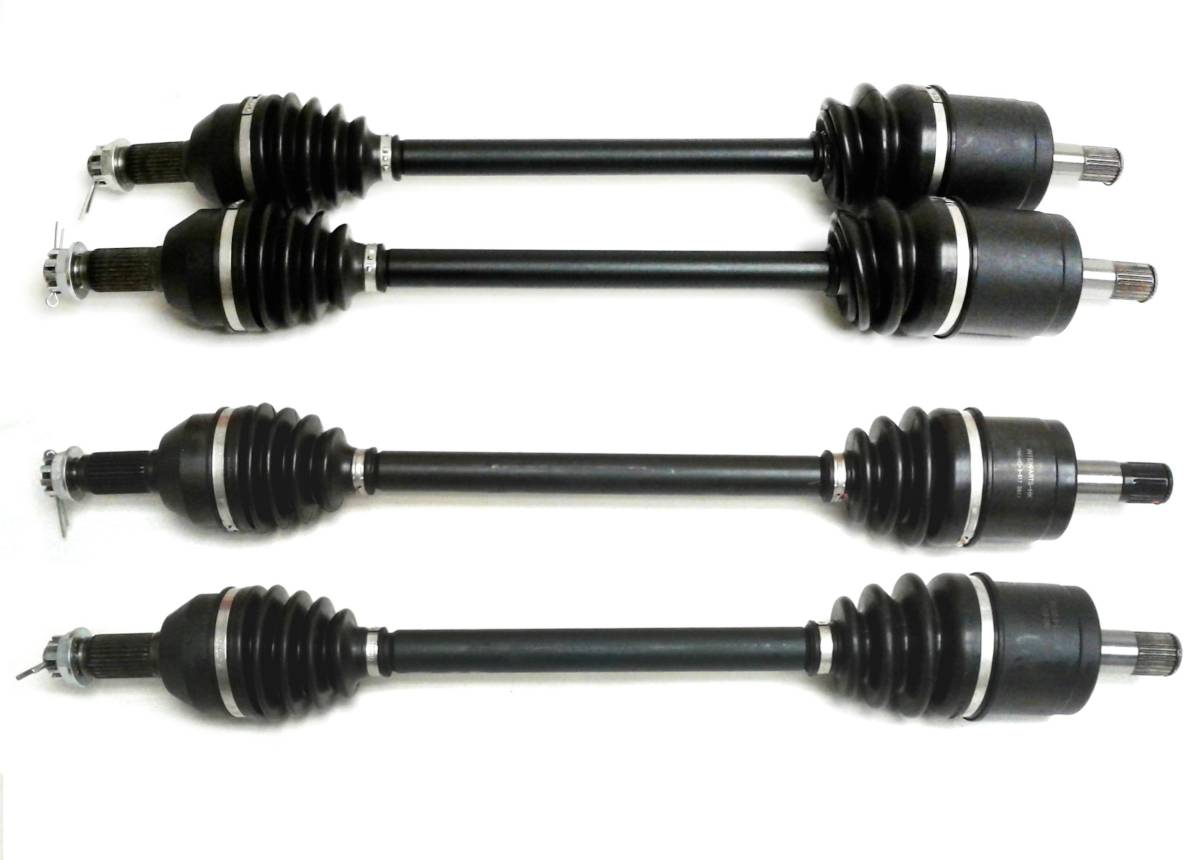

CV Axle Set for Honda Pioneer 1000 & 1000-5 2016-2021

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
HO-125/HO-125/HO-328/HO-329
This is a set of new CV axles for a Honda UTV.

It fits the following models:

2016-2021 ... Pioneer 1000 (excluding LE)

2016-2021 ... Pioneer 1000-5 (excluding LE)

*please note these will not fit any Limited Edition models

*axles made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: Fronts - 25, Rears - 27
  • Outboard CV joint spline count: Fronts - 28, Rears - 28
  • Compressed overall axle length (mm): Left: FL - 711, FR - 711, RL - 720, RR - 768
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $359.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2021HondaPioneer 1000SXS1000M3
2021HondaPioneer 1000SXS1000M3 Deluxe
2020HondaPioneer 1000SXS1000M3
2020HondaPioneer 1000SXS1000M3 Deluxe
2019HondaPioneer 1000SXS1000M3
2019HondaPioneer 1000SXS1000M3 EPS
2018HondaPioneer 1000SXS10M3P EPS
2018HondaPioneer 1000SXS1000M3
2018HondaPioneer 1000SXS1000M3 EPS
2017HondaPioneer 1000SXS1000M3
2017HondaPioneer 1000SXS1000M3 EPS
2016HondaPioneer 1000SXS1000M3
2016HondaPioneer 1000SXS1000M3 EPS
2021HondaPioneer 1000-5SXS1000M5
2021HondaPioneer 1000-5SXS1000M5 Deluxe
2020HondaPioneer 1000-5SXS1000M5
2020HondaPioneer 1000-5SXS1000M5 Deluxe
2019HondaPioneer 1000-5SXS1000M5
2019HondaPioneer 1000-5SXS1000M5 Deluxe
2018HondaPioneer 1000-5SXS10M5D Deluxe
2018HondaPioneer 1000-5SXS1000M5
2018HondaPioneer 1000-5SXS1000M5 Deluxe
2017HondaPioneer 1000-5SXS1000M5
2017HondaPioneer 1000-5SXS1000M5 Deluxe
2016HondaPioneer 1000-5SXS1000M5
2016HondaPioneer 1000-5SXS1000M5 Deluxe

Product Notes

  • Fits the following Honda UTV models: 2016-2021 Pioneer 1000/1000-5 (Base, Premium, & Deluxe models). Please note this will not fit 'Limited Edition' models.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # (fronts) 44350-HL4-A01, (rears) 42350-HL4-F01, 42250-HL4-F01. Compressed axle length (mm): FL - 711, FR - 711, RL - 720, RR - 768. Inboard spline count: fronts: 25, rears: 27, Outboard spline count: fronts: 28, rears: 28.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 4 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • HO-125/HO-125/HO-328/HO-329
    • HO-125/HO-125/HO-328/HO-329
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 42.0 lbs.
    • W10.0000” x H10.0000” x L27.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
