Front CV Axle Pair for Honda Big Red 700 2009-2013 4x4

Location on vehicle: Front,Left,Right

HO-123/HO-223

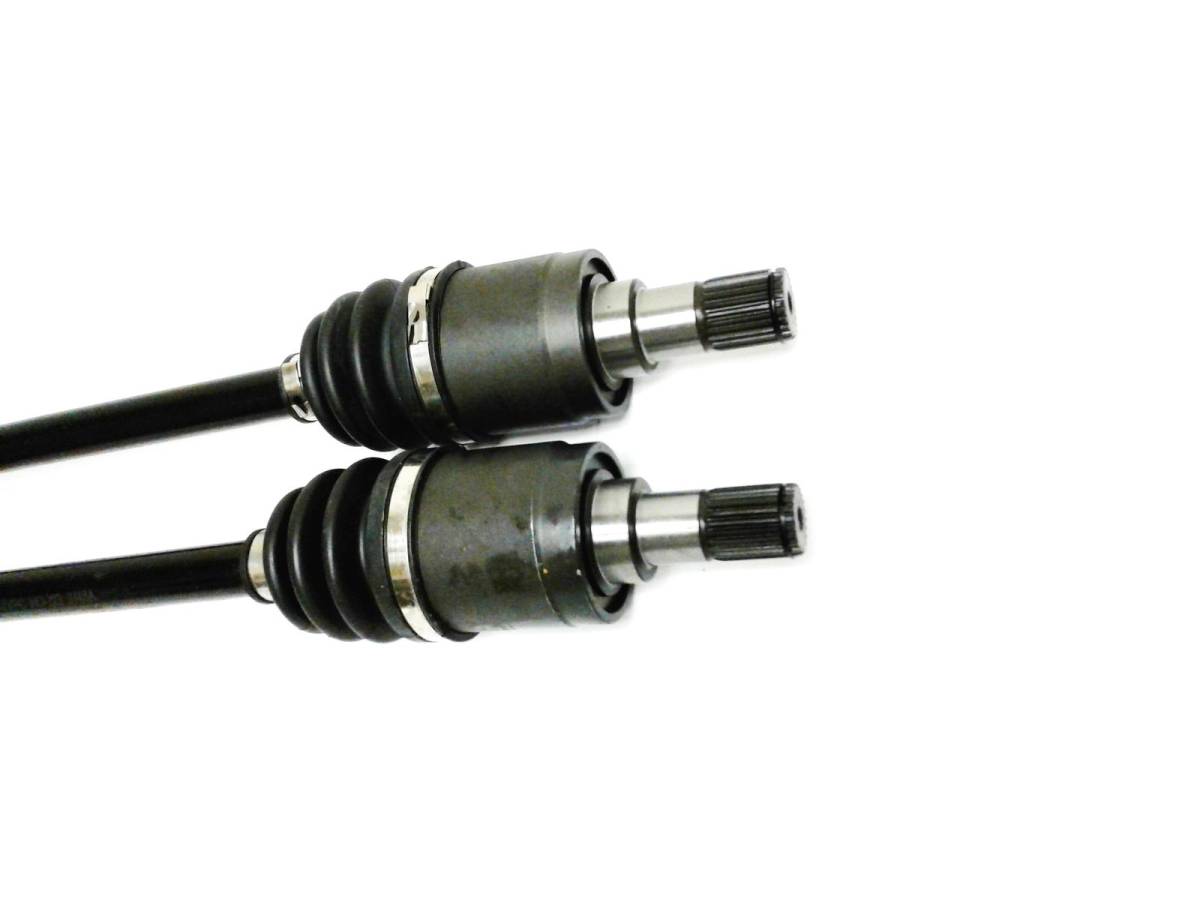

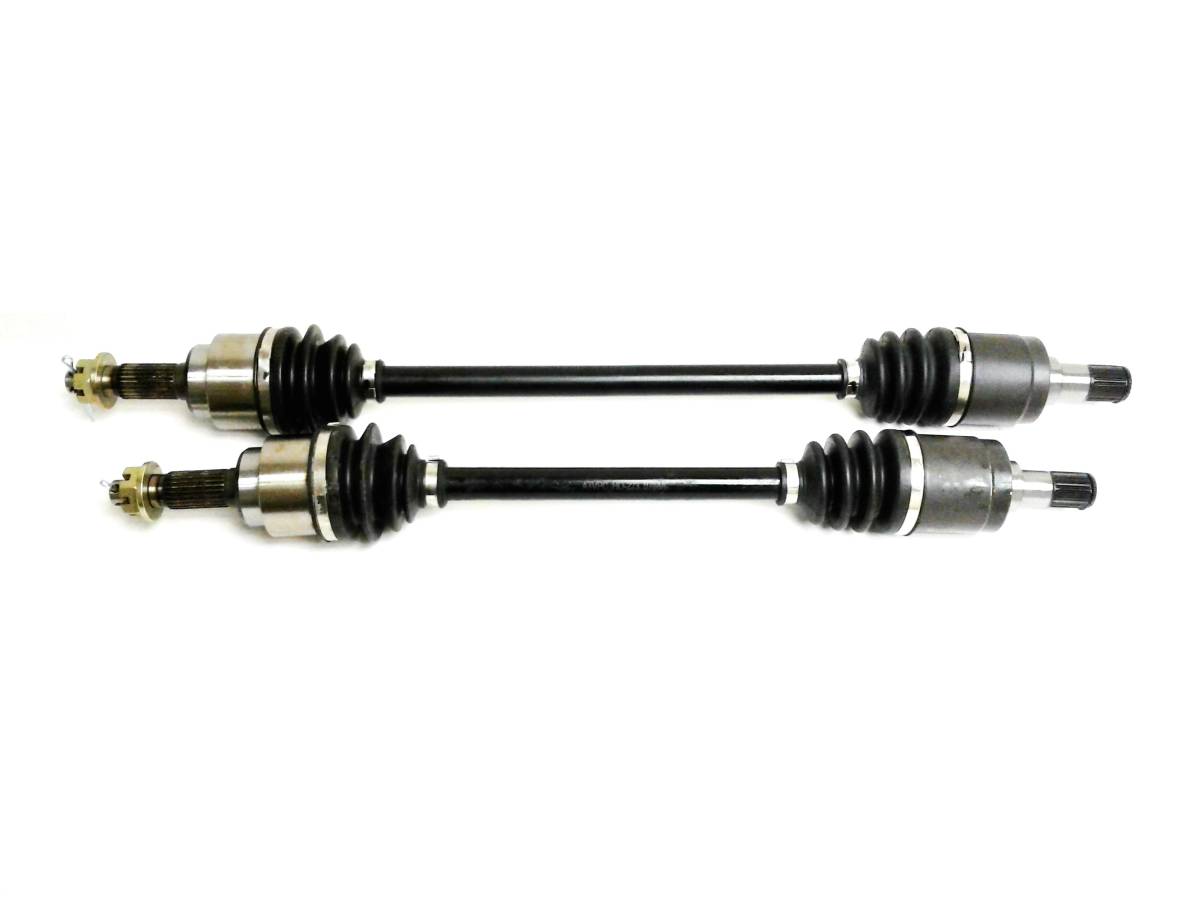

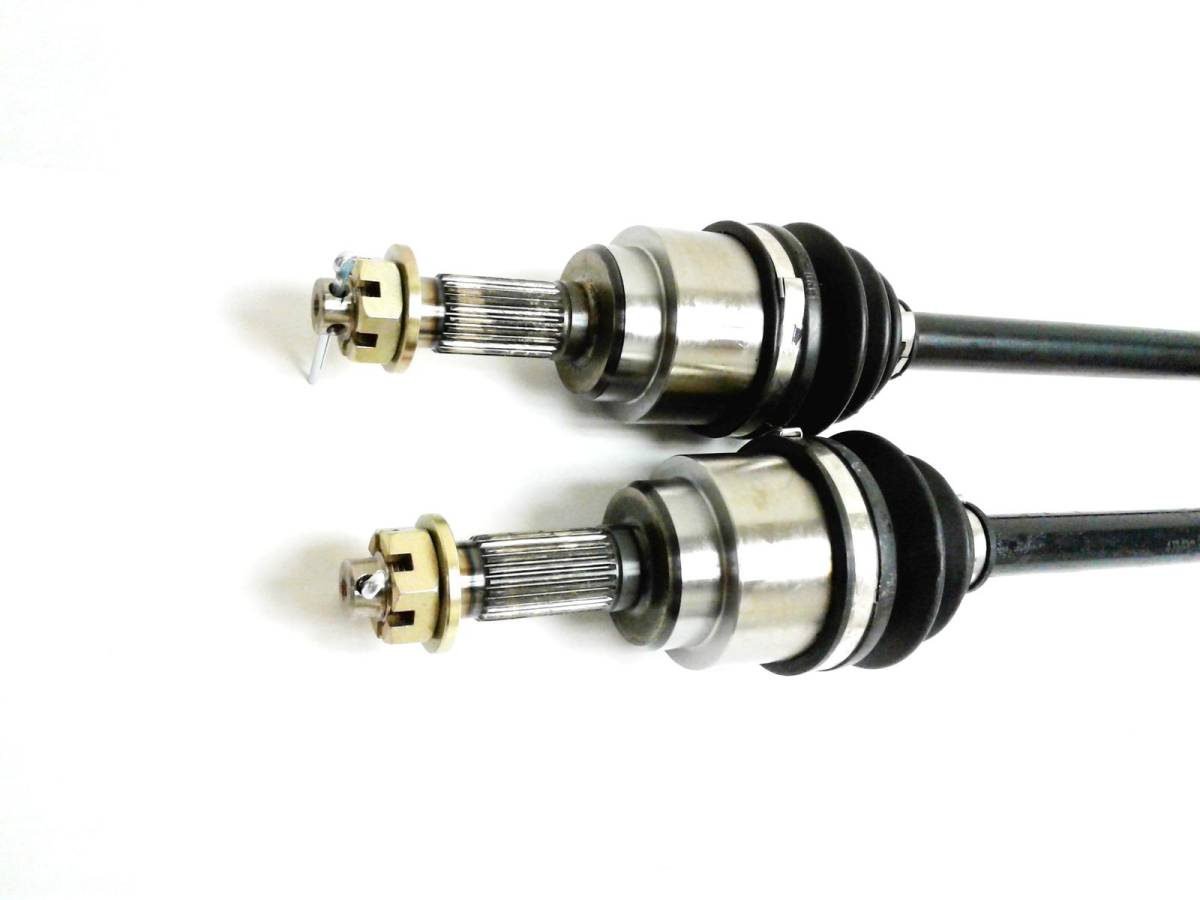

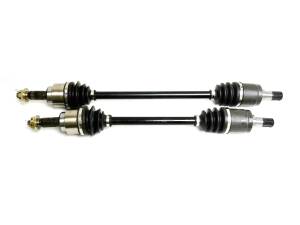

This is a pair of new Front CV axles for a Honda UTV.

They fit the following 4x4 applications:

2009-2013 ... Big Red 700

(MUV700 - All Models)

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM, chromoly-forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • CV joints fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: Left- 25, Right- 23
  • Outboard CV joint spline count: Left- 24, Right- 24
  • Compressed overall axle length: Left-707 mm, Right 609.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $129.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits all Big Red 700 - MUV700 models from 2009-2013.
  • Axles feature a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.
  • Replaces OE # (left) 44350-HL1-A01, 44230-HL1-A01, (right) 44250-HL1-A01, 42220-HL1-A01.
  • Compressed Length: Left-707 mm, Right 609.5 mm, Inboard Spline Count- Left - 25, Right - 23, Outboard Spline Count- Left 24, Right 24.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2009HondaBig Red 700MUV700
    2010HondaBig Red 700MUV700
    2011HondaBig Red 700MUV700
    2012HondaBig Red 700MUV700
    2013HondaBig Red 700MUV700

    Details

    • HO-123/HO-223
    • HO-123/HO-223
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 22.0 lbs.
    • W10.0000” x H5.0000” x L28.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
