CV Axle Set for Honda Big Red 700 2009-2013 4x4

Location on vehicle: Front,Rear,Left,Right

HO-123/HO-223/HO-323/HO-324

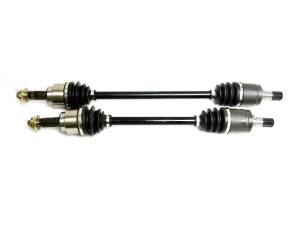

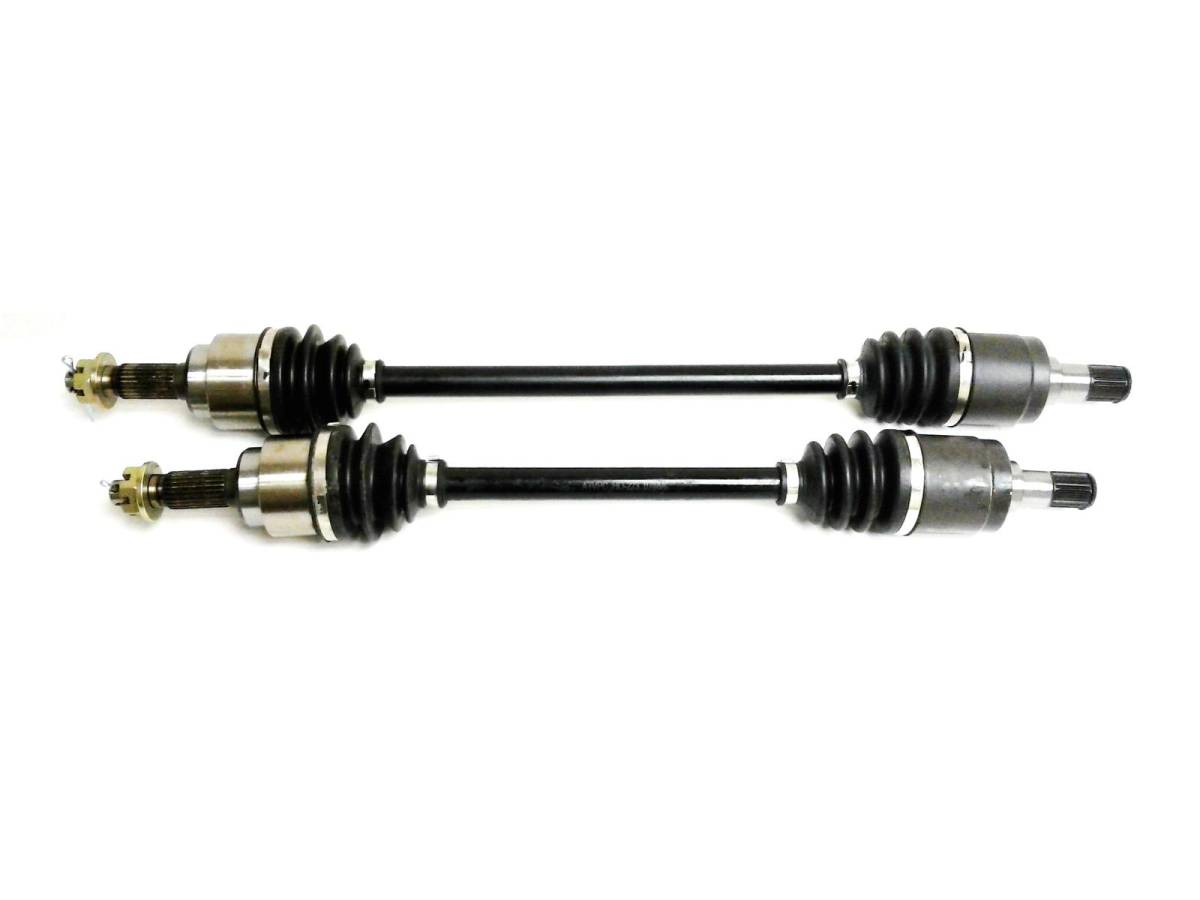

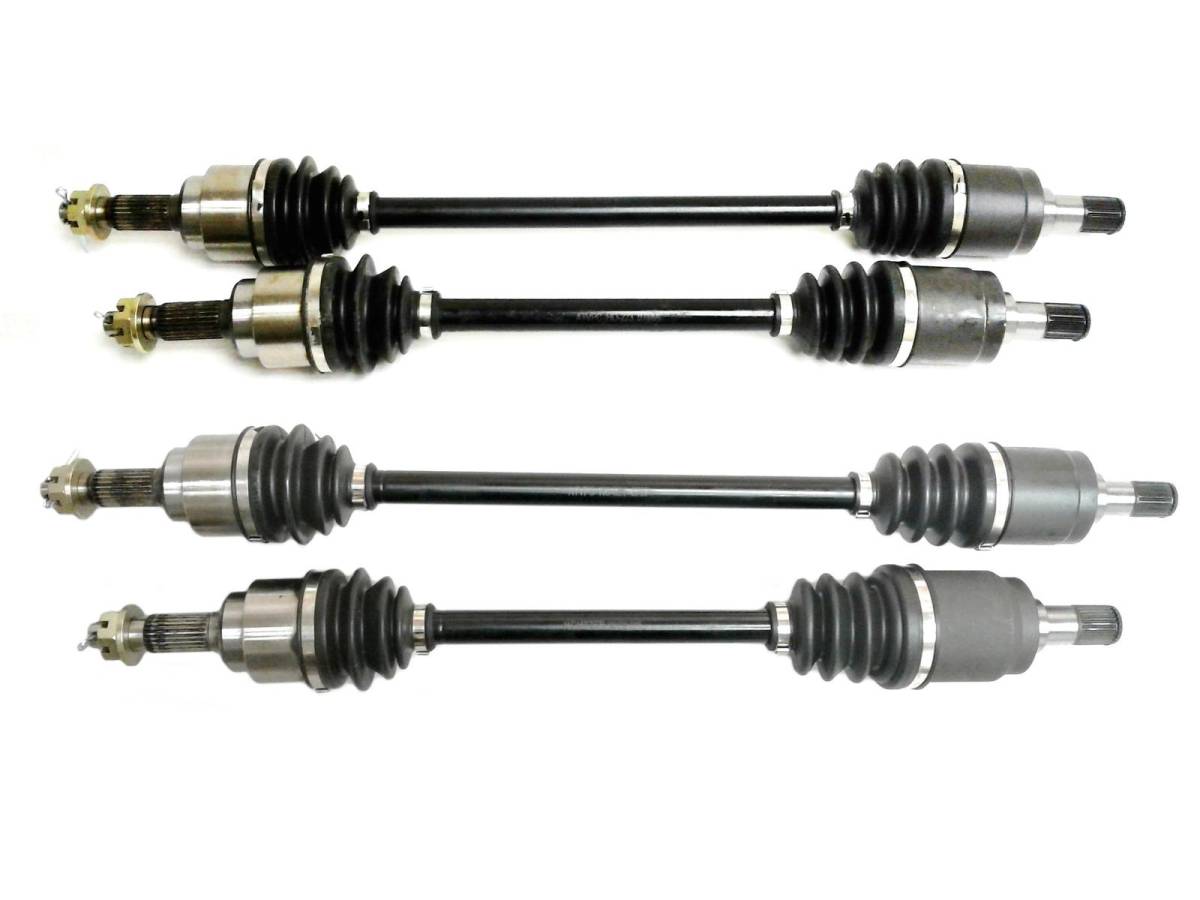

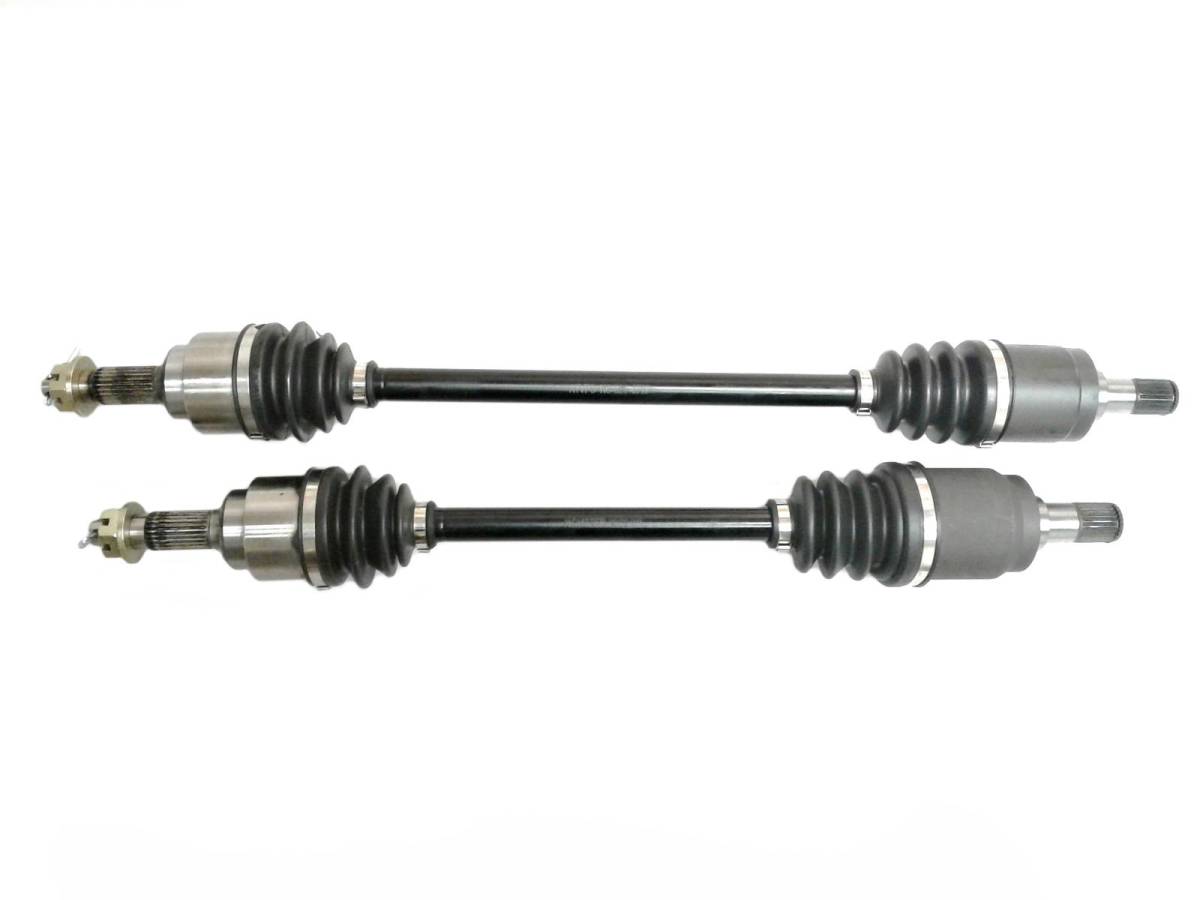

This is a set of Front & Rear CV axles for a Honda UTV.

They fit the following 4x4 applications:

2009-2013 ..... Big Red 700

Front & Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly-hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Front / Rear LH Inboard CV joint spline count: 25
  • Front / Rear LH Outboard CV joint spline count: 24
  • Front / Rear RH Inboard CV joint spline count: 23
  • Front / Rear RH Outboard CV joint spline count: 24
  • Compressed overall axle length: FL 707 mm, FR 609.5 mm, RL 617 mm, RR 699 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $269.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2013HondaBig Red 700MUV700
2012HondaBig Red 700MUV700
2011HondaBig Red 700MUV700
2010HondaBig Red 700MUV700
2009HondaBig Red 700MUV700

Product Notes

  • Fits the following Honda UTV models: 2009-2013 Big Red 700 - MUV700.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OE # (fronts) 44350-HL1-A01, 44230-HL1-A01, 44250-HL1-A01, (rears) 42350-HL1-A01, 42230-HL1-A01, 42250-HL1-A01. Compressed Length: FL 707 mm, FR 609.5 mm, RL 617 mm, RR 699 mm.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Warranty

    1 year factory defect limited warranty

    Details

    • HO-123/HO-223/HO-323/HO-324
    • HO-123/HO-223/HO-323/HO-324
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 45.0 lbs.
    • W10.0000” x H10.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
