CV Axle Set for Honda Pioneer 500 2015-2016 4x4 SXS500 UTV

Location on vehicle: Front,Rear,Left,Right

HO-137/HO-237/HO-337/HO-337

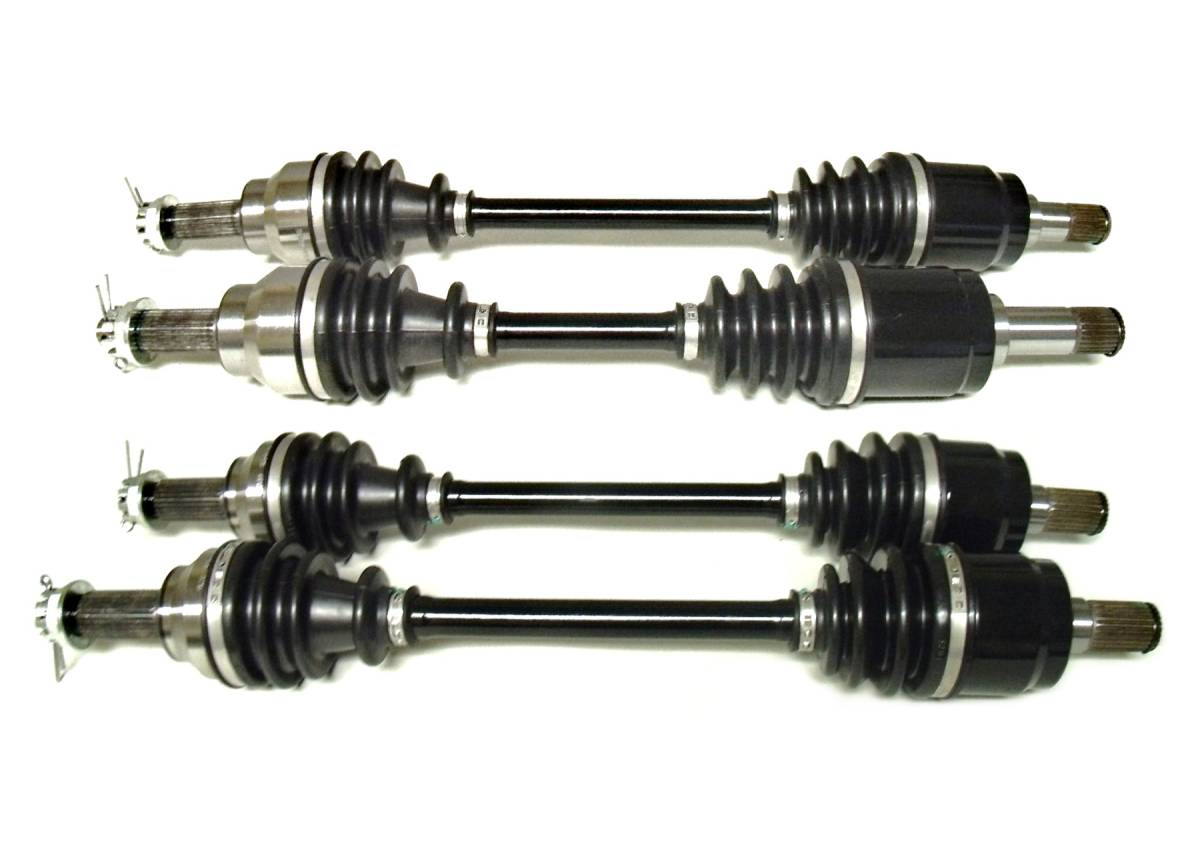

This is a set of 4 new CV axles for a Honda UTV.

They fit the following 4x4 models:

2015-2016 ... Pioneer 500

*Not intended for use in lifted vehicles

Product features:

  • Set includes: 2 front and 2 rear CV axles
  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: Fronts - 25, Rears - 25
  • Outboard CV joint spline count: Fronts - 24, Rears - 26
  • Compressed overall axle length (mm): FL: 599, FR: 520, RL: 562, RR: 562
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $289.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2016HondaPioneer 500SXS500M2
2015HondaPioneer 500SXS500M2

Product Notes

  • Fits the following Honda UTV models: 2015-2016 Pioneer 500 4x4 (SXS500).
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # (fronts) 44250-HL5-A01, 44220-HL5-A01, 44350-HL5-A01, 44320-HL3-A01, (rears) 42250-HL5-A01, 42350-HL5-A01, 42220-HL3-A01. Inboard splines: fronts - 25, rears - 25, Outboard splines: fronts - 24, rears - 26, Compressed axle length (mm): FL- 599, FR- 520, RL- 562, RR- 562.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

  • 4 axles
  • Warranty

    1 year factory defect limited warranty

    Details

    • HO-137/HO-237/HO-337/HO-337
    • HO-137/HO-237/HO-337/HO-337
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 42.0 lbs.
    • W10.0000” x H10.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
