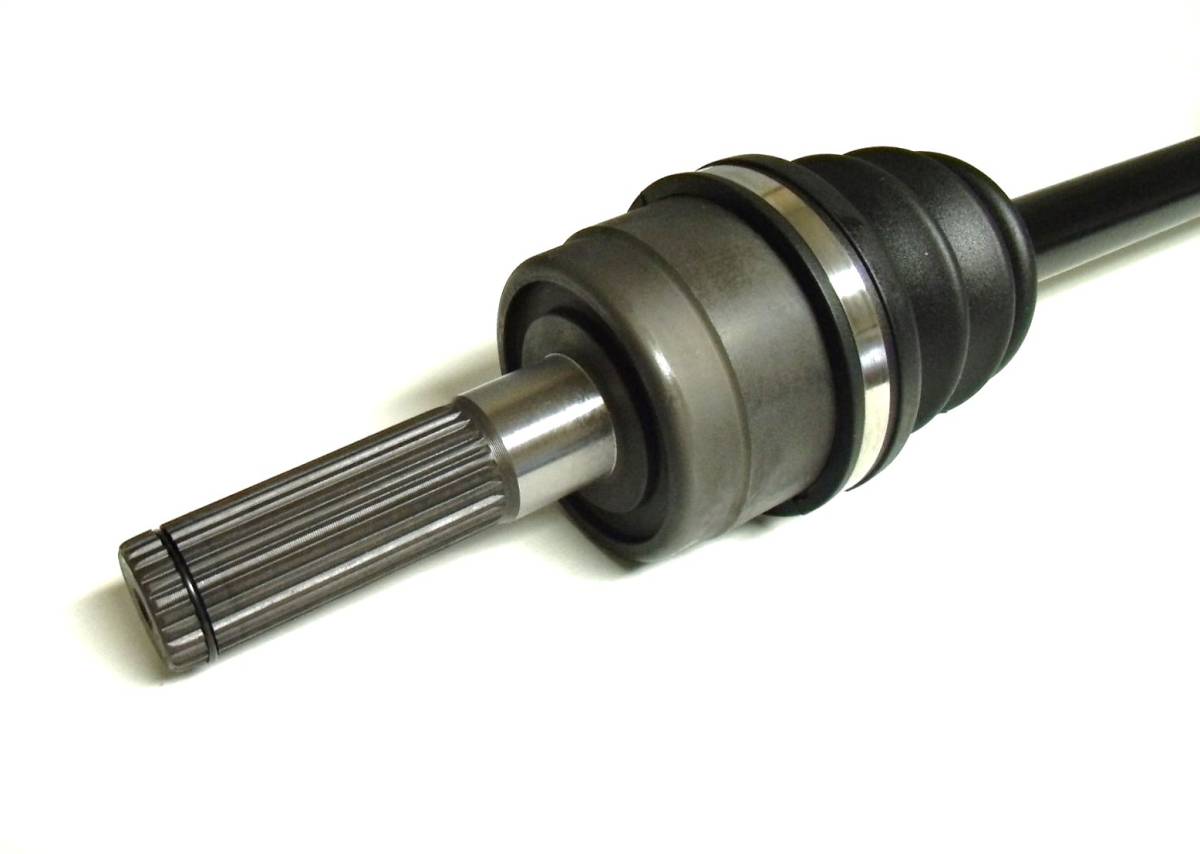

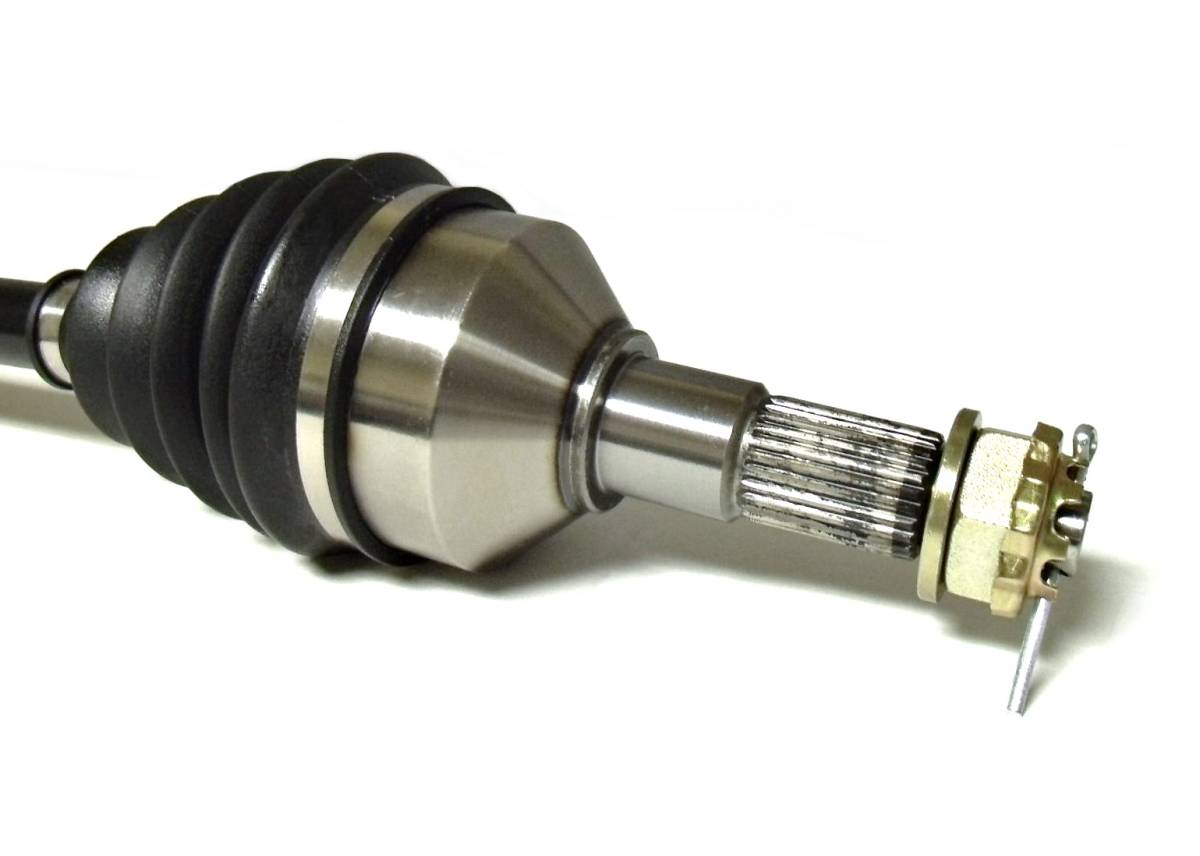

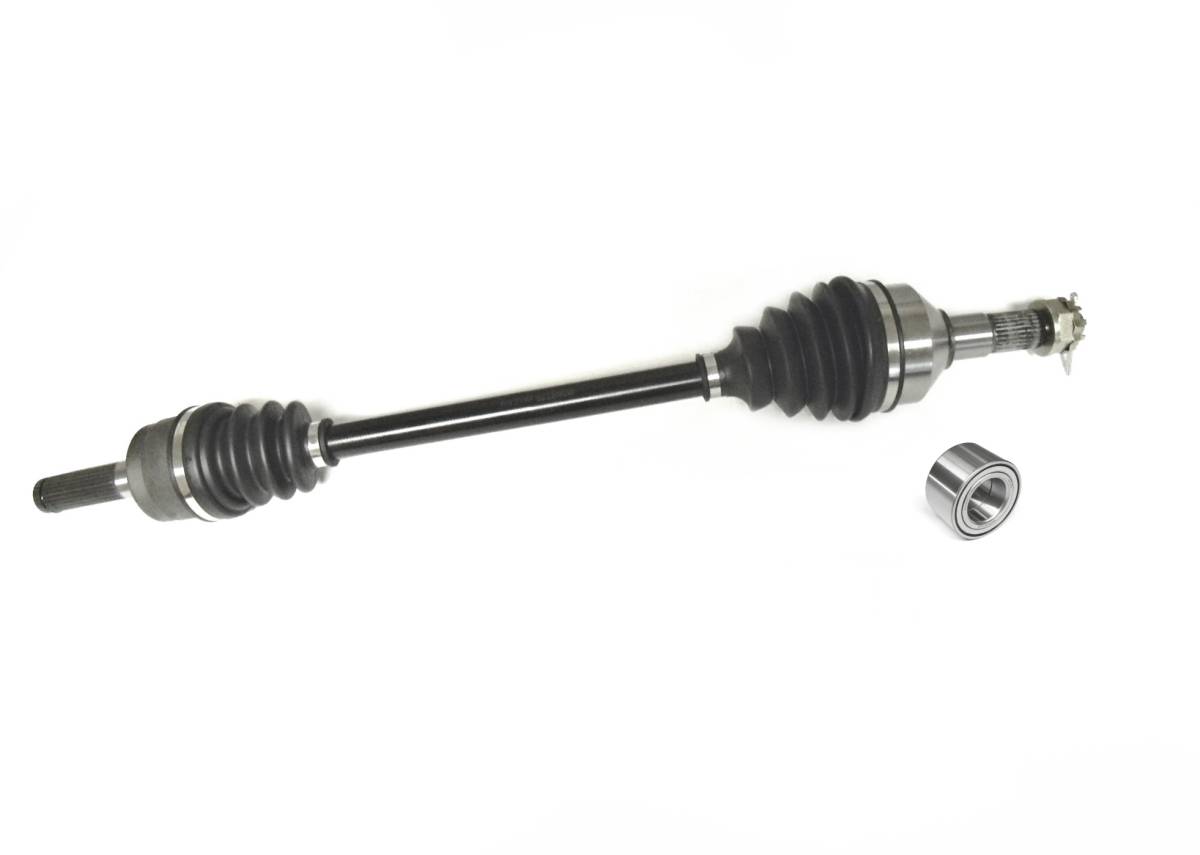

Precision Front Left CV Axle & Brg for Kawasaki 59266-0047 Quality Tested Heat-Treated 4140 Chromoly Steel Exact Fit ATVPC
Location on vehicle: Front,Left
KW-137/WB-1496
This is a new OE type CV axle and wheel bearing.
Precision machined and made as a direct replacement, no modifications necessary.
Quality tested for smooth articulation and reliable performance.
Ships fully-assembled and ready to install.
*made as an OE replacement, and not guaranteed to work with lifted vehicles or modifications of any kind
Product details:
- Fits front left (driver side) on the the following Kawasaki UTV models: 2012-2013 Teryx-4 750, 2014-2021 Teryx 800, 2014-2021 Teryx-4 800. Please note this does not fit 2021 'S' editions.
- Features a 4140 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearing is usually shipped inside the axle box.

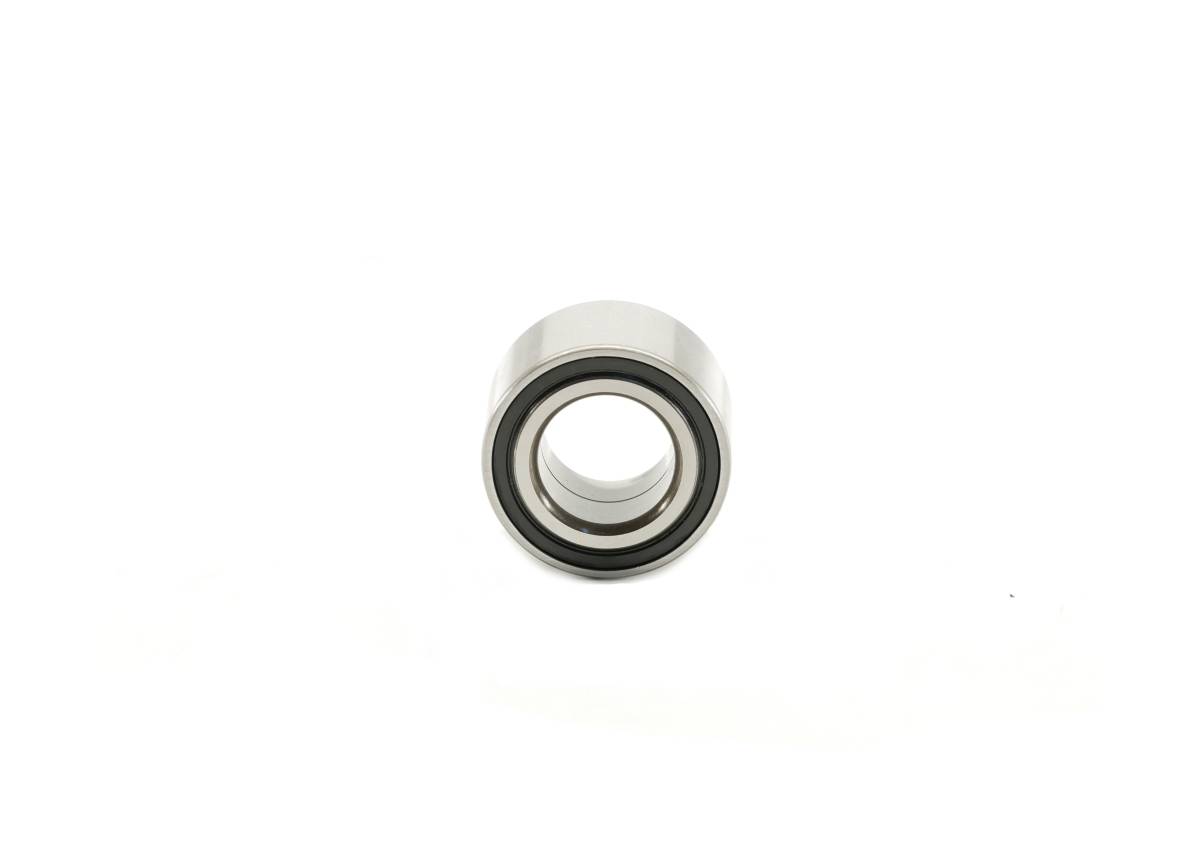

- Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated. High speed bearing manufactured for long life. Double lip seals made to keep grease in and dirt out.
- Replaces OEM # 59266-0047, 59266-0707. Compressed overall length: 724 mm, Inboard CV joint spline count: 26, Outboard CV joint spline count: 26.
- Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing:
$114.99
Application List
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2013 | Kawasaki | Teryx4 750 | KRT750A 4x4 | |
| 2013 | Kawasaki | Teryx4 750 | KRT750B 4x4 EPS | |
| 2013 | Kawasaki | Teryx4 750 | KRT750C 4x4 LE EPS | |
| 2013 | Kawasaki | Teryx4 750 | KRT750D 4x4 EPS | |
| 2012 | Kawasaki | Teryx4 750 | KRT750A 4x4 | |
| 2012 | Kawasaki | Teryx4 750 | KRT750B 4x4 EPS | |
| 2012 | Kawasaki | Teryx4 750 | KRT750C 4x4 LE EPS | |
| 2012 | Kawasaki | Teryx4 750 | KRT750D 4x4 EPS | |
| 2023 | Kawasaki | Teryx4 800 | KRT800 | |
| 2022 | Kawasaki | Teryx4 800 | KRT800 | |
| 2021 | Kawasaki | Teryx4 800 | KRT800 | |
| 2021 | Kawasaki | Teryx4 800 | KRT800 Camo | |
| 2021 | Kawasaki | Teryx4 800 | KRT800 LE | |
| 2020 | Kawasaki | Teryx4 800 | KRT800 | |
| 2020 | Kawasaki | Teryx4 800 | KRT800 Camo | |
| 2020 | Kawasaki | Teryx4 800 | KRT800 LE | |
| 2019 | Kawasaki | Teryx4 800 | KRT800 | |
| 2019 | Kawasaki | Teryx4 800 | KRT800 Camo | |
| 2019 | Kawasaki | Teryx4 800 | KRT800 LE | |
| 2018 | Kawasaki | Teryx4 800 | KRT800 | |
| 2018 | Kawasaki | Teryx4 800 | KRT800 Camo | |
| 2018 | Kawasaki | Teryx4 800 | KRT800 LE | |
| 2017 | Kawasaki | Teryx4 800 | KRT800 | |
| 2017 | Kawasaki | Teryx4 800 | KRT800 Camo | |
| 2017 | Kawasaki | Teryx4 800 | KRT800 LE | |
| 2016 | Kawasaki | Teryx4 800 | KRT800 | |
| 2016 | Kawasaki | Teryx4 800 | KRT800 Camo | |
| 2016 | Kawasaki | Teryx4 800 | KRT800 LE | |
| 2015 | Kawasaki | Teryx4 800 | KRT800 | |
| 2015 | Kawasaki | Teryx4 800 | KRT800 Camo | |
| 2015 | Kawasaki | Teryx4 800 | KRT800 LE | |
| 2014 | Kawasaki | Teryx4 800 | KRT800B 4x4 FI | |
| 2014 | Kawasaki | Teryx4 800 | KRT800C 4x4 LE FI | |
| 2014 | Kawasaki | Teryx4 800 | KRT800D 4x4 FI | |
| 2014 | Kawasaki | Teryx4 800 | KRT800N 4x4 FI | |
| 2014 | Kawasaki | Teryx4 800 | KRT800P 4x4 LE FI | |
| 2014 | Kawasaki | Teryx4 800 | KRT800R 4x4 FI | |
| 2023 | Kawasaki | Teryx 800 | KRF800 | |
| 2022 | Kawasaki | Teryx 800 | KRF800 | |
| 2021 | Kawasaki | Teryx 800 | KRF800 | |
| 2021 | Kawasaki | Teryx 800 | KRF800 Camo | |
| 2021 | Kawasaki | Teryx 800 | KRF800 LE | |
| 2020 | Kawasaki | Teryx 800 | KRF800 | |
| 2020 | Kawasaki | Teryx 800 | KRF800 Camo | |
| 2020 | Kawasaki | Teryx 800 | KRF800 LE | |
| 2019 | Kawasaki | Teryx 800 | KRF800 | |
| 2019 | Kawasaki | Teryx 800 | KRF800 Camo | |
| 2019 | Kawasaki | Teryx 800 | KRF800 LE | |
| 2018 | Kawasaki | Teryx 800 | KRF800 | |
| 2018 | Kawasaki | Teryx 800 | KRF800 Camo | |
| 2018 | Kawasaki | Teryx 800 | KRF800 LE | |
| 2017 | Kawasaki | Teryx 800 | KRF800 | |
| 2017 | Kawasaki | Teryx 800 | KRF800 Camo | |
| 2017 | Kawasaki | Teryx 800 | KRF800 LE | |
| 2016 | Kawasaki | Teryx 800 | KRF800 | |
| 2016 | Kawasaki | Teryx 800 | KRF800 Camo | |
| 2016 | Kawasaki | Teryx 800 | KRF800 LE | |
| 2015 | Kawasaki | Teryx 800 | KRF800 | |
| 2015 | Kawasaki | Teryx 800 | KRF800 Camo | |
| 2015 | Kawasaki | Teryx 800 | KRF800 LE |
Product Notes
What's In The Box
Warranty
Limited 2 year, one-time warranty
Details
- KW-137/WB-1496
- KW-137/WB-1496
- CUSTOM
- ATV Parts Connection
- Available
- New
Categories
Shipping Information
- Item Requires Shipping
- 14.0 lbs.
- W5.0000” x H5.0000” x L32.0000”
- Free Ground Shipping
- Free Shipping - Same Day If Ordered Before 3 EST
