Front Left Axle for Can-Am Maverick X3 Turbo STD & XDS 64" 2017-2021, 705402097

Location on vehicle: Front,Left

(0) Reviews: Write first review
CA-126

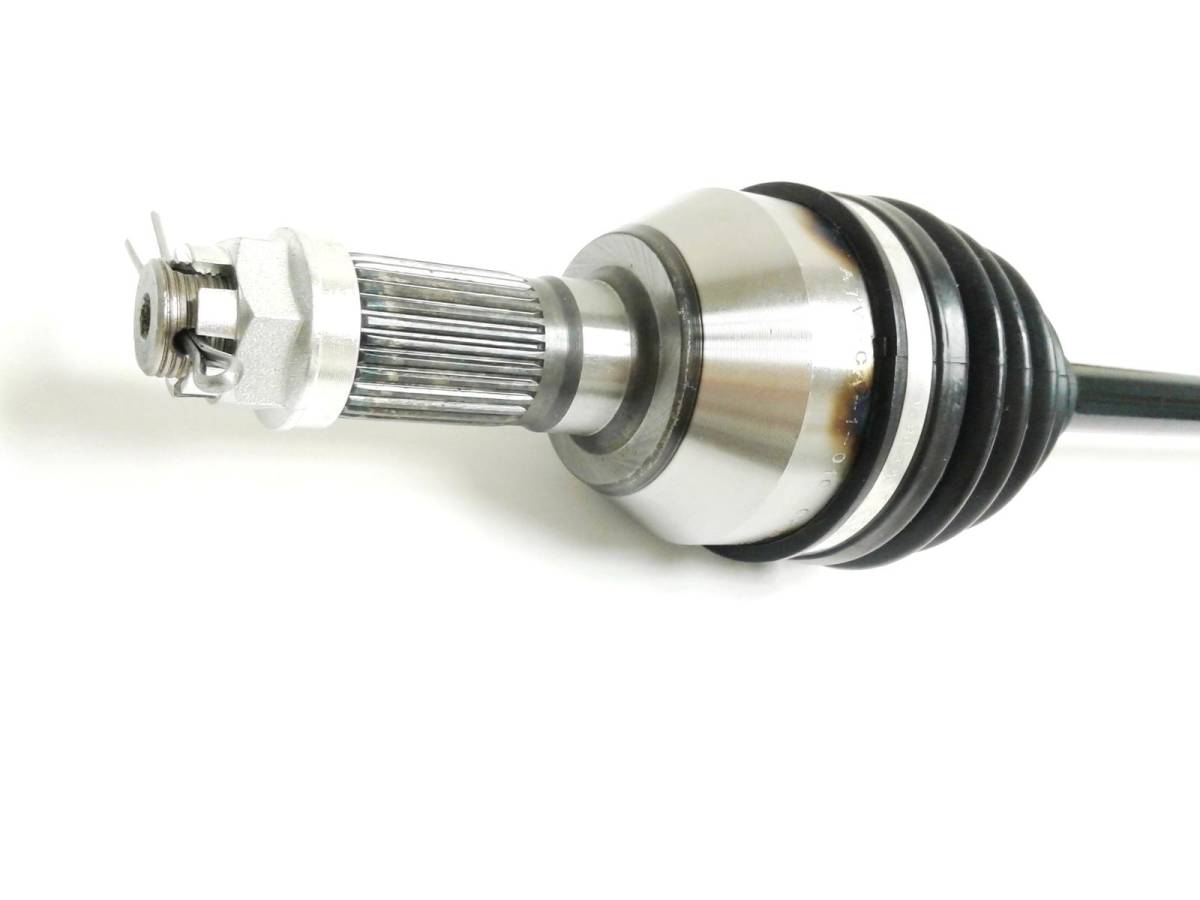

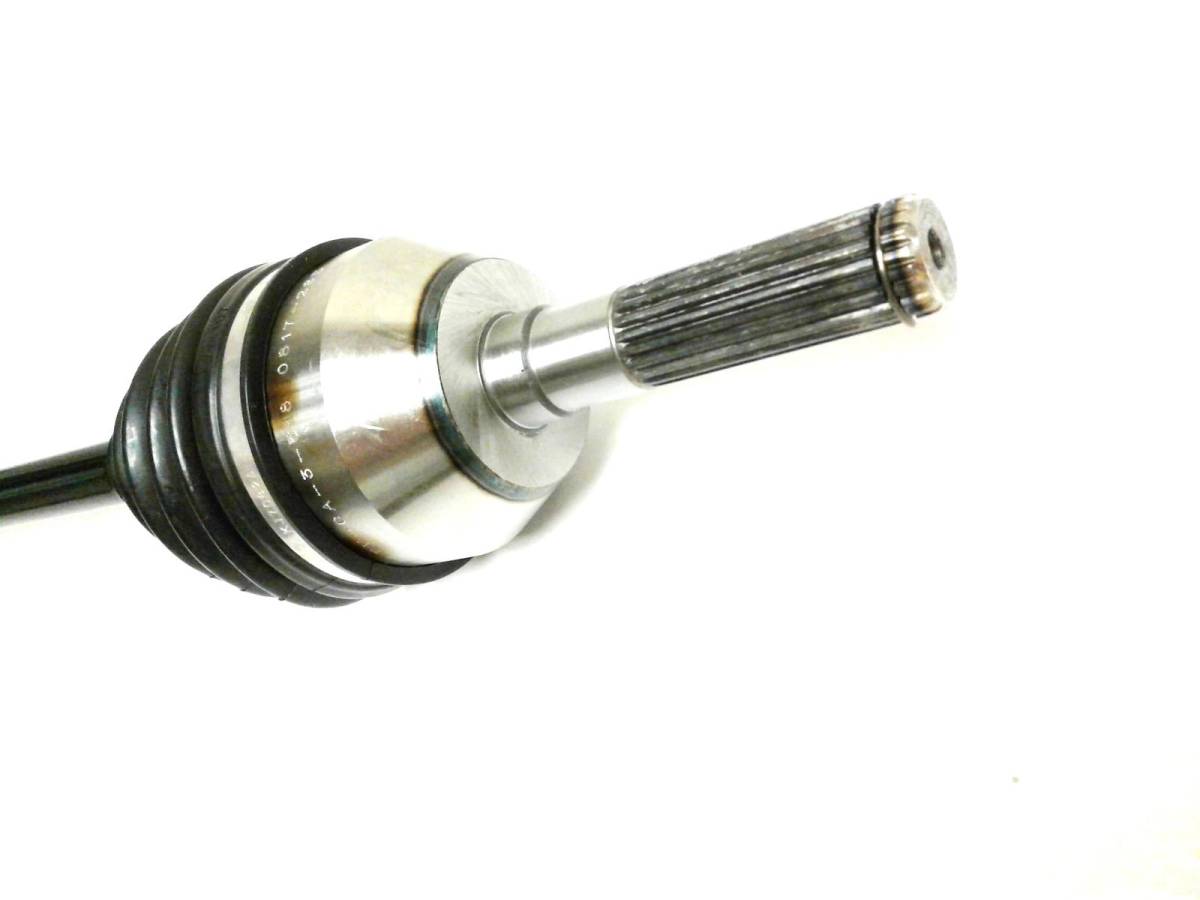

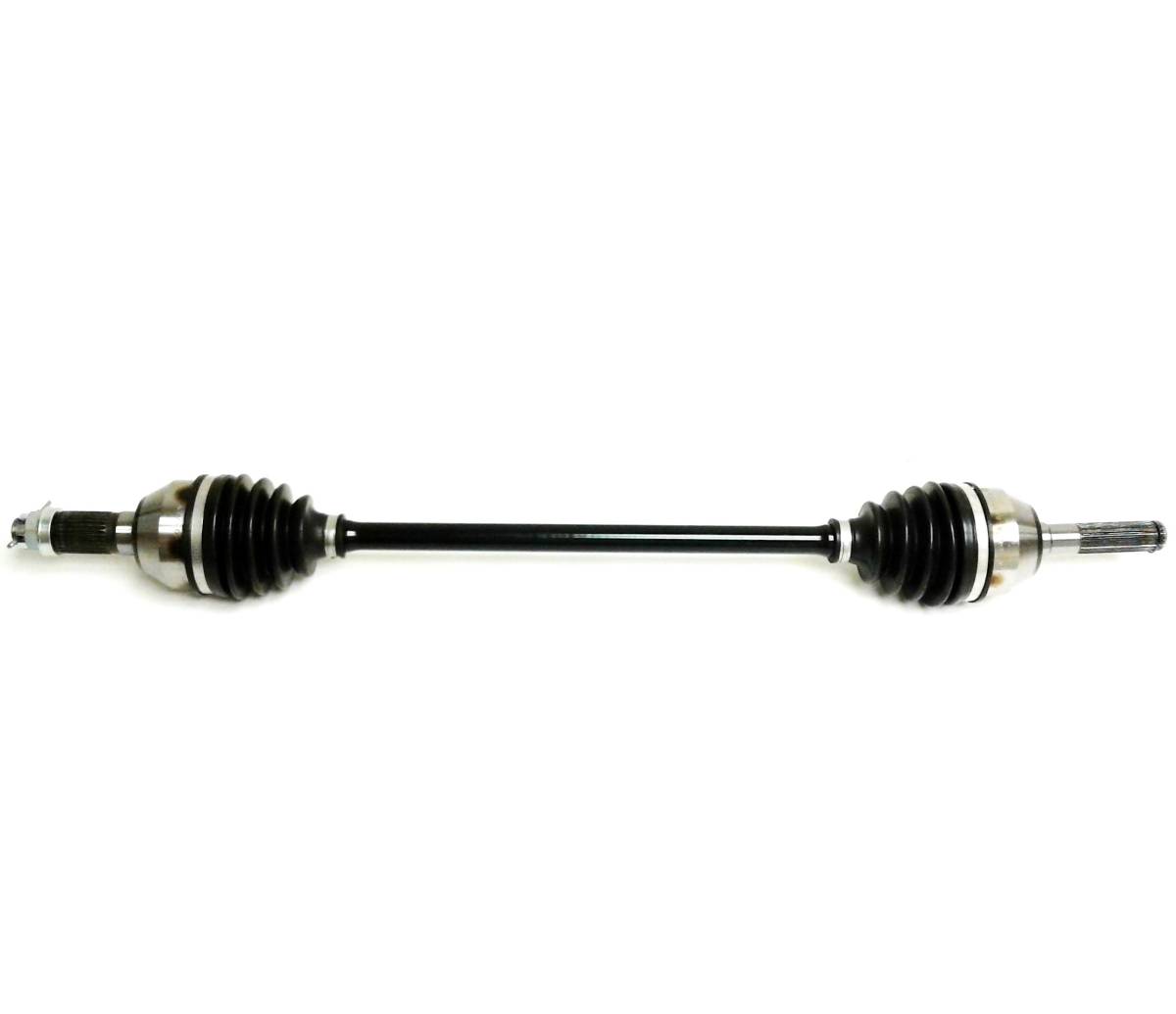

This is a new, fully-assembled, cv axle for a 64" Can-Am Maverick X3.

It fits front, left (driver side) on the following models:

2017 X3 STD, XDS-DPS

2017 X3 MAX STD, MAX XDS-DPS

2018 X3 STD, 900 HO, Turbo R STD, XDS-DPS

2018 X3 MAX Turbo STD

2019 X3 Turbo, Turbo R STD

2019 X3 MAX Turbo R

2020 X3 Turbo STD, Turbo R STD

2020 X3 MAX Turbo STD, MAX Turbo R STD

2021 X3 Turbo - DS, Turbo R - DS

2021 X3 MAX Turbo, MAX Turbo R - DS

*Axle made as OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Replaces OEM # 705401686, 705402097
  • Compressed overall axle length: 778 mm
  • inobard CV joint spline count: 21
  • outboard CV joint spline count: 29
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $74.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2021Can-AmMaverick X34x4 DS Turbo DPS
2020Can-AmMaverick X34x4 Turbo DPS
2019Can-AmMaverick X34x4 Turbo DPS
2018Can-AmMaverick X34x4 Turbo DPS
2017Can-AmMaverick X34x4 Turbo DPS
2018Can-AmMaverick X3 900 HO4x4 DPS
2021Can-AmMaverick X3 Max4x4 DS Turbo DPS
2020Can-AmMaverick X3 Max4x4 Turbo DPS
2018Can-AmMaverick X3 Max4x4 Turbo DPS
2021Can-AmMaverick X3 Max R4x4 DS Turbo DPS
2020Can-AmMaverick X3 Max R4x4 DS Turbo DPS
2019Can-AmMaverick X3 Max R4x4 Turbo DPS
2018Can-AmMaverick X3 Max R4x4 Turbo DPS
2018Can-AmMaverick X3 Max R4x4 XDS Turbo DPS
2021Can-AmMaverick X3 R4x4 DS Turbo DPS
2020Can-AmMaverick X3 R4x4 DS Turbo DPS
2019Can-AmMaverick X3 R4x4 Turbo DPS
2018Can-AmMaverick X3 R4x4 Turbo DPS
2018Can-AmMaverick X3 R4x4 XDS Turbo DPS
2017Can-AmMaverick X3 R4x4 Turbo DPS
2017Can-AmMaverick X3 R4x4 XDS Turbo DPS

Product Notes

  • Fits front, left on the following Can-Am 64" Maverick models: 2017 X3 STD, XDS-DPS, X3 MAX STD, MAX XDS-DPS, 2018 X3 STD, 900 HO, Turbo R STD, XDS-DPS, MAX Turbo STD, 2019 X3 Turbo, Turbo R STD, MAX Turbo R. 2020 X3 Turbo STD, Turbo R STD, MAX Turbo STD, MAX Turbo R STD, 2021 X3 Turbo - DS, Turbo R - DS, MAX Turbo, MAX Turbo R - DS.
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 705401686, 705402097. Inboard splines: 21, Outboard splines: 29, Compressed axle length: 778 mm. Please note this will not fit 72" models.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-126
    • CA-126
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 14.0 lbs.
    • W5.0000” x H5.0000” x L40.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
