Rear Left CV Axle for John Deere Gator XUV 550 560 590 S4

Location on vehicle: Rear,Left

(0) Reviews: Write first review
JD-397

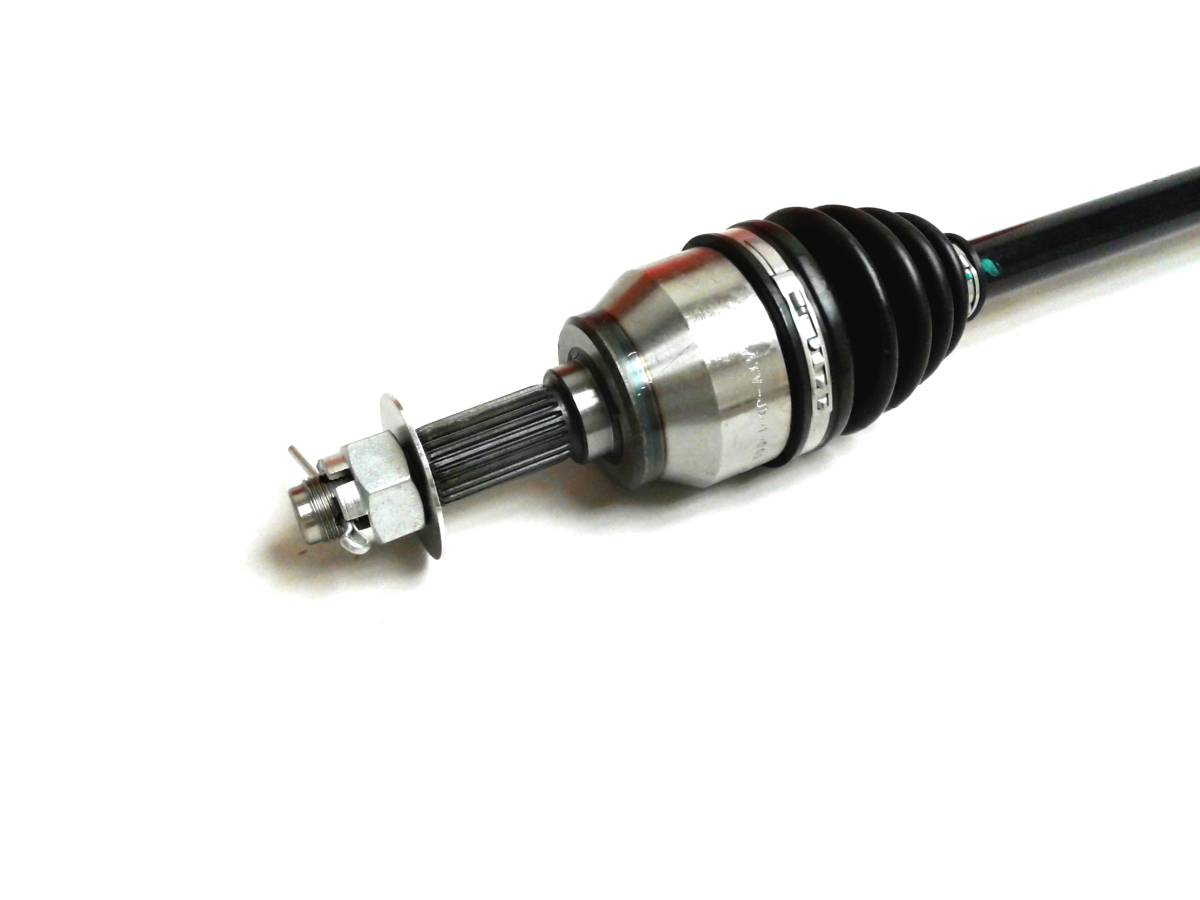

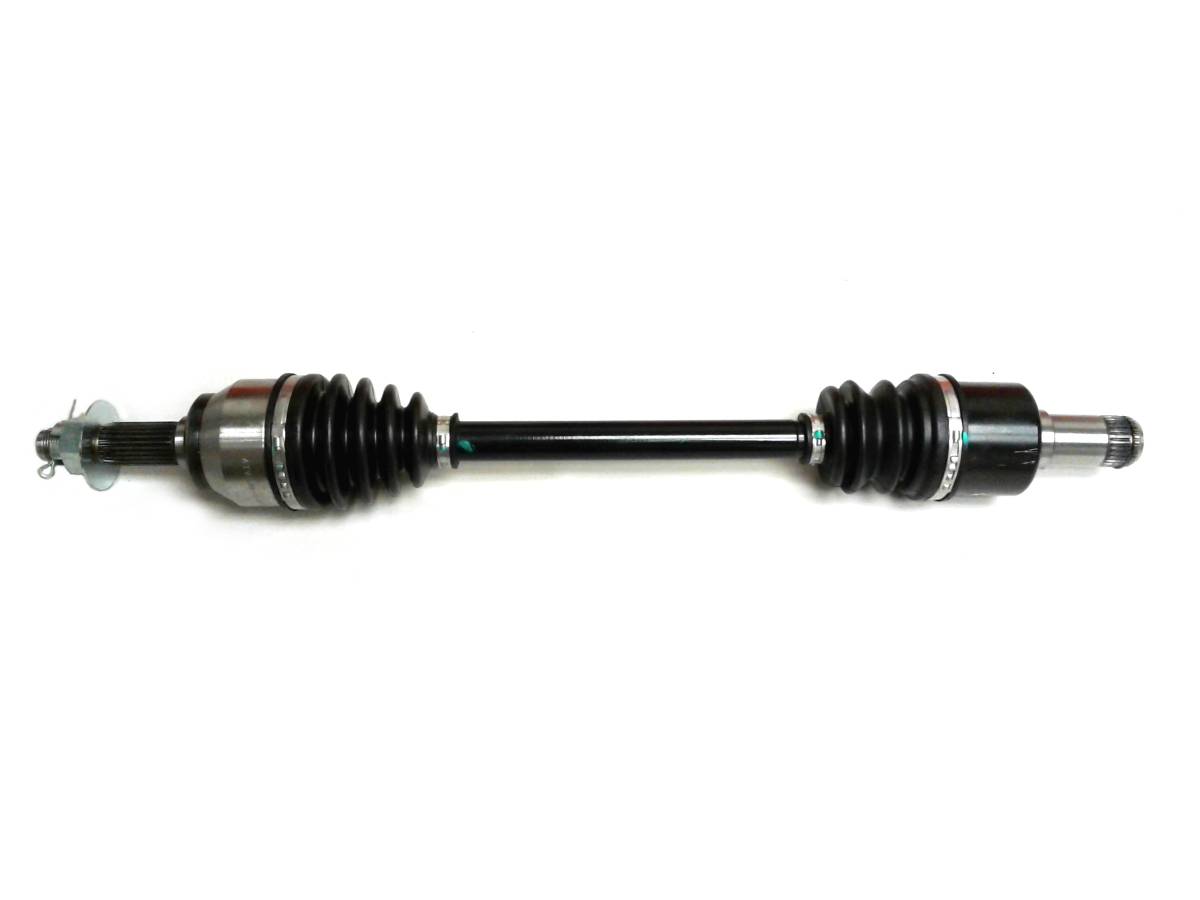

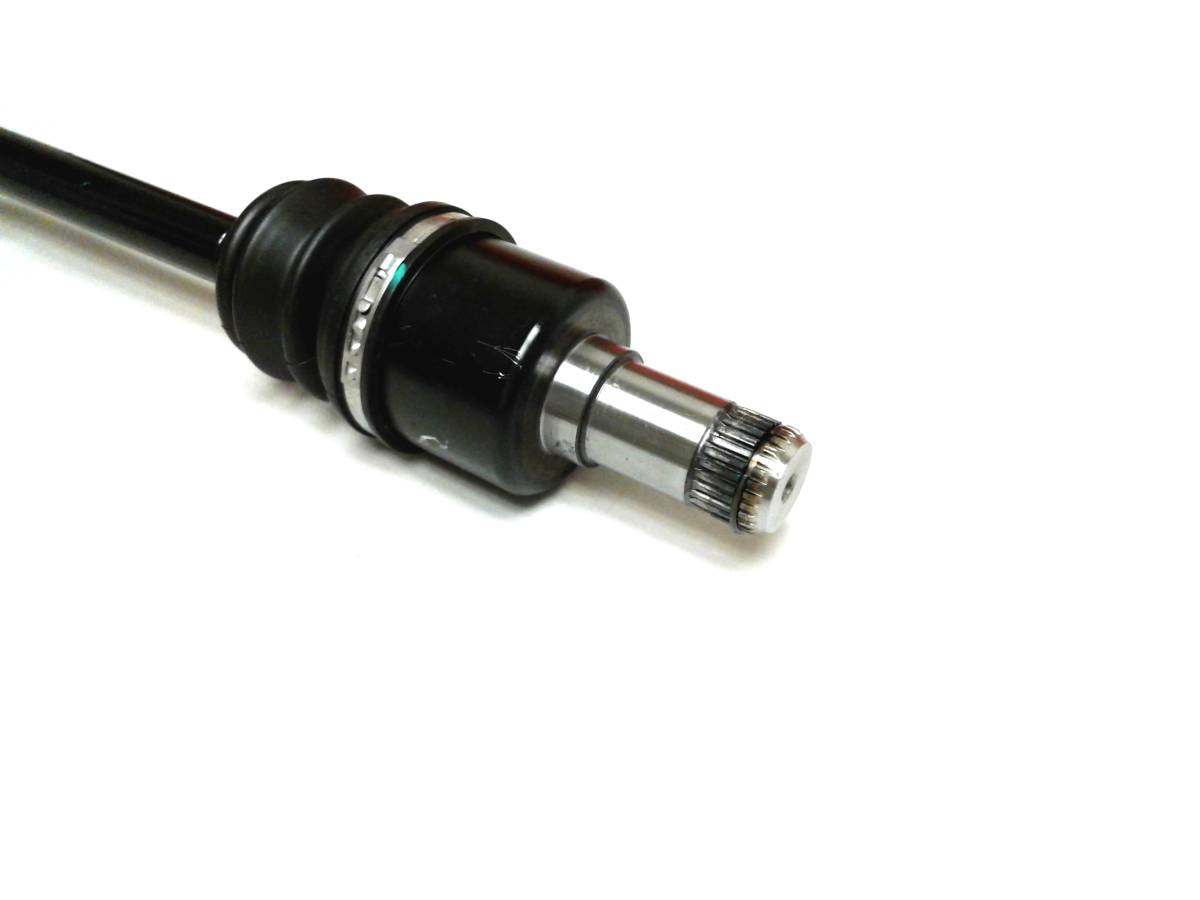

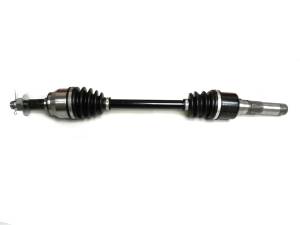

This is a new Rear, Left CV axle for a John Deere XUV.

It will fit the following 4x4 applications:

2012-2016 ... Gator 550 / 550 S4

2016-2020 ... Gator 560 / 560 S4

2016-2019 ... Gator 590 / 590 S4

Rear, Left / Driver's Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 28
  • Outboard CV joint spline count: 24
  • Compressed overall axle length: 610 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $89.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits REAR, LEFT (driver's side) on the following John Deere XUVs: 2012-2016 Gator 550/550 S4, 2016-2020 Gator 560/560 S4, 2016-2020 Gator 590/590 S4.
  • Features a stronger than OEM, 4340 chromoly steel bar. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Inboard CV joint spline count: 28, Outboard CV joint spline count: 24, Compressed overall axle length: 610 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Application List

    YearMakeModelSubmodelNotes
    2016John DeereGator XUV 5504X4
    2016John DeereGator XUV 5504x4 S4 4 Passenger
    2015John DeereGator XUV 5504X4
    2015John DeereGator XUV 5504x4 S4 4 Passenger
    2014John DeereGator XUV 5504X4
    2014John DeereGator XUV 5504x4 S4 4 Passenger
    2013John DeereGator XUV 5504X4
    2013John DeereGator XUV 5504x4 S4 4 Passenger
    2012John DeereGator XUV 5504X4
    2012John DeereGator XUV 5504x4 4 Passenger
    2018John DeereGator XUV 5604x4 S4 4 Passenger
    2017John DeereGator XUV 5604X4
    2017John DeereGator XUV 5604x4 S4 4 Passenger
    2016John DeereGator XUV 5604X4
    2016John DeereGator XUV 5604x4 S4 4 Passenger
    2020John DeereGator XUV 560E4X4
    2020John DeereGator XUV 560E4x4 S4 4 Passenger
    2019John DeereGator XUV 560E4X4
    2019John DeereGator XUV 560E4x4 S4 4 Passenger
    2018John DeereGator XUV 560E4X4
    2018John DeereGator XUV 560E4x4 S4 4 Passenger
    2020John DeereGator XUV 590E4X4
    2020John DeereGator XUV 590E4x4 S4 4 Passenger
    2019John DeereGator XUV 590E4X4
    2019John DeereGator XUV 590E4x4 S4 4 Passenger
    2018John DeereGator XUV 590E4X4
    2018John DeereGator XUV 590E4x4 S4 4 Passenger
    2020John DeereGator XUV 590M4x4 EPS
    2020John DeereGator XUV 590M4x4 EPS S4 4 Passenger
    2019John DeereGator XUV 590M4x4 EPS
    2019John DeereGator XUV 590M4x4 EPS S4 4 Passenger
    2019John DeereGator XUV 590MSpecial Edition
    2018John DeereGator XUV 590M4x4 EPS
    2018John DeereGator XUV 590M4x4 EPS S4 4 Passenger
    2017John DeereGator XUV 590i4X4
    2017John DeereGator XUV 590i4x4 EPS
    2017John DeereGator XUV 590i4x4 EPS S4 4 Passenger
    2017John DeereGator XUV 590i4x4 S4 4 Passenger
    2016John DeereGator XUV 590i4X4
    2016John DeereGator XUV 590i4x4 EPS
    2016John DeereGator XUV 590i4x4 EPS S4 4 Passenger
    2016John DeereGator XUV 590i4x4 S4 4 Passenger

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 11.2 lbs.
    • W5.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
