Rear CV Axle for John Deere Gator XUV 625 825 835 855 S4 2011-2020

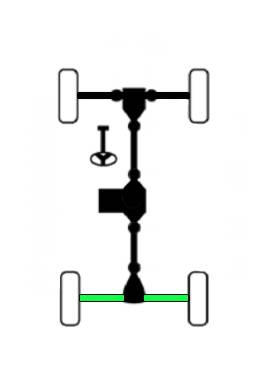

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review

SKU: JD-391

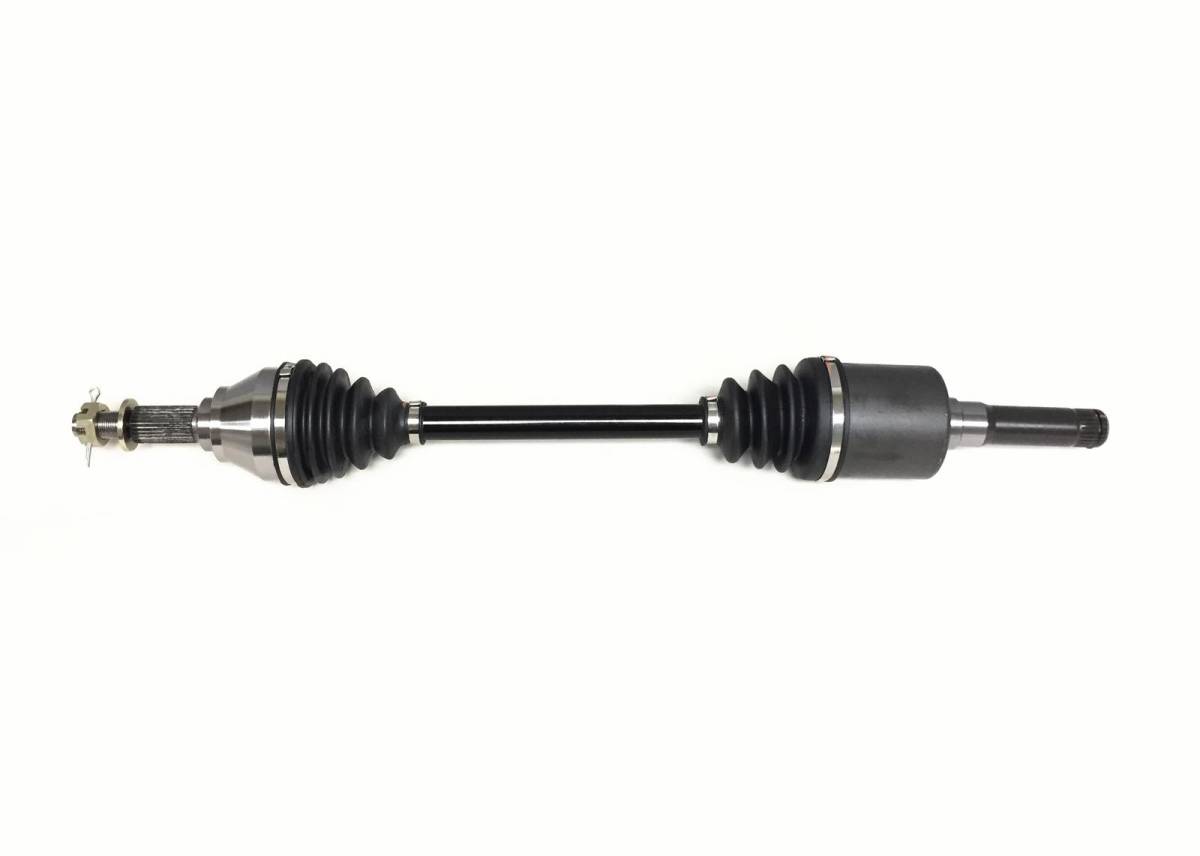

This is a new Rear CV axle for a John Deere XUV.

It will fit the following 4x4 applications:

2011-2017 ... Gator 625 i

2011-2020 ... Gator 825 i/M/E / S4

2018-2020 ... Gator 835 E/M/R

2011-2020 ... Gator 855 D/M/E / S4

2011-2013 ... A3 Military Gator

2011-2013 ... A2 Gator Utility Vehicle

Rear, Left or Right

*Not intended for use in lifted vehicles

Product features:

Stronger than OEM chromoly forged steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear & puncture resistance

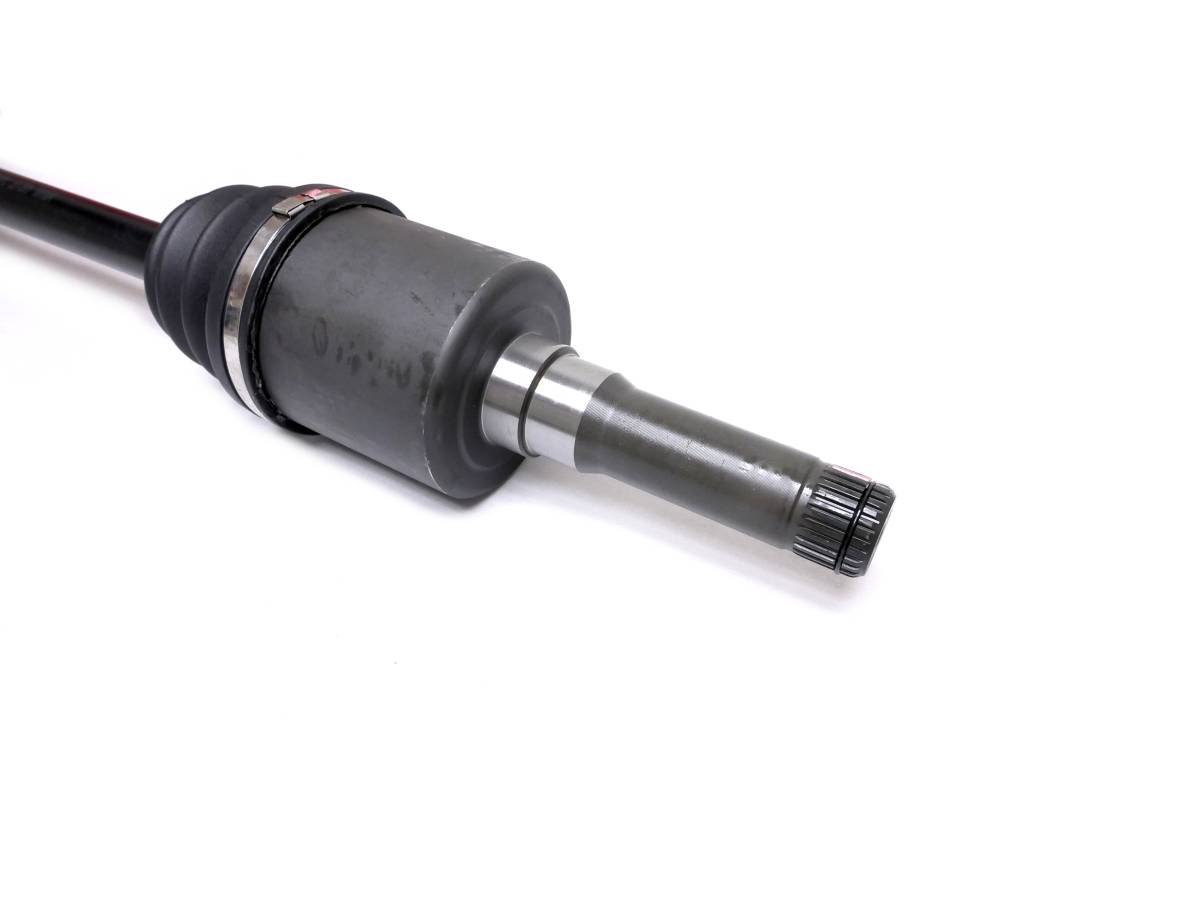

Inboard CV joint spline count: 28

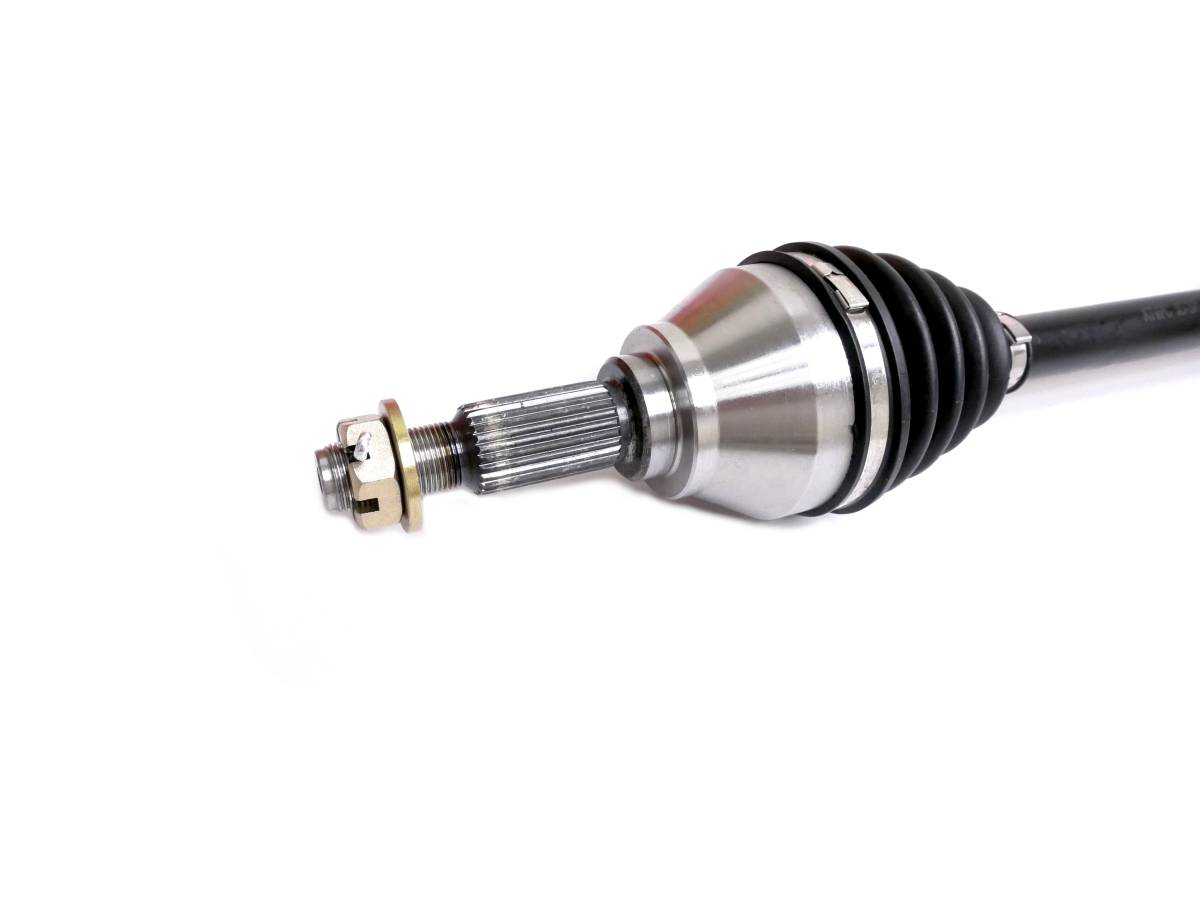

Outboard CV joint spline count: 27
Compressed overall axle length: 730 mm

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $99.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel
2017	John Deere	Gator XUV 625i	4X4
2016	John Deere	Gator XUV 625i	4X4
2015	John Deere	Gator XUV 625i	4X4
2014	John Deere	Gator XUV 625i	4X4
2013	John Deere	Gator XUV 625i	4X4
2012	John Deere	Gator XUV 625i	4X4
2011	John Deere	Gator XUV 625i	4X4
2020	John Deere	Gator XUV 825E	4X4
2019	John Deere	Gator XUV 825E	4X4
2018	John Deere	Gator XUV 825E	4X4
2020	John Deere	Gator XUV 825M	4x4 EPS
2020	John Deere	Gator XUV 825M	4x4 EPS S4 4 Passenger
2019	John Deere	Gator XUV 825M	4x4 EPS
2019	John Deere	Gator XUV 825M	4x4 EPS S4 4 Passenger
2018	John Deere	Gator XUV 825M	4x4 EPS
2018	John Deere	Gator XUV 825M	4x4 EPS S4 4 Passenger
2017	John Deere	Gator XUV 825i	4X4
2017	John Deere	Gator XUV 825i	4x4 EPS
2017	John Deere	Gator XUV 825i	4x4 S4 4 Passenger
2016	John Deere	Gator XUV 825i	4X4
2016	John Deere	Gator XUV 825i	4x4 EPS
2016	John Deere	Gator XUV 825i	4x4 S4 4 Passenger
2016	John Deere	Gator XUV 825i	4x4 Special Edition
2015	John Deere	Gator XUV 825i	4X4
2015	John Deere	Gator XUV 825i	4x4 EPS
2015	John Deere	Gator XUV 825i	4x4 S4 4 Passenger
2014	John Deere	Gator XUV 825i	4X4
2014	John Deere	Gator XUV 825i	4x4 EPS
2014	John Deere	Gator XUV 825i	4x4 S4 4 Passenger
2013	John Deere	Gator XUV 825i	4X4
2013	John Deere	Gator XUV 825i	4x4 4 Passenger
2013	John Deere	Gator XUV 825i	4x4 EPS
2012	John Deere	Gator XUV 825i	4X4
2012	John Deere	Gator XUV 825i	4x4 EPS
2011	John Deere	Gator XUV 825i	4X4
2020	John Deere	Gator XUV 835E	4X4
2019	John Deere	Gator XUV 835E	4X4
2018	John Deere	Gator XUV 835E	4X4
2020	John Deere	Gator XUV 835M	4x4 Cab EPS
2020	John Deere	Gator XUV 835M	4x4 EPS
2020	John Deere	Gator XUV 835M	4x4 HVAC EPS
2019	John Deere	Gator XUV 835M	4x4 Cab EPS
2019	John Deere	Gator XUV 835M	4x4 EPS
2019	John Deere	Gator XUV 835M	4x4 HVAC EPS
2018	John Deere	Gator XUV 835M	4x4 Cab EPS
2018	John Deere	Gator XUV 835M	4x4 EPS
2018	John Deere	Gator XUV 835M	4x4 HVAC EPS
2020	John Deere	Gator XUV 835R	4x4 EPS
2019	John Deere	Gator XUV 835R	4x4 EPS
2018	John Deere	Gator XUV 835R	4x4 EPS
2017	John Deere	Gator XUV 855D	4x4 Diesel
2017	John Deere	Gator XUV 855D	4x4 EPS Diesel
2017	John Deere	Gator XUV 855D	4x4 S4 4 Passenger Diesel
2016	John Deere	Gator XUV 855D	4x4 Diesel
2016	John Deere	Gator XUV 855D	4x4 EPS Diesel
2016	John Deere	Gator XUV 855D	4x4 S4 4 Passenger Diesel
2015	John Deere	Gator XUV 855D	4x4 Diesel
2015	John Deere	Gator XUV 855D	4x4 EPS Diesel
2015	John Deere	Gator XUV 855D	4x4 S4 4 Passenger Diesel
2014	John Deere	Gator XUV 855D	4x4 Diesel
2014	John Deere	Gator XUV 855D	4x4 EPS Diesel
2014	John Deere	Gator XUV 855D	4x4 S4 4 Passenger Diesel
2013	John Deere	Gator XUV 855D	4x4 Diesel
2013	John Deere	Gator XUV 855D	4x4 Diesel 4 Passenger
2013	John Deere	Gator XUV 855D	4x4 Diesel EPS
2012	John Deere	Gator XUV 855D	4x4 Diesel
2012	John Deere	Gator XUV 855D	4x4 EPS
2011	John Deere	Gator XUV 855D	4x4 Diesel
2020	John Deere	Gator XUV 855E	4x4 Diesel
2019	John Deere	Gator XUV 855E	4x4 Diesel
2018	John Deere	Gator XUV 855E	4x4 Diesel
2020	John Deere	Gator XUV 855M	4x4 EPS Diesel
2020	John Deere	Gator XUV 855M	4x4 EPS S4 4 Passenger Diesel
2019	John Deere	Gator XUV 855M	4x4 EPS Diesel
2019	John Deere	Gator XUV 855M	4x4 EPS S4 4 Passenger Diesel
2018	John Deere	Gator XUV 855M	4x4 EPS Diesel
2018	John Deere	Gator XUV 855M	4x4 EPS S4 4 Passenger Diesel

Product Notes

Fits REAR, LEFT or RIGHT on the following John Deere models: 2011-2017 Gator 625i, 2011-2020 Gator 825i/M/E/S4, 2018-2020 Gator 835 E/M/R, 2011-2020 Gator 855 D/M/E/S4, 2011-2013 A3 Military Gator, 2011-2013 A2 GUV.

Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.

Inner splines: 28, Outer splines: 27, Compressed axle length: 730 mm.

Replaces OEM # AM137010, AM141849, AM138803.

Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.
