Precision Full CV Axle Set for John Deere AM137010 AM142936 AM141847 Front & Rear 4140 Chromoly Steel Exact Fit Heat-Treated ATVPC

Location on vehicle: Outside

(0) Reviews: Write first review
JD-391/JD-391/JD-392/JD-393

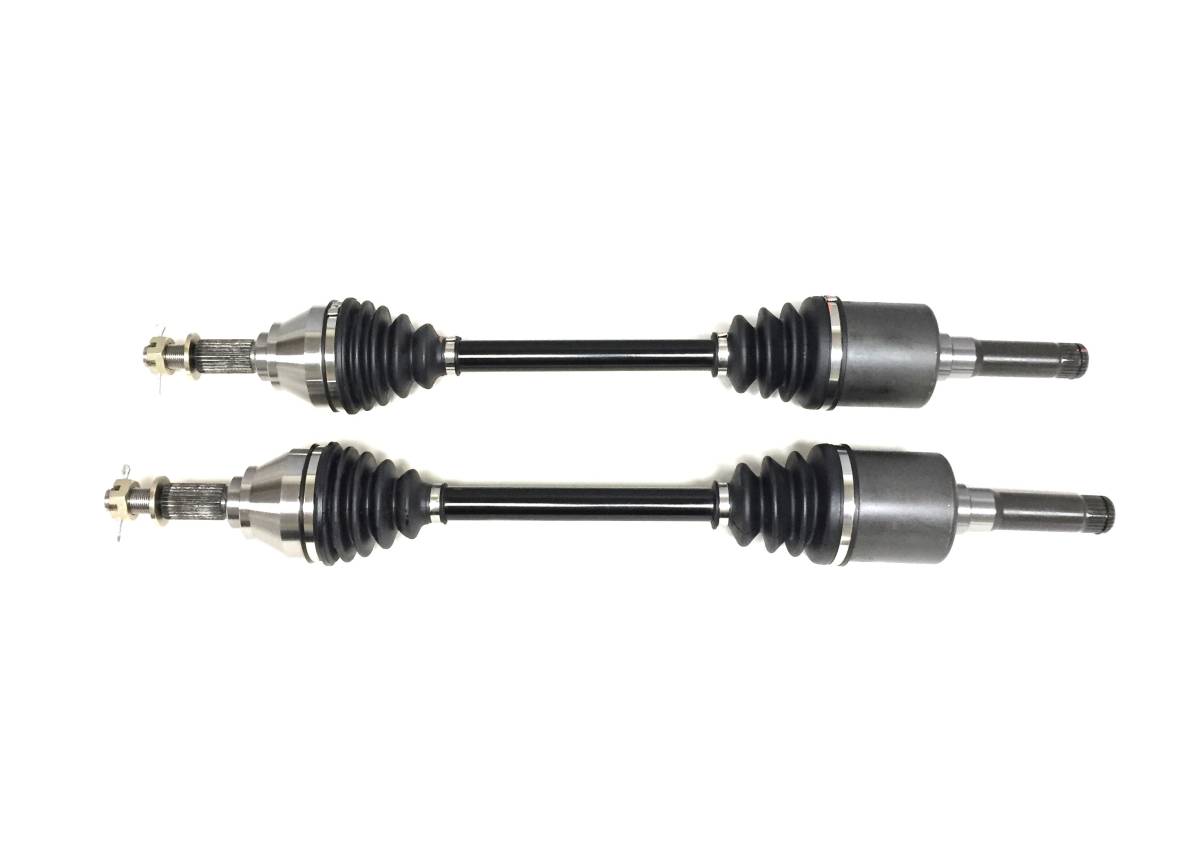

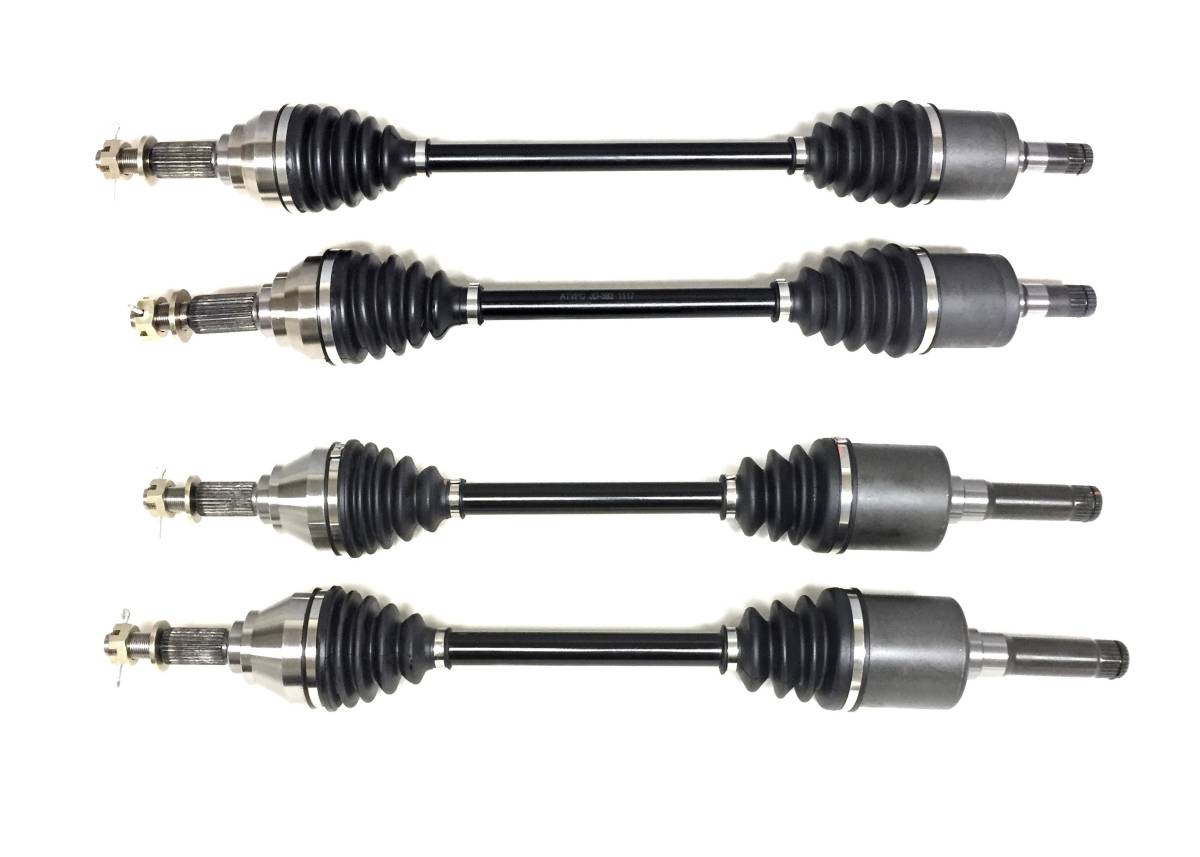

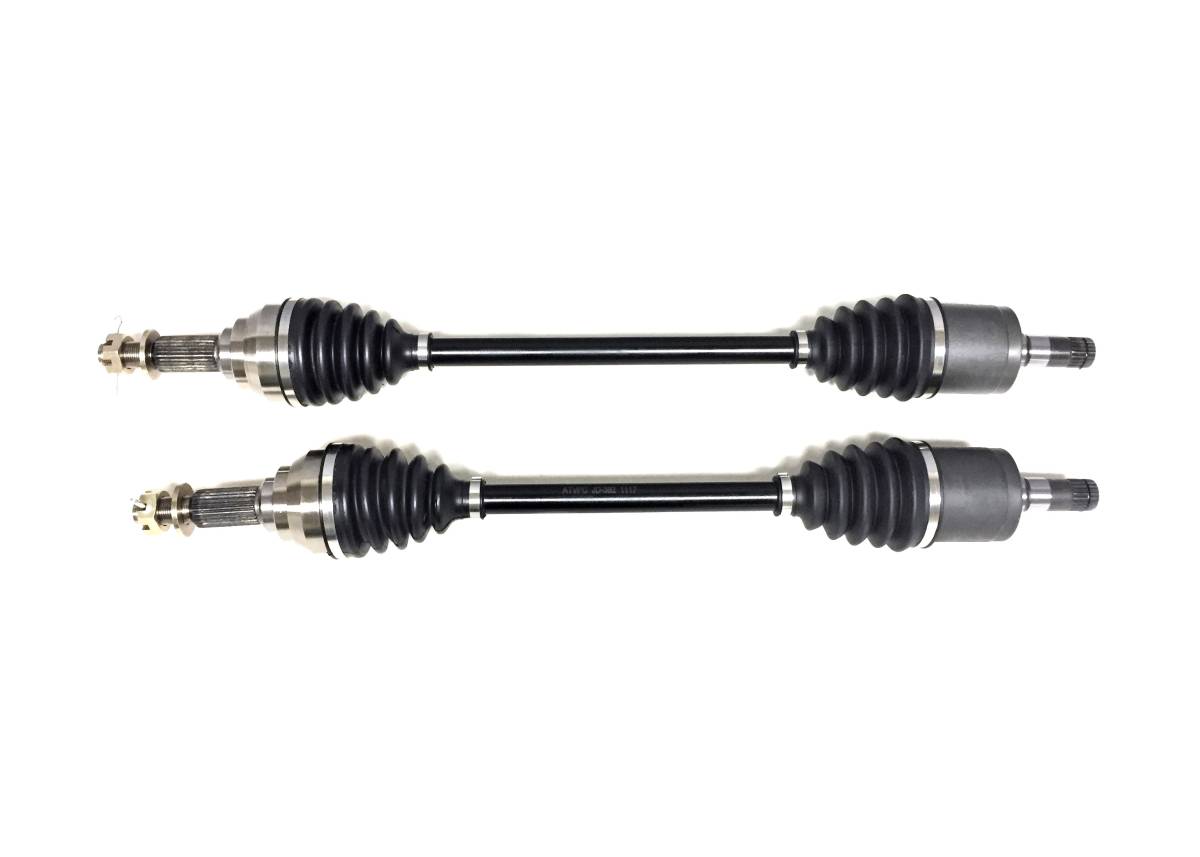

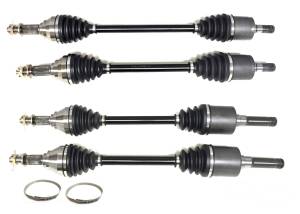

This is a full set of new OE type CV axles.

Precision machined and made as a direct replacement, no modifications necessary.

Quality tested for smooth articulation and reliable performance.

Ships fully-assembled and ready to install.

*made as an OE replacement, and not guaranteed to work with lifted vehicles or modifications of any kind

Product details:

  • Fits the following John Deere Gator XUVs: 2011-2017 Gator 625i, 2011-2017 Gator 825i/E/M/S4, 2011-2020 Gator 855D/M/E/S4, & 2011-2013 A2 Gator Utility Vehicle 4x4.
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated.
  • Replaces OEM # AM137010, AM141849, AM138803, AM142936, AM140491, AM141846, AM141491. Compressed length (mm): FL - 730, FR - 667, RL - 730, RR, Inboard spline count: fronts - 22, rears - 28, Outboard spline count: fronts - 27, rears - 27.

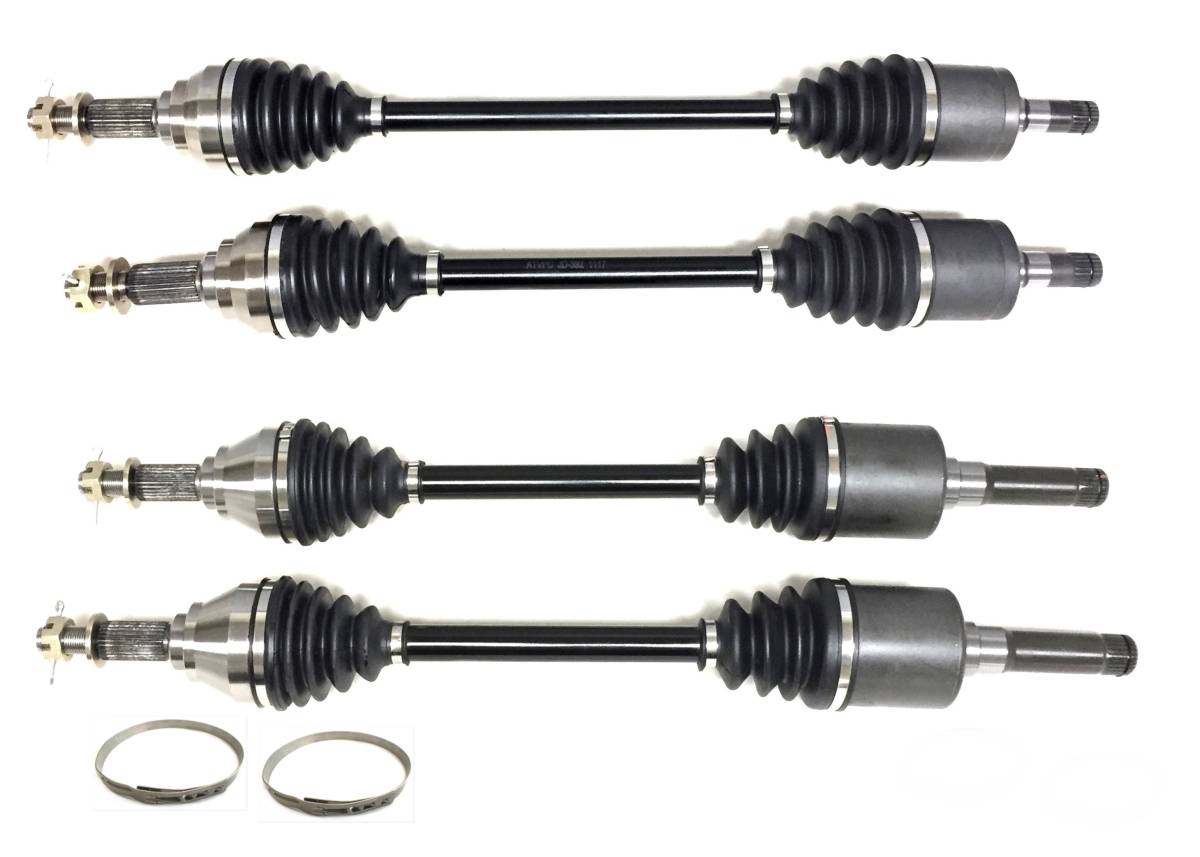

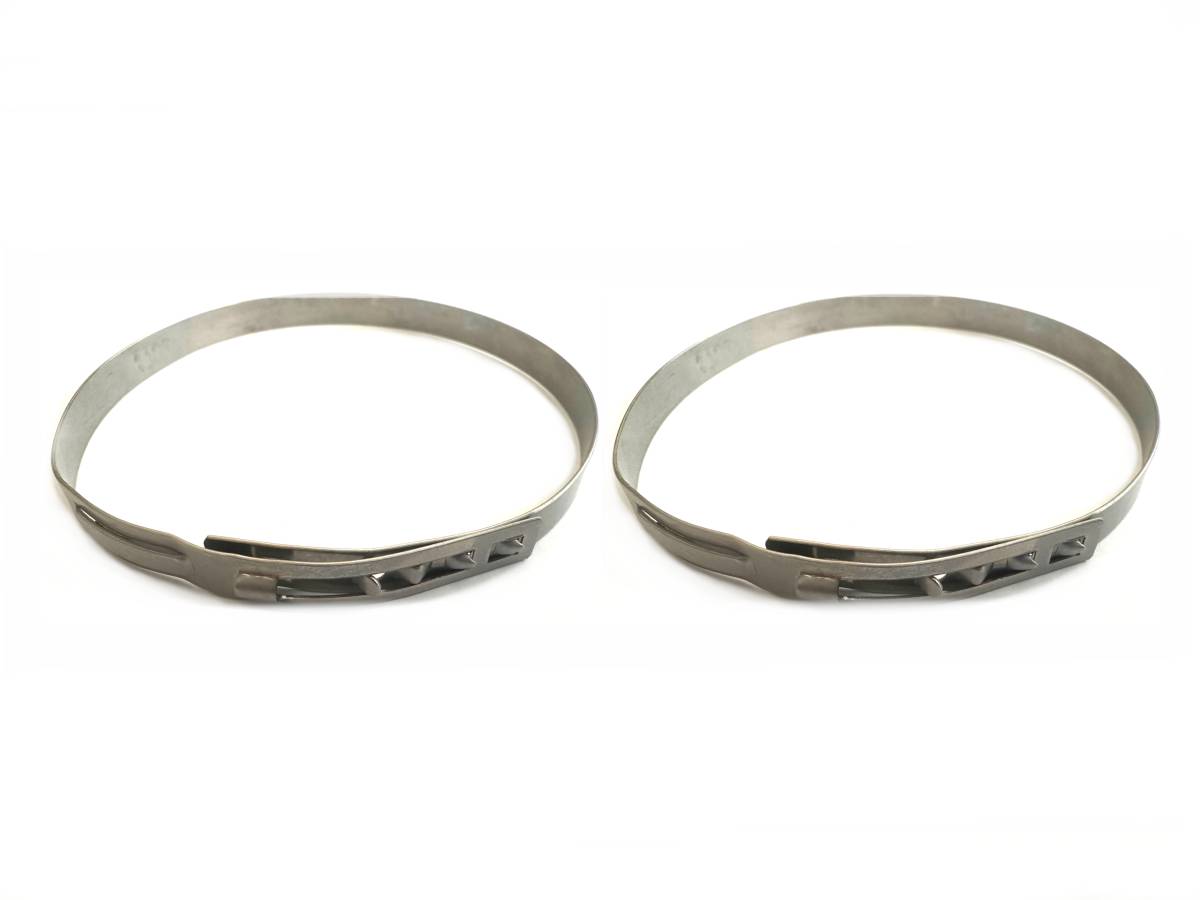

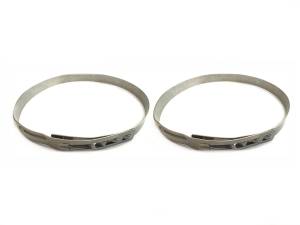

  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions. Please note (thanks to your feedback) we have included extra 'low profile' clamps for the rear outer CV joints, for anyone who might experience a clearance issue with the standard clamps.
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $329.95
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2017John DeereGator XUV 625i4X4
2016John DeereGator XUV 625i4X4
2015John DeereGator XUV 625i4X4
2014John DeereGator XUV 625i4X4
2013John DeereGator XUV 625i4X4
2012John DeereGator XUV 625i4X4
2011John DeereGator XUV 625i4X4
2019John DeereGator XUV 825E4X4
2018John DeereGator XUV 825E4X4
2019John DeereGator XUV 825M4x4 EPS
2019John DeereGator XUV 825M4x4 EPS S4 4 Passenger
2018John DeereGator XUV 825M4x4 EPS
2018John DeereGator XUV 825M4x4 EPS S4 4 Passenger
2017John DeereGator XUV 825i4X4
2017John DeereGator XUV 825i4x4 EPS
2017John DeereGator XUV 825i4x4 S4 4 Passenger
2016John DeereGator XUV 825i4X4
2016John DeereGator XUV 825i4x4 EPS
2016John DeereGator XUV 825i4x4 S4 4 Passenger
2016John DeereGator XUV 825i4x4 Special Edition
2015John DeereGator XUV 825i4X4
2015John DeereGator XUV 825i4x4 EPS
2015John DeereGator XUV 825i4x4 S4 4 Passenger
2014John DeereGator XUV 825i4X4
2014John DeereGator XUV 825i4x4 EPS
2014John DeereGator XUV 825i4x4 S4 4 Passenger
2013John DeereGator XUV 825i4X4
2013John DeereGator XUV 825i4x4 4 Passenger
2013John DeereGator XUV 825i4x4 EPS
2012John DeereGator XUV 825i4X4
2012John DeereGator XUV 825i4x4 EPS
2011John DeereGator XUV 825i4X4
2017John DeereGator XUV 855D4x4 Diesel
2017John DeereGator XUV 855D4x4 EPS Diesel
2017John DeereGator XUV 855D4x4 S4 4 Passenger Diesel
2016John DeereGator XUV 855D4x4 Diesel
2016John DeereGator XUV 855D4x4 EPS Diesel
2016John DeereGator XUV 855D4x4 S4 4 Passenger Diesel
2015John DeereGator XUV 855D4x4 Diesel
2015John DeereGator XUV 855D4x4 EPS Diesel
2015John DeereGator XUV 855D4x4 S4 4 Passenger Diesel
2014John DeereGator XUV 855D4x4 Diesel
2014John DeereGator XUV 855D4x4 EPS Diesel
2014John DeereGator XUV 855D4x4 S4 4 Passenger Diesel
2013John DeereGator XUV 855D4x4 Diesel
2013John DeereGator XUV 855D4x4 Diesel 4 Passenger
2013John DeereGator XUV 855D4x4 Diesel EPS
2012John DeereGator XUV 855D4x4 Diesel
2012John DeereGator XUV 855D4x4 EPS
2011John DeereGator XUV 855D4x4 Diesel
2020John DeereGator XUV 855E4x4 Diesel
2019John DeereGator XUV 855E4x4 Diesel
2018John DeereGator XUV 855E4x4 Diesel
2020John DeereGator XUV 855M4x4 EPS Diesel
2020John DeereGator XUV 855M4x4 EPS S4 4 Passenger Diesel
2019John DeereGator XUV 855M4x4 EPS Diesel
2019John DeereGator XUV 855M4x4 EPS S4 4 Passenger Diesel
2018John DeereGator XUV 855M4x4 EPS Diesel
2018John DeereGator XUV 855M4x4 EPS S4 4 Passenger Diesel

Product Notes

  • Fits the following John Deere Gator XUVs: 2011-2017 Gator 625i, 2011-2017 Gator 825i/E/M/S4, 2011-2020 Gator 855D/M/E/S4, & 2011-2013 A2 Gator Utility Vehicle 4x4.
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated.
  • Replaces OEM # AM137010, AM141849, AM138803, AM142936, AM140491, AM141846, AM141491. Compressed length (mm): FL - 730, FR - 667, RL - 730, RR, Inboard spline count: fronts - 22, rears - 28, Outboard spline count: fronts - 27, rears - 27.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions. Please note (thanks to your feedback) we have included extra 'low profile' clamps for the rear outer CV joints, for anyone who might experience a clearance issue with the standard clamps.

    • What's In The Box

  • 4 axles

    • Warranty

    Limited 2 year, one-time warranty

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 61.0 lbs.
    • W12.0000” x H12.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
