Front CV Axle Pair for John Deere Gator XUV 625 825 855 2011-2020

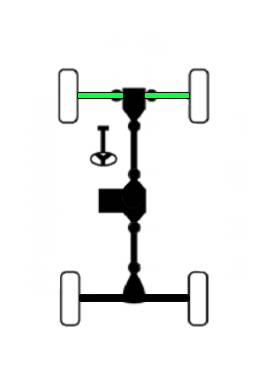

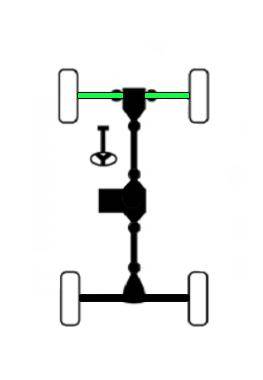

Location on vehicle: Front,Left,Right

JD-392/JD-393

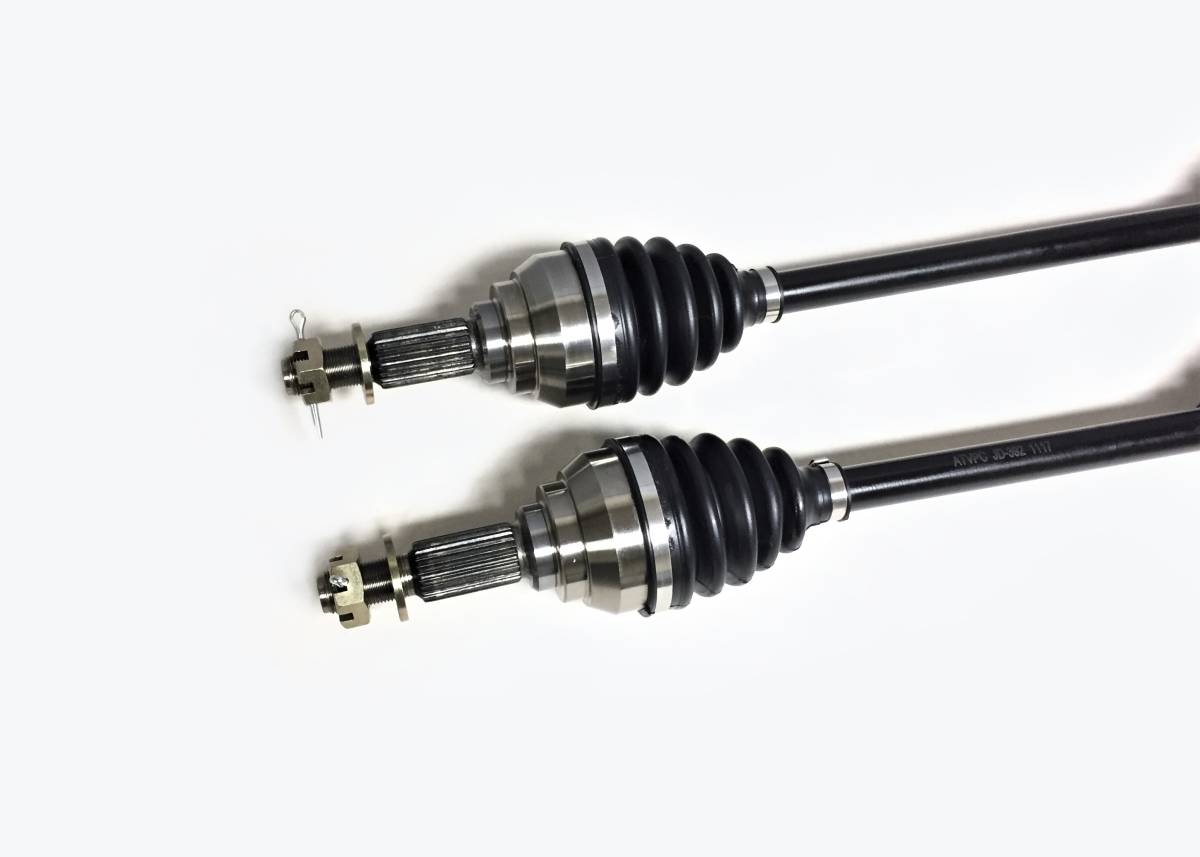

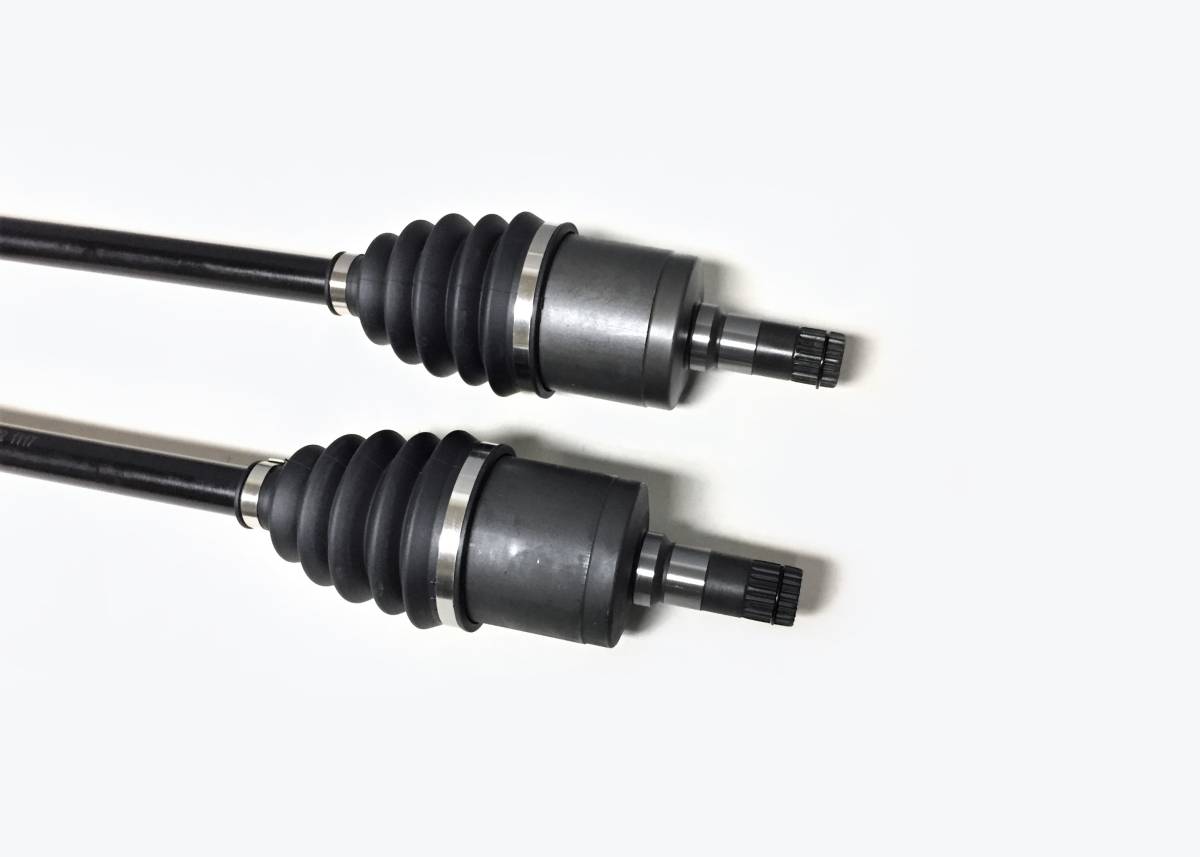

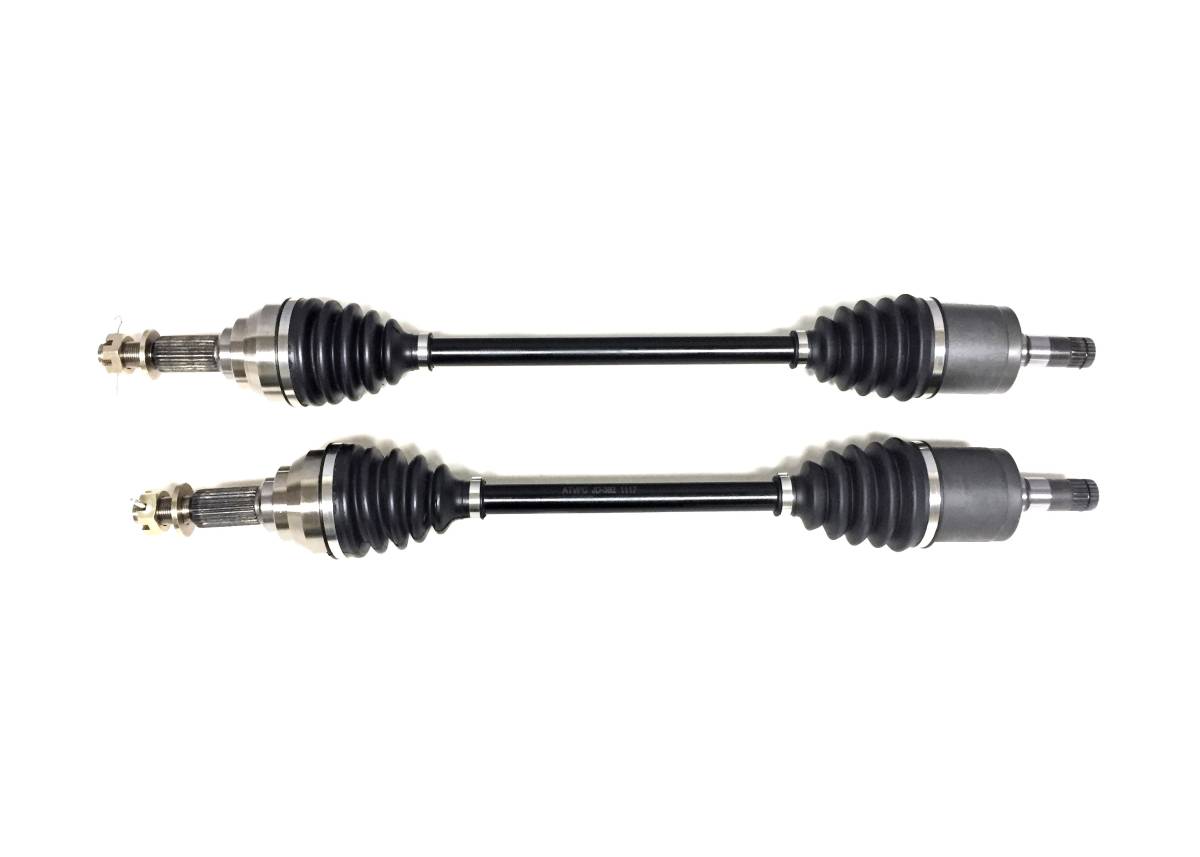

This is a pair of new Front CV axles for a John Deere XUV.

They will fit the following 4x4 applications:

2011-2017 ... Gator 625i

2011-2019 ... Gator 825 / 825 S4

2011-2020 ... Gator 855 / 855 S4

2011-2013 ... A3 Military Gator

2011-2013 ... A2 GUV

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 22 (both)
  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: Left 730 mm, Right 667 mm,
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $174.99
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2011-2017 Gator 625i, 2011-2019 Gator 825i/M & S4, 2011-2020 Gator 855D/E/M & S4, 2011-2013 A3 Military Gator, 2011-2013 A2 GUV.
  • Fitted with neoprene CV boots for added wear & puncture resistance. Greased with a moly based grease to provide superior joint lubrication.
  • Replaces AM142936, AM140491, AM141846, AM141491, AM138104, AM141847, AM138105, AM141940, AM140492, AM142937.
  • Inner Splines: 22 (both), Outer Splines: 27 (both), Compressed length: Left 730 mm, Right 667 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2017John DeereGator XUV 625i4X4
    2016John DeereGator XUV 625i4X4
    2015John DeereGator XUV 625i4X4
    2014John DeereGator XUV 625i4X4
    2013John DeereGator XUV 625i4X4
    2012John DeereGator XUV 625i4X4
    2011John DeereGator XUV 625i4X4
    2019John DeereGator XUV 825E4X4
    2018John DeereGator XUV 825E4X4
    2019John DeereGator XUV 825M4x4 EPS
    2019John DeereGator XUV 825M4x4 EPS S4 4 Passenger
    2018John DeereGator XUV 825M4x4 EPS
    2018John DeereGator XUV 825M4x4 EPS S4 4 Passenger
    2017John DeereGator XUV 825i4X4
    2017John DeereGator XUV 825i4x4 EPS
    2017John DeereGator XUV 825i4x4 S4 4 Passenger
    2016John DeereGator XUV 825i4X4
    2016John DeereGator XUV 825i4x4 EPS
    2016John DeereGator XUV 825i4x4 S4 4 Passenger
    2016John DeereGator XUV 825i4x4 Special Edition
    2015John DeereGator XUV 825i4X4
    2015John DeereGator XUV 825i4x4 EPS
    2015John DeereGator XUV 825i4x4 S4 4 Passenger
    2014John DeereGator XUV 825i4X4
    2014John DeereGator XUV 825i4x4 EPS
    2014John DeereGator XUV 825i4x4 S4 4 Passenger
    2013John DeereGator XUV 825i4X4
    2013John DeereGator XUV 825i4x4 4 Passenger
    2013John DeereGator XUV 825i4x4 EPS
    2012John DeereGator XUV 825i4X4
    2012John DeereGator XUV 825i4x4 EPS
    2011John DeereGator XUV 825i4X4
    2017John DeereGator XUV 855D4x4 Diesel
    2017John DeereGator XUV 855D4x4 EPS Diesel
    2017John DeereGator XUV 855D4x4 S4 4 Passenger Diesel
    2016John DeereGator XUV 855D4x4 Diesel
    2016John DeereGator XUV 855D4x4 EPS Diesel
    2016John DeereGator XUV 855D4x4 S4 4 Passenger Diesel
    2015John DeereGator XUV 855D4x4 Diesel
    2015John DeereGator XUV 855D4x4 EPS Diesel
    2015John DeereGator XUV 855D4x4 S4 4 Passenger Diesel
    2014John DeereGator XUV 855D4x4 Diesel
    2014John DeereGator XUV 855D4x4 EPS Diesel
    2014John DeereGator XUV 855D4x4 S4 4 Passenger Diesel
    2013John DeereGator XUV 855D4x4 Diesel
    2013John DeereGator XUV 855D4x4 Diesel 4 Passenger
    2013John DeereGator XUV 855D4x4 Diesel EPS
    2012John DeereGator XUV 855D4x4 Diesel
    2012John DeereGator XUV 855D4x4 EPS
    2011John DeereGator XUV 855D4x4 Diesel
    2020John DeereGator XUV 855E4x4 Diesel
    2019John DeereGator XUV 855E4x4 Diesel
    2018John DeereGator XUV 855E4x4 Diesel
    2020John DeereGator XUV 855M4x4 EPS Diesel
    2020John DeereGator XUV 855M4x4 EPS S4 4 Passenger Diesel
    2019John DeereGator XUV 855M4x4 EPS Diesel
    2019John DeereGator XUV 855M4x4 EPS S4 4 Passenger Diesel
    2018John DeereGator XUV 855M4x4 EPS Diesel
    2018John DeereGator XUV 855M4x4 EPS S4 4 Passenger Diesel

    Details

    • JD-392/JD-393
    • JD-392/JD-393
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 24.0 lbs.
    • W11.0000” x H6.0000” x L32.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
