Front CV Axle Pair for Honda Pioneer 700 & 700-4 2014-2022

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
HO-124/HO-224

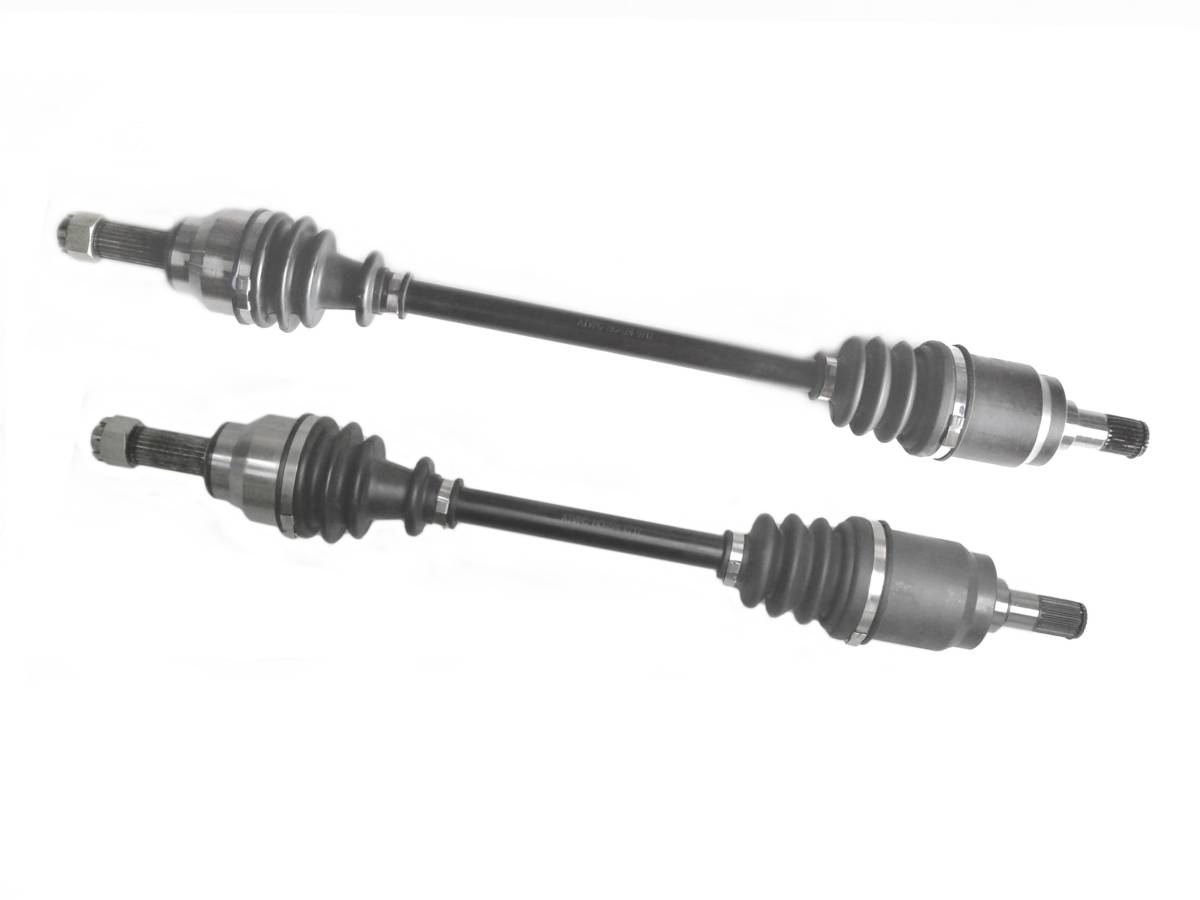

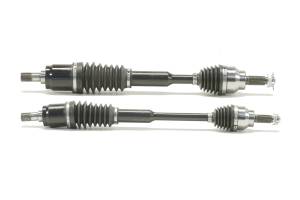

This is a pair of new CV axles for a Honda UTV.

It fits FRONT, LEFT & RIGHT on the following models:

2014-2022 Pioneer 700

2014-2022 Pioneer 700-4

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 23 (both)
  • Outboard CV joint spline count: 24 (both)
  • Compressed overall axle length: Left - 705.5 mm, Right - 601.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $132.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022HondaPioneer 700SXS700M2
2022HondaPioneer 700SXS700M2D Deluxe
2021HondaPioneer 700SXS700M2
2021HondaPioneer 700SXS700M2D Deluxe
2020HondaPioneer 700SXS700M2
2020HondaPioneer 700SXS700M2D Deluxe
2019HondaPioneer 700SXS700M2
2019HondaPioneer 700SXS700M2D Deluxe
2018HondaPioneer 700SXS700M2
2018HondaPioneer 700SXS700M2D Deluxe
2017HondaPioneer 700SXS700M2
2017HondaPioneer 700SXS700M2D Deluxe
2016HondaPioneer 700SXS700M2
2015HondaPioneer 700SXS700M2
2014HondaPioneer 700SXS700M2
2022HondaPioneer 700-4SXS700M4
2022HondaPioneer 700-4SXS700M4D Deluxe
2021HondaPioneer 700-4SXS700M4
2021HondaPioneer 700-4SXS700M4D Deluxe
2020HondaPioneer 700-4SXS700M4
2020HondaPioneer 700-4SXS700M4D Deluxe
2019HondaPioneer 700-4SXS700M4
2019HondaPioneer 700-4SXS700M4D Deluxe
2018HondaPioneer 700-4SXS700M4
2018HondaPioneer 700-4SXS700M4D Deluxe
2017HondaPioneer 700-4SXS700M4
2017HondaPioneer 700-4SXS700M4D Deluxe
2016HondaPioneer 700-4SXS700M4
2015HondaPioneer 700-4SXS700M4
2014HondaPioneer 700-4SXS700M4

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following Honda models: 2014-2022 Pioneer 700, 2014-2022 Pioneer 700-4. Set includes 2 axles.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length: Left - 705.5 mm, Right - 601.5 mm, Inboard Spline Count - 23 (both), Outboard Spline Count - 24 (both).
  • Replaces OEM # (left) 44350-HL3-A02, 44320-HL3-A01, (right) 44220-HL3-A01, 44250-HL3-A02.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • HO-124/HO-224
    • HO-124/HO-224
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 25.0 lbs.
    • W6.0000” x H12.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
