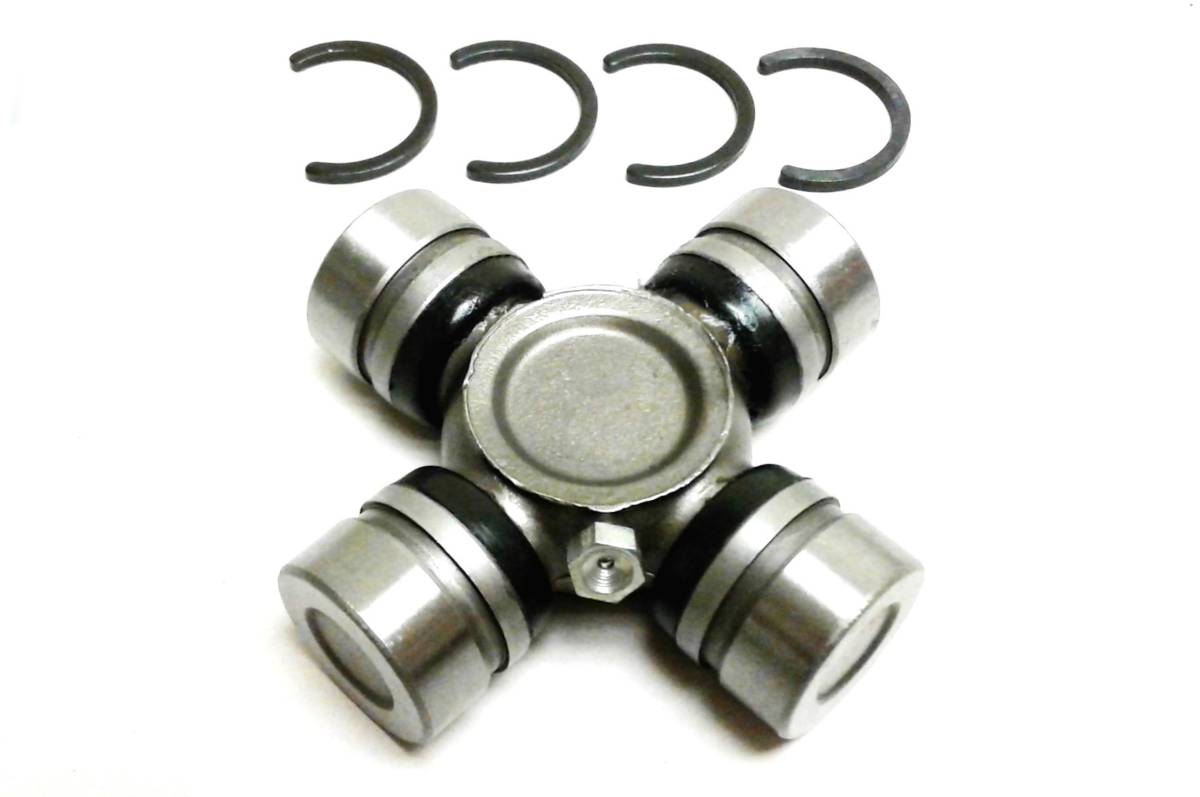

Rear Axle Inner Universal Joint for Polaris ATV, 1590256

Location on vehicle: Rear

ATV503
This universal joint fits the REAR, INNER axle (as pictured) on the following Polaris ATVs.

1999 Diesel 455, 1996-1998, 1999-2000 Sportsman 335, Sportsman 500, 1999 Worker 335, 1997 Xplorer 500

Product features:

  • Bearing Diameter : 1.000 in
  • Stack-Up Dimension : 2.337 in
  • Style of Snap Rings : Inside Snap Rings
  • Snap Ring Thickness : 0.094 in
  • Cross Span : 2.873 in
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $15.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect warranty

Product Notes

  • Fits: 1999 Diesel 455, 1999-2000 Sportsman 335, 1996-1998 Sportsman 500, 1999 Worker 335, 1997 Xplorer 500.
  • Replaces the INNER position (as pictured) on either REAR axle.
  • Bearing Diameter: 1.00 in, Stack-Up Dimension: 2.34 inches, Style of Snap Rings: Inside Snap Rings, Snap Ring Thickness: 0.09 in, Cross Span: 2.87 in.
  • Replaces OEM # 1590256.
  • Comes with a 1 year warranty. Please note parts are designed as an OEM replacement and use on lifted/modied vehicles will void warranty.

  • What's In The Box

  • 1 universal joint
  • Application List

    YearMakeModelSubmodelNotes
    1999PolarisDiesel 4554X4
    2000PolarisSportsman 3354X4
    1999PolarisSportsman 335--
    1999PolarisSportsman 3354X4
    1998PolarisSportsman 5004X4
    1997PolarisSportsman 5004X4
    1996PolarisSportsman 5004X4
    1999PolarisWorker 335--
    1997PolarisXplorer 5004X4

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 0.9 lbs.
    • W4.0000” x H2.0000” x L4.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
