Universal Joint for Polaris 1590257 ATV UTV

Location on vehicle: Middle,Rear

ATV502

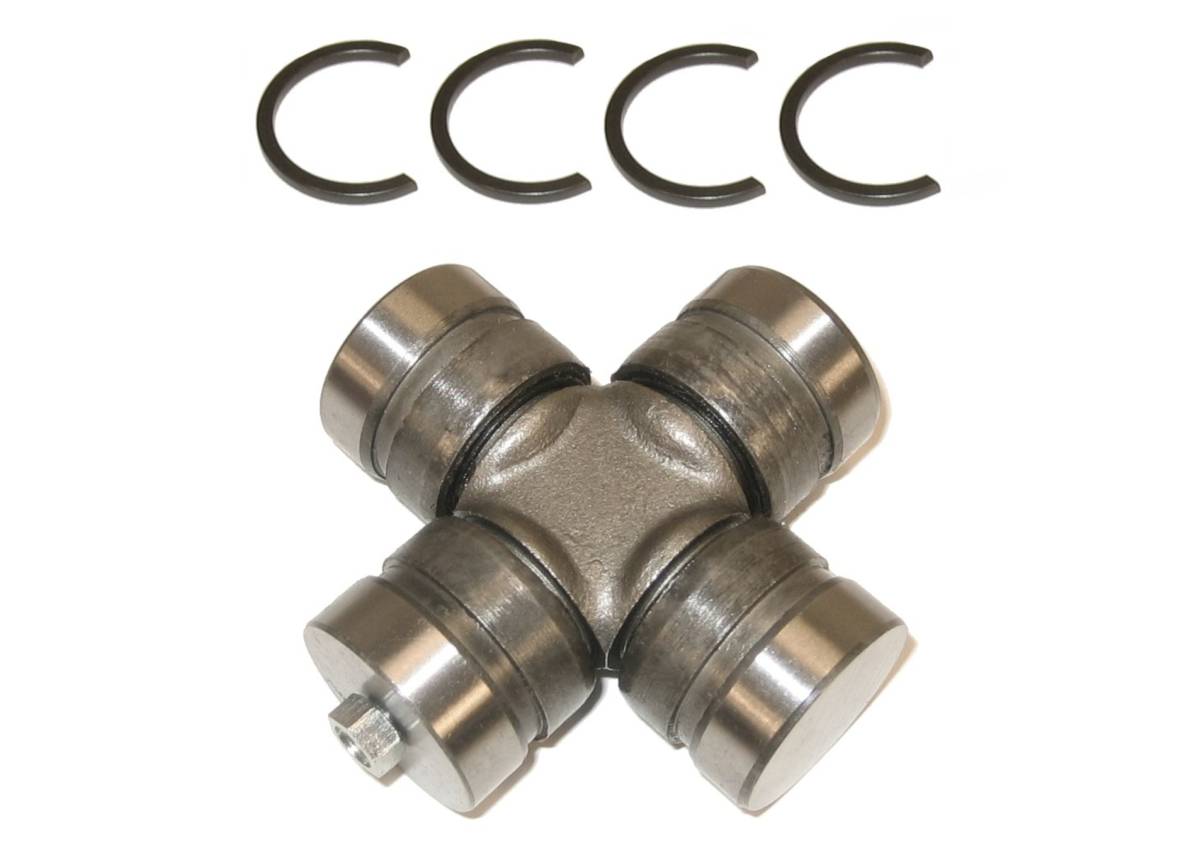

This is a new universal joint for a Polaris ATV/UTV.

It fit the REAR AXLE, OUTER POSITION (wheel side) on the following 4x4 models:

1999-2000 ... Sportsman 335

1996-1998 ... Sportsman 500

1999 ... Diesel 455

1999 ... Worker 335

1997 ... Xplorer 500

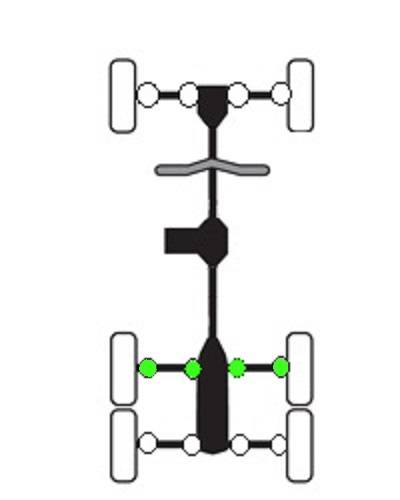

It also fits the MIDDLE AXLE, INNER OR OUTER POSITION on the following 6x6 models:

1999-2005 ... 6x6 Ranger 500 (Including Series 10/11/99).

Product features:

  • Bearing Diameter : 1.063 inches
  • Stack-Up Dimension : 1.817 inches
  • Style of Snap Rings : Inside Snap Rings
  • Snap Ring Thickness : 0.088 inches
  • Cross Span : 2.192 inches
  • Replaces OEM # 1590257
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $19.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
1999PolarisDiesel 4554X4
2005PolarisRanger 5006x6
2004PolarisRanger 5006x6
2003PolarisRanger 5006x6
2002PolarisRanger 5006x6
2001PolarisRanger 5006x6
2000PolarisRanger 5006x6
1999PolarisRanger 5006x6
2000PolarisSportsman 3354X4
1999PolarisSportsman 335--
1999PolarisSportsman 3354X4
1998PolarisSportsman 5004X4
1997PolarisSportsman 5004X4
1996PolarisSportsman 5004X4
1997PolarisXplorer 5004X4

Product Notes

  • Fits (REAR AXLE, OUTER POSITION) = 1999-2000 Sportsman 335, 1996-1998 Sportsman 500, 1997 Xplorer 500, 1999 Worker 335, 1999 Diesel 455.
  • Fits (MIDDLE AXLE, INNER OR OUTER POSITION) = 1999-2005 6x6 Ranger 500 (Including Series 10/11/99).
  • Replaces OEM # 1590257.
  • Bearing Diameter 1.063 inches. Stack up dimension 1.817 inches. Style of snap rings inside. Snap Ring Thickness 0.088 inches. Cross span 2.192 inches.
  • Comes with a 1 year warranty. Please note parts are designed as an OEM replacement and use on lifted/modified vehicles will void warranty.

  • What's In The Box

  • 1 Universal Joint
  • Warranty

    1 year factory defect warranty

    Details

    • ATV502
    • ATV502
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 0.9 lbs.
    • W3.0000” x H1.5000” x L3.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
