Front Left CV Axle for Can-Am Maverick X3 Turbo 705401686

Location on vehicle: Front,Left

(0) Reviews: Write first review

SKU: CA-124

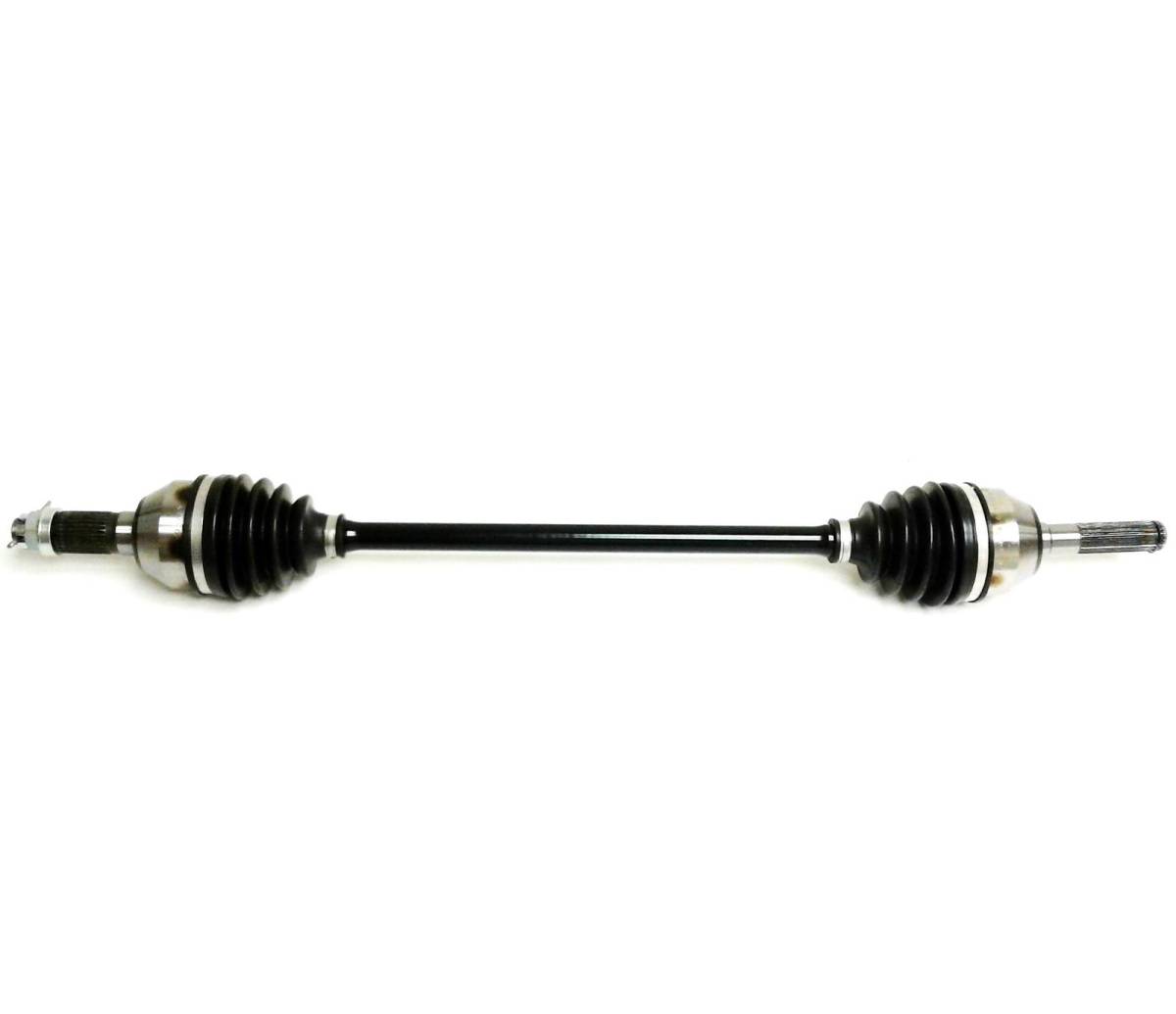

This is a new Front, Left CV axle for a Can-Am Maverick X3.

It will fit the following 4x4 models:

2017-2018 ... Maverick X3/X3 Turbo STD & XDS-DPS

2017-2018 ... Maverick X3 Max/X3 Max Turbo STD & XDS-DPS

2018 ... Maverick X3 900 HO

2019 ... Maverick X3 Turbo/Turbo R STD

2019 ... Maverick X3 Max Turbo R

Fits Front Left / Driver Side

*Not intended for use in lifted vehicles

Product features:

Stronger than OEM chromoly hardened steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear and puncture resistance

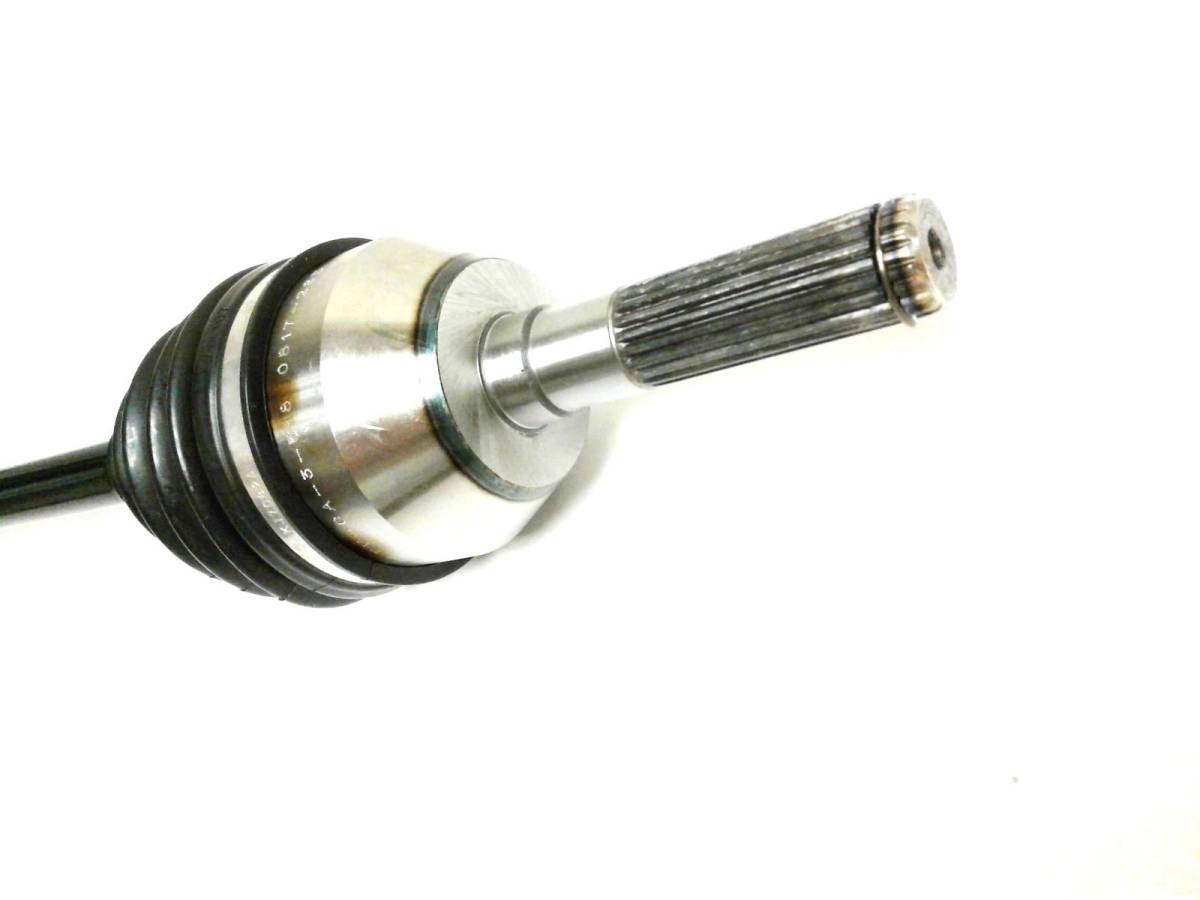

Inboard CV joint spline count: 21

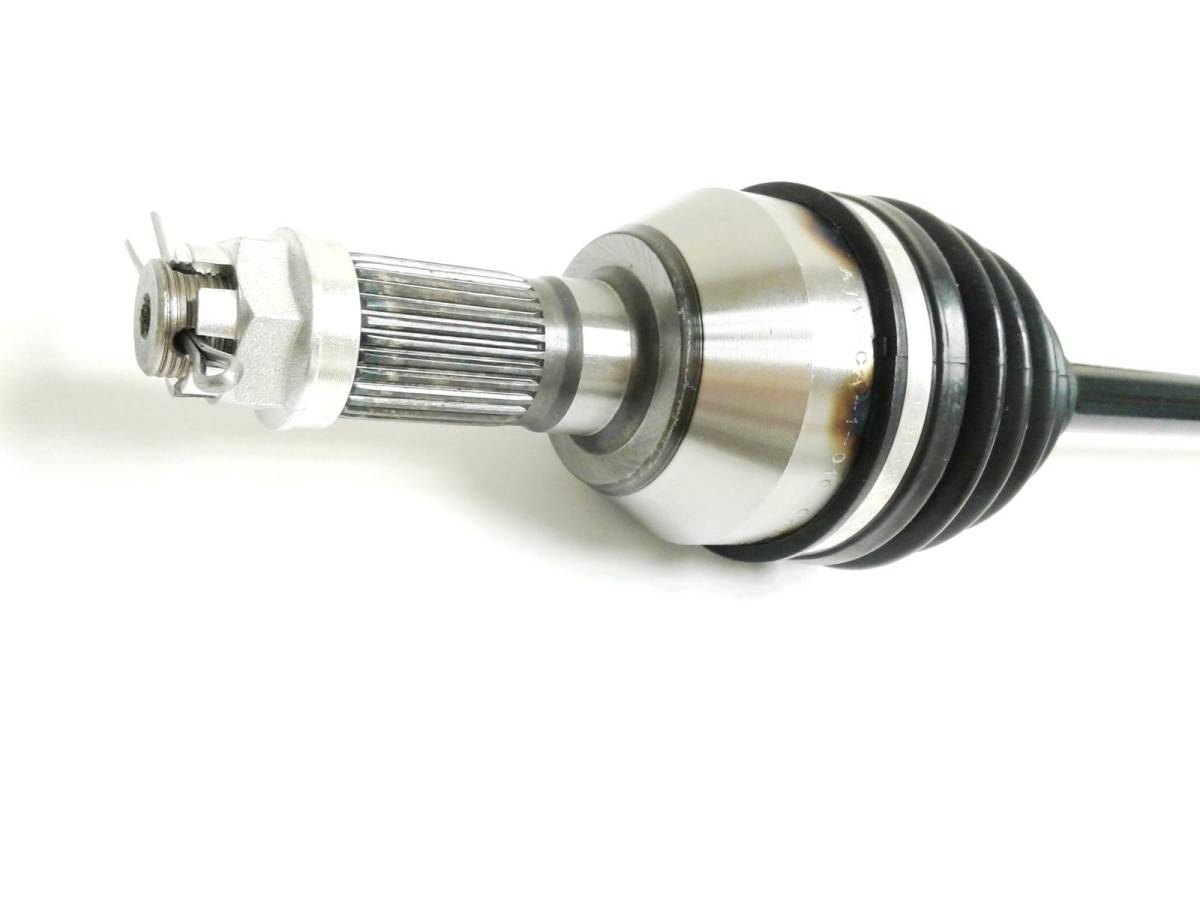

Outboard CV joint spline count: 29
Compressed Length - 778 mm
Replaces Can-Am OEM # 705401686, 705402097

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $82.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel
2019	Can-Am	Maverick X3	4x4 Turbo DPS
2018	Can-Am	Maverick X3	4x4 Turbo DPS
2019	Can-Am	Maverick X3 Max R	4x4 Turbo DPS
2017	Can-Am	Maverick X3 Max R	4x4 Turbo DPS
2017	Can-Am	Maverick X3 Max R	4x4 XDS Turbo DPS
2019	Can-Am	Maverick X3 R	4x4 Turbo DPS
2019	Can-Am	Maverick X3 R	4x4 XDS Turbo DPS
2018	Can-Am	Maverick X3 R	4x4 XMR Turbo DPS
2017	Can-Am	Maverick X3 R	4x4 Turbo DPS
2017	Can-Am	Maverick X3 R	4x4 XDS Turbo DPS

Product Notes

Fits FRONT, LEFT (driver side) on the following Can-Am Maverick X3 models: 2017-2018 Maverick X3/X3 Turbo STD & XDS-DPS, 2017-2018 Maverick X3 Max/X3 Max Turbo STD & XDS-DPS, 2018 Maverick X3 900 HO, 2019 Maverick X3 Turbo/Turbo R STD, 2019 Maverick X3 Max Turbo R.

Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.

Compressed Length - 778 mm, Inboard Spline Count - 21, Outboard Spline Count - 29.

Replaces OEM # 705401686, 705402097.

Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.
