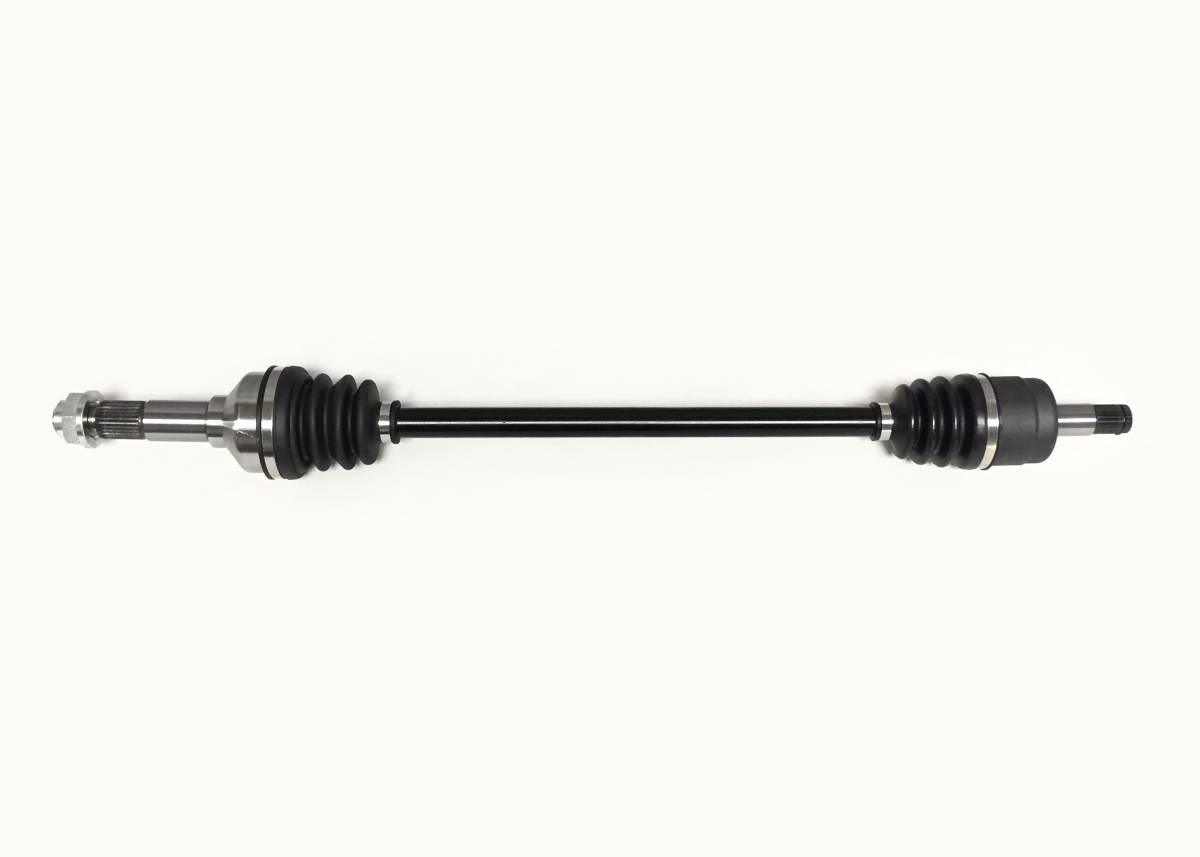

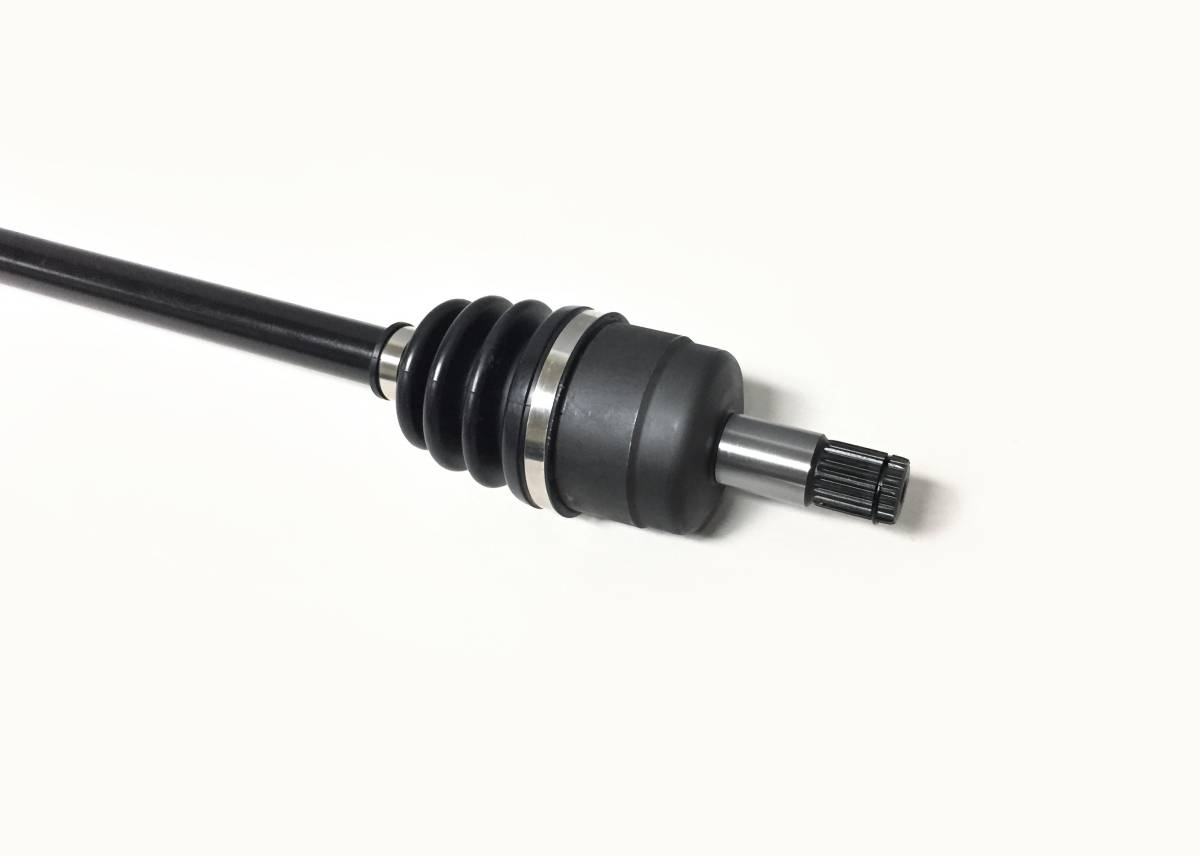

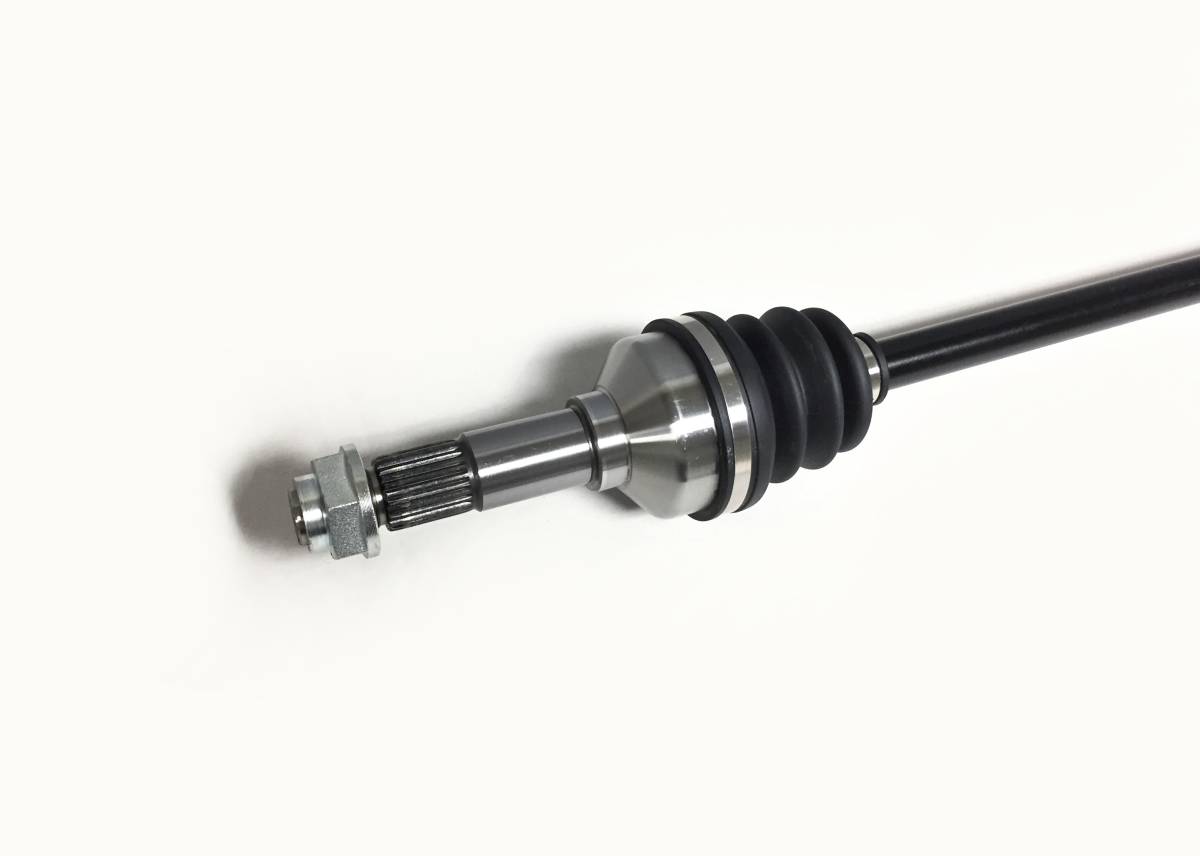

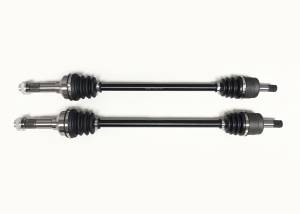

Front CV Axle for Yamaha YXZ 1000R 4x4 2016-2022, Left or Right

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
YA-318
This is a new CV axle for a Yamaha SXS.

Itfits FRONT, LEFT or RIGHT on the following 4x4 models:

2016-2022 ... YXZ 1000R (including SE, SS models)

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 749 mm
  • Replaces OEM # 2HC-2518F-00-00, 2HC-2518F-01-00
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $83.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022YamahaYXZ1000REPS
2022YamahaYXZ1000RSS EPS
2022YamahaYXZ1000RSS XT-R
2021YamahaYXZ1000REPS
2021YamahaYXZ1000RSE EPS
2021YamahaYXZ1000RSS EPS
2021YamahaYXZ1000RSS SE EPS
2021YamahaYXZ1000RSS XT-R
2020YamahaYXZ1000REPS
2020YamahaYXZ1000RSE EPS
2020YamahaYXZ1000RSS EPS
2020YamahaYXZ1000RSS SE EPS
2020YamahaYXZ1000RSS XT-R
2019YamahaYXZ1000REPS
2019YamahaYXZ1000RSE EPS
2019YamahaYXZ1000RSS EPS
2019YamahaYXZ1000RSS SE EPS
2018YamahaYXZ1000REPS
2018YamahaYXZ1000RSE
2018YamahaYXZ1000RSE EPS
2018YamahaYXZ1000RSS EPS
2018YamahaYXZ1000RSS SE EPS
2017YamahaYXZ1000R--
2017YamahaYXZ1000RSE
2017YamahaYXZ1000RSS
2017YamahaYXZ1000RSS SE
2016YamahaYXZ1000R--
2016YamahaYXZ1000RSpecial Edition

Product Notes

  • Fits FRONT, LEFT or RIGHT on the 2016-2022 Yamaha YXZ1000R (all models including EPS, SE, SS & XTR).
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Inner Splines: 24, Outer Splines: 27, Compressed length: 759 mm.
  • Replaces OEM # 2HC-2518F-00-00, 2HC-2518F-01-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect limited warranty
