Precision Full CV Axle Set for Yamaha YXZ1000R 2016-2025 2HC-2518F-01-00 2HC-2531H-13-00 Quality Tested Heat-Treated 4140 Chromoly Steel Exact Fit ATVPC

Location on vehicle: Outside

(0) Reviews: Write first review
YA-318/YA-318/YA-358/YA-358

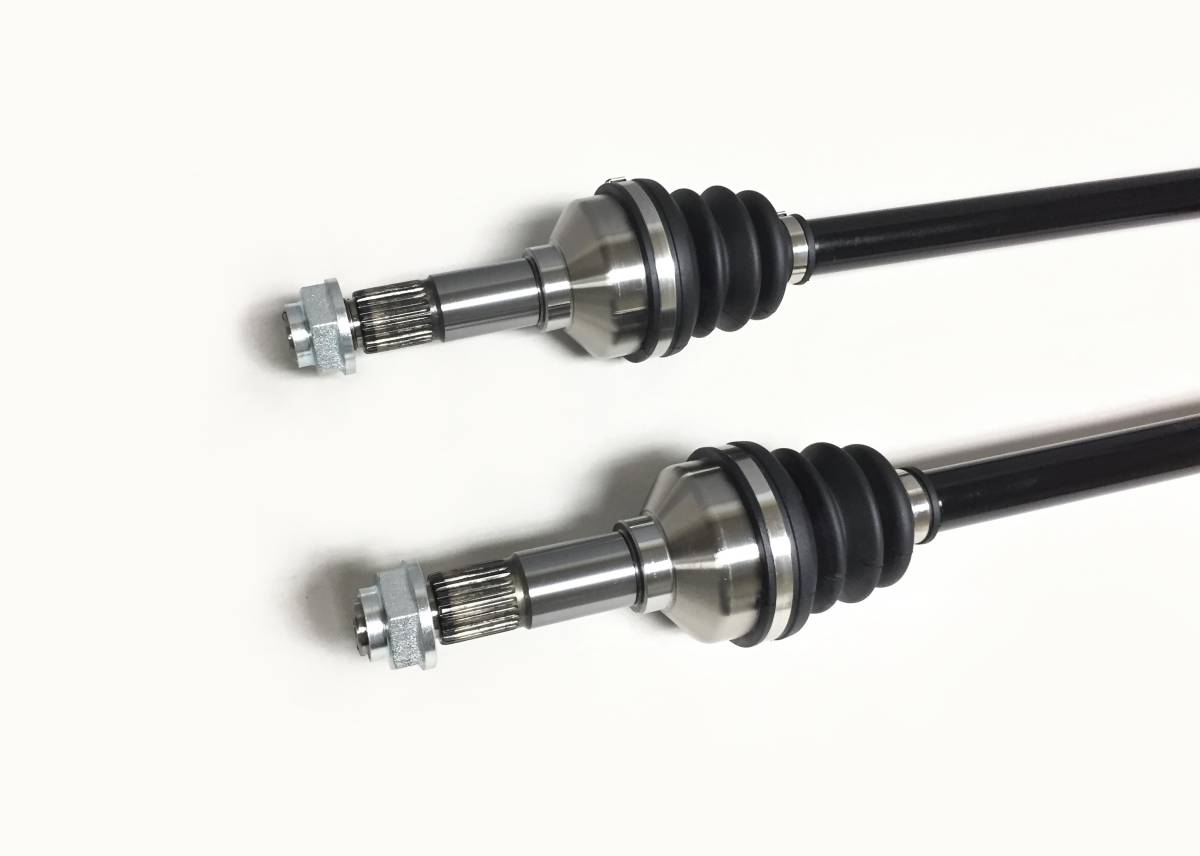

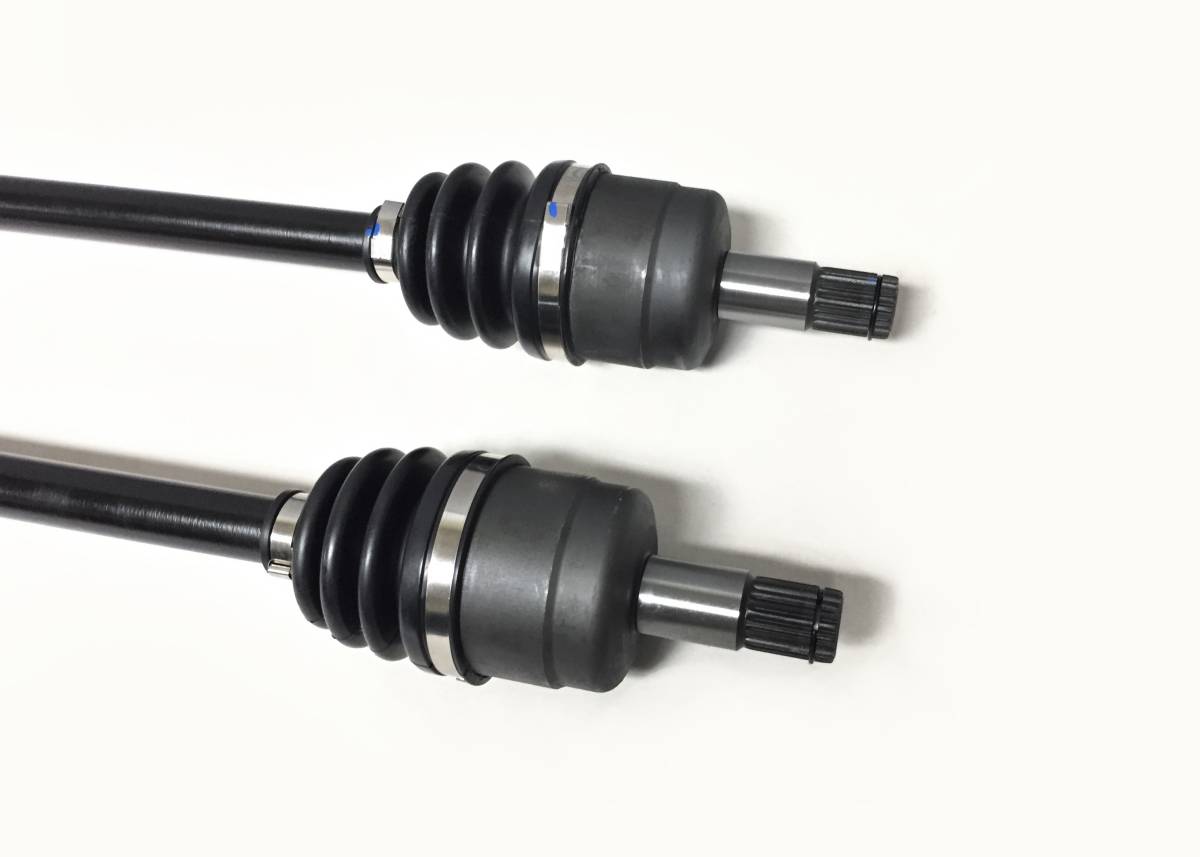

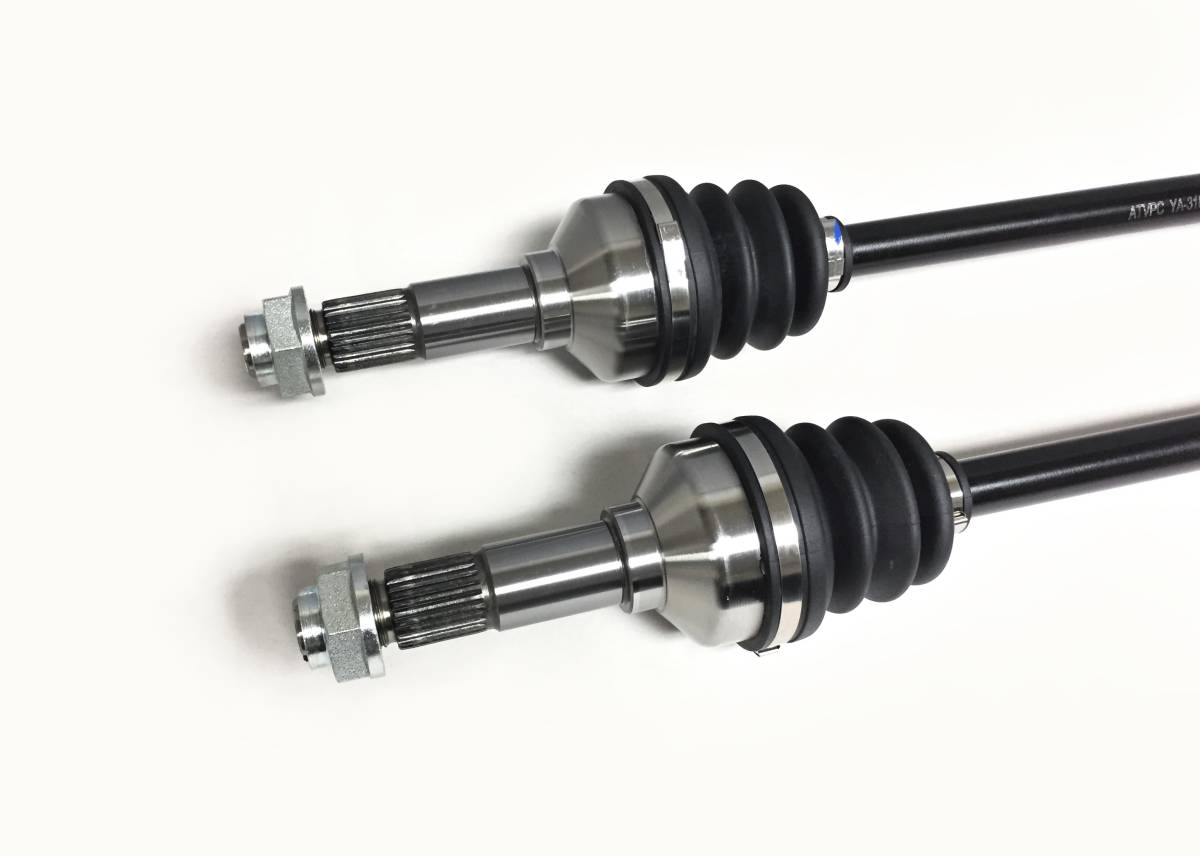

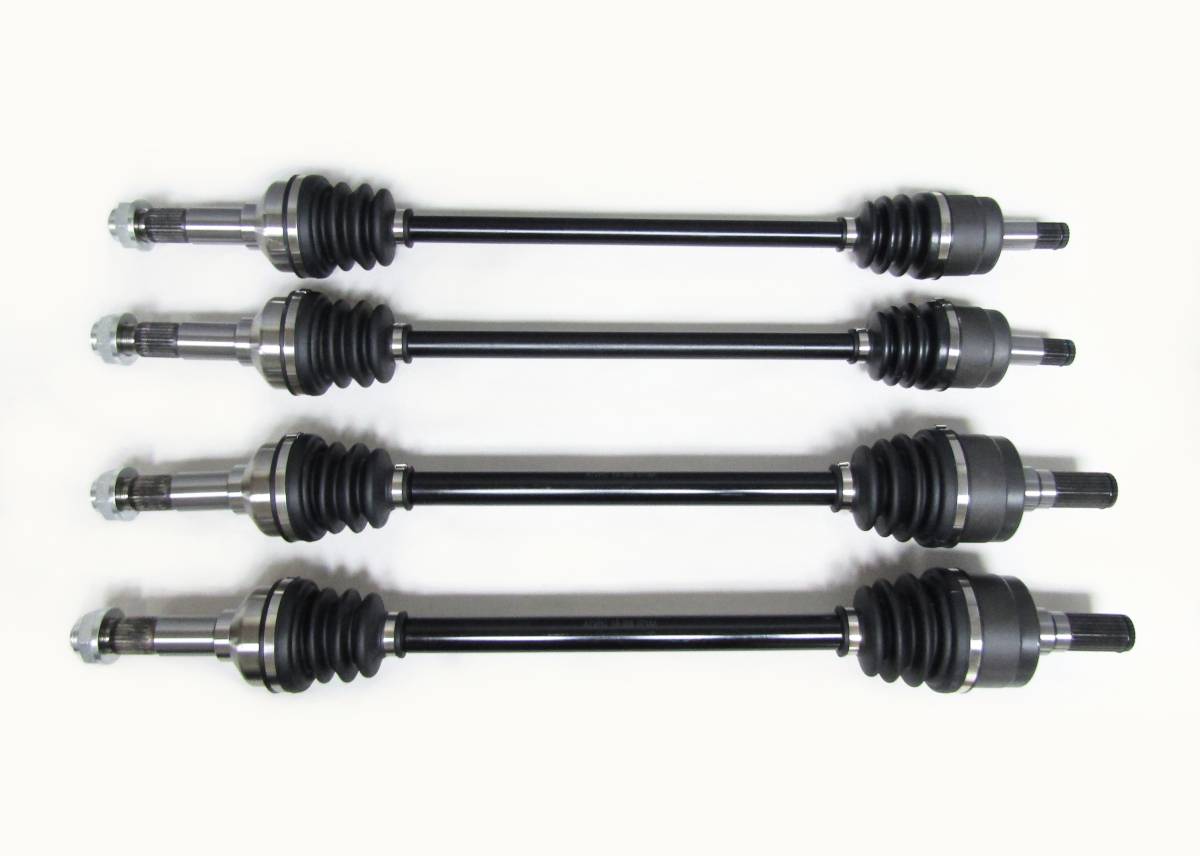

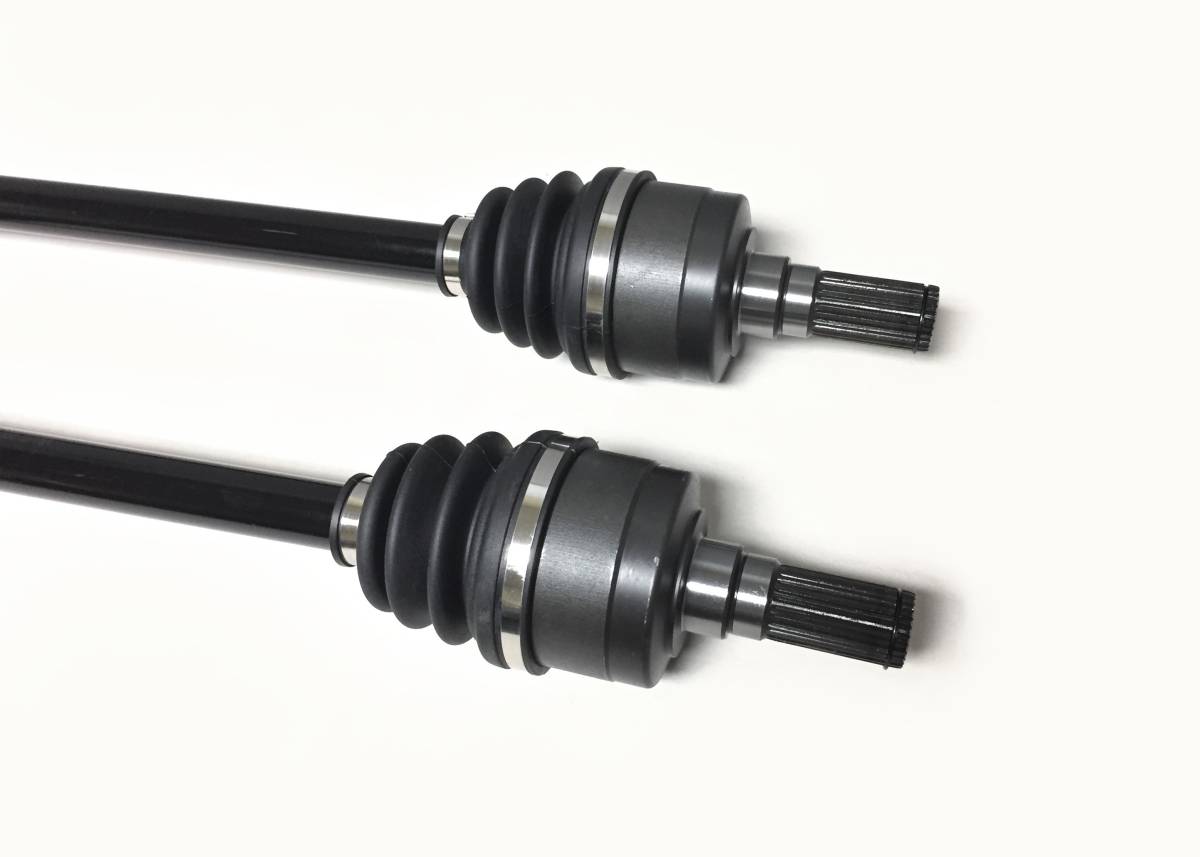

This is a full set of new OE type CV axles.

Precision machined and made as a direct replacement, no modifications necessary.

Quality tested for smooth articulation and reliable performance.

Ships fully-assembled and ready to install.

*made as an OE replacement, and not guaranteed to work with lifted vehicles or modifications of any kind

Product details:

  • Fits the following Yamaha SXS models: 2016-2025 XZ1000R (including EPS, SE, SS & XTR).
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated.
  • Replaces OEM # (fronts) 2HC-2510F-00-00, 2HC-2510J-00-00, 2HC-2518F-00-00, (rears) 2HC-2531H-10-00, 2HC-2531H-12-00. Compressed length - fronts: 749 mm, rears: 756 mm, Inner spline count: fronts: 27, rears: 27, Outer spline count - fronts: 27, rears: 27.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $299.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022YamahaYXZ1000REPS
2022YamahaYXZ1000RSS EPS
2022YamahaYXZ1000RSS XT-R
2021YamahaYXZ1000REPS
2021YamahaYXZ1000RSE EPS
2021YamahaYXZ1000RSS EPS
2021YamahaYXZ1000RSS SE EPS
2021YamahaYXZ1000RSS XT-R
2020YamahaYXZ1000REPS
2020YamahaYXZ1000RSE EPS
2020YamahaYXZ1000RSS EPS
2020YamahaYXZ1000RSS SE EPS
2020YamahaYXZ1000RSS XT-R
2019YamahaYXZ1000REPS
2019YamahaYXZ1000RSE EPS
2019YamahaYXZ1000RSS EPS
2019YamahaYXZ1000RSS SE EPS
2018YamahaYXZ1000REPS
2018YamahaYXZ1000RSE
2018YamahaYXZ1000RSE EPS
2018YamahaYXZ1000RSS EPS
2018YamahaYXZ1000RSS SE EPS
2017YamahaYXZ1000R--
2017YamahaYXZ1000RSE
2017YamahaYXZ1000RSS
2017YamahaYXZ1000RSS SE
2016YamahaYXZ1000R--
2016YamahaYXZ1000RSpecial Edition

Product Notes

  • Fits the following Yamaha SXS models: 2016-2025 XZ1000R (including EPS, SE, SS & XTR).
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated.
  • Replaces OEM # (fronts) 2HC-2510F-00-00, 2HC-2510J-00-00, 2HC-2518F-00-00, (rears) 2HC-2531H-10-00, 2HC-2531H-12-00. Compressed length - fronts: 749 mm, rears: 756 mm, Inner spline count: fronts: 27, rears: 27, Outer spline count - fronts: 27, rears: 27.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 4 axles

    • Warranty

    Limited 2 year, one-time warranty

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 52.2 lbs.
    • W10.0000” x H10.0000” x L32.0000”
