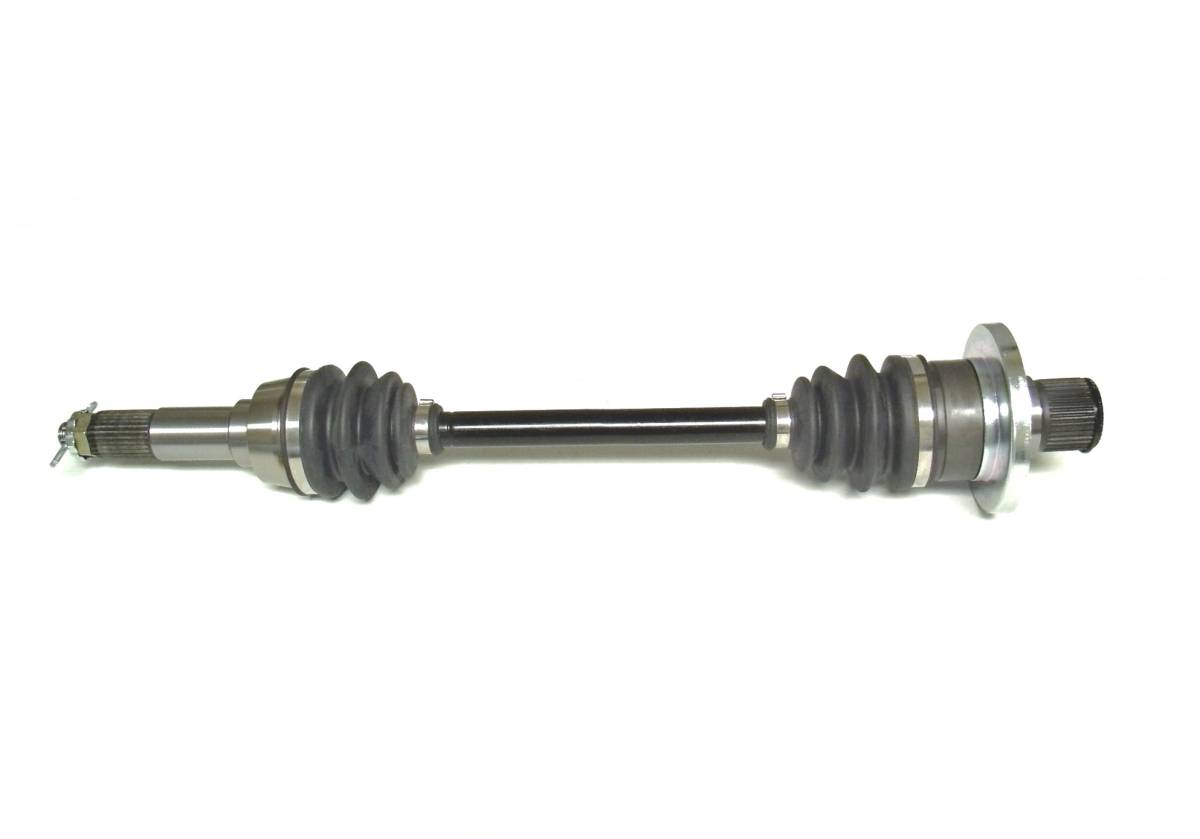

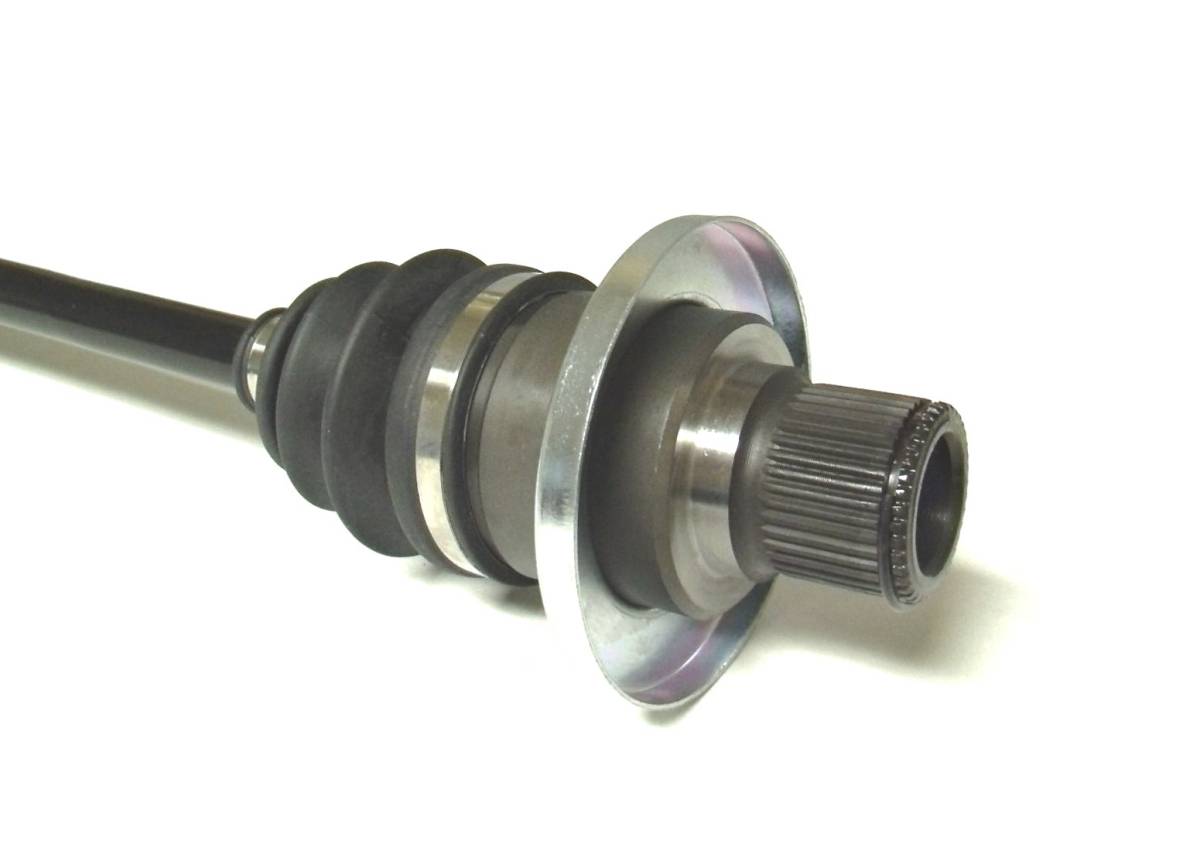

Rear Left CV Axle for Yamaha Grizzly 660 4x4 2002 ATV

Location on vehicle: Rear,Left

(0) Reviews: Write first review
YA-217
This is a new Rear, Left CV axle for a Yamaha ATV.

It will fit the following 4x4 applications:

2002 ..... Grizzly 660

Rear Left / Driver's Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 39
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 557 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $79.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2002YamahaGrizzly 660YFM660F 4x4
2002YamahaGrizzly 660YFM660FH 4x4 Hunter Edition

Product Notes

  • Fits rear left (driver's side) on the 2002 Yamaha Grizzly 660 4x4.
  • Features a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.
  • Compressed Length- 557 mm, Inner Spline Count - 39, Outer Spline Count - 27.
  • Replaces OE # 5KM-2530T-00-00, 5KM-2530V-00-00, 5KM-2530U-00-00, 5KM-2530W-00-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect limited warranty

    Details

    • YA-217
    • YA-217
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 8.6 lbs.
    • W5.0000” x H5.0000” x L26.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
