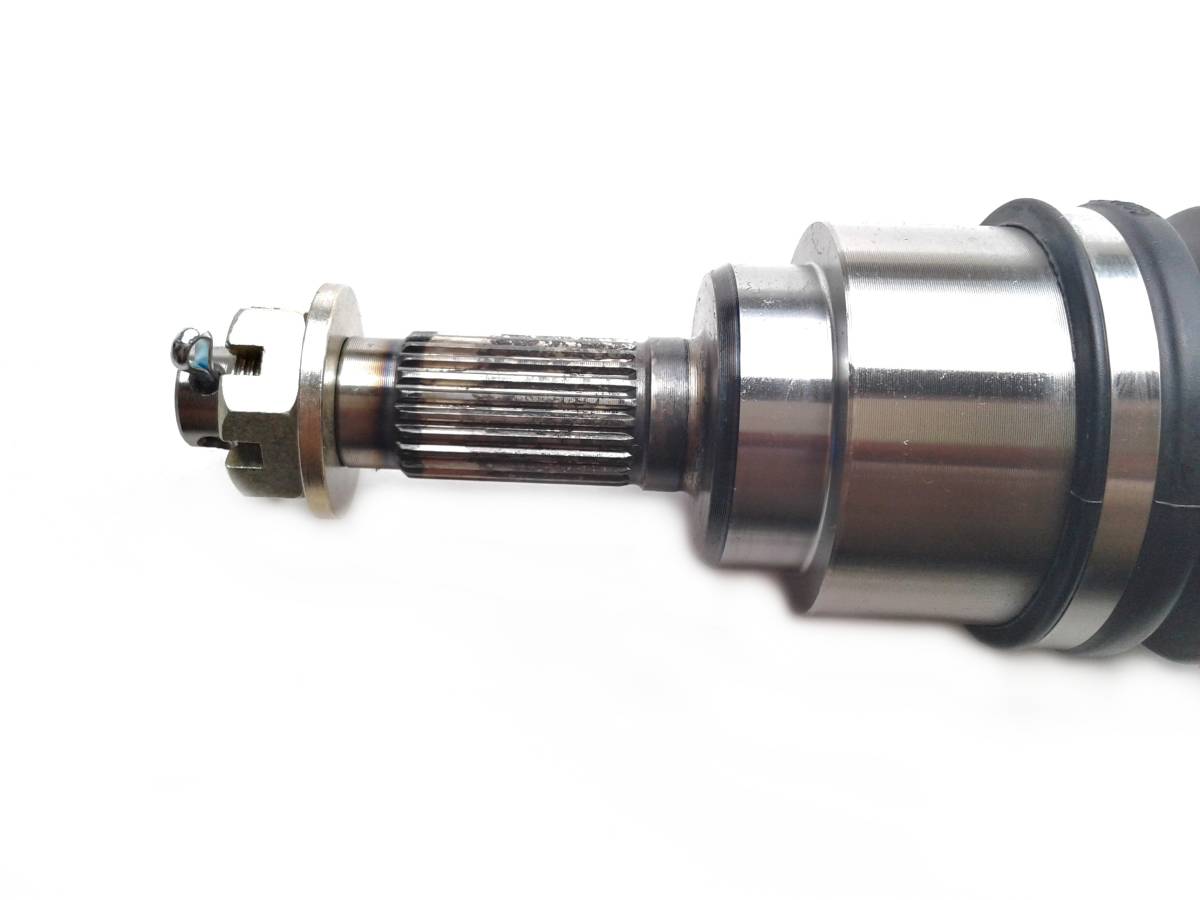

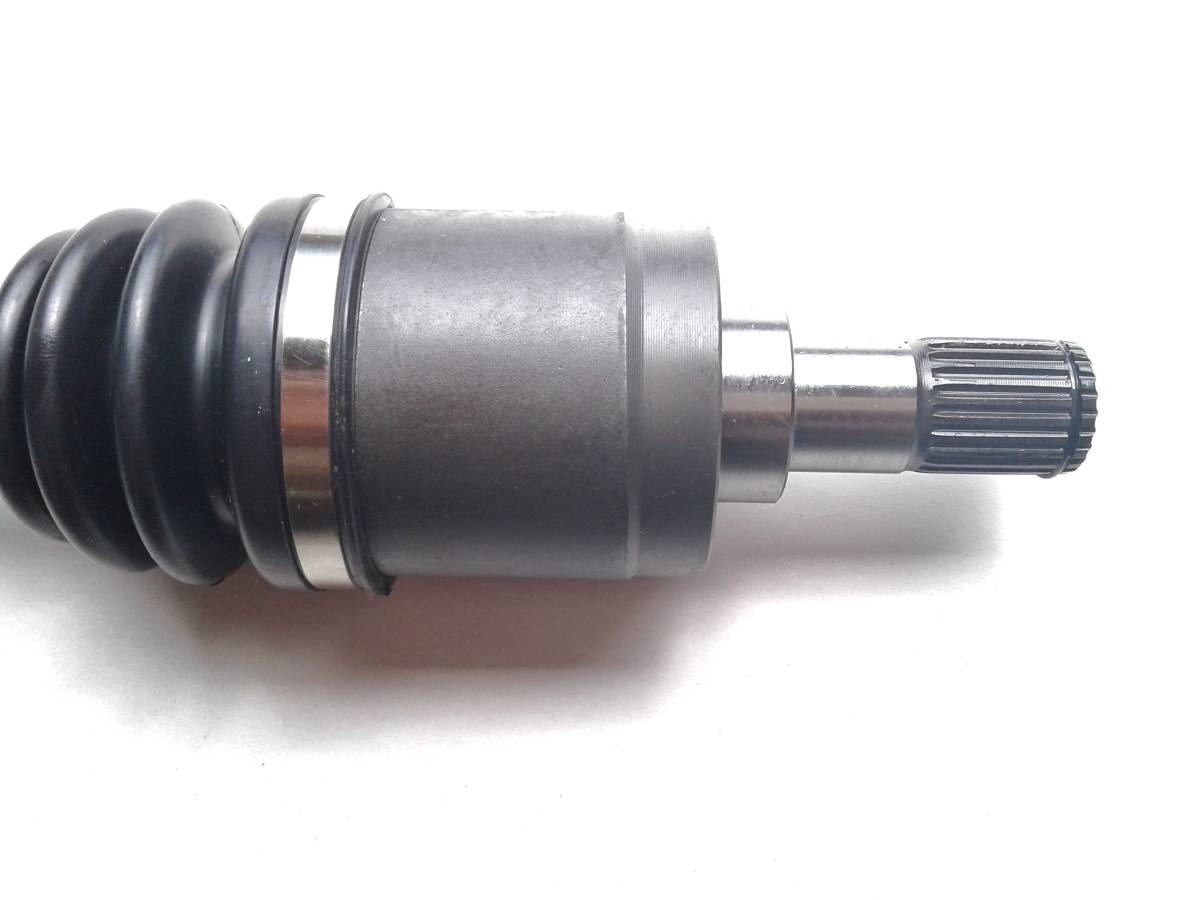

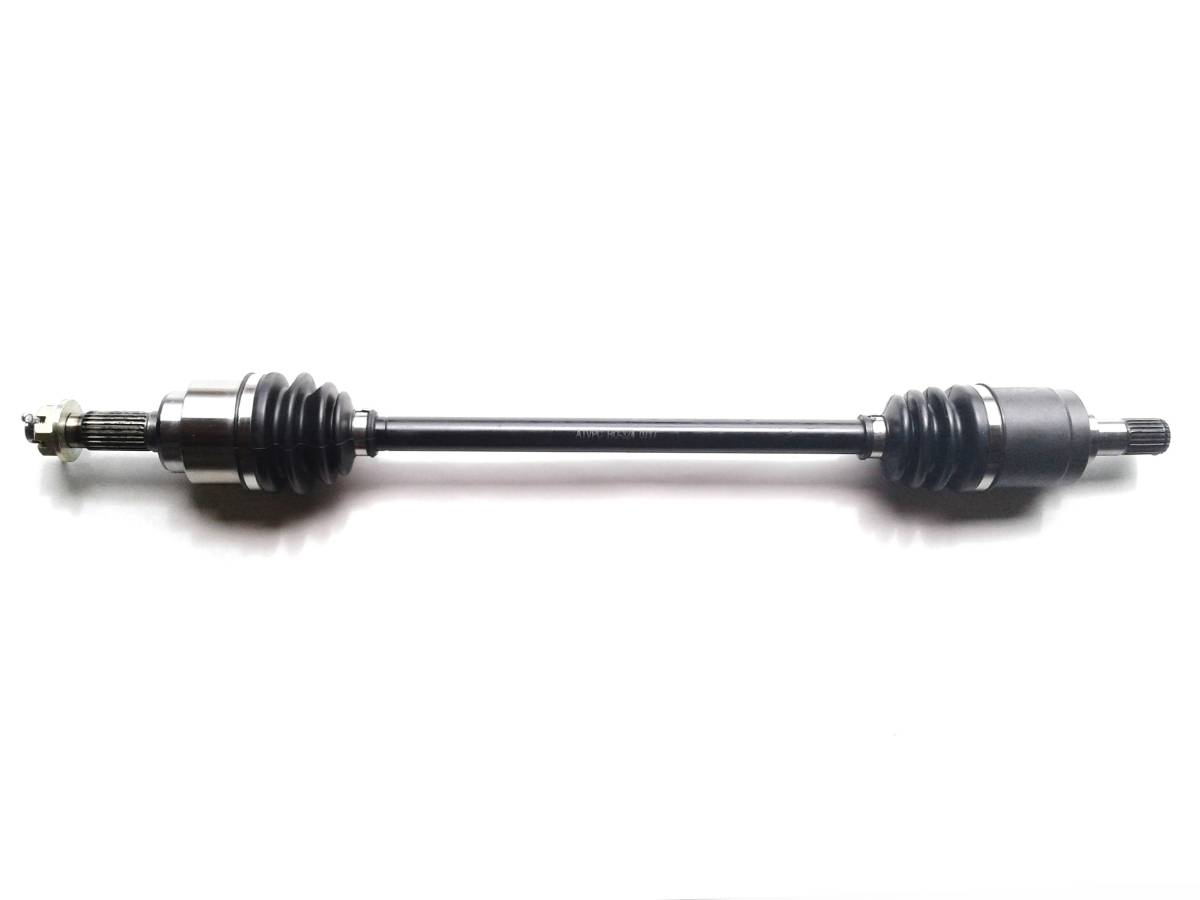

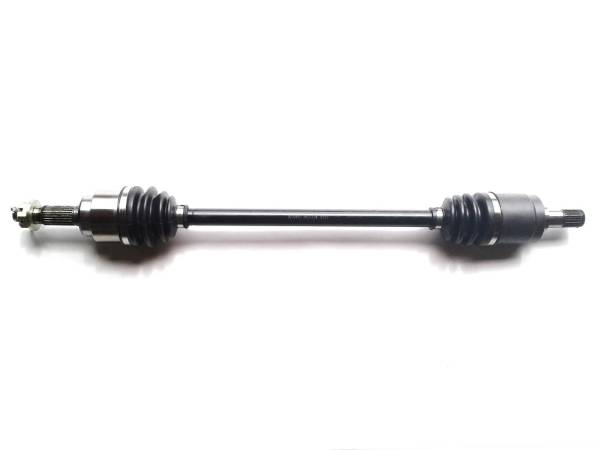

Rear Right CV Axle for Honda Big Red 700 2009-2013 4x4 UTV

Location on vehicle: Rear,Right

HO-324
This is a new rear, right CV axle for a Honda UTV.

It will fit the following 4x4 applications:

2009-2013 ... Big Red 700

(MUV700 - all models)

rear, right / Passenger Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • inobard CV joint spline count: 23
  • outboard CV joint spline count: 24
  • Compressed overall axle length: 699 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $84.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2013HondaBig Red 700MUV700
2012HondaBig Red 700MUV700
2011HondaBig Red 700MUV700
2010HondaBig Red 700MUV700
2009HondaBig Red 700MUV700

Product Notes

  • Fits rear right (passenger side) on the following Honda UTV models: 2009-2013 Big Red 700 - MUV700.
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 42250-HL1-A01, 42220-HL1-A01. Compressed length- 699 mm, Inboard spline count- 23, Outboard spline count- 24.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

  • 1 axle
  • Warranty

    1 year factory defect limited warranty

    Details

    • HO-324
    • HO-324
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 10.7 lbs.
    • W5.0000” x H5.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
