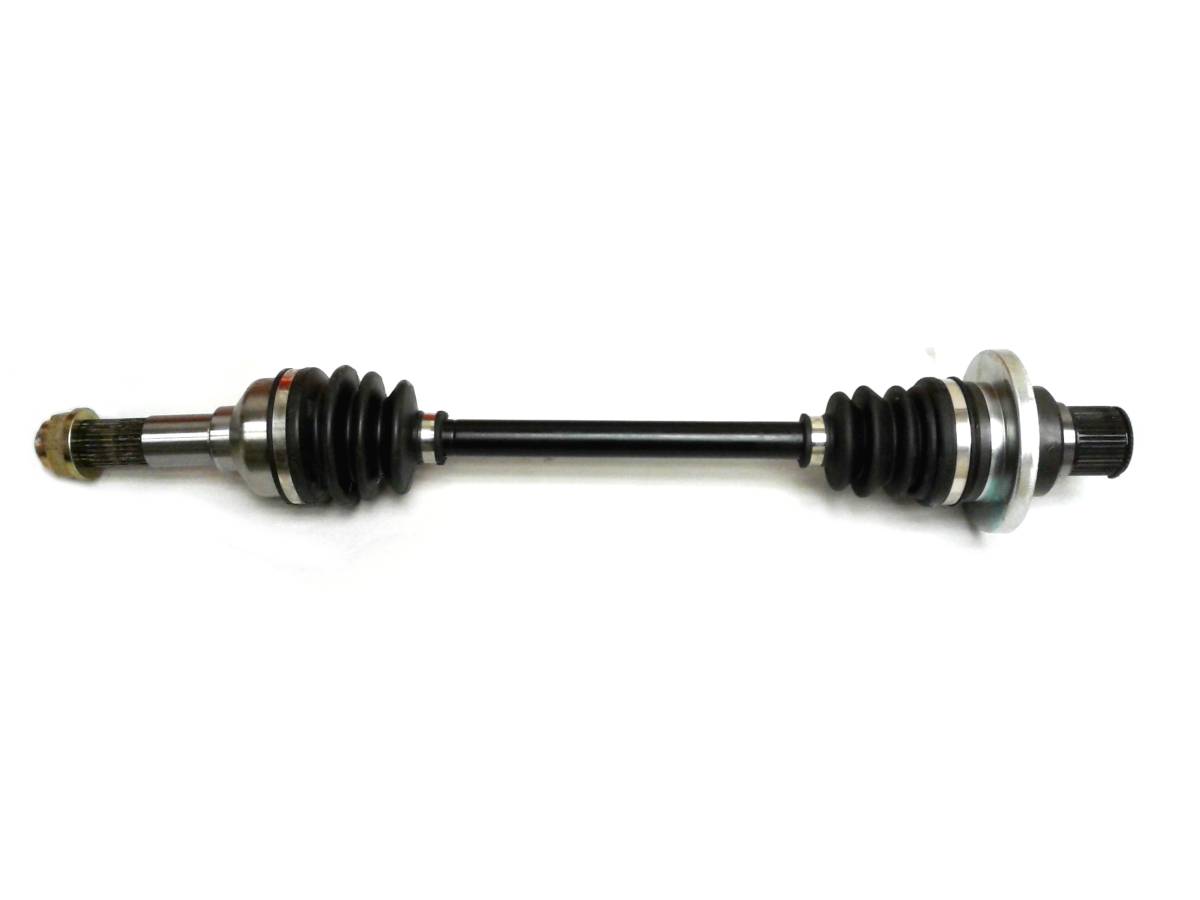

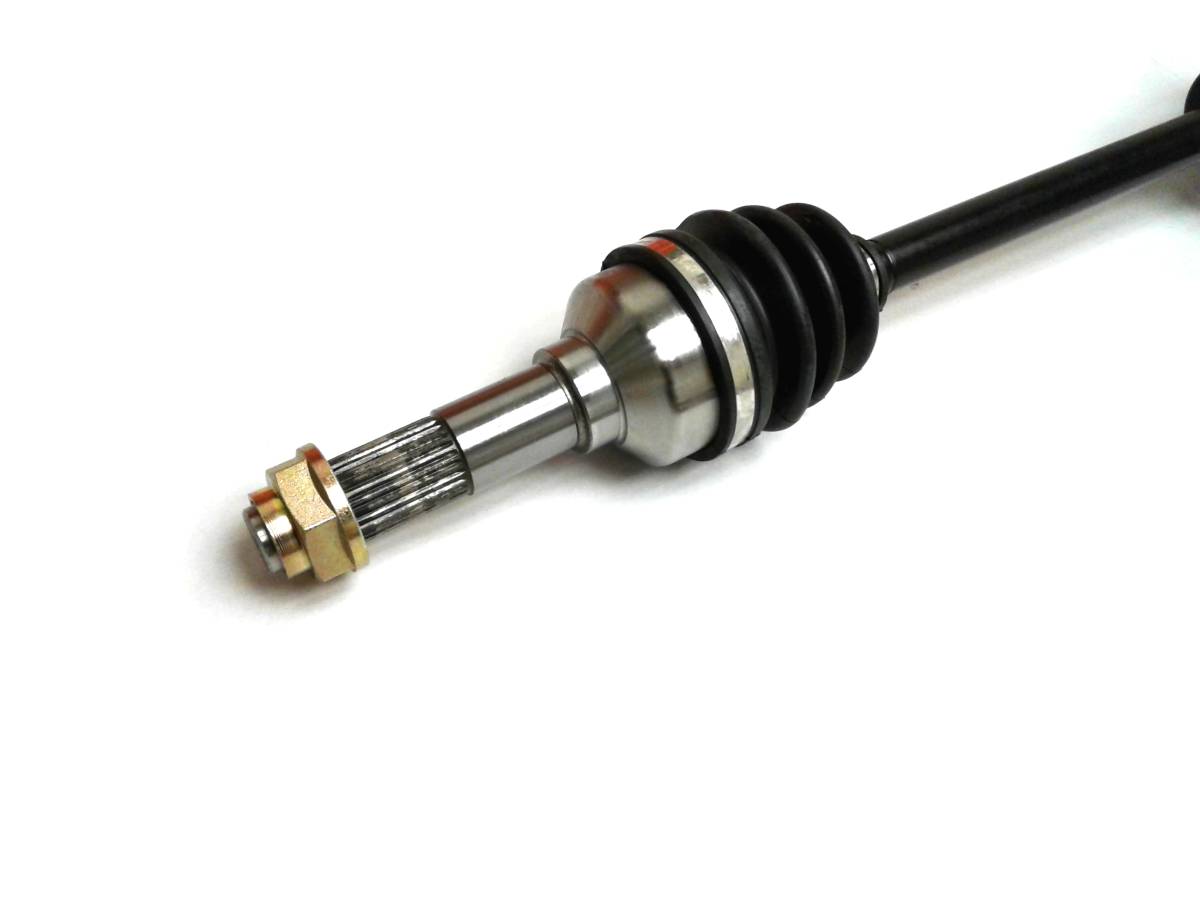

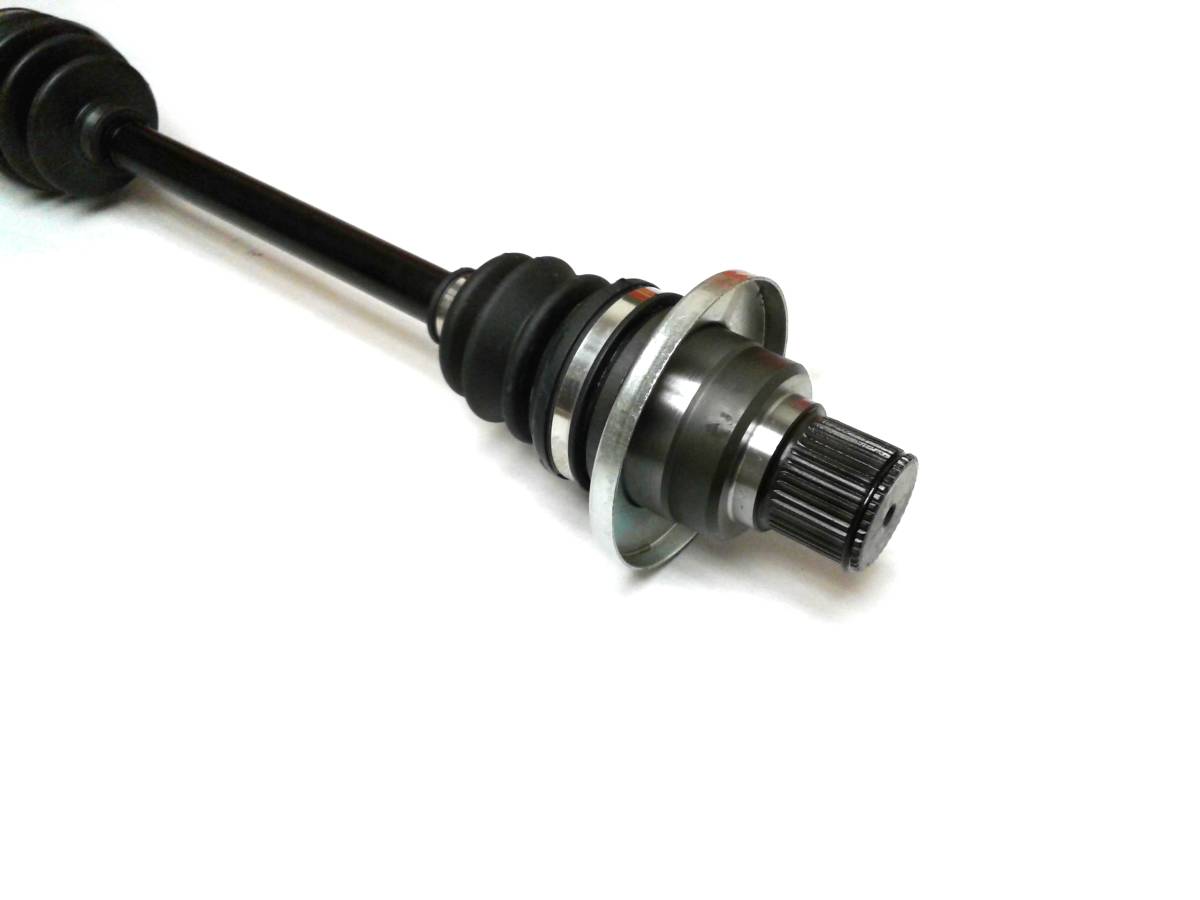

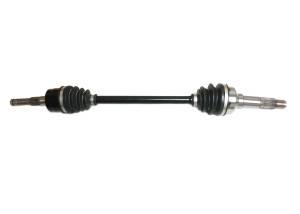

Rear Left CV Axle for Yamaha Rhino 450 660 & 700 4x4 2004-2013

Location on vehicle: Rear,Left

(0) Reviews: Write first review
YA-322
This is a new Rear, Left CV axle for a Yamaha UTV.

It will fit the following 4x4 applications:

2006-2009 ... Rhino 450

2004-2007 ... Rhino 660

2008-2013 ... Rhino 700

Rear, Left (driver's side)

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 39
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 597 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $79.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits REAR, LEFT (driver side) on the following Yamaha UTVs: 2006-2009 Rhino 450, 2004-2007 Rhino 660, 2008-2013 Rhino 700.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length - 597 mm, Inboard Spline Count - 39, Outboard Spline Count - 27.
  • Replaces Yamaha OEM # 5UG-F531H-10-00, 5UG-F531H-11-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Application List

    YearMakeModelSubmodelNotes
    2009YamahaRhino 450YXR450FA 4x4
    2009YamahaRhino 450YXR450FH 4x4 Hunter Edition
    2008YamahaRhino 450YXR450FA 4x4
    2008YamahaRhino 450YXR450FH 4x4 Hunter Edition
    2008YamahaRhino 450YXR450FSE 4x4 Special Edition
    2007YamahaRhino 450YXR450FA 4x4
    2007YamahaRhino 450YXR450FASE 4x4 Special Edition
    2007YamahaRhino 450YXR450FSE 4x4 Special Edition
    2006YamahaRhino 450YXR450FA 4x4
    2006YamahaRhino 450YXR450FAH 4x4 Hunter Edition
    2007YamahaRhino 660YXR660FA 4x4
    2007YamahaRhino 660YXR660FAEX 4x4 Exploring Edition
    2007YamahaRhino 660YXR660FDU 4x4 Ducks Unlimited Edition
    2007YamahaRhino 660YXR660FH 4x4 Hunter Edition
    2007YamahaRhino 660YXR660FSE 4x4 Special Edition
    2007YamahaRhino 660YXR660FSP 4x4 Sport Edition
    2006YamahaRhino 660YXR660FA 4x4
    2006YamahaRhino 660YXR660FAEX 4x4 Exploring Edition
    2006YamahaRhino 660YXR660FAH 4x4 Hunter Edition
    2006YamahaRhino 660YXR660FASE 4x4 Special Edition
    2005YamahaRhino 660YXR660FA 4x4
    2005YamahaRhino 660YXR660FAH 4x4 Hunter Edition
    2004YamahaRhino 660YXR660FA 4x4
    2004YamahaRhino 660YXR660FAH 4x4 Hunter Edition
    2013YamahaRhino 700YXR700F 4x4 FI
    2013YamahaRhino 700YXR700FH 4x4 Hunter Edition FI
    2013YamahaRhino 700YXR700FSP 4x4 Specialt Edition FI
    2013YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
    2012YamahaRhino 700YXR700F 4x4 FI
    2012YamahaRhino 700YXR700FH 4x4 Hunter Edition FI
    2012YamahaRhino 700YXR700FSE 4x4 Special Edition FI
    2012YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
    2011YamahaRhino 700YXR700F 4x4 FI
    2011YamahaRhino 700YXR700FSE 4x4 Special Edition FI
    2011YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
    2009YamahaRhino 700YXR700F 4x4 FI
    2009YamahaRhino 700YXR700FDU 4x4 Ducks Unlimited Edition FI
    2009YamahaRhino 700YXR700FH 4x4 Hunter Edition
    2009YamahaRhino 700YXR700FSE 4x4 Special Edition FI
    2009YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
    2008YamahaRhino 700YXR700F 4x4 FI
    2008YamahaRhino 700YXR700FDU 4x4 Ducks Unlimited Edition FI
    2008YamahaRhino 700YXR700FH 4x4 Hunter Edition FI
    2008YamahaRhino 700YXR700FSEP 4x4 Special Edition FI
    2008YamahaRhino 700YXR700FSP2 4x4 Special Edition II FI
    2008YamahaRhino 700YXR700FSP 4x4 Sport Edition FI

    Details

    • YA-322
    • YA-322
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 11.2 lbs.
    • W5.0000” x H5.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
