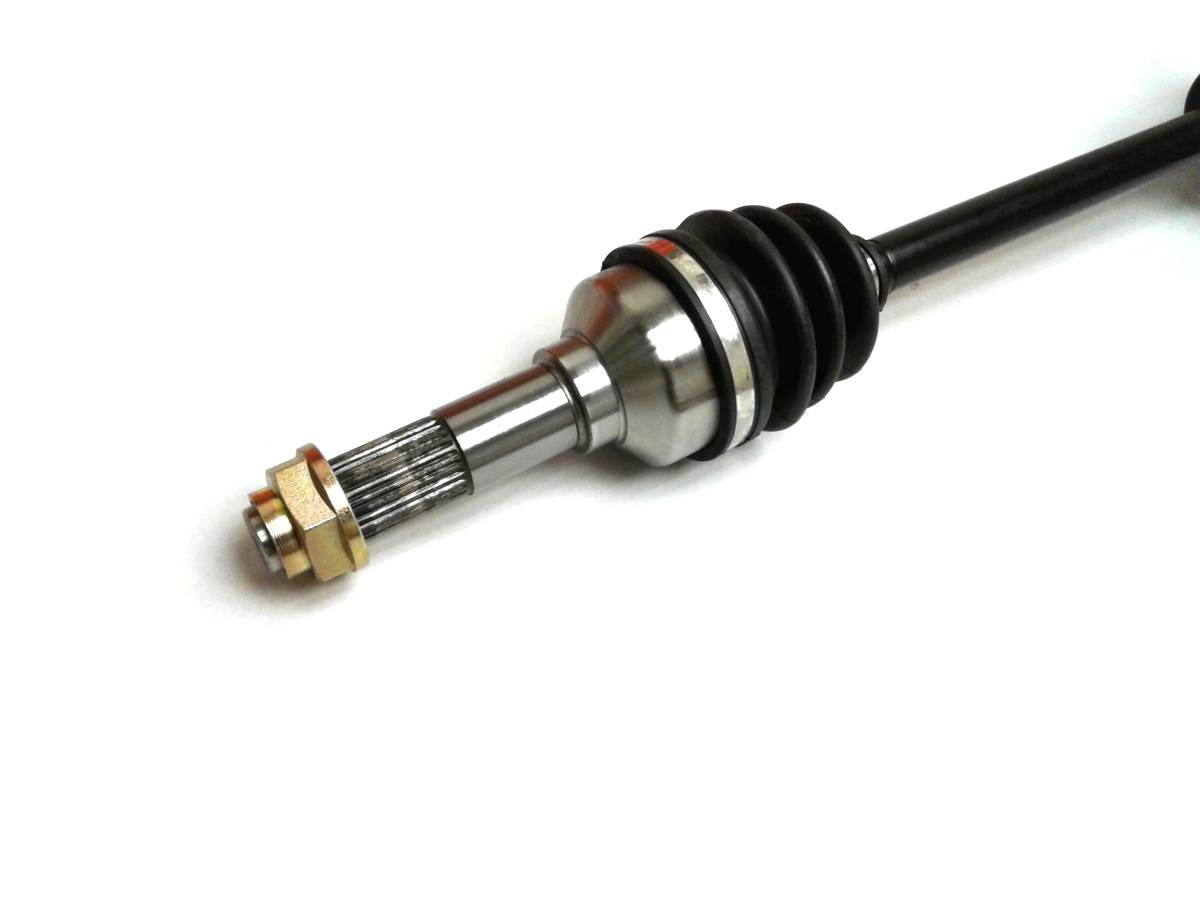

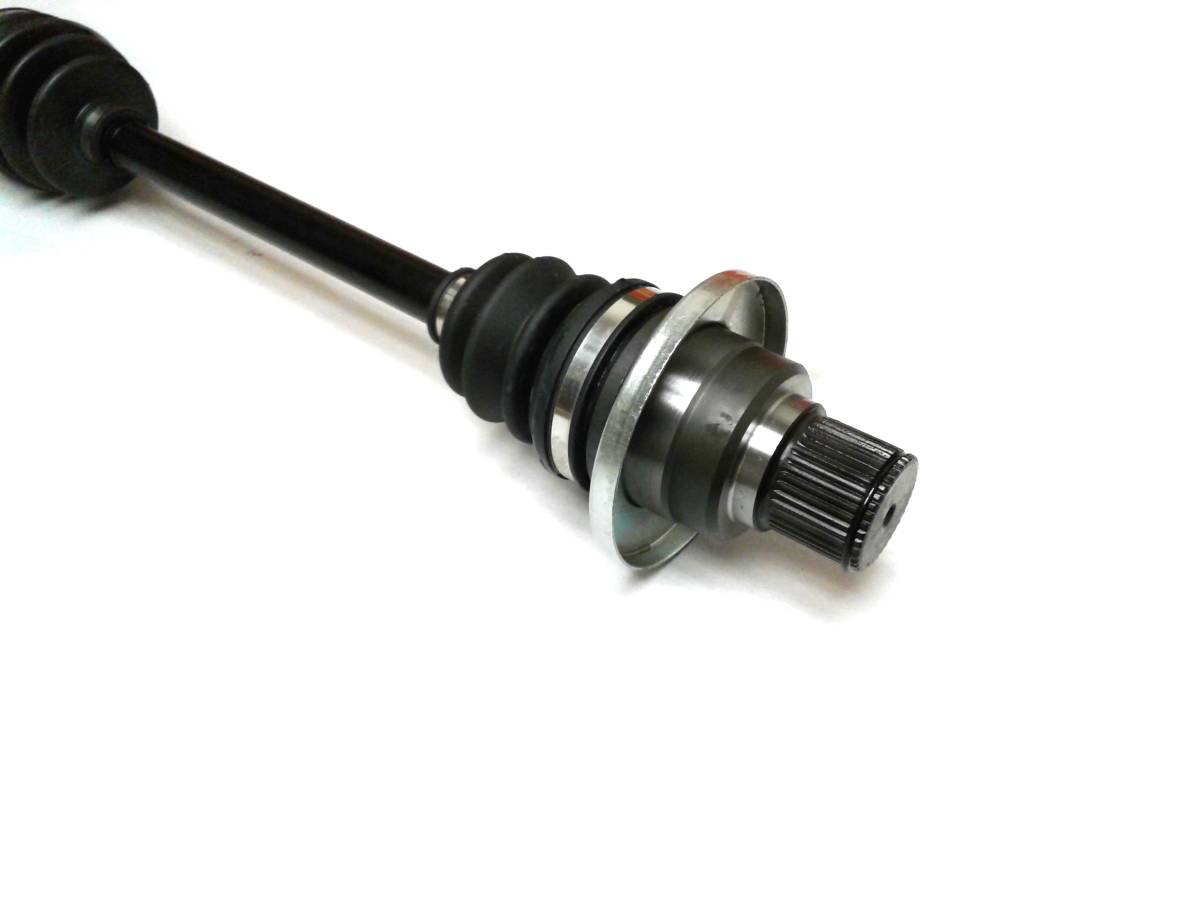

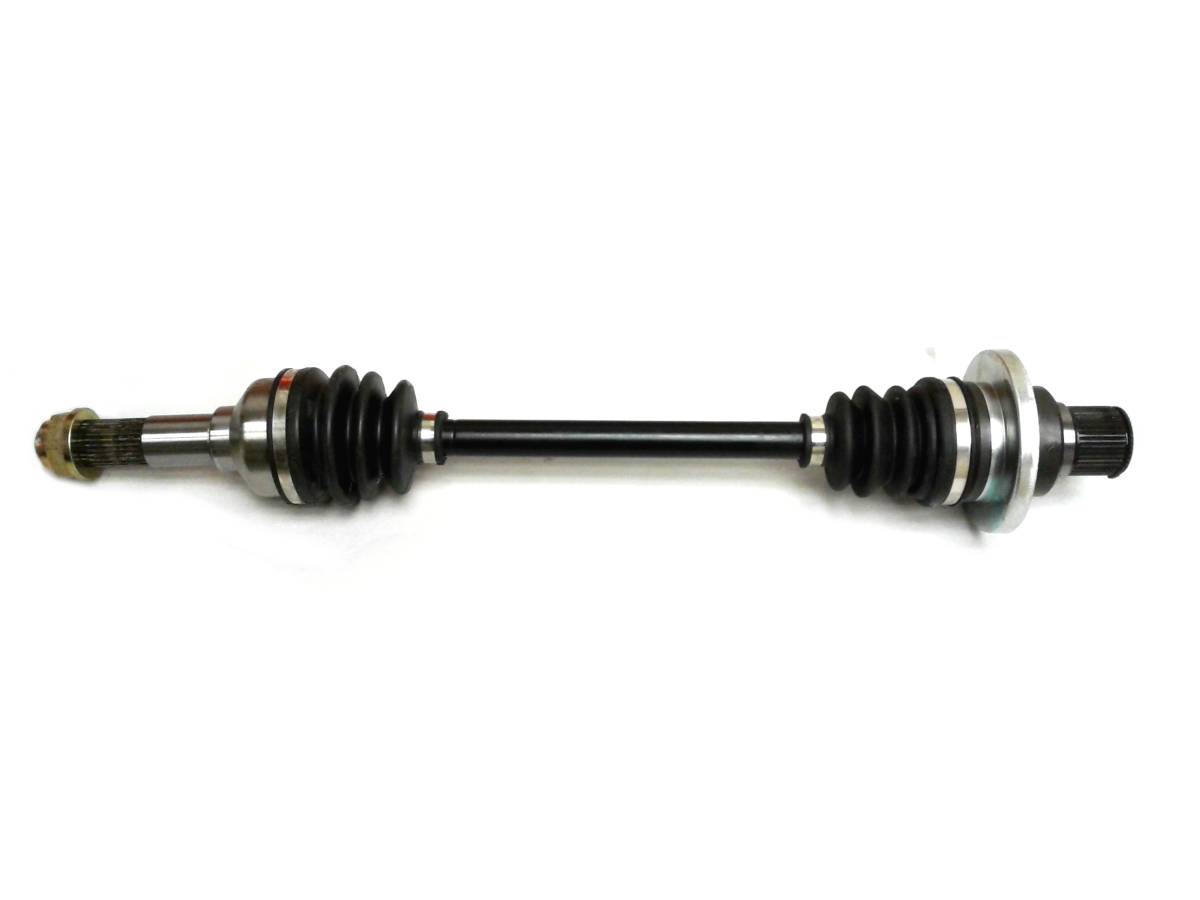

Precision Rear Left CV Axle for Yamaha Rhino 450 660 700 2004-2013, Quality Tested, Heat-Treated, 4140 Chromoly Steel, Exact Fit, ATVPC

Location on vehicle: Rear,Left

(0) Reviews: Write first review
YA-322
This is a new rear, left CV axle for a Yamaha UTV.

It will fit the following 4x4 applications:

2006-2009 ... Rhino 450

2004-2007 ... Rhino 660

2008-2013 ... Rhino 700

rear, left (driver's side)

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • inobard CV joint spline count: 39
  • outboard CV joint spline count: 27
  • Compressed overall axle length: 597 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $89.99
Qty:
Free Ground Shipping

Warranty

Limited 2 year, one-time warranty

Product Notes

  • Fits rear, left (driver side) on the following Yamaha UTV models: 2006-2009 Rhino 450, 2004-2007 Rhino 660, 2008-2013 Rhino 700.
  • Features a 4140 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated.
  • Replaces OEM # 5UG-F531H-10-00, 5UG-F531H-11-00. Compressed length - 597 mm, Inboard spline count - 39, Outboard spline count - 27.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 1 axle

    • Application List

    YearMakeModelSubmodelNotes
    2009YamahaRhino 450YXR450FA 4x4
    2009YamahaRhino 450YXR450FH 4x4 Hunter Edition
    2008YamahaRhino 450YXR450FA 4x4
    2008YamahaRhino 450YXR450FH 4x4 Hunter Edition
    2008YamahaRhino 450YXR450FSE 4x4 Special Edition
    2007YamahaRhino 450YXR450FA 4x4
    2007YamahaRhino 450YXR450FASE 4x4 Special Edition
    2007YamahaRhino 450YXR450FSE 4x4 Special Edition
    2006YamahaRhino 450YXR450FA 4x4
    2006YamahaRhino 450YXR450FAH 4x4 Hunter Edition
    2007YamahaRhino 660YXR660FA 4x4
    2007YamahaRhino 660YXR660FAEX 4x4 Exploring Edition
    2007YamahaRhino 660YXR660FDU 4x4 Ducks Unlimited Edition
    2007YamahaRhino 660YXR660FH 4x4 Hunter Edition
    2007YamahaRhino 660YXR660FSE 4x4 Special Edition
    2007YamahaRhino 660YXR660FSP 4x4 Sport Edition
    2006YamahaRhino 660YXR660FA 4x4
    2006YamahaRhino 660YXR660FAEX 4x4 Exploring Edition
    2006YamahaRhino 660YXR660FAH 4x4 Hunter Edition
    2006YamahaRhino 660YXR660FASE 4x4 Special Edition
    2005YamahaRhino 660YXR660FA 4x4
    2005YamahaRhino 660YXR660FAH 4x4 Hunter Edition
    2004YamahaRhino 660YXR660FA 4x4
    2004YamahaRhino 660YXR660FAH 4x4 Hunter Edition
    2013YamahaRhino 700YXR700F 4x4 FI
    2013YamahaRhino 700YXR700FH 4x4 Hunter Edition FI
    2013YamahaRhino 700YXR700FSP 4x4 Specialt Edition FI
    2013YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
    2012YamahaRhino 700YXR700F 4x4 FI
    2012YamahaRhino 700YXR700FH 4x4 Hunter Edition FI
    2012YamahaRhino 700YXR700FSE 4x4 Special Edition FI
    2012YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
    2011YamahaRhino 700YXR700F 4x4 FI
    2011YamahaRhino 700YXR700FSE 4x4 Special Edition FI
    2011YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
    2009YamahaRhino 700YXR700F 4x4 FI
    2009YamahaRhino 700YXR700FDU 4x4 Ducks Unlimited Edition FI
    2009YamahaRhino 700YXR700FH 4x4 Hunter Edition
    2009YamahaRhino 700YXR700FSE 4x4 Special Edition FI
    2009YamahaRhino 700YXR700FSP 4x4 Sport Edition FI
    2008YamahaRhino 700YXR700F 4x4 FI
    2008YamahaRhino 700YXR700FDU 4x4 Ducks Unlimited Edition FI
    2008YamahaRhino 700YXR700FH 4x4 Hunter Edition FI
    2008YamahaRhino 700YXR700FSEP 4x4 Special Edition FI
    2008YamahaRhino 700YXR700FSP2 4x4 Special Edition II FI
    2008YamahaRhino 700YXR700FSP 4x4 Sport Edition FI

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 11.2 lbs.
    • W5.0000” x H5.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
