Rear CV Axle Pair for Honda Pioneer 700 700-4 2015-2021 4x4

Location on vehicle: Rear,Left,Right

HO-370/HO-370

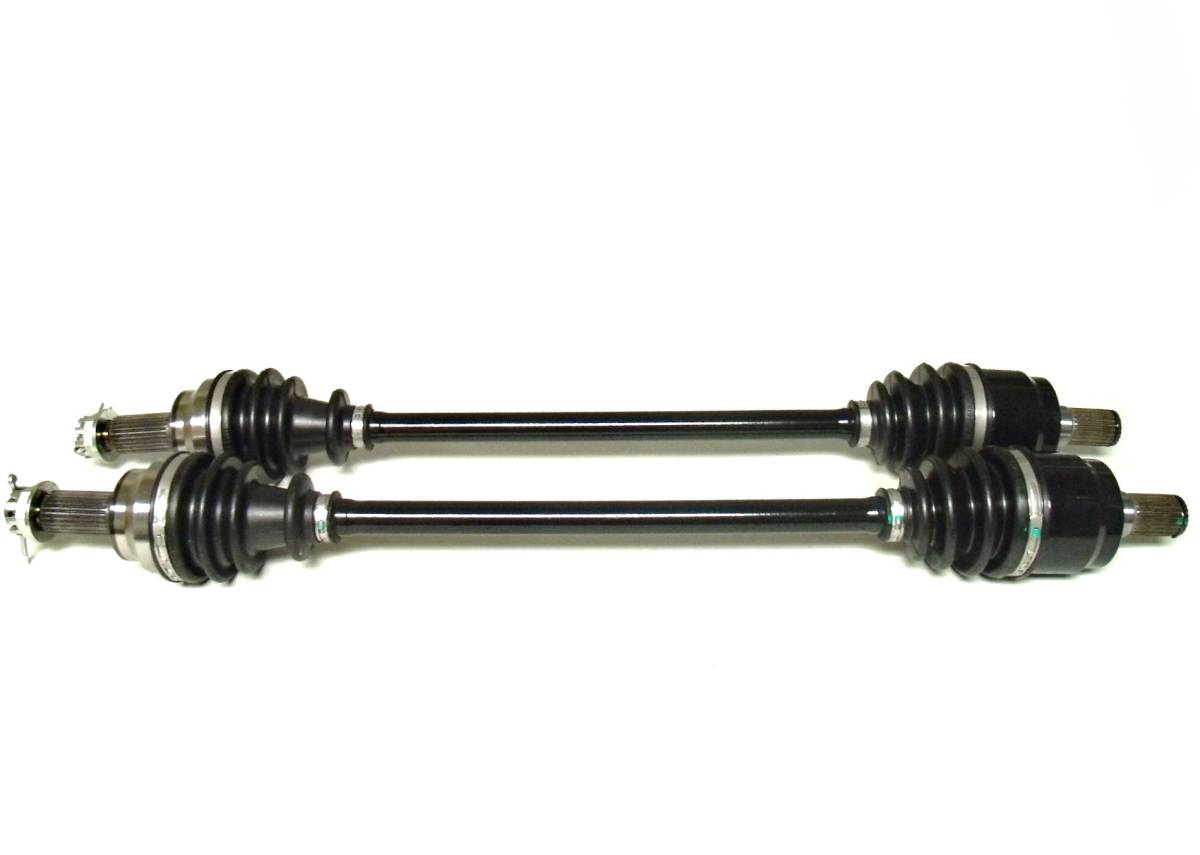

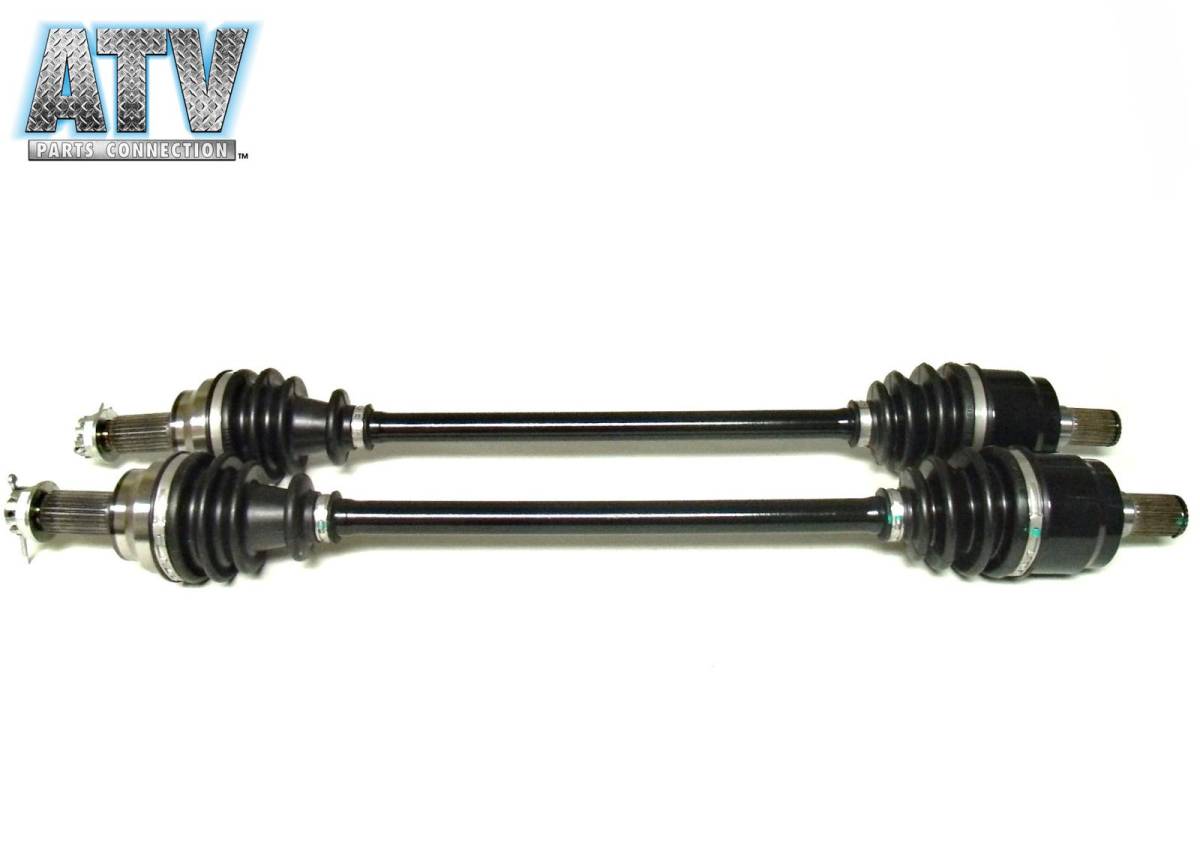

This is a pair of new CV axles for a Honda UTV.

They fit the following 4x4 applications:

2015-2021 ..... Pioneer 700/700-4

Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 25 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: 691 mm (both)
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $149.99
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2015-2021 Pioneer 700 / 700-4, SXS700, SXS700-2, SXS700-4.
  • Stronger than OEM chromoly hardened steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear & puncture resistance.
  • Inner splines: 25 (both), Outer splines: 26 (both), Compressed axle length: 691 mm (both).
  • Replaces OE # 42300-HL3-A41, 42200-HL3-A41, 42220-HL3-A01.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2021HondaPioneer 700SXS700M2
    2021HondaPioneer 700SXS700M2D Deluxe
    2020HondaPioneer 700SXS700M2
    2020HondaPioneer 700SXS700M2D Deluxe
    2019HondaPioneer 700SXS700M2
    2019HondaPioneer 700SXS700M2D Deluxe
    2018HondaPioneer 700SXS700M2
    2018HondaPioneer 700SXS700M2D Deluxe
    2017HondaPioneer 700SXS700M2
    2017HondaPioneer 700SXS700M2D Deluxe
    2016HondaPioneer 700SXS700M2
    2015HondaPioneer 700SXS700M2
    2021HondaPioneer 700-4SXS700M4
    2021HondaPioneer 700-4SXS700M4D Deluxe
    2020HondaPioneer 700-4SXS700M4
    2020HondaPioneer 700-4SXS700M4D Deluxe
    2019HondaPioneer 700-4SXS700M4
    2019HondaPioneer 700-4SXS700M4D Deluxe
    2018HondaPioneer 700-4SXS700M4
    2018HondaPioneer 700-4SXS700M4D Deluxe
    2017HondaPioneer 700-4SXS700M4
    2017HondaPioneer 700-4SXS700M4D Deluxe
    2016HondaPioneer 700-4SXS700M4
    2015HondaPioneer 700-4SXS700M4

    Details

    • HO-370/HO-370
    • HO-370/HO-370
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 22.0 lbs.
    • W5.0000” x H10.0000” x L31.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
