Front CV Axle Pair for Suzuki King Quad 450 500 700 750 4x4 2007-2018

Location on vehicle: Front,Left,Right

SK-300/SK-300

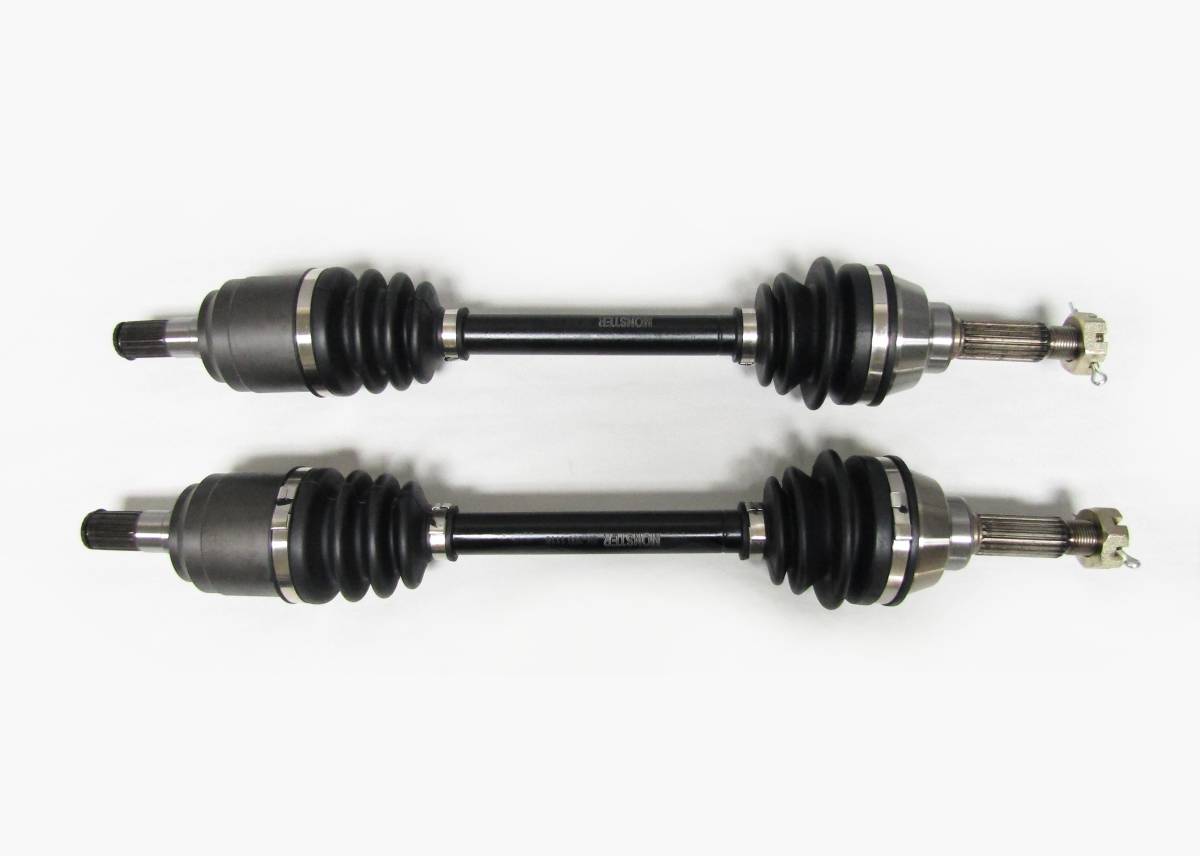

This is a pair of new Front CV axles for a Suzuki ATV.

They fit the following 4x4 models:

2007-2010 ... King Quad 450

2011-2018 ... King Quad 500 (without EPS)

2005-2007 ... King Quad 700

2008-2018 ... King Quad 750 (without EPS)

Front, Left & Right Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 20 (both)
  • Outboard CV joint spline count: 20 (both)
  • Compressed overall axle length: 505.5 mm (both)
Limited Supply: only 3 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $149.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2007-2010 King Quad 450, 2011-2018 King Quad 500 (without EPS), 2005-2007 King Quad 700, 2008-2018 King Quad 750 (without EPS).
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length - 505.5 mm (both), Inboard Spline Count - 20 (both), Outboard Spline Count - 20 (both).
  • Replaces Suzuki OEM # 54901-31G10, 54901-31G11, 54901-31G12, 54901-31G20, 54901-31G40, 54901-31G41.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2010SuzukiKing Quad 450LTA450X 4x4 AXi
    2009SuzukiKing Quad 450LTA450X 4x4 AXi
    2009SuzukiKing Quad 450LTA450XZ 4x4 Limited AXi
    2008SuzukiKing Quad 450LTA450X 4x4 AXi
    2008SuzukiKing Quad 450LTA450XZ 4x4 Special Edition AXi
    2007SuzukiKing Quad 450LTA450FC 4x4 Special Edition
    2007SuzukiKing Quad 450LTA450X 4x4 AXi
    2018SuzukiKing Quad 500LTA500 4x4 AXi
    2017SuzukiKing Quad 500LTA500X 4x4 AXi
    2017SuzukiKing Quad 500LTA500XC 4x4 Camo AXi
    2016SuzukiKing Quad 500LTA500X 4x4 AXi
    2015SuzukiKing Quad 500LTA500X 4x4 AXi
    2014SuzukiKing Quad 500LTA500X 4x4 AXi
    2013SuzukiKing Quad 500LTA500X 4x4 AXi
    2012SuzukiKing Quad 500LTA500X 4x4 AXi
    2011SuzukiKing Quad 500LTA500X 4x4 AXi
    2007SuzukiKing Quad 700LTA700X 4x4
    2006SuzukiKing Quad 700LTA700X 4x4
    2005SuzukiKing Quad 700LTA700X 4x4
    2018SuzukiKing Quad 750LTA750X 4x4 AXi
    2018SuzukiKing Quad 750LTA750XC 4x4 Camo AXi
    2017SuzukiKing Quad 750LTA750X 4x4 AXi
    2017SuzukiKing Quad 750LTA750XC 4x4 Camo AXi
    2016SuzukiKing Quad 750LTA750X 4x4 AXi
    2015SuzukiKing Quad 750LTA750X 4x4 AXi
    2014SuzukiKing Quad 750LTA750X 4x4 AXi
    2014SuzukiKing Quad 750LTA750XZ 4x4 Limited AXi
    2013SuzukiKing Quad 750LTA750X 4x4 AXi
    2012SuzukiKing Quad 750LTA750X 4x4 AXi
    2011SuzukiKing Quad 750LTA750X 4x4 AXi
    2009SuzukiKing Quad 750LTA750X 4x4 AXi
    2009SuzukiKing Quad 750LTA750XZ 4x4 Limited AXi
    2008SuzukiKing Quad 750LTA750X 4x4 AXi
    2008SuzukiKing Quad 750LTA750XZ 4x4 Special Edition AXi

    Details

    • SK-300/SK-300
    • SK-300/SK-300
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 16.2 lbs.
    • W5.0000” x H10.0000” x L25.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
