Front Axles for Can-Am Outlander XMR 650, 800, 850 & 1000, 705401703 705401704

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
CA-116/CA-216

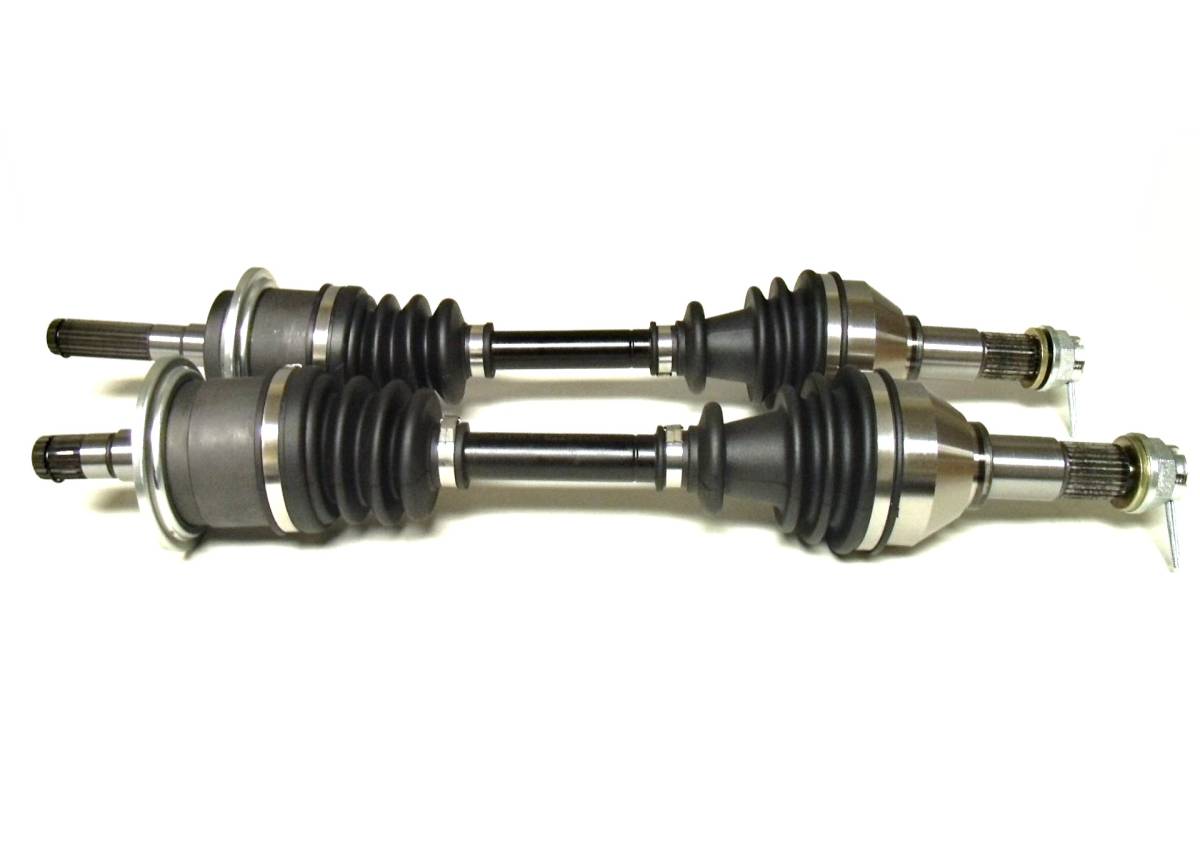

This is a pair of new Front CV axles for a Can-Am ATV.

They will fit the following 4x4 applications:

2016 ... Outlander XMR 570

2013-2018 ... Outlander XMR 650

2015 ... Outlander XMR 800R

2016-2018 ... Outlander XMR 850

2013-2015 ... Outlander XMR 1000

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: Left 515.5 mm, Right 558 mm
Limited Supply: only 6 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $139.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2016 Outlander XMR 570, 2013-2018 Outlander XMR 650, 2015 Outlander XMR 800R, 2016-2018 Outlander XMR 850, 2013-2015 Outlander XMR 1000.
  • Features a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.
  • Inboard CV joint spline count: 21 (both), Outboard CV joint spline count: 26 (both), Compressed overall axle length: Left 515.5 mm, Right 558 mm.
  • Replaces OE # Left: 705401704, 705401384, Right: 705401703, 705401383.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Application List

    YearMakeModelSubmodelNotes
    2018Can-AmOutlander 6504x4 XMR DPS
    2017Can-AmOutlander 6504x4 XMR DPS
    2016Can-AmOutlander 6504x4 XMR DPS
    2015Can-AmOutlander 6504x4 XMR
    2014Can-AmOutlander 6504x4 XMR
    2013Can-AmOutlander 6504x4 XMR EFI
    2015Can-AmOutlander 800R4x4 XMR
    2018Can-AmOutlander 8504x4 XMR DPS
    2017Can-AmOutlander 8504x4 XMR DPS
    2016Can-AmOutlander 8504x4 XMR DPS
    2015Can-AmOutlander 10004x4 XMR
    2014Can-AmOutlander 10004x4 XMR EFI
    2013Can-AmOutlander 10004x4 XMR EFI
    2016Can-AmOutlander L 5704x4 XMR DPS
