CV Axle Set for Can-Am Outlander XMR 650 2013-2017 & XMR 1000 2013-2014

Location on vehicle: Rear,Front,Left,Right

CA-116/CA-216/CA-301/CA-302

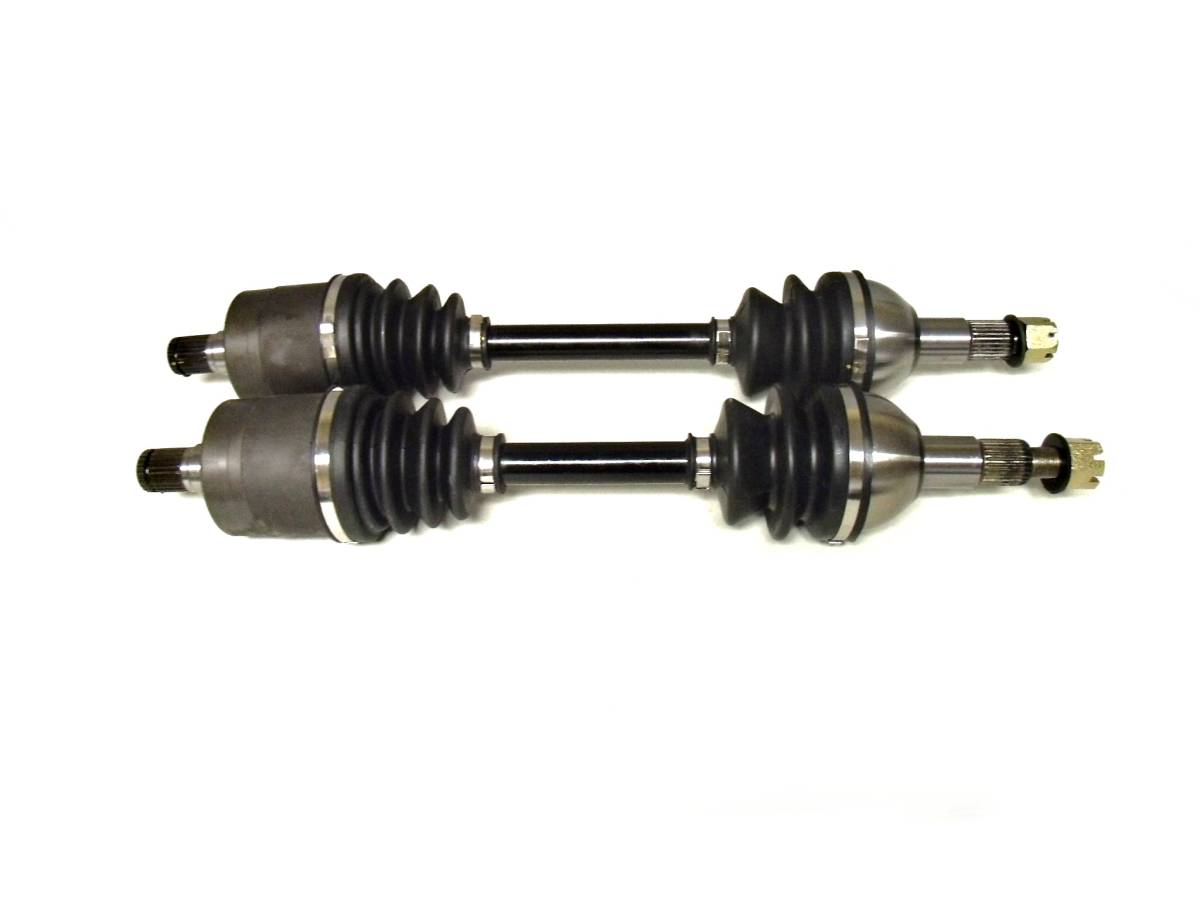

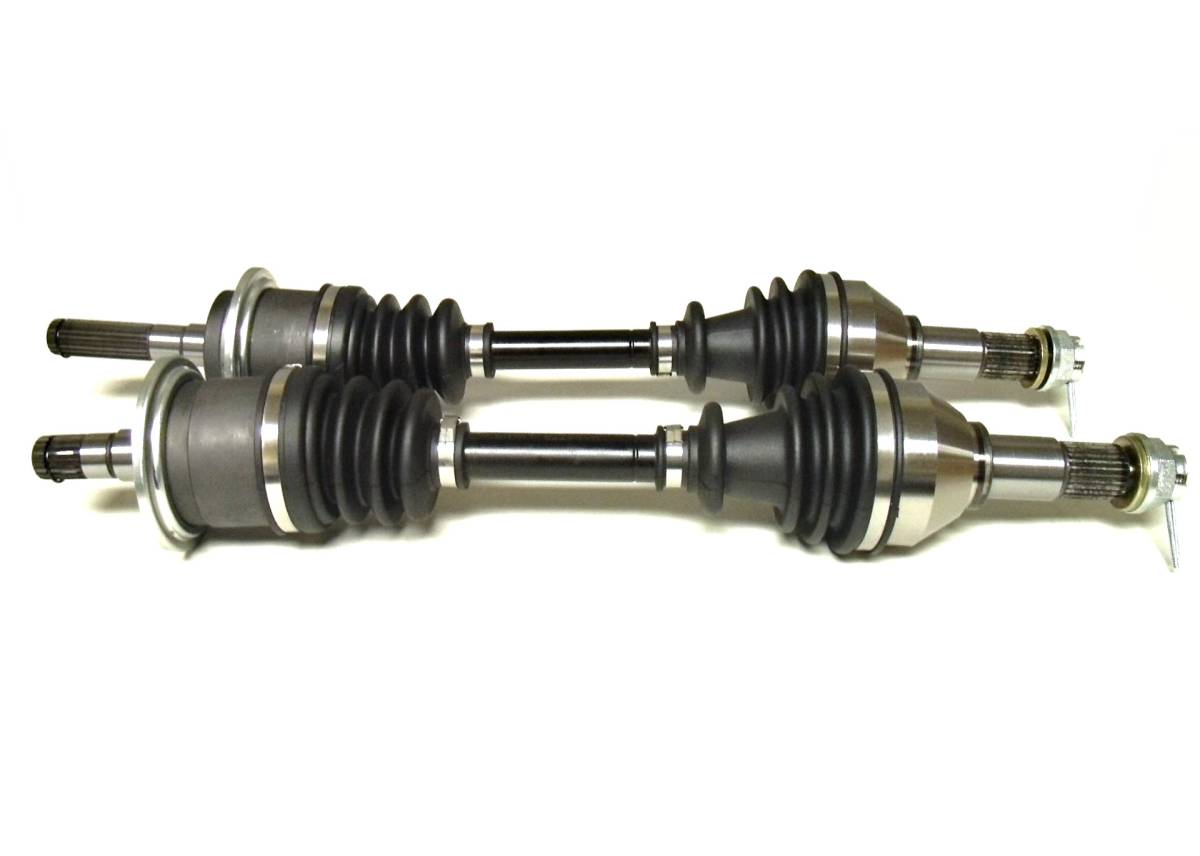

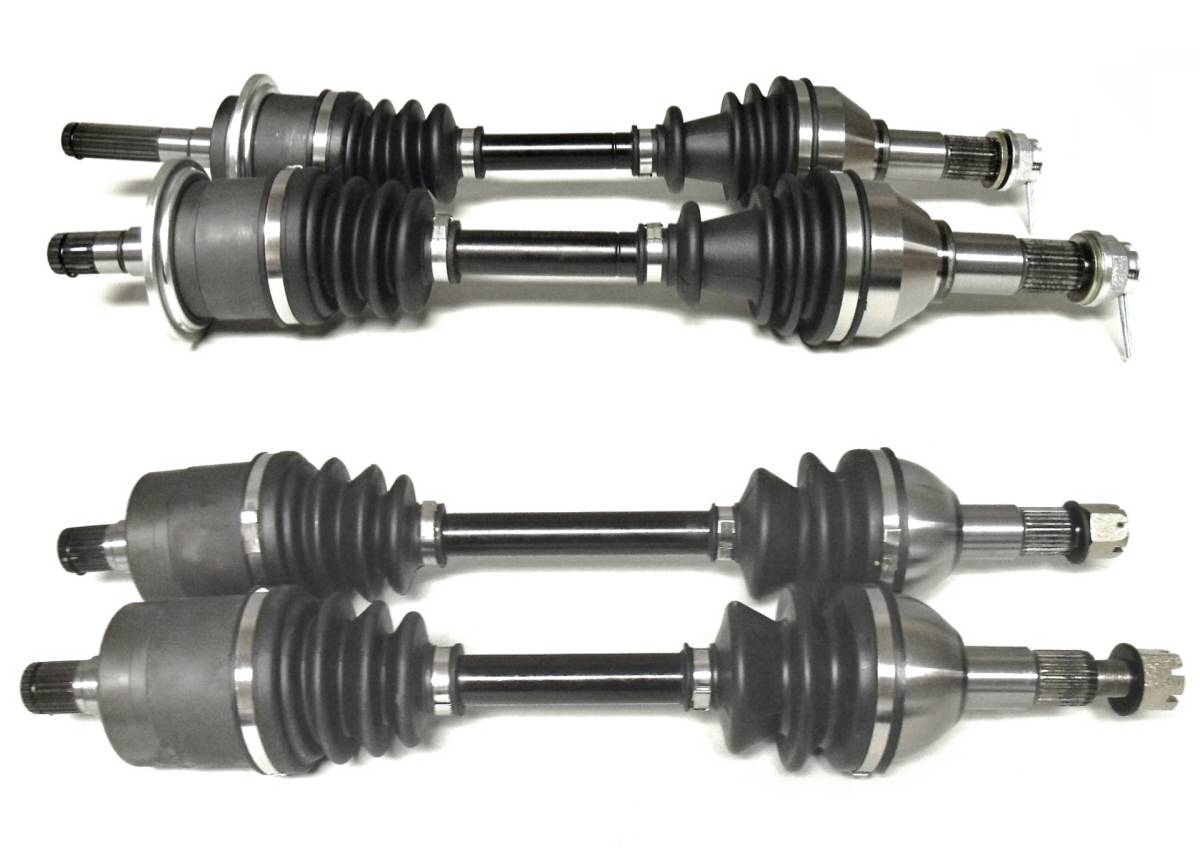

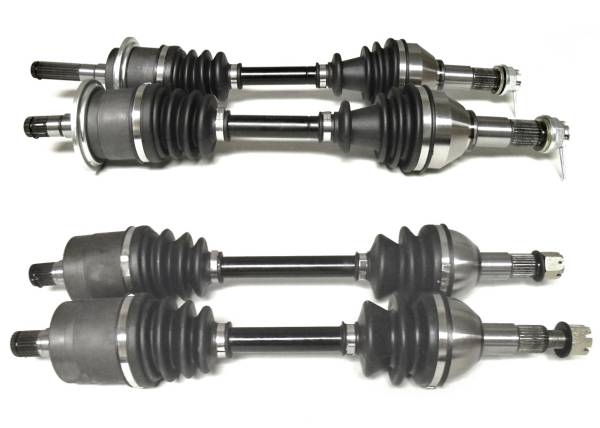

This is a set of new CV axles for a Can-Am ATV.

They will fit the following 4x4 applications:

2013-2017 ... Outlander XMR 650

2013-2014 ... Outlander XMR 1000

Front & Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: Fronts- 21, Rears- 24
  • Outboard CV joint spline count: Fronts- 26, Rears- 26
  • Compressed overall axle length (mm): FL- 515.5, FR- 558, RL- 554, RR- 513
Limited Supply: only 6 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $299.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2013-2017 Outlander XMR 650 & 2013-2014 Outlander XMR 1000. These are for XMR models only.
  • Features a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.
  • Fronts- 21, Rears- 24, Outboard CV joint spline count: Fronts- 26, Rears- 26, Compressed overall axle length (mm): FL- 515.5, FR- 558, RL- 554, RR- 513.
  • Replaces OE # FL- 705401704, 705401384, FR- 705401703, 705401383, RL- 705501485, 705500867, RR- 705501486, 705500868.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Application List

    YearMakeModelSubmodelNotes
    2013Can-AmOutlander 10004x4 XMR EFI
    2014Can-AmOutlander 10004x4 XMR EFI
    2017Can-AmOutlander 6504x4 XMR DPS
    2016Can-AmOutlander 6504x4 XMR DPS
    2015Can-AmOutlander 6504x4 XMR
    2014Can-AmOutlander 6504x4 XMR
    2013Can-AmOutlander 6504x4 XMR EFI

    Details

    • CA-116/CA-216/CA-301/CA-302
    • CA-116/CA-216/CA-301/CA-302
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 45.0 lbs.
    • W10.0000” x H10.0000” x L25.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
