Front CV Axle Pair with Wheel Bearings for Honda Rincon 650 4x4 2003-2004

Location on vehicle: Front,Left,Right

HO-116/HO-216/WB-1005/WB-1005

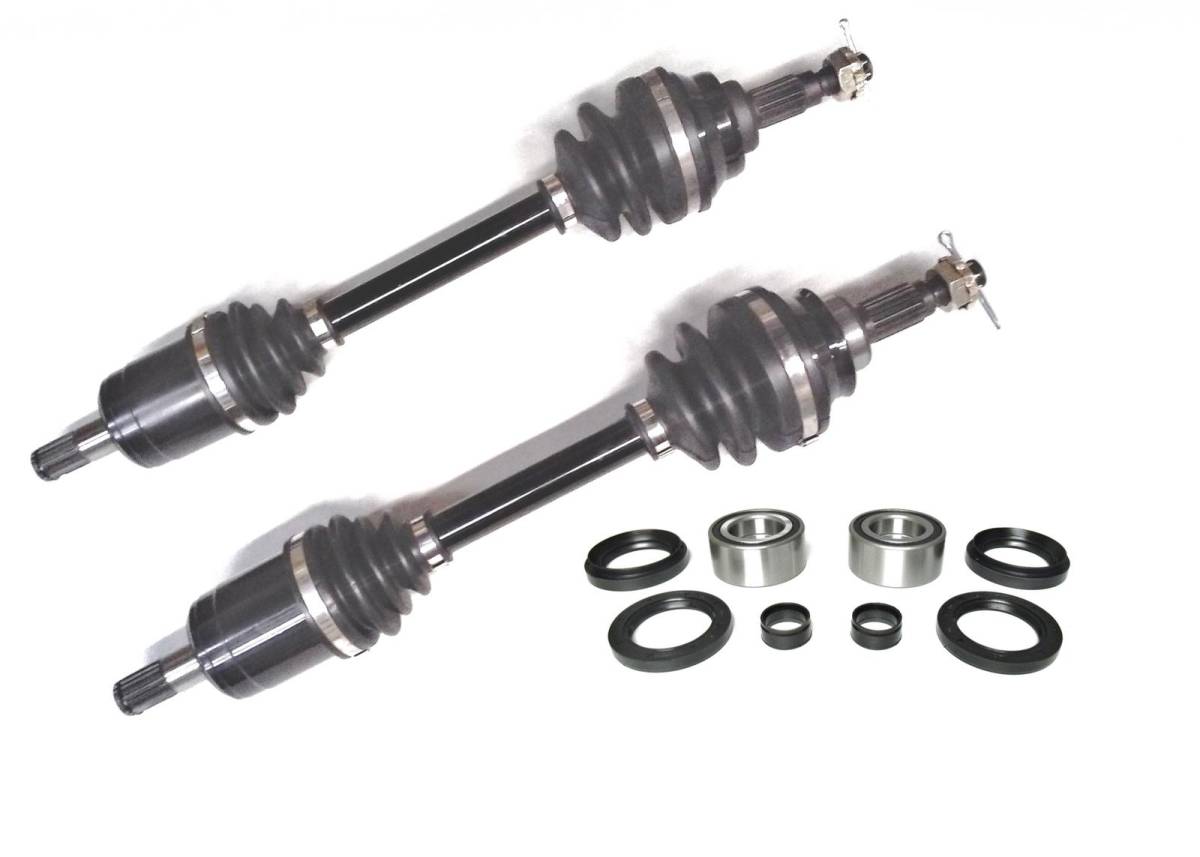

This is a set of new Front CV axles & wheel bearing kits for a Honda ATV.

They fit the following 4x4 models:

2003-2004 ... Rincon 650

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 20 (both)
  • Outboard CV joint spline count: 21 (both)
  • Compressed overall axle length: Left- 464.5 mm, Right - 484.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $174.99
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits front left & right on the 2003-2004 Rincon 650 4x4.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OE # 44350-HN8-003, 44220-HN8-003, 44250-HN8-003, 91051-HA7-651, 91209-HA7-773, 91209-HN2-003, 91256-HM7-003. Compressed Length: Left- 464.5 mm, Right - 484.5 mm, Inboard Spline Count - 20 (both). Outboard Spline Count - 21 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

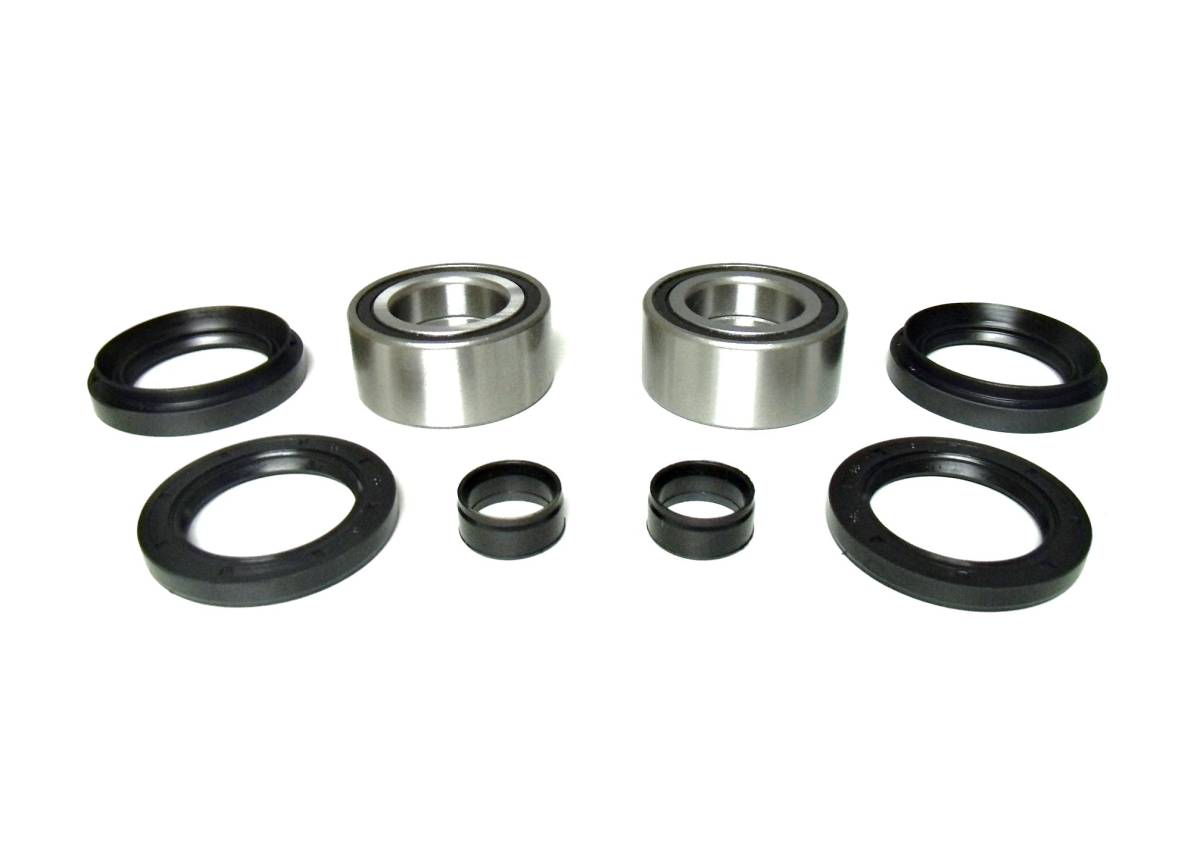

  • 2 CV axles & 2 wheel bearing kits
  • Application List

    YearMakeModelSubmodelNotes
    2004HondaRincon 650TRX650FA 4x4
    2004HondaRincon 650TRX650FGA 4x4 GPScape
    2003HondaRincon 650TRX650FA 4x4

    Details

    • HO-116/HO-216/WB-1005/WB-1005
    • HO-116/HO-216/WB-1005/WB-1005
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 15.8 lbs.
    • W4.0000” x H7.0000” x L25.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
