Front CV Axle Pair for Honda Foreman 500 2014-2019 & Rubicon 500 2015-2019

Location on vehicle: Front,Left,Right

HO-134/HO-234

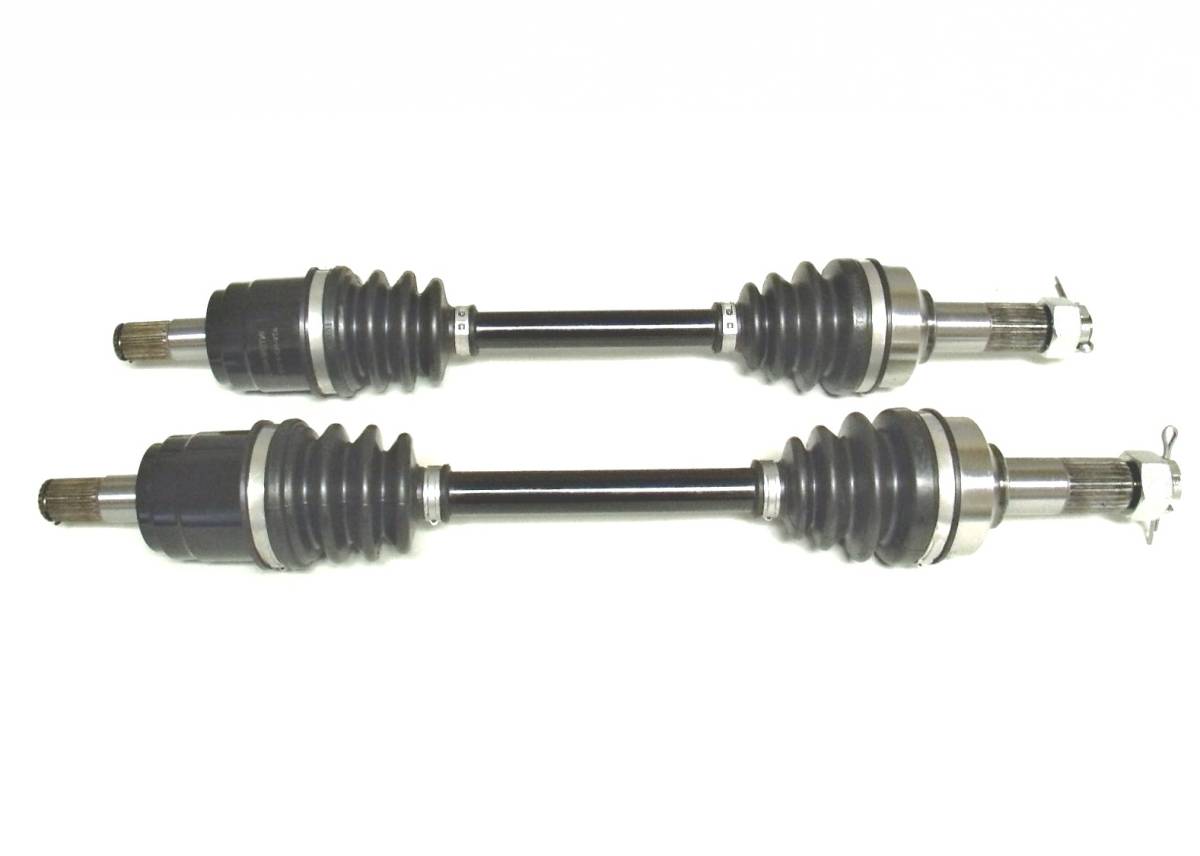

This is a pair of new Front CV axles for a Honda ATV.

They fit the following 4x4 applications:

2014-2019 ... Foreman 500

2015-2019 ... Rubicon 500

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 20 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: Left - 493 mm, Right - 507 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $149.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2014-2019 Foreman 500, & 2015-2019 Rubicon 500.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Inner Splines: 20 (both), Outer Splines: 26 (both), Compressed length: Left - 493 mm, Right - 507 mm.
  • Replaces Honda OEM # 44220-HR3-A21, 44350-HR4-A21, 44420-HR3-A21, 44350-HR4-A22, 44220-HR3-A21, 44250-HR4-A21, 44220-HR3-A21, 44250-HR4-A22.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2019HondaForeman 500TRX500FE2 4x4 ES EPS
    2019HondaForeman 500TRX500FM1 4x4
    2018HondaForeman 500TRX500FE2 4x4 ES EPS
    2018HondaForeman 500TRX500FM1 4x4
    2017HondaForeman 500TRX500FE2 4x4 ES EPS
    2017HondaForeman 500TRX500FE2 4x4 ES EPS Camo
    2017HondaForeman 500TRX500FM1 4x4
    2016HondaForeman 500TRX500FE1 4x4 ES
    2016HondaForeman 500TRX500FE2 4x4 ES EPS
    2016HondaForeman 500TRX500FM1 4x4
    2016HondaForeman 500TRX500FM2 4x4 EPS
    2015HondaForeman 500TRX500F 4x4 ES
    2015HondaForeman 500TRX500FE1 4x4 EPS
    2015HondaForeman 500TRX500FE2 4x4 ES EPS
    2015HondaForeman 500TRX500FM1 4x4
    2015HondaForeman 500TRX500FM2 4x4 EPS
    2014HondaForeman 500TRX500FE1 4x4 EPS
    2014HondaForeman 500TRX500FE2 4x4 ES EPS
    2014HondaForeman 500TRX500FM1 4x4
    2014HondaForeman 500TRX500FM2 4x4 EPS
    2019HondaForeman Rubicon 500TRX500FA5 4x4 Auto DCT
    2019HondaForeman Rubicon 500TRX500FA6 4x4 Auto DCT EPS
    2019HondaForeman Rubicon 500TRX500FA7 4x4 Auto DCT EPS DLX
    2019HondaForeman Rubicon 500TRX500FM6 4x4 EPS
    2018HondaForeman Rubicon 500TRX500FA5 4x4 Auto DCT
    2018HondaForeman Rubicon 500TRX500FA6 4x4 Auto DCT EPS
    2018HondaForeman Rubicon 500TRX500FA7 4x4 Auto DCT EPS DLX
    2018HondaForeman Rubicon 500TRX500FM6 4x4 EPS
    2017HondaForeman Rubicon 500TRX500FA5 4x4 Auto DCT
    2017HondaForeman Rubicon 500TRX500FA6 4x4 Auto DCT EPS
    2017HondaForeman Rubicon 500TRX500FA7 4x4 Auto DCT EPS DLX
    2017HondaForeman Rubicon 500TRX500FM6 4x4 EPS
    2016HondaForeman Rubicon 500TRX500FA5 4x4 Auto DCT
    2016HondaForeman Rubicon 500TRX500FA6 4x4 Auto DCT EPS
    2016HondaForeman Rubicon 500TRX500FA7 4x4 Auto DCT EPS DLX
    2016HondaForeman Rubicon 500TRX500FM5 4x4
    2016HondaForeman Rubicon 500TRX500FM6 4x4 EPS
    2016HondaForeman Rubicon 500TRX500FM7 4x4 EPS DLX
    2015HondaForeman Rubicon 500TRX500FA5 4x4 Auto DCT
    2015HondaForeman Rubicon 500TRX500FA6 4x4 Auto DCT EPS
    2015HondaForeman Rubicon 500TRX500FA6D 4x4 Auto DCT Deluxe EPS
    2015HondaForeman Rubicon 500TRX500FM5
    2015HondaForeman Rubicon 500TRX500FM6D 4x4 Deluxe EPS
    2015HondaForeman Rubicon 500TRX500FM6 EPS

    Details

    • HO-134/HO-234
    • HO-134/HO-234
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 15.4 lbs.
    • W9.0000” x H9.0000” x L24.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
