Front Axle Pair with Wheel Bearing Kits for Honda Rubicon 500 4x4 2001-2004

Location on vehicle: Front,Left,Right

HO-107/HO-207/WB-1005/WB-1005

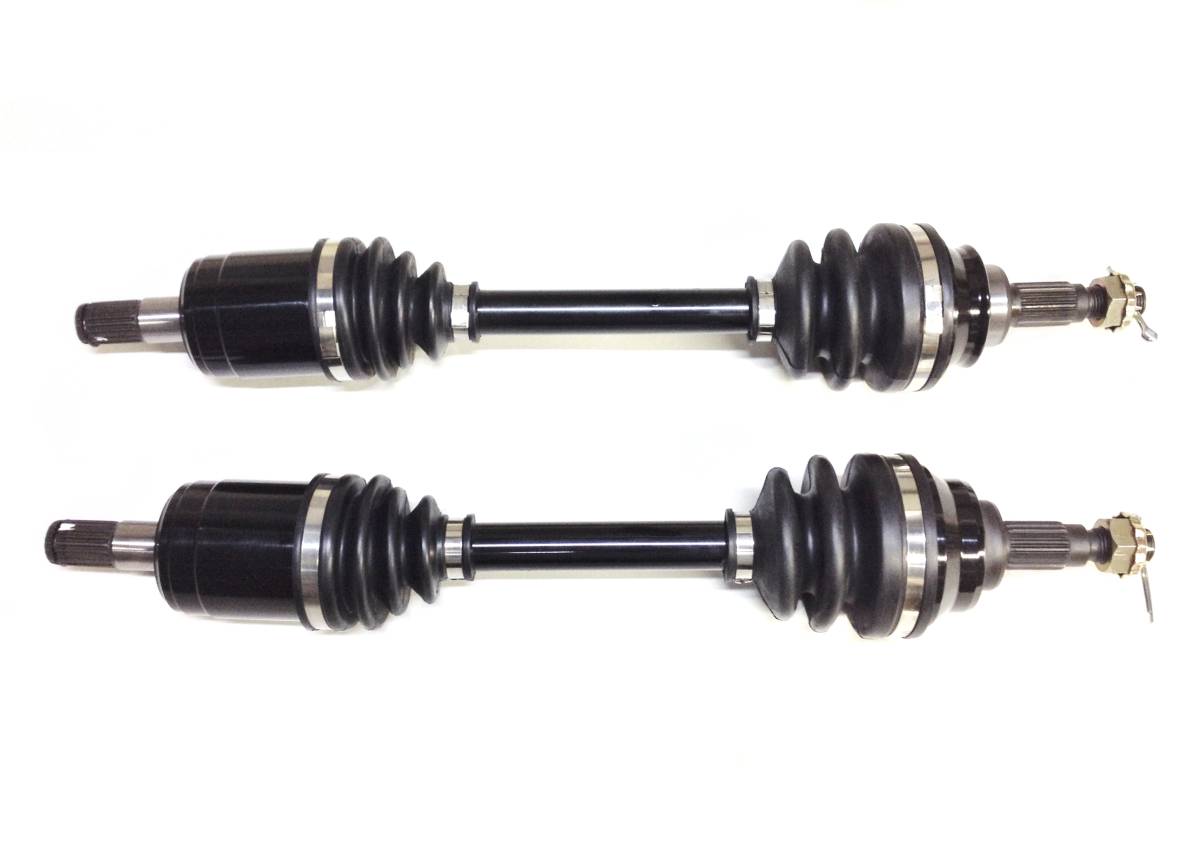

This is a set of new front CV axles & wheel bearing/seal kits for a Honda ATV.

They fit the following 4x4 applications:

2001-2004 ... Rubicon 500

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • inobard CV joint spline count: 20 (both)
  • outboard CV joint spline count: 21 (both)
  • Compressed overall axle length: left - 465 mm, right 485 mm
  • Replaces Honda OEM # (left) 42350-HN2-003, 42220-HN0-A01, (right) 42250-HN2-003, 42220-HN0-A01, (bearing & seals) 91051-HA7-651, 91209-HA7-773, 91209-HN2-003, 91256-HM7-003
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $199.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2004HondaForeman Rubicon 500TRX500FA 4x4
2004HondaForeman Rubicon 500TRX500FGA 4x4 GPScape
2003HondaForeman Rubicon 500TRX500FA 4x4
2002HondaForeman Rubicon 500TRX500FA 4x4
2001HondaForeman Rubicon 500TRX500FA 4x4

Product Notes

  • Fits front, left and right on the following Honda ATV models: 2001-2004 Rubicon 500 4x4.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (left) 42350-HN2-003, 42220-HN0-A01, (right) 42250-HN2-003, 42220-HN0-A01, (bearing & seals) 91051-HA7-651, 91209-HA7-773, 91209-HN2-003, 91256-HM7-003. Compressed length: left - 465 mm, right 485 mm, Inboard spline count: 20 (both), Outboard spline count: 21 (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

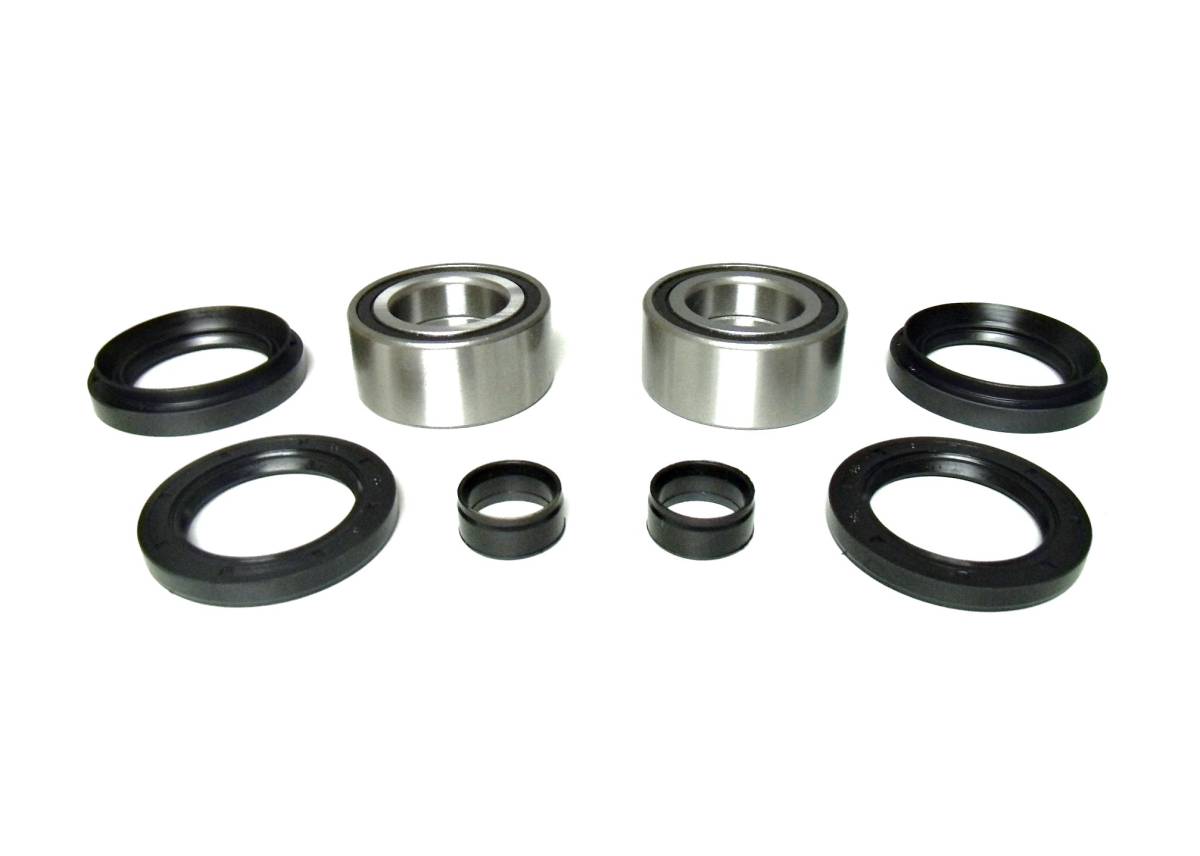

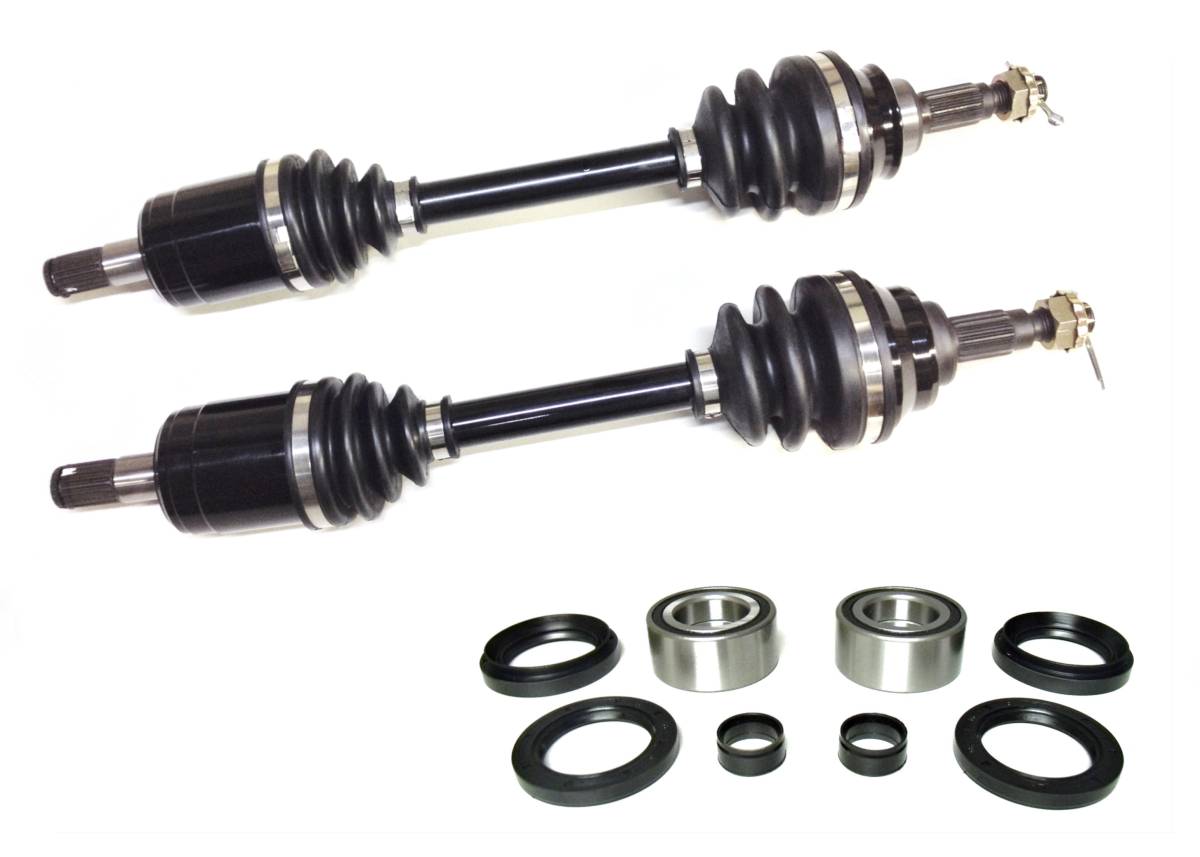

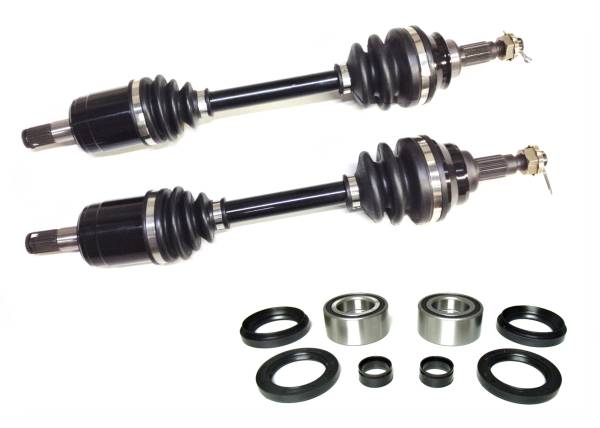

  • 2 CV axles & 2 wheel bearing kits
  • Warranty

    1 year factory defect limited warranty

    Details

    • HO-107/HO-207/WB-1005/WB-1005
    • HO-107/HO-207/WB-1005/WB-1005
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 18.0 lbs.
    • W10.0000” x H5.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
