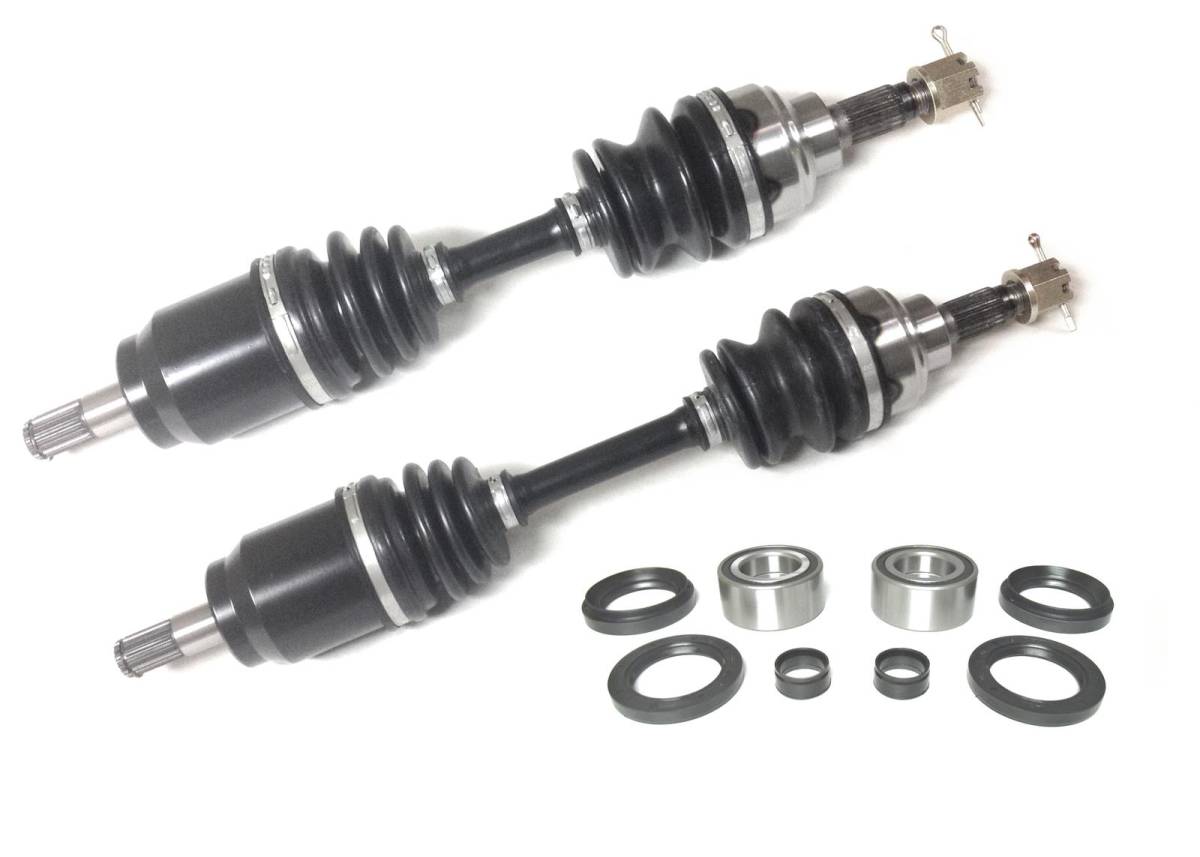

Front CV Axles & Bearing Kits for Honda Foreman 450 1998-2004, Left & Right, 4140 Chromoly Steel, Heat-Treated, Quality Tested, ATVPC

Location on vehicle: Front,Left,Right

HO-108/HO-208/WB-1005/WB-1005
This is a set of new front CV axles & wheel bearing kits for a Honda ATV.

They fit the following 4x4 models:

1998-2004 ... Foreman 450

front, left & right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • inobard CV joint spline count: 20 (both)
  • outboard CV joint spline count: 21 (both)
  • Compressed overall axle length: left- 448 mm, right- 488 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $154.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2004HondaForeman 450TRX450FE 4x4 ES
2004HondaForeman 450TRX450FM 4x4 S
2003HondaForeman 450TRX450FE 4x4 ES
2003HondaForeman 450TRX450FM 4x4 S
2002HondaForeman 450TRX450FE 4x4 ES
2002HondaForeman 450TRX450FM 4x4 S
2001HondaForeman 450TRX450ES 4x4 ES
2001HondaForeman 450TRX450S 4x4 S
2000HondaForeman 450TRX450ES 4x4 ES
2000HondaForeman 450TRX450S 4x4 S
1999HondaForeman 450TRX450ES 4x4 ES
1999HondaForeman 450TRX450S 4x4 S
1998HondaForeman 450TRX450ES 4x4 ES
1998HondaForeman 450TRX450S 4x4 S

Product Notes

  • Fits front, left and right on the following Honda ATV models: 1998-2004 Foreman 450 4x4 -TRX450.
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (left) 42350-HN0-A01, 42220-HN0-A01, (right) 42220-HN0-A01, 42250-HN0-671, (bearing & seals) 91051-HA7-651, 91209-HA7-773, 91209-HN2-003, 91256-HM7-003. Compressed length: left- 448 mm, right- 488 mm, Inboard splines - 20 (both), Outboard splines - 21 (both).
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

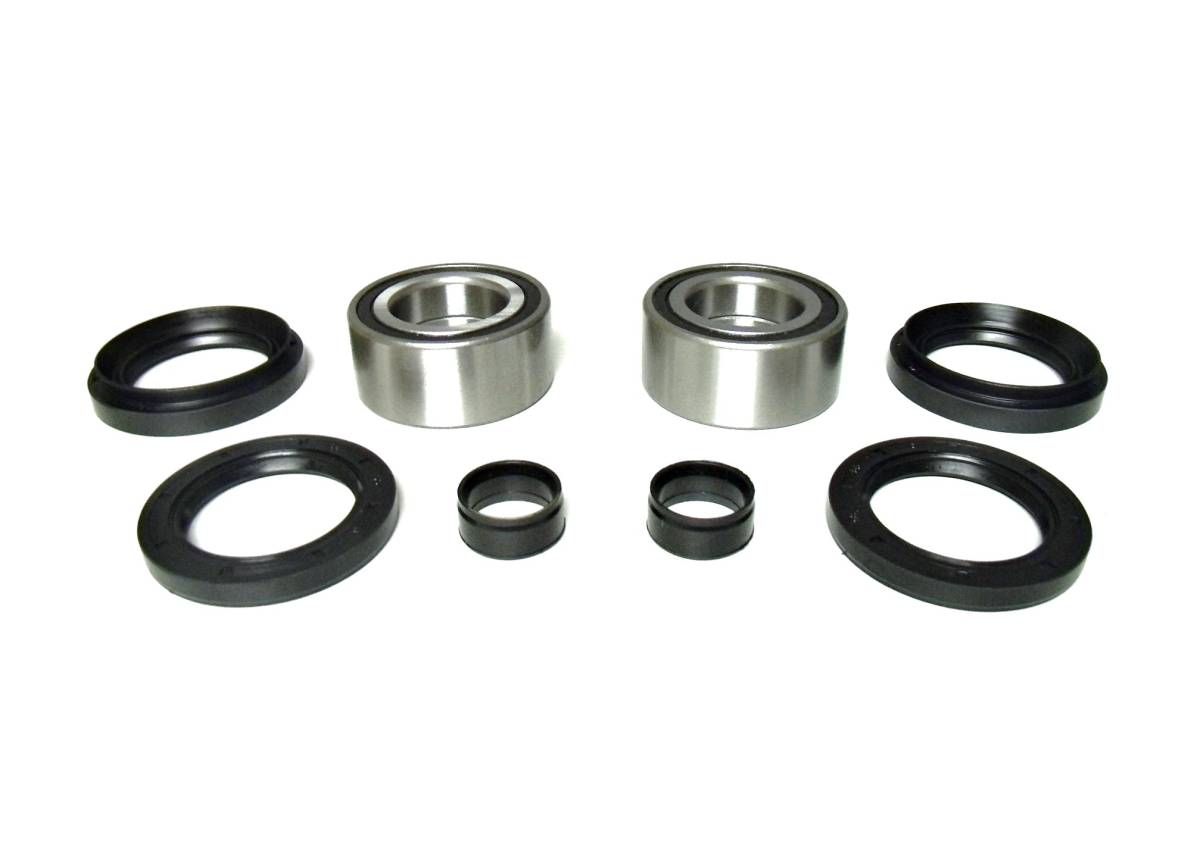

  • 2 axles, 2 wheel bearing kits
  • Warranty

    Limited 2 year, one-time warranty

    Details

    • HO-108/HO-208/WB-1005/WB-1005
    • HO-108/HO-208/WB-1005/WB-1005
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 17.0 lbs.
    • W10.0000” x H5.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
