Rear CV Axle Pair for Honda Rancher 420 IRS 2009-2014 ATV

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
HO-321/HO-322

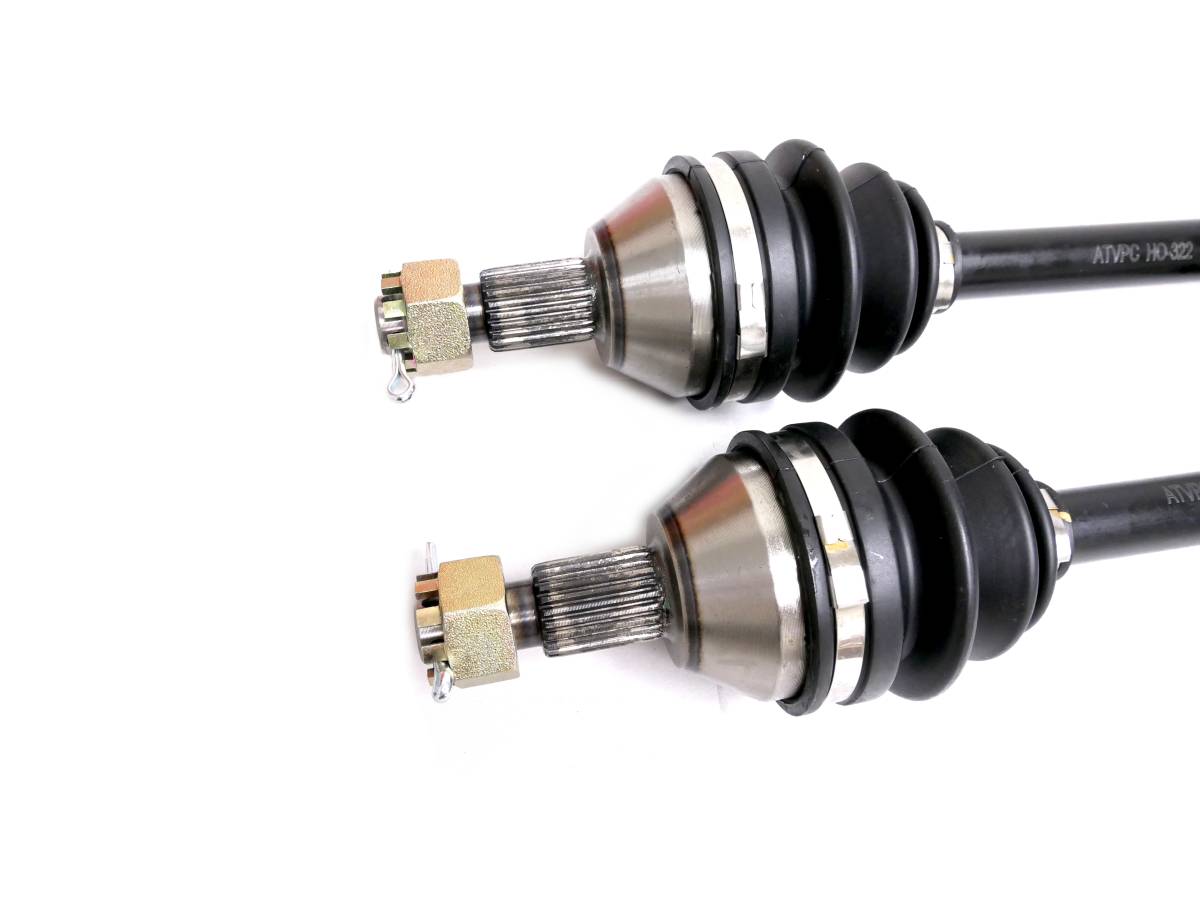

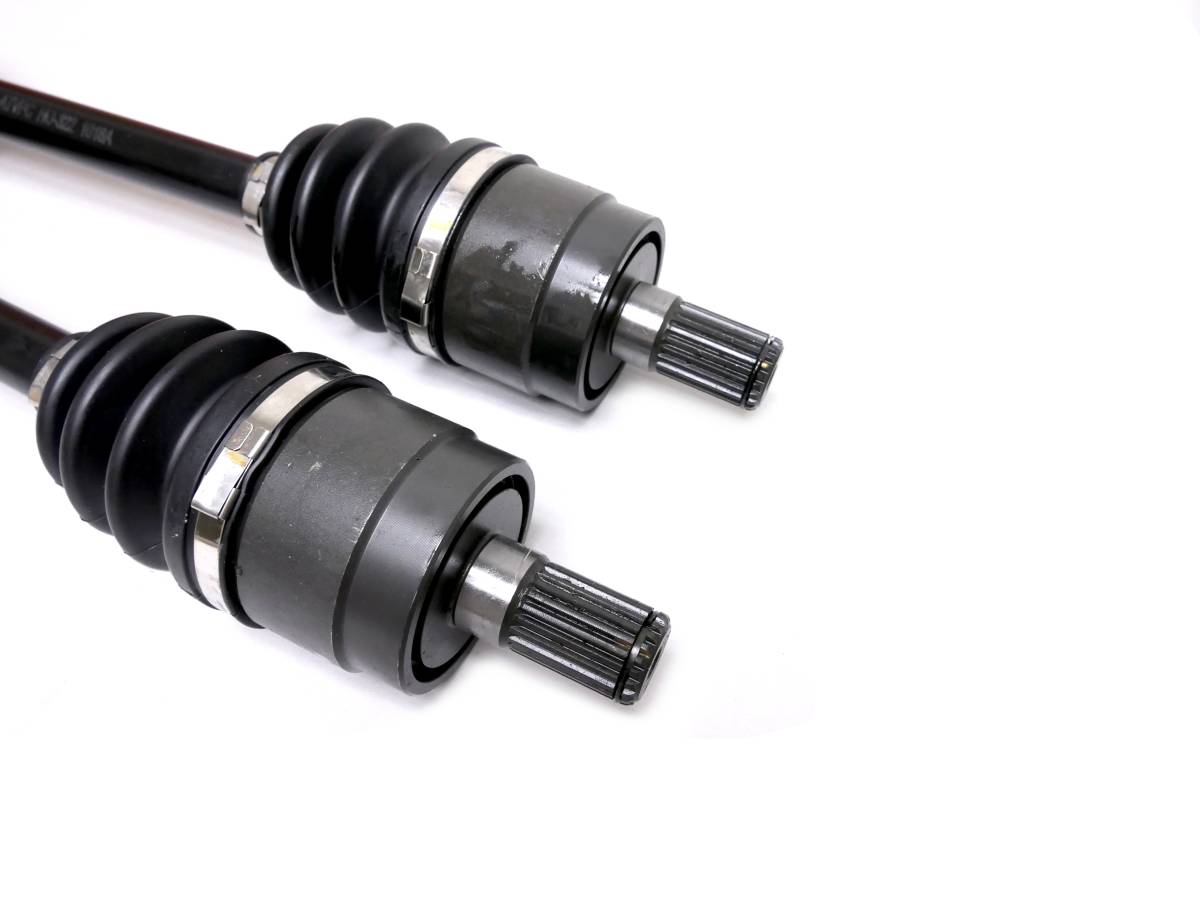

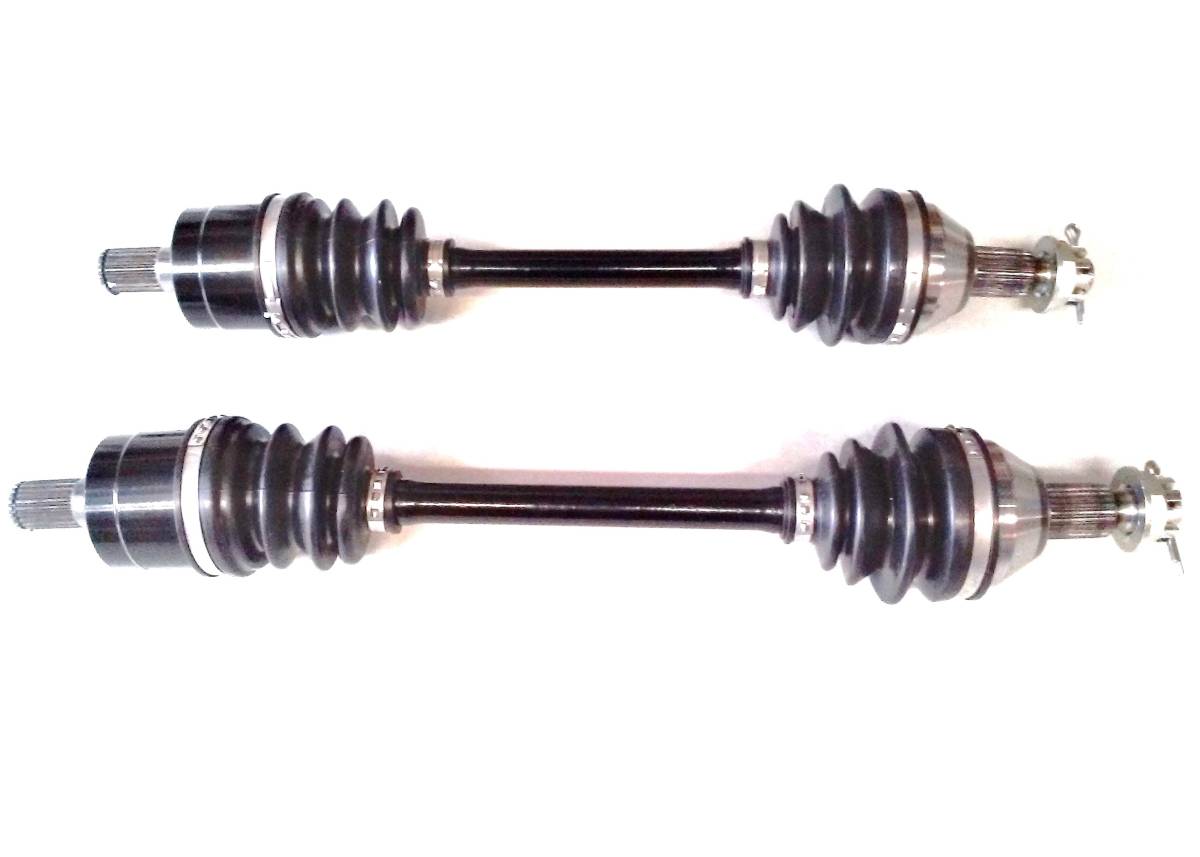

This is a pair of new CV axles for a Honda ATV.

It fits REAR, LEFT or RIGHT on the following models:

2009-2014 Rancher 420 IRS

*made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 22 (both)
  • Outboard CV joint spline count: 24 (both)
  • Compressed overall axle length: Left - 472 mm, Right - 500.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $159.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2014HondaRancher 420TRX420FA 4x4 AT
2014HondaRancher 420TRX420FPA 4x4 AT EPS
2013HondaRancher 420TRX420FA 4x4 AT
2013HondaRancher 420TRX420FPA 4x4 AT EPS
2012HondaRancher 420TRX420FA 4x4 AT
2012HondaRancher 420TRX420FPA 4x4 AT EPS
2011HondaRancher 420TRX420FA 4x4 AT
2011HondaRancher 420TRX420FPA 4x4 AT EPS
2010HondaRancher 420TRX420FA 4x4 AT
2010HondaRancher 420TRX420FPA 4x4 AT EPS
2009HondaRancher 420TRX420FA 4x4 AT
2009HondaRancher 420TRX420FPA 4x4 AT EPS

Product Notes

  • Fits the following Honda ATV models: 2009-2014 Rancher 420 IRS. Please note these will only fit models with IRS.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 42350-HP7-A01 + 42220-HP7-A01, 42250-HP7-A01 + 42220-HP7-A01. Compressed length: left- 472 mm, right 500.5 mm, Inboard spline count - 22 (both), Outboard spline count - 24 (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited limited warranty

    Details

    • HO-321/HO-322
    • HO-321/HO-322
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 20.0 lbs.
    • W10.0000” x H5.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
