Rear Axle Pair with Wheel Bearings for Kawasaki Mule 2510 3000 3010 4000 & 4010

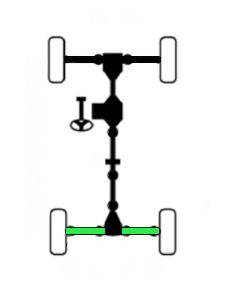

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
KW-391/KW-391/WB-1536/WB-1536

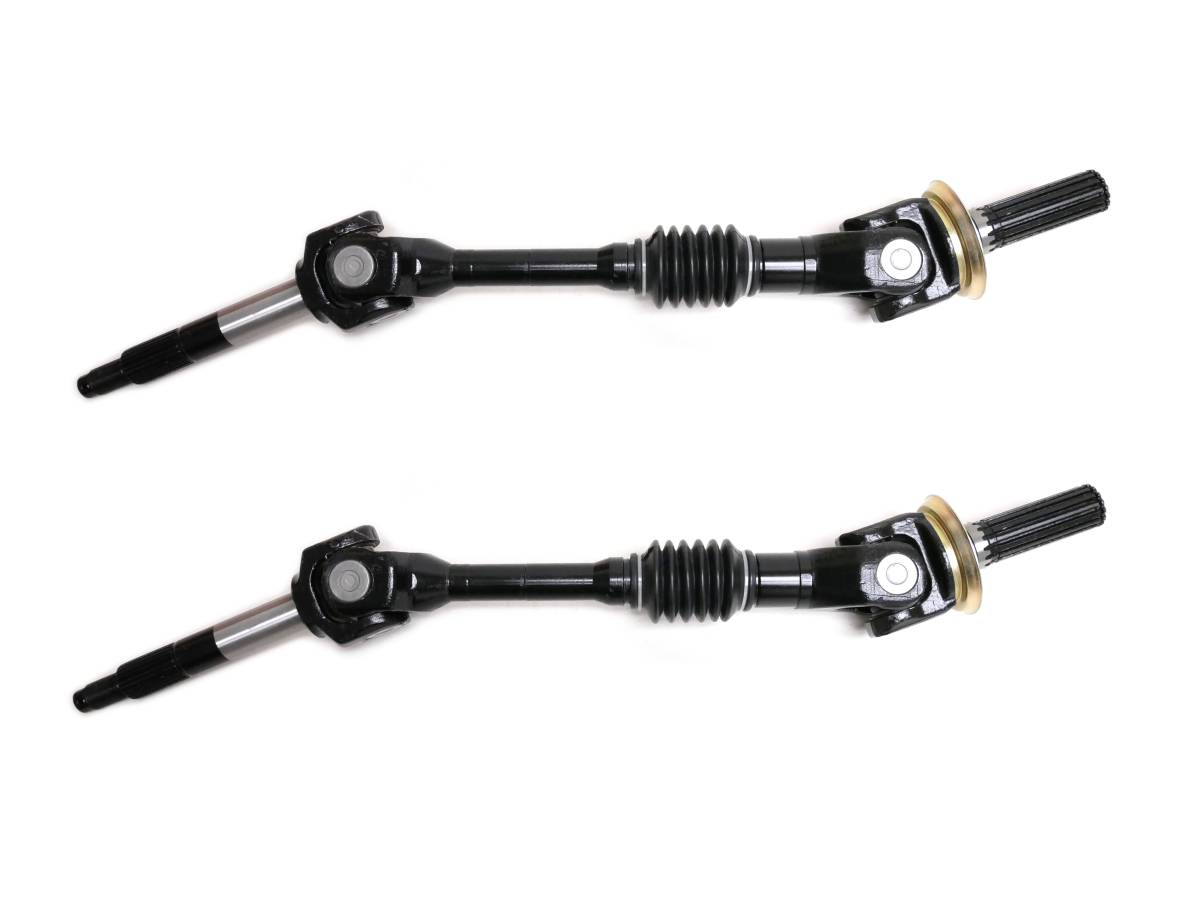

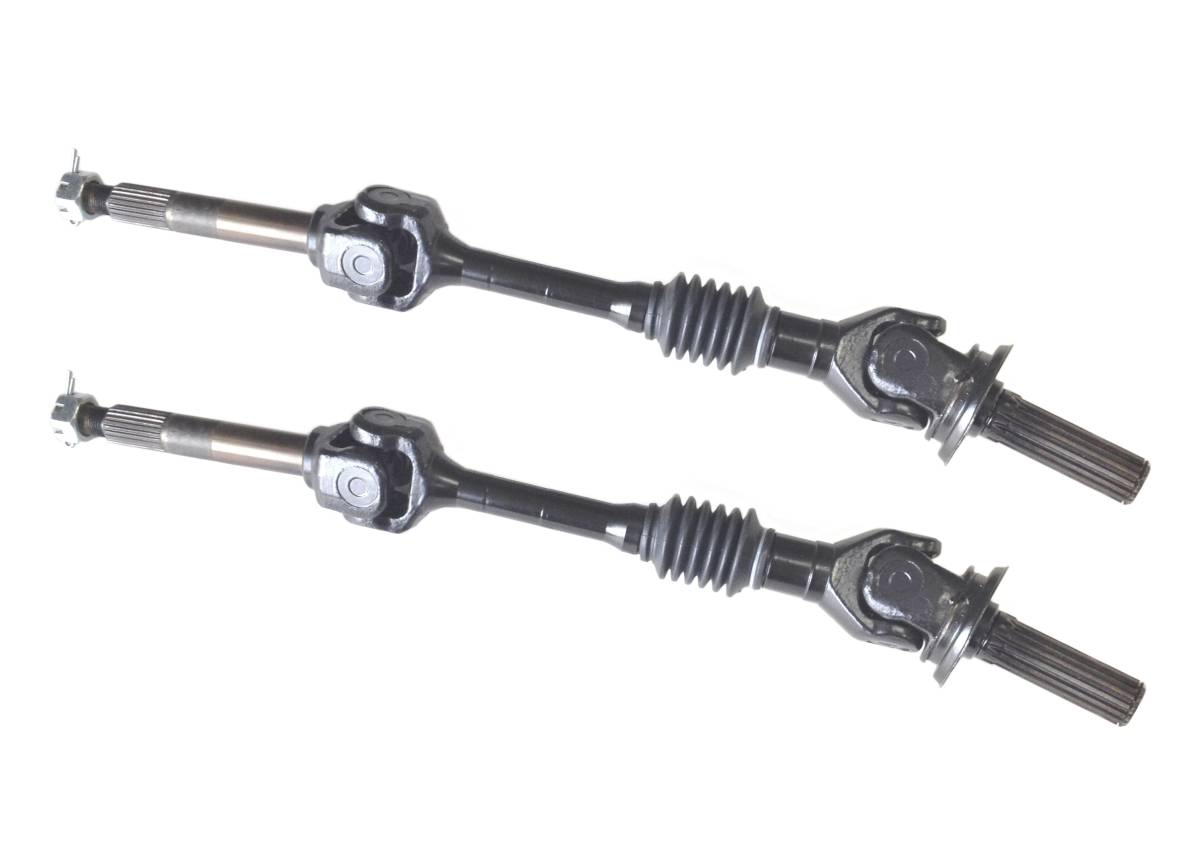

This is a set of new and fully assembled Rear axles with wheel bearings for a Kawasaki Mule UTV.

They fit the following models:

2000-2002 ... Mule 2510

2004-2008 ... Mule 3000

2001-2008 ... Mule 3010

2009-2023 ... Mule 4000

2009-2023 ... Mule 4010/4010 Trans

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bars
  • Fitted with neoprene CV boot for added wear and puncture resistance

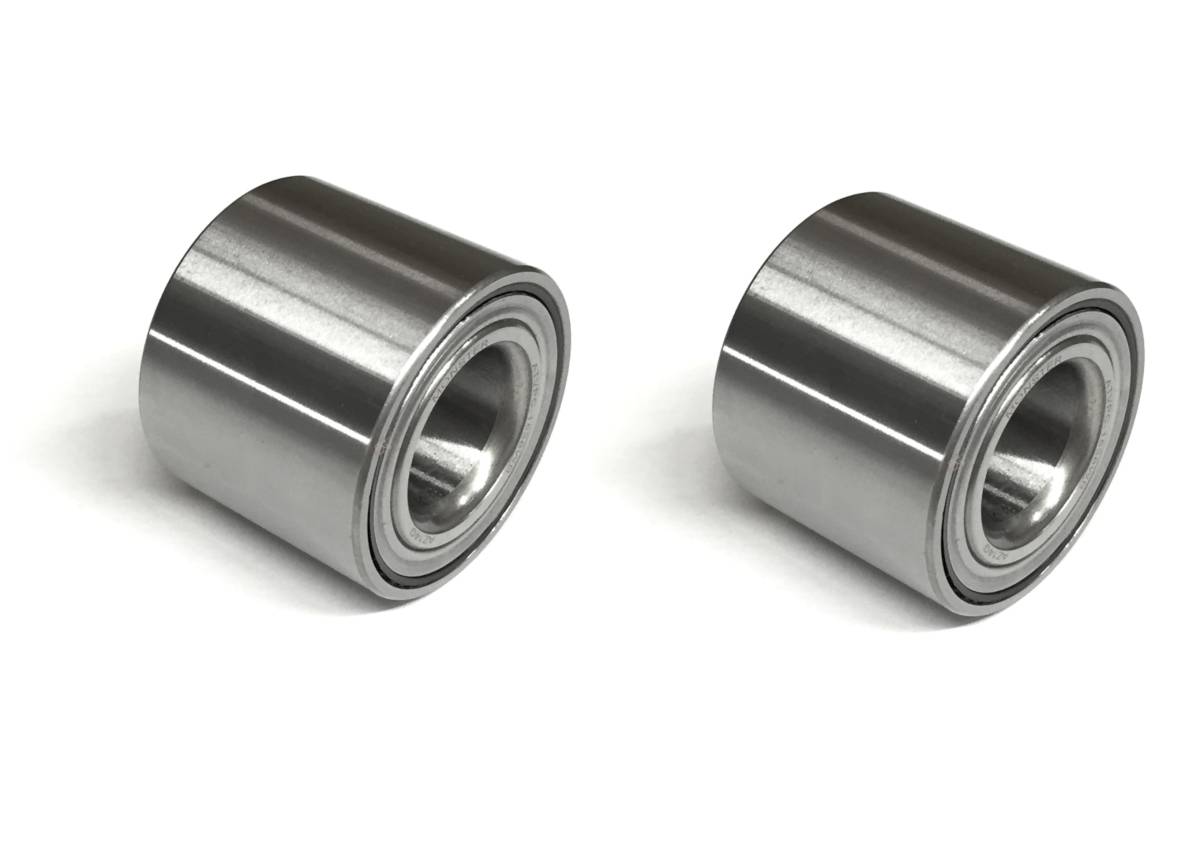

  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 15 (both)
  • Outboard CV joint spline count: 24 (both)
  • Replaces Kawasaki OEM # 39158-1105, 39158-1109, 39158-1104, 39158-1119, 39158-1120, 92045-0102
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $239.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits REAR, LEFT & RIGHT on the following Kawasaki models: 2000-2002 Mule 2510, 2004-2008 Mule 3000 2x4, 2001-2008 Mule 3010 4x4, 2009-2023 Mule 4000 2x4, 2009-2023 Mule 4010/4010 Trans 4x4. Set includes 2 axles & 2 wheel bearings.
  • Stronger than OEM chromoly hardened steel axle bars. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Inboard Splines - 15 (both), Outboard Splines - 24 (both). Replaces OEM # 39158-1105, 39158-1109, 39158-1104, 39158-1119, 39158-1120, 92045-0102.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

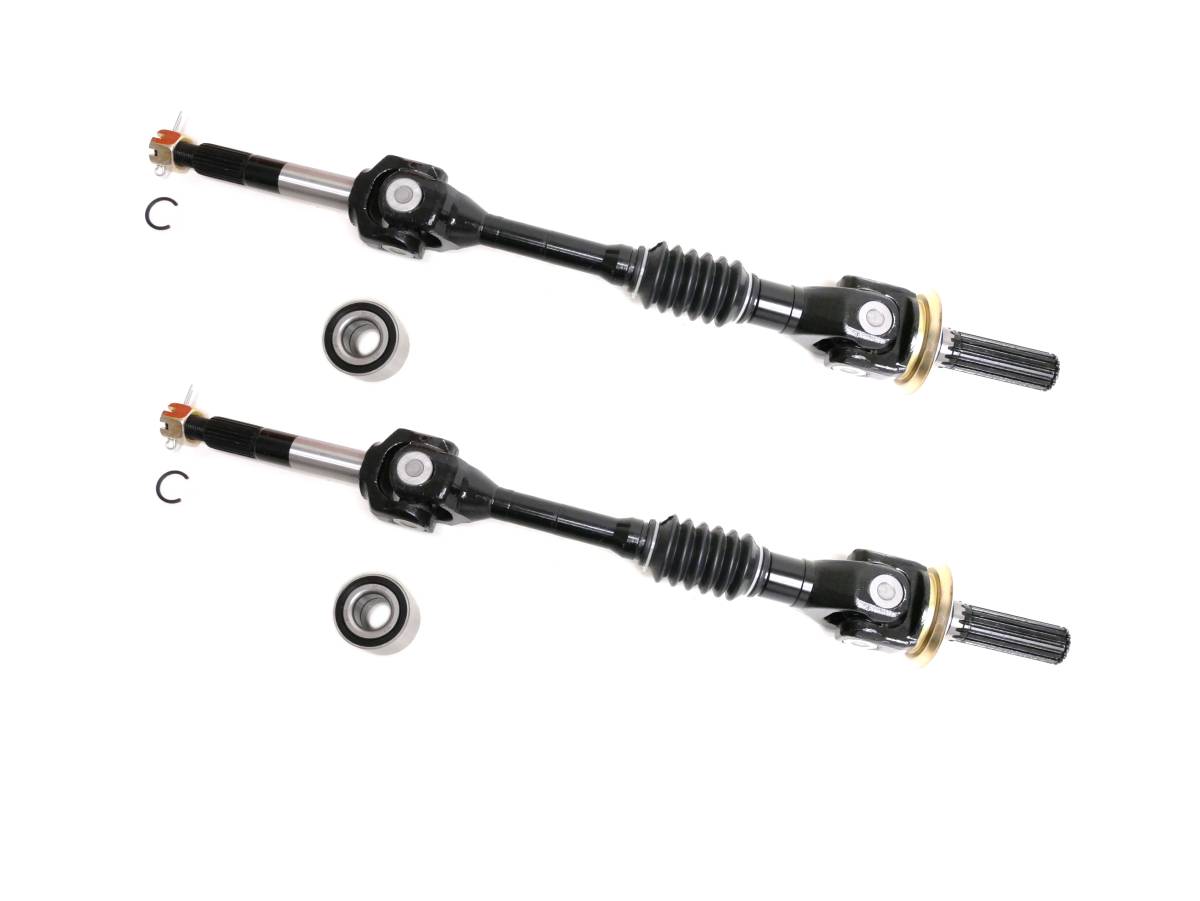

    • What's In The Box

  • 2 axles & 2 wheel bearings

    • Application List

    YearMakeModelSubmodelNotes
    2002KawasakiMule 2510KAF950A 4x4 Diesel
    2001KawasakiMule 2510KAF950A 4x4 Diesel
    2000KawasakiMule 2510KAF620A 4x4
    2000KawasakiMule 2510KAF950A 4x4 Diesel
    2008KawasakiMule 3000KAF620G
    2007KawasakiMule 3000KAF620G
    2006KawasakiMule 3000KAF620G
    2005KawasakiMule 3000KAF620G
    2004KawasakiMule 3000KAF620G
    2004KawasakiMule 3000KAF620H 4x4
    2008KawasakiMule 3010KAF620E 4x4
    2008KawasakiMule 3010KAF620H 4x4
    2008KawasakiMule 3010KAF620J 4x4 Trans
    2008KawasakiMule 3010KAF620K 4x4 Trans
    2008KawasakiMule 3010KAF950D 4x4 Diesel
    2008KawasakiMule 3010KAF950E 4x4 Trans Diesel
    2007KawasakiMule 3010KAF620E 4x4
    2007KawasakiMule 3010KAF620H 4x4
    2007KawasakiMule 3010KAF620J 4x4 Trans
    2007KawasakiMule 3010KAF620K 4x4 Trans
    2007KawasakiMule 3010KAF950B 4x4 Diesel
    2007KawasakiMule 3010KAF950C 4x4 Trans Diesel
    2006KawasakiMule 3010KAF620E 4x4
    2006KawasakiMule 3010KAF620H 4x4
    2006KawasakiMule 3010KAF620J 4x4 Trans
    2006KawasakiMule 3010KAF620K 4x4 Trans
    2006KawasakiMule 3010KAF950B 4x4 Diesel
    2005KawasakiMule 3010KAF620E 4x4
    2005KawasakiMule 3010KAF620H 4x4
    2005KawasakiMule 3010KAF620J 4x4 Trans
    2005KawasakiMule 3010KAF620K 4x4 Trans
    2005KawasakiMule 3010KAF950B 4x4 Diesel
    2004KawasakiMule 3010KAF620E 4x4
    2004KawasakiMule 3010KAF950B 4x4 Diesel
    2003KawasakiMule 3010KAF620E 4x4
    2003KawasakiMule 3010KAF620H 4x4
    2003KawasakiMule 3010KAF950B 4x4 Diesel
    2002KawasakiMule 3010KAF620E 4x4
    2001KawasakiMule 3010KAF620E 4x4
    2021KawasakiMule 4000KAF620 4x4
    2020KawasakiMule 4000KAF620 4x4
    2019KawasakiMule 4000KAF620 4x4
    2018KawasakiMule 4000KAF620
    2017KawasakiMule 4000KAF620PHF
    2016KawasakiMule 4000KAF620
    2015KawasakiMule 4000KAF620
    2014KawasakiMule 4000KAF620P
    2013KawasakiMule 4000KAF620P
    2012KawasakiMule 4000KAF620P
    2011KawasakiMule 4000KAF620P
    2010KawasakiMule 4000KAF620P
    2009KawasakiMule 4000KAF620P
    2021KawasakiMule 4000 TransKAF620
    2020KawasakiMule 4000 TransKAF620
    2019KawasakiMule 4000 TransKAF620
    2018KawasakiMule 4000 TransKAF620
    2022KawasakiMule 4010KAF620 4x4
    2022KawasakiMule 4010KAF620 4x4 FE
    2021KawasakiMule 4010KAF620 4x4
    2021KawasakiMule 4010KAF620 4x4 FE
    2020KawasakiMule 4010KAF620 4x4
    2019KawasakiMule 4010KAF620 4x4
    2018KawasakiMule 4010KAF620 4x4
    2018KawasakiMule 4010KAF620 4x4 Camo
    2018KawasakiMule 4010KAF620 4x4 SE
    2017KawasakiMule 4010KAF620MHF 4X4
    2017KawasakiMule 4010KAF620THF 4x4 SE
    2016KawasakiMule 4010KAF620 4x4
    2016KawasakiMule 4010KAF620 4x4 SE
    2015KawasakiMule 4010KAF620A 4x4
    2014KawasakiMule 4010KAF620M 4x4
    2014KawasakiMule 4010KAF620R 4x4 Trans
    2014KawasakiMule 4010KAF620S 4x4 Trans
    2014KawasakiMule 4010KAF620SEF 4x4 Trans Camo
    2013KawasakiMule 4010KAF620M 4x4
    2013KawasakiMule 4010KAF620R 4x4 Trans
    2013KawasakiMule 4010KAF620S 4x4 Trans
    2013KawasakiMule 4010KAF950F 4x4 Diesel
    2013KawasakiMule 4010KAF950G 4x4 Trans Diesel
    2012KawasakiMule 4010KAF620M 4x4
    2012KawasakiMule 4010KAF620R 4x4 Trans
    2012KawasakiMule 4010KAF620S 4x4 Trans
    2012KawasakiMule 4010KAF950F 4x4 Diesel
    2012KawasakiMule 4010KAF950G 4x4 Trans Diesel
    2011KawasakiMule 4010KAF620M 4x4
    2011KawasakiMule 4010KAF620R 4x4 Trans
    2011KawasakiMule 4010KAF620S 4x4 Trans
    2011KawasakiMule 4010KAF950F 4x4 Diesel
    2011KawasakiMule 4010KAF950G 4x4 Trans Diesel
    2010KawasakiMule 4010KAF620M 4x4
    2010KawasakiMule 4010KAF620R 4x4 Trans
    2010KawasakiMule 4010KAF620S 4x4 Trans
    2010KawasakiMule 4010KAF950F 4x4 Diesel
    2010KawasakiMule 4010KAF950G 4x4 Trans Diesel
    2010KawasakiMule 4010KAF950H 4x4 Trans Diesel
    2009KawasakiMule 4010KAF620M 4x4
    2009KawasakiMule 4010KAF620N 4x4
    2009KawasakiMule 4010KAF620R 4x4 Trans
    2009KawasakiMule 4010KAF620S 4x4 Trans
    2009KawasakiMule 4010KAF950F 4x4 Diesel
    2009KawasakiMule 4010KAF950G 4x4 Trans Diesel
    2023KawasakiMule 4010 TransKAF620 4x4
    2023KawasakiMule 4010 TransKAF620 4x4 FE
    2022KawasakiMule 4010 TransKAF620 4x4
    2022KawasakiMule 4010 TransKAF620 4x4 Camo
    2022KawasakiMule 4010 TransKAF620 4x4 FE
    2021KawasakiMule 4010 TransKAF620 4x4
    2021KawasakiMule 4010 TransKAF620 4x4 Camo
    2021KawasakiMule 4010 TransKAF620 4x4 FE
    2020KawasakiMule 4010 TransKAF620 4x4
    2020KawasakiMule 4010 TransKAF620 4x4 Camo
    2019KawasakiMule 4010 TransKAF620 4x4
    2019KawasakiMule 4010 TransKAF620 4x4 Camo
    2019KawasakiMule 4010 TransKAF620 4x4 SE
    2018KawasakiMule 4010 TransKAF620 4x4
    2018KawasakiMule 4010 TransKAF620 4x4 Camo
    2018KawasakiMule 4010 TransKAF620 4x4 SE
    2017KawasakiMule 4010 TransKAF620RHF 4x4
    2017KawasakiMule 4010 TransKAF620SHF 4X4 Camo
    2017KawasakiMule 4010 TransKAF620VHF 4x4 SE
    2016KawasakiMule 4010 TransKAF620 4x4
    2016KawasakiMule 4010 TransKAF620 4x4 Camo
    2016KawasakiMule 4010 TransKAF620 4x4 SE
    2015KawasakiMule 4010 TransKAF620RFF 4x4
    2015KawasakiMule 4010 TransKAF620RFFA 4x4
    2015KawasakiMule 4010 TransKAF620SFF 4x4 Camo

    Details

    • KW-391/KW-391/WB-1536/WB-1536
    • KW-391/KW-391/WB-1536/WB-1536
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 23.4 lbs.
    • W5.0000” x H9.0000” x L27.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
