CV Axle Set for Honda Foreman 500 2017-2019 & Rubicon 500 2015-2019

Location on vehicle: Front,Rear,Left,Right

HO-134/HO-234/HO-327/HO-327

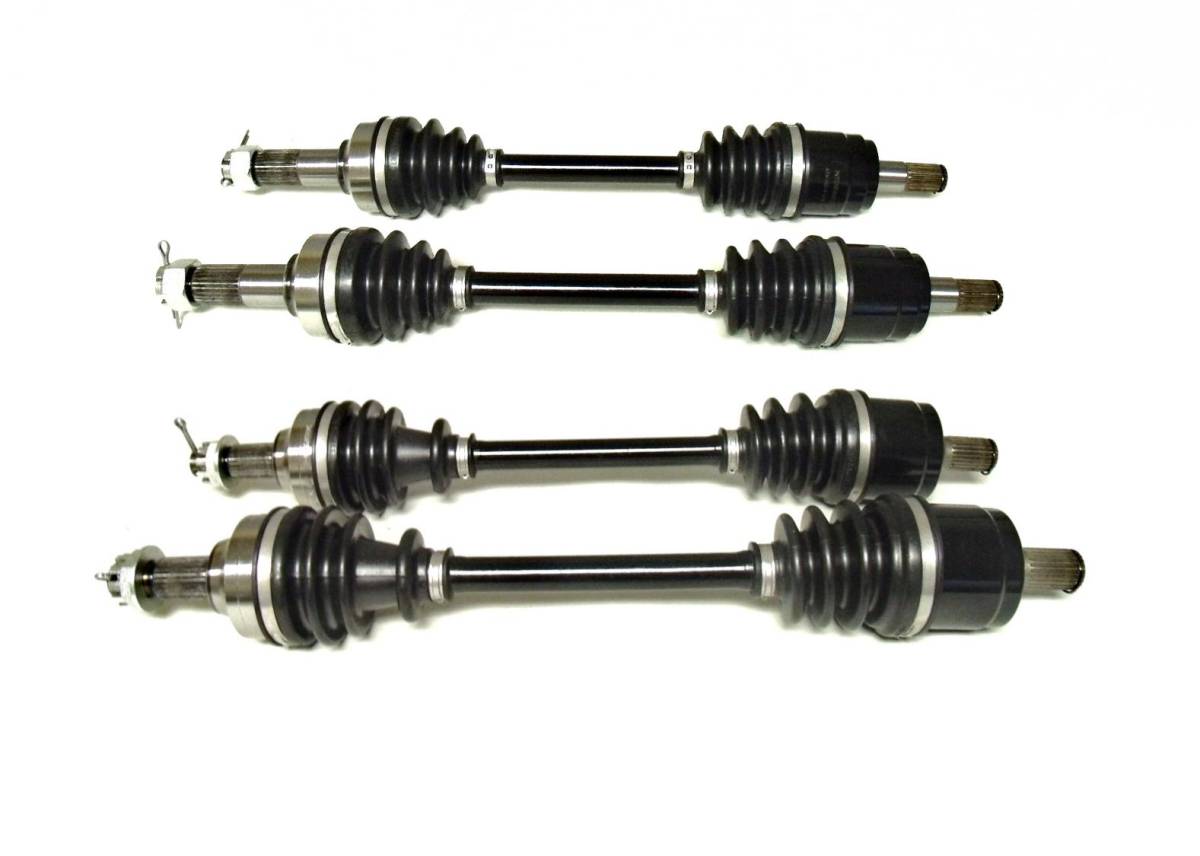

This is a set of new CV axles for a Honda ATV.

They fit the following models:

2017-2019 Foreman 500

2015-2019 Rubicon 500

*Axles made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: Fronts - 20, Rears - 23
  • Outboard CV joint spline count: Fronts - 26, Rears - 24
  • Compressed overall axle length: FL - 493 mm, FR - 507 mm, RL - 520 mm, RR - 520 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $209.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits the following Honda ATVs: 2017-2019 Foreman 500 IRS & 2015-2019 Rubicon 500. Set includes 4 fully-assembled axles.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed axle length: FL - 493 mm, FR - 507 mm, RL - 520 mm, RR - 520 mm, Inboard CV joint spline count: Fronts - 20, Rears - 23, Outboard CV joint spline count: Fronts - 26, Rears - 24.
  • Replaces OEM # (left) 44220-HR3-A21, 44350-HR4-A21, 44420-HR3-A21, 44350-HR4-A22, (right) 44220-HR3-A21, 44250-HR4-A21, 44220-HR3-A21, 44250-HR4-A22, (rears) 42220-HR6-A61, 42250-HR6-A61.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Application List

    YearMakeModelSubmodelNotes
    2019HondaForeman 500TRX500FM1 4x4
    2018HondaForeman 500TRX500FM1 4x4
    2017HondaForeman 500TRX500FM1 4x4
    2019HondaForeman Rubicon 500TRX500FA5 4x4 Auto DCT
    2019HondaForeman Rubicon 500TRX500FA6 4x4 Auto DCT EPS
    2019HondaForeman Rubicon 500TRX500FA7 4x4 Auto DCT EPS DLX
    2019HondaForeman Rubicon 500TRX500FM6 4x4 EPS
    2018HondaForeman Rubicon 500TRX500FA5 4x4 Auto DCT
    2018HondaForeman Rubicon 500TRX500FA6 4x4 Auto DCT EPS
    2018HondaForeman Rubicon 500TRX500FA7 4x4 Auto DCT EPS DLX
    2018HondaForeman Rubicon 500TRX500FM6 4x4 EPS
    2017HondaForeman Rubicon 500TRX500FA5 4x4 Auto DCT
    2017HondaForeman Rubicon 500TRX500FA6 4x4 Auto DCT EPS
    2017HondaForeman Rubicon 500TRX500FA7 4x4 Auto DCT EPS DLX
    2017HondaForeman Rubicon 500TRX500FM6 4x4 EPS
    2016HondaForeman Rubicon 500TRX500FA5 4x4 Auto DCT
    2016HondaForeman Rubicon 500TRX500FA6 4x4 Auto DCT EPS
    2016HondaForeman Rubicon 500TRX500FA7 4x4 Auto DCT EPS DLX
    2016HondaForeman Rubicon 500TRX500FM5 4x4
    2016HondaForeman Rubicon 500TRX500FM6 4x4 EPS
    2016HondaForeman Rubicon 500TRX500FM7 4x4 EPS DLX
    2015HondaForeman Rubicon 500TRX500FA5 4x4 Auto DCT
    2015HondaForeman Rubicon 500TRX500FA6 4x4 Auto DCT EPS
    2015HondaForeman Rubicon 500TRX500FA6D 4x4 Auto DCT Deluxe EPS
    2015HondaForeman Rubicon 500TRX500FM5
    2015HondaForeman Rubicon 500TRX500FM6D 4x4 Deluxe EPS
    2015HondaForeman Rubicon 500TRX500FM6 EPS
