Upper A-Arm Bushing Kits for Honda Foreman / Rubicon 500, Rincon 680, Set of 2

Location on vehicle: Front

(0) Reviews: Write first review
AR-1003/AR-1003
This is a set of new A-Arm bushing & seal kits for a Honda ATV.

They fit the UPPER positions on the following models:

2001-2014 ... Rubicon 500

2005-2013 ... Foreman 500

2015-2022 ... Rincon 680

*please note these are for the upper A-Arms only

Product features:

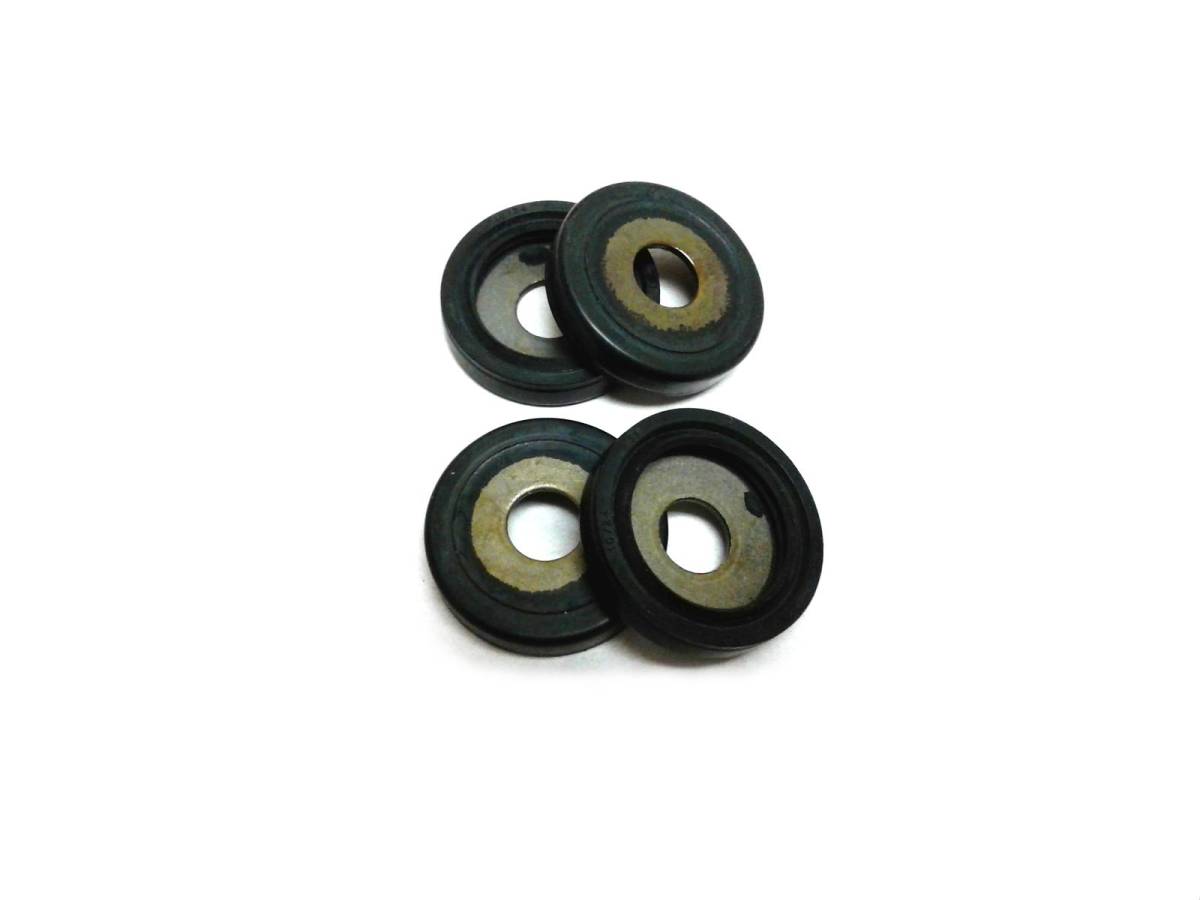

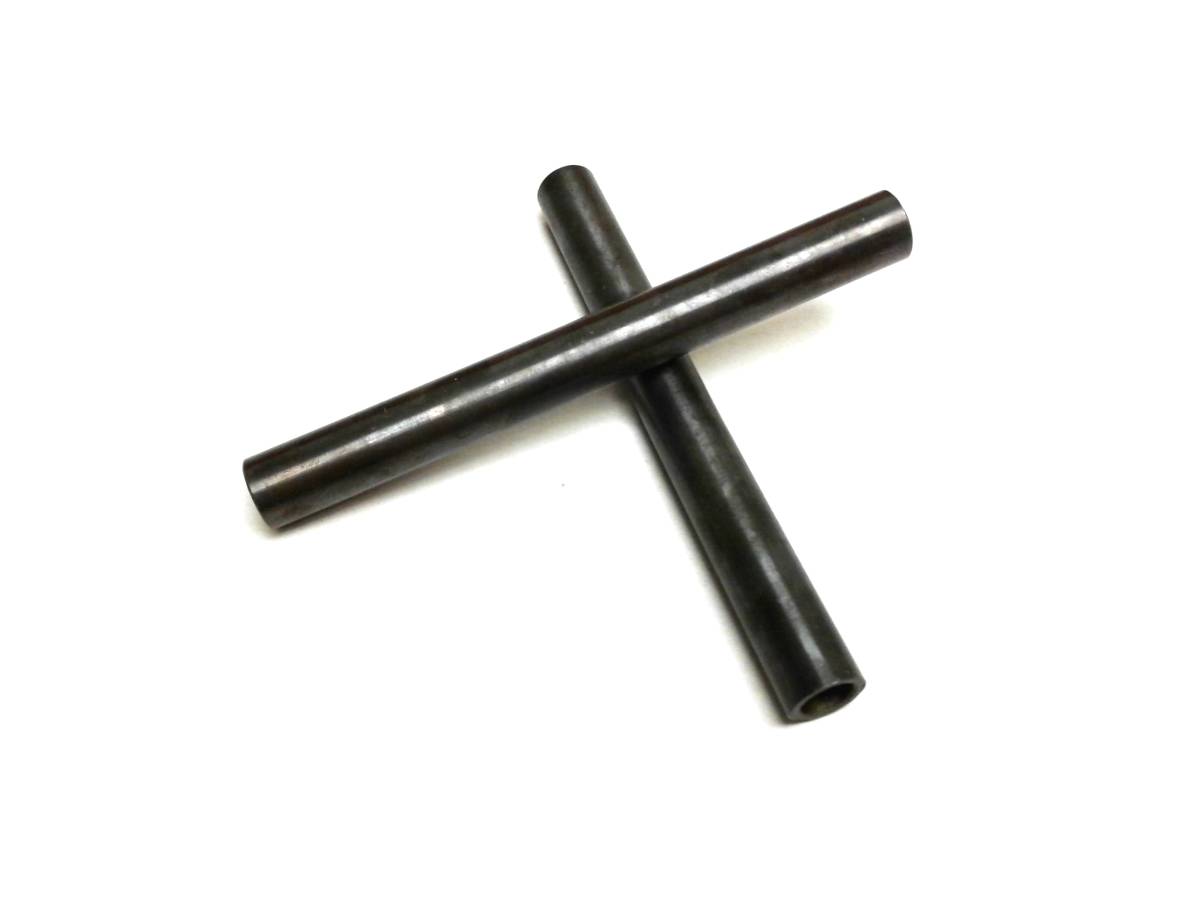

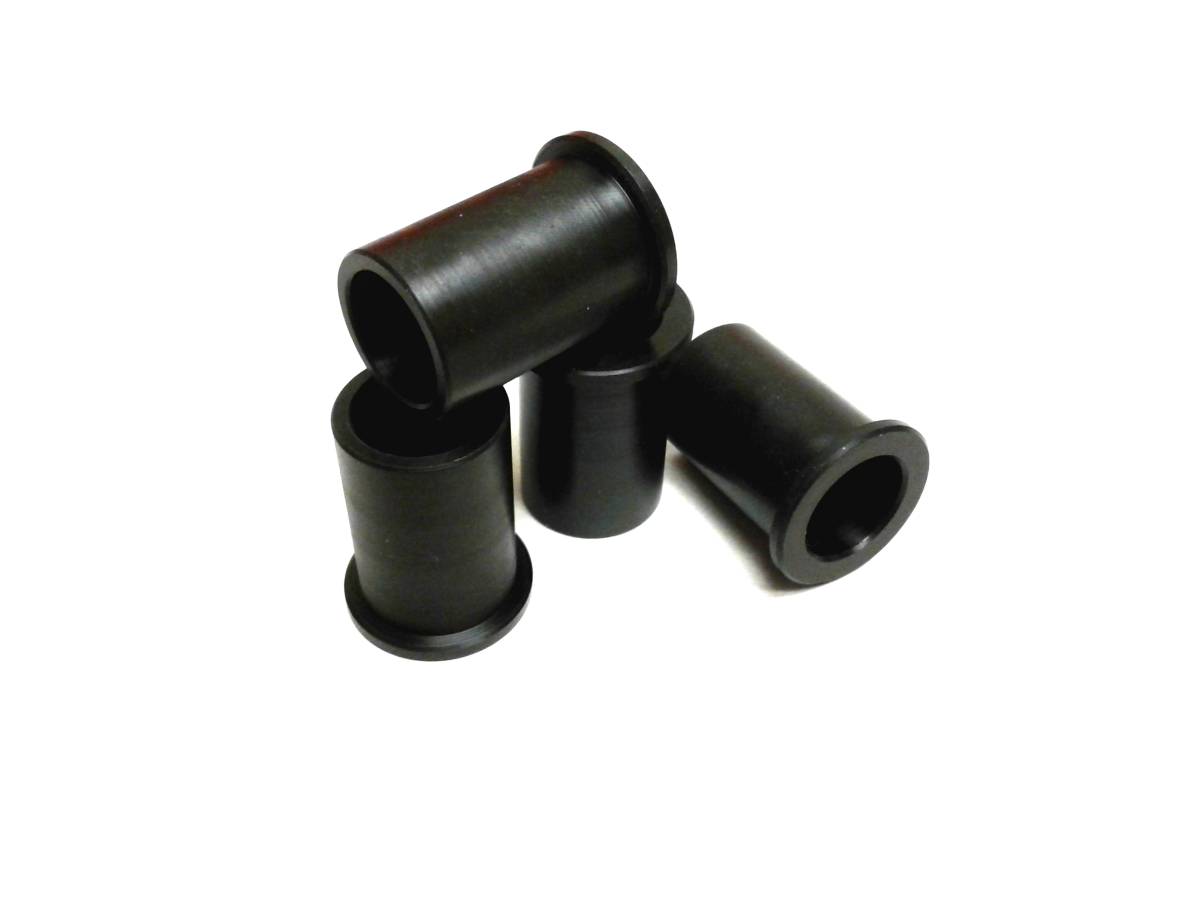

  • Contains 4 Delrin bushings, 2 needle bearing shafts, 4 seals (enough for both sides)
  • All parts designed to meet or exceed OE specifications
  • Fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures
  • Replaces OEM # 51108-HN2-000, 51464-HN2-000, 91262-MA0-015.
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $33.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2012HondaForeman 500TRX500FE 4x4 ES
2012HondaForeman 500TRX500FM 4x4 S
2012HondaForeman 500TRX500FPE 4x4 ES EPS
2012HondaForeman 500TRX500FPM 4x4 EPS
2011HondaForeman 500TRX500FE 4x4 ES
2011HondaForeman 500TRX500FM 4x4 S
2011HondaForeman 500TRX500FPE 4x4 ES EPS
2011HondaForeman 500TRX500FPM 4x4 EPS
2009HondaForeman 500TRX500FE 4x4 ES
2009HondaForeman 500TRX500FM 4x4 S
2009HondaForeman 500TRX500FPA 4x4 AT EPS
2009HondaForeman 500TRX500FPE 4x4 ES EPS
2009HondaForeman 500TRX500FPM 4x4 EPS
2008HondaForeman 500TRX500FE 4x4 ES
2008HondaForeman 500TRX500FM 4x4 S
2008HondaForeman 500TRX500FPE 4x4 ES EPS
2008HondaForeman 500TRX500FPM 4x4 EPS
2007HondaForeman 500TRX500FE 4x4 ES
2007HondaForeman 500TRX500FM 4x4 S
2007HondaForeman 500TRX500FPE 4x4 ES EPS
2006HondaForeman 500TRX500FE 4x4 ES
2006HondaForeman 500TRX500FM 4x4 S
2006HondaForeman 500TRX500TM 2x4
2005HondaForeman 500TRX500FE 4x4 ES
2005HondaForeman 500TRX500FM 4x4 S
2005HondaForeman 500TRX500TM 2x4
2014HondaForeman Rubicon 500TRX500FA 4x4
2014HondaForeman Rubicon 500TRX500FPA 4x4 EPS
2013HondaForeman Rubicon 500TRX500FA 4x4
2013HondaForeman Rubicon 500TRX500FPA 4x4 EPS
2012HondaForeman Rubicon 500TRX500FA 4x4
2012HondaForeman Rubicon 500TRX500FPA 4x4 EPS
2011HondaForeman Rubicon 500TRX500FA 4x4
2011HondaForeman Rubicon 500TRX500FPA 4x4 GPScape
2009HondaForeman Rubicon 500TRX500FA 4x4
2009HondaForeman Rubicon 500TRX500FGA 4x4 GPScape
2009HondaForeman Rubicon 500TRX500FPA 4x4 EPS
2008HondaForeman Rubicon 500TRX500FA 4x4
2008HondaForeman Rubicon 500TRX500FGA 4x4 GPScape
2007HondaForeman Rubicon 500TRX500FA 4x4
2007HondaForeman Rubicon 500TRX500FGA 4x4 GPScape
2006HondaForeman Rubicon 500TRX500FA 4x4
2006HondaForeman Rubicon 500TRX500FGA 4x4 GPScape
2005HondaForeman Rubicon 500TRX500FA 4x4
2005HondaForeman Rubicon 500TRX500FGA 4x4 GPScape
2004HondaForeman Rubicon 500TRX500FA 4x4
2004HondaForeman Rubicon 500TRX500FGA 4x4 GPScape
2003HondaForeman Rubicon 500TRX500FA 4x4
2002HondaForeman Rubicon 500TRX500FA 4x4
2001HondaForeman Rubicon 500TRX500FA 4x4
2022HondaRincon 680TRX680FA5
2021HondaRincon 680TRX680FA5
2020HondaRincon 680TRX680FA5
2019HondaRincon 680TRX680FA5
2018HondaRincon 680TRX680FA
2017HondaRincon 680TRX680FA
2017HondaRincon 680TRX680FA Camo
2016HondaRincon 680TRX680FA
2015HondaRincon 680TRX680FA 4x4

Product Notes

  • Fits the following Honda ATVs: 2001-2014 Rubicon 500, 2005-2013 Foreman 500, & 2015-2022 Rincon 680.

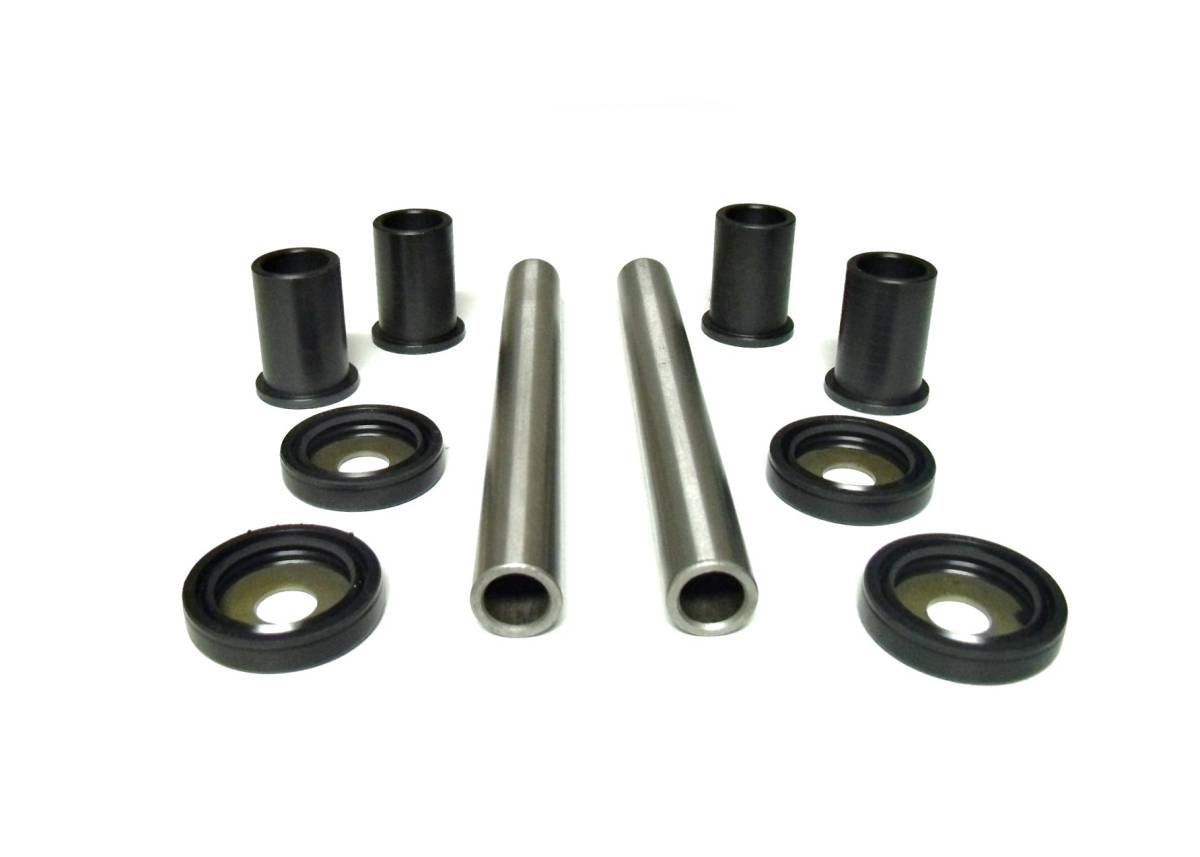

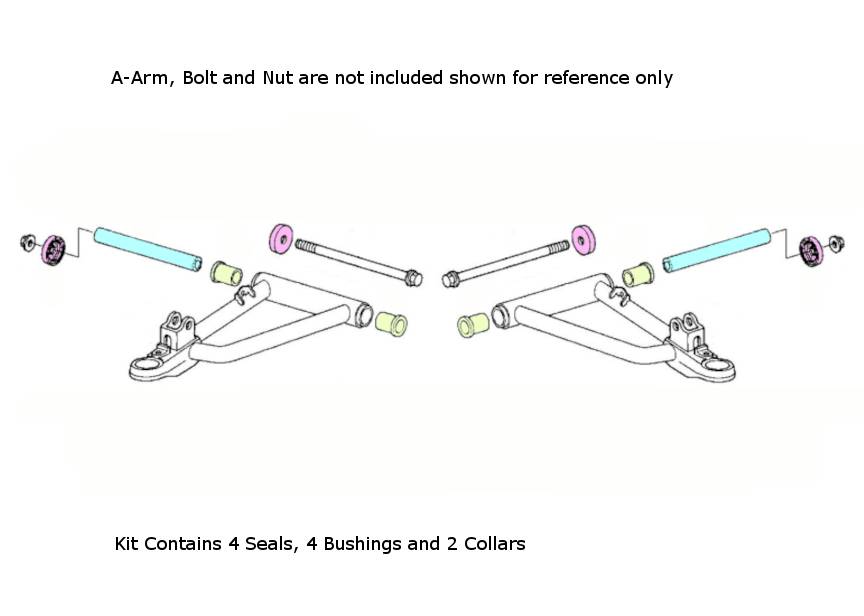

  • Replaces the UPPER positions. Set includes 4 Delrin bushings, 2 needle bearing shafts, & 4 seals (as pictured). This is enough to change both sides.
  • All parts designed to meet or exceed OE specifications.
  • Replaces OEM # 51108-HN2-000, 51464-HN2-000, 91262-MA0-015.
  • Comes with a 1 year limited warranty. Please note parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 Bearings, 4 Bushings, 4 Seals

    • Warranty

    1 year factory defect repair/ replace warranty

    Details

    • AR-1003/AR-1003
    • AR-1003/AR-1003
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 0.9 lbs.
    • W3.0000” x H9.0000” x L7.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
