Front Axle Pair with Bearings for Can-Am Outlander XMR 650, 800, 850 & 1000

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
CA-116/CA-216/WB-1516/WB-1516

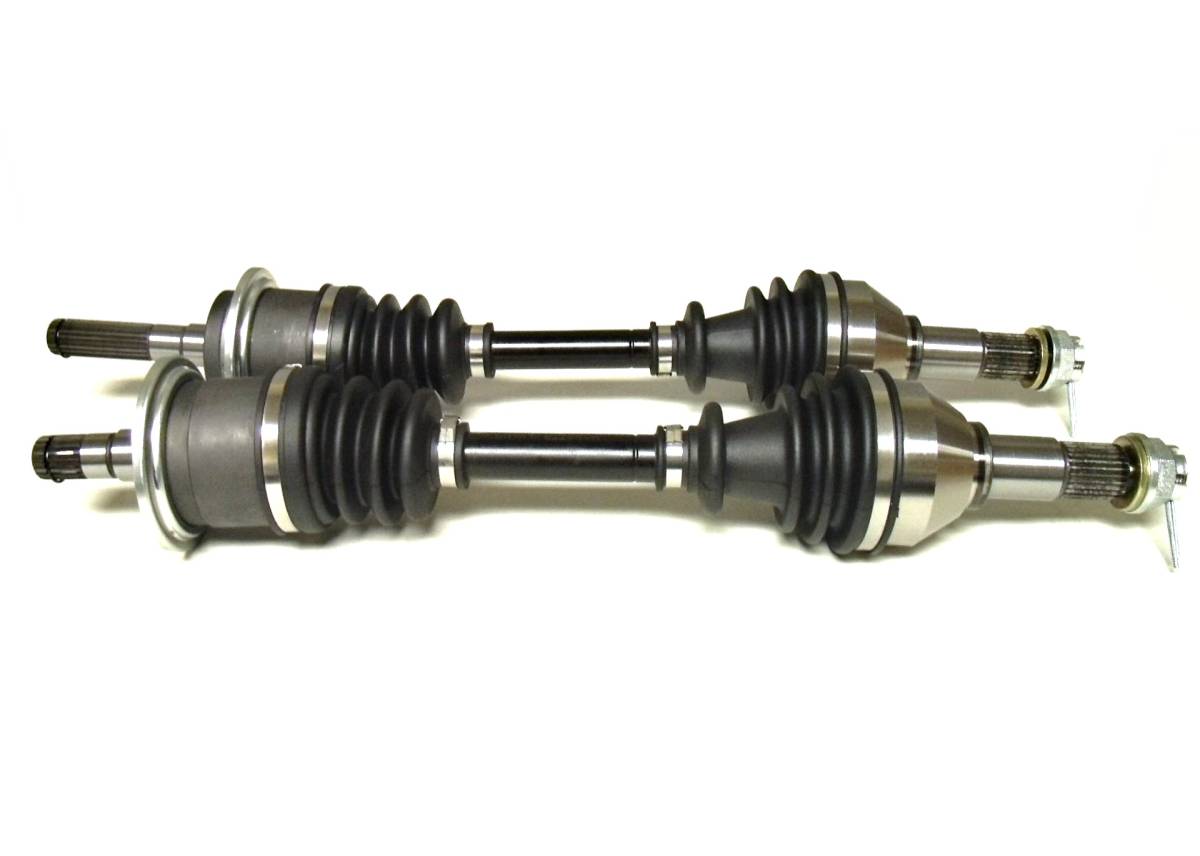

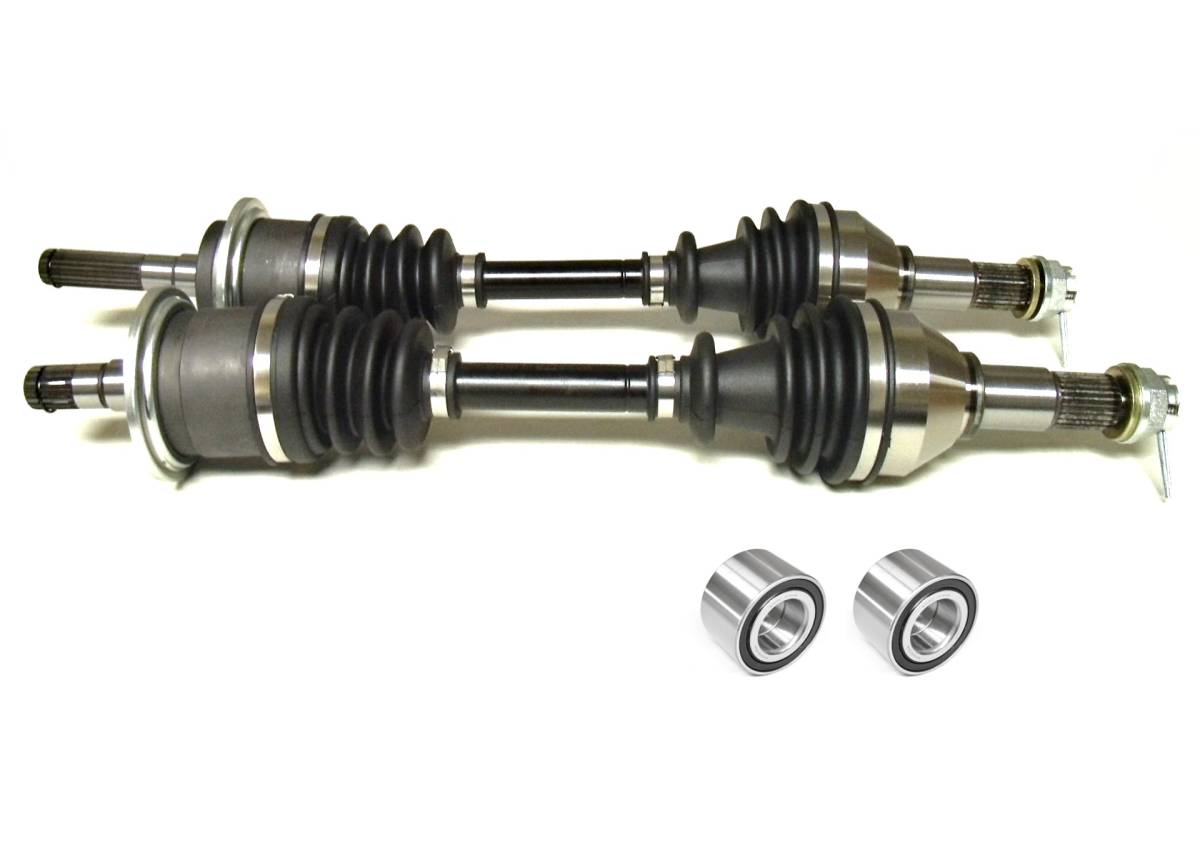

This is a pair of new Front CV axles & wheel bearings for a Can-Am ATV.

They fit the following 4x4 applications:

2016 ... Outlander XMR 570

2013-2018 ... Outlander XMR 650

2015 ... Outlander XMR 800R

2016-2018 ... Outlander XMR 850

2013-2015 ... Outlander XMR 1000

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: Left 515.5 mm, Right 558 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $147.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2018Can-AmOutlander 6504x4 XMR DPS
2017Can-AmOutlander 6504x4 XMR DPS
2016Can-AmOutlander 6504x4 XMR DPS
2015Can-AmOutlander 6504x4 XMR
2014Can-AmOutlander 6504x4 XMR
2013Can-AmOutlander 6504x4 XMR EFI
2015Can-AmOutlander 800R4x4 XMR
2018Can-AmOutlander 8504x4 XMR DPS
2017Can-AmOutlander 8504x4 XMR DPS
2016Can-AmOutlander 8504x4 XMR DPS
2015Can-AmOutlander 10004x4 XMR
2014Can-AmOutlander 10004x4 XMR EFI
2013Can-AmOutlander 10004x4 XMR EFI
2016Can-AmOutlander L 5704x4 XMR DPS

Product Notes

  • Fits front, left & right on the following Can-Am ATVs: 2016 Outlander XMR 570, 2013-2018 Outlander XMR 650, 2015 Outlander XMR 800R, 2016-2018 Outlander XMR 850, 2013-2015 Outlander XMR 1000.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Inboard CV joint spline count: 21 (both), Outboard CV joint spline count: 26 (both), Compressed overall axle length: left 515.5 mm, right 558 mm.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

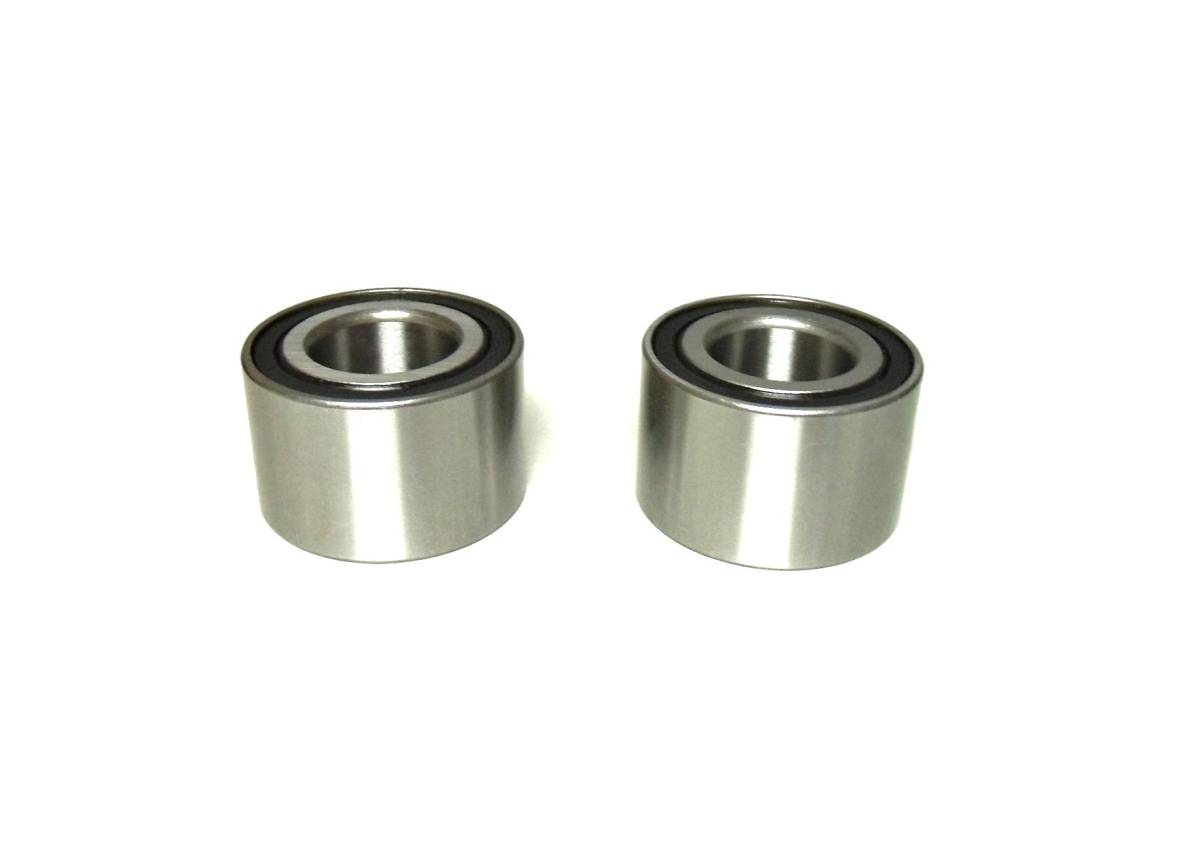

  • 2 CV Axles, 2 wheel bearings

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-116/CA-216/WB-1516/WB-1516
    • CA-116/CA-216/WB-1516/WB-1516
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 23.6 lbs.
    • W5.0000” x H9.0000” x L24.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
