Front CV Axle Pair for Honda Pioneer 500 & 520 2015-2025 4x4

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
HO-137/HO-237

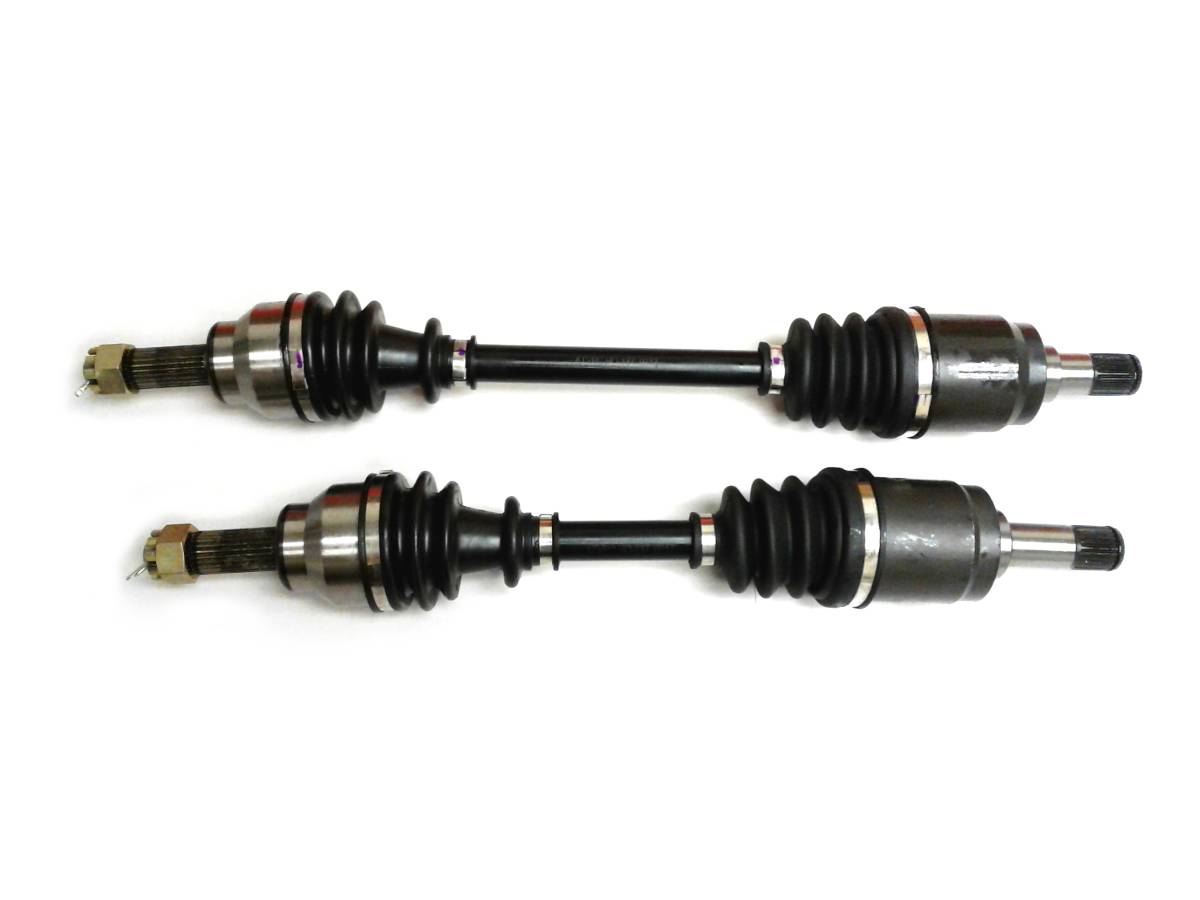

This is a pair of new CV axles for a Honda UTV.

It fit front, left and right on the following models:

2015-2024 ... Pioneer 520.

2021-2025 ... Pioneer 520

*made as an OE replacement and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

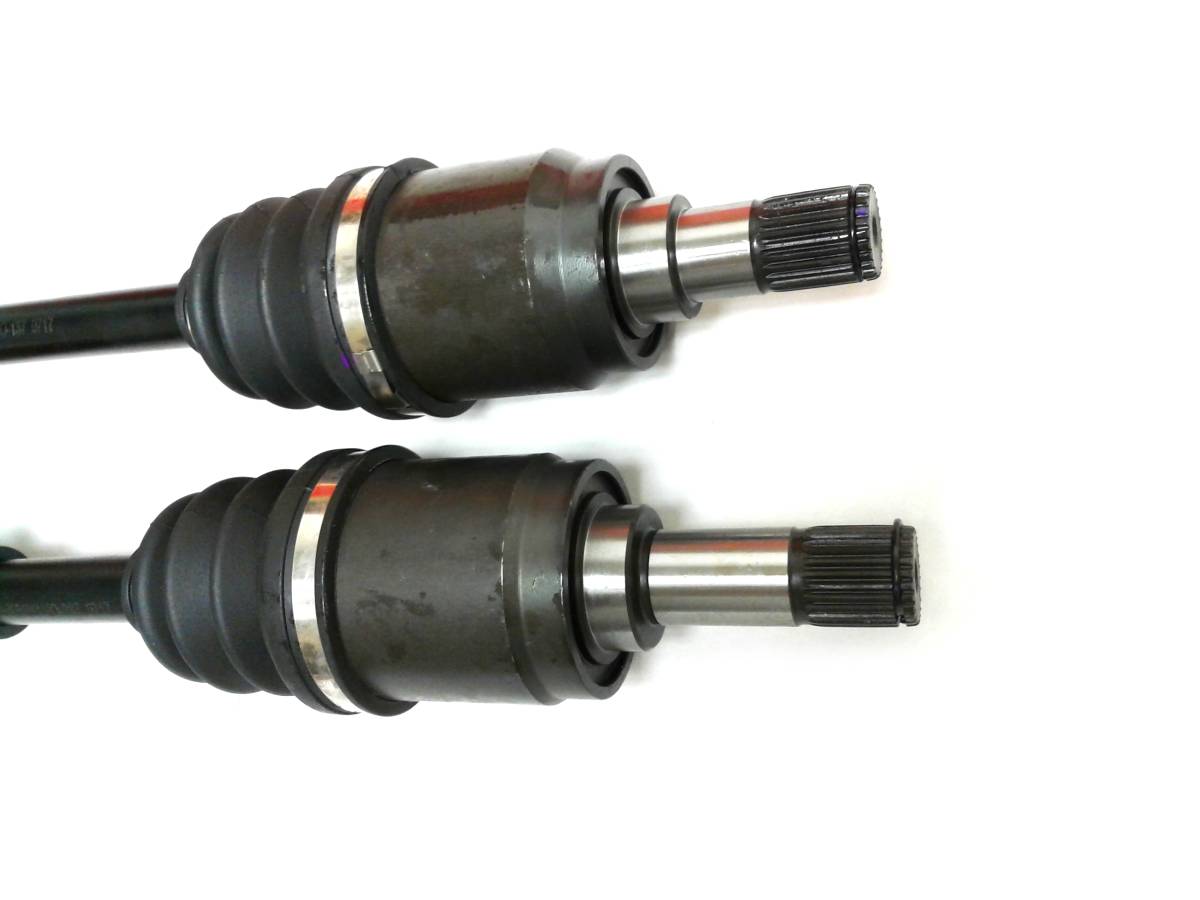

  • Inboard CV joint spline count: 25 (both)

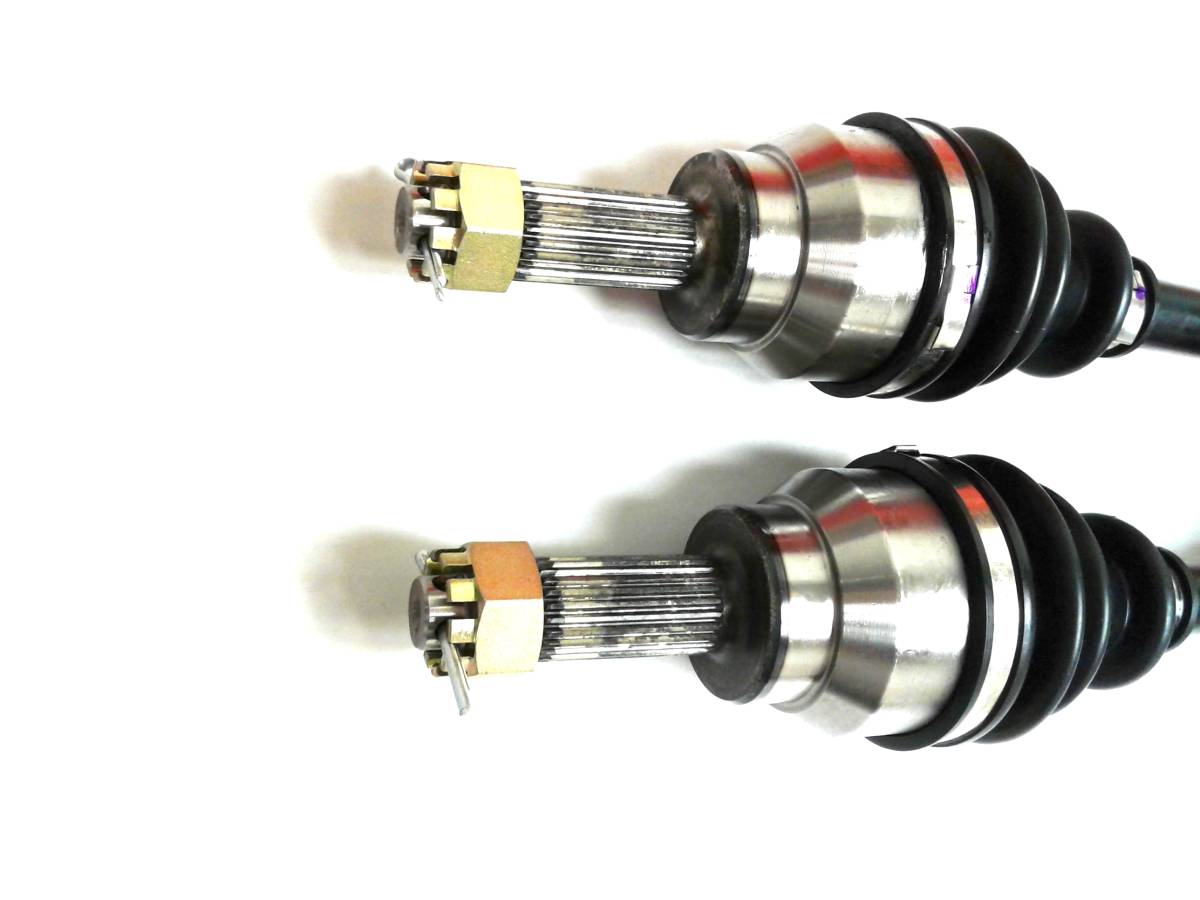

  • Outboard CV joint spline count: 24 (both)
  • Compressed overall axle length: LH - 599 mm, RH - 520 mm
  • Replace OEM # 44250-HL5-A01, 44220-HL5-A01, 44350-HL5-A01, 44320-HL3-A01
Limited Supply: only 1 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $129.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2023HondaPioneer 500SXS500M2
2022HondaPioneer 500SXS500M2
2021HondaPioneer 500SXS500M2
2020HondaPioneer 500SXS500M2
2019HondaPioneer 500SXS500M2
2018HondaPioneer 500SXS500M2
2018HondaPioneer 500SXS500M2 Camo
2017HondaPioneer 500SXS500M2
2017HondaPioneer 500SXS500M2 Camo
2016HondaPioneer 500SXS500M2
2015HondaPioneer 500SXS500M2
2025HondaPioneer 520SXS520M2
2023HondaPioneer 520SXS520M2
2022HondaPioneer 520SXS520M2
2021HondaPioneer 520SXS520M2

Product Notes

  • Fits front, left and right on the following Honda UTV models: 2015-2024 Pioneer 520. 2021-2025 Pioneer 520.
  • Features a stronger than OEM, 4340 chromoly steel bar. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replace OEM # 44250-HL5-A01, 44220-HL5-A01, 44350-HL5-A01, 44320-HL3-A01. Inner splines: 25 (both), Outer splines: 24 (both), Compressed axle length: Left - 599 mm, Right - 520 mm.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • HO-137/HO-237
    • HO-137/HO-237
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 22.0 lbs.
    • W5.0000” x H10.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
