Monster Rear CV Axle for Kawasaki Brute Force 650i 750i 2005-2023, XP Series

Fits up to a 4" lift! See details for fitment

KW-312XP
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. Plus it works on both stock suspensions AND lifted suspensions.

The plunge mechanism is moved from the inner joint to the shaft, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will never bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

This is a Heavy Duty replacement to the OEM, but it can also support lift kits up to 4 inches if you have one.

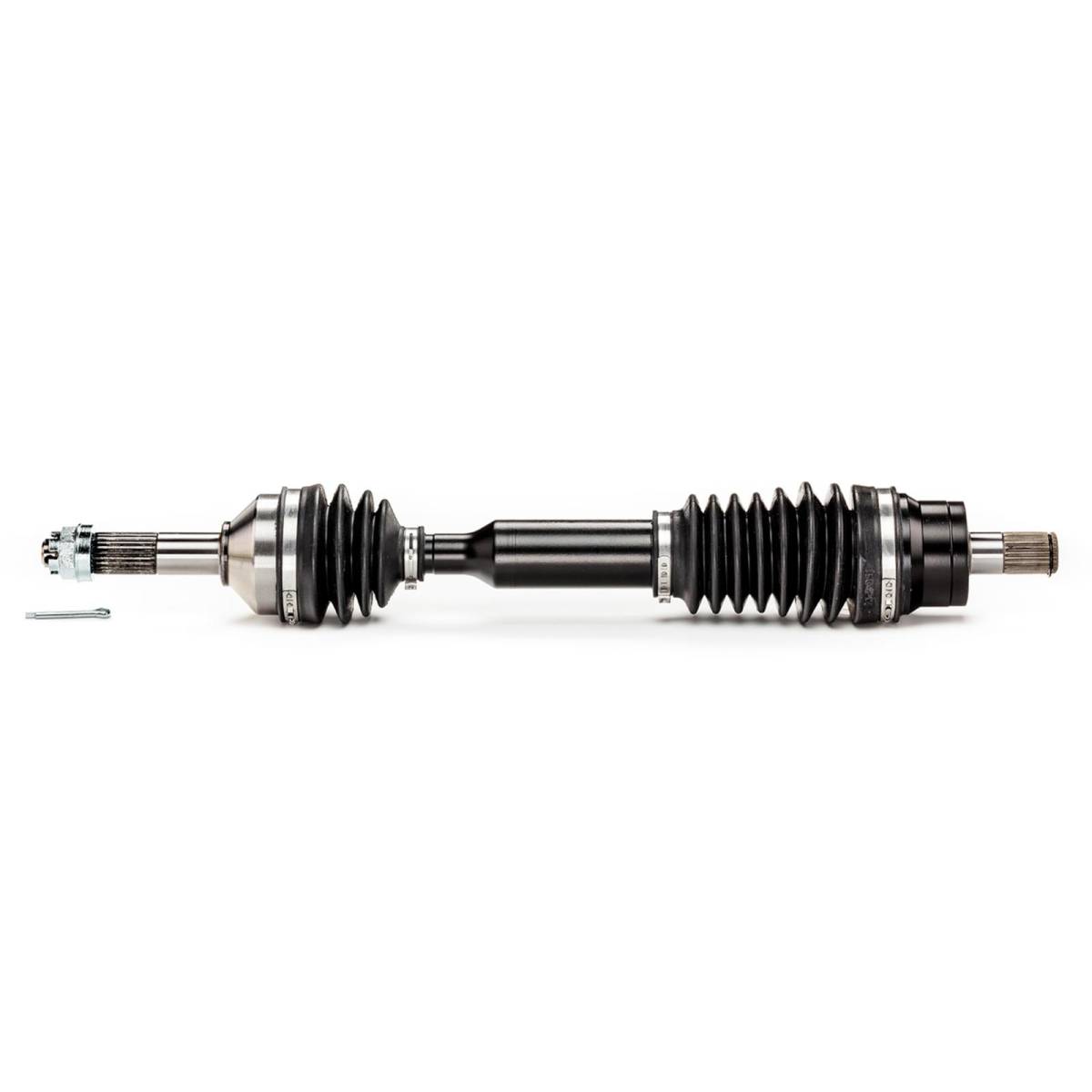

With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The shaft is also providing an additional 60 mm of travel (as pictured).

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty thermoplastic type boots for greater wear & puncture resistance.

Should you need replacement parts, we have them in stock and available.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $149.95
Qty:
Free Standard Ground Shipping

Warranty

1 year, one-time repair/ replace. Buyer pays shipping

Product Notes

  • Fits REAR, LEFT or RIGHT: 2006-2013 Brute Force 650i, 2005-2023 Brute Force 750i. The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. Plus it works on both stock suspensions AND lifted suspensions.
  • The plunge mechanism is moved from the inner joint to the shaft, eliminating issues that cause joints to bind and break. Unlike other axles, this will never bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.
  • This is a Heavy Duty replacement to the OEM, but it can also support lift kits up to 4 inches. With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to 23°). The shaft also provides 60 mm of travel.
  • Outer Spline Count: 24, Inner Spline Count: 24, Compressed Length: 549 mm. Replaces Kawasaki OE # 59266-0023, 59266-0002.
  • Comes with a 1 year limited warranty (excluding torn boots).

  • What's In The Box

  • 1 axle
  • Application List

    YearMakeModelSubmodelNotes
    2013KawasakiBrute Force 650KVF650F 4x4i
    2012KawasakiBrute Force 650KVF650F 4x4i
    2011KawasakiBrute Force 650KVF650F 4x4i
    2009KawasakiBrute Force 650KVF650F 4x4i
    2009KawasakiBrute Force 650KVF650G 4x4i
    2008KawasakiBrute Force 650KVF650F 4x4i
    2008KawasakiBrute Force 650KVF650G 4x4i
    2008KawasakiBrute Force 650KVF650H 4x4i
    2007KawasakiBrute Force 650KVF650F 4x4i
    2007KawasakiBrute Force 650KVF650G 4x4i
    2007KawasakiBrute Force 650KVF650H 4x4i
    2006KawasakiBrute Force 650KVF650F 4x4i
    2006KawasakiBrute Force 650KVF650G 4x4i
    2023KawasakiBrute Force 750KVF750 4x4i EPS
    2023KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2022KawasakiBrute Force 750KVF750 4x4i EPS
    2022KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2021KawasakiBrute Force 750KVF750 4x4i
    2021KawasakiBrute Force 750KVF750 4x4i EPS
    2021KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2020KawasakiBrute Force 750KVF750 4x4i
    2020KawasakiBrute Force 750KVF750 4x4i EPS
    2020KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2019KawasakiBrute Force 750KVF750 4x4i
    2019KawasakiBrute Force 750KVF750 4x4i EPS
    2019KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2018KawasakiBrute Force 750KVF750 4x4i
    2018KawasakiBrute Force 750KVF750 4x4i EPS
    2018KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2017KawasakiBrute Force 750KVF750GHF 4x4i EPS
    2017KawasakiBrute Force 750KVF750HHF 4x4i EPS Camo
    2017KawasakiBrute Force 750KVF750JHF 4x4i EPS Graystone
    2017KawasakiBrute Force 750KVF750LHF 4x4i
    2016KawasakiBrute Force 750KVF750 4x4i
    2016KawasakiBrute Force 750KVF750 4x4i EPS
    2016KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2015KawasakiBrute Force 750KVF750 4x4i
    2015KawasakiBrute Force 750KVF750 4x4i EPS
    2015KawasakiBrute Force 750KVF750 4x4i EPS Camo
    2014KawasakiBrute Force 750KVF750G 4x4i EPS
    2014KawasakiBrute Force 750KVF750H 4x4i EPS
    2014KawasakiBrute Force 750KVF750L 4x4i
    2013KawasakiBrute Force 750KVF750G 4x4i EPS
    2013KawasakiBrute Force 750KVF750H 4x4i EPS
    2013KawasakiBrute Force 750KVF750J 4x4i
    2013KawasakiBrute Force 750KVF750L 4x4i
    2012KawasakiBrute Force 750KVF750G 4x4i EPS
    2012KawasakiBrute Force 750KVF750H 4x4i EPS
    2012KawasakiBrute Force 750KVF750L 4x4i
    2011KawasakiBrute Force 750KVF750D 4x4i
    2010KawasakiBrute Force 750KVF750D 4x4i
    2010KawasakiBrute Force 750KVF750E 4x4i
    2009KawasakiBrute Force 750KVF750A 4x4i
    2009KawasakiBrute Force 750KVF750D 4x4i
    2009KawasakiBrute Force 750KVF750E 4x4i
    2009KawasakiBrute Force 750KVF750EA 4x4i NRA
    2008KawasakiBrute Force 750KVF750A 4x4i
    2008KawasakiBrute Force 750KVF750D 4x4i
    2008KawasakiBrute Force 750KVF750E 4x4i
    2008KawasakiBrute Force 750KVF750EA 4x4i NRA
    2007KawasakiBrute Force 750KVF750A 4x4i
    2007KawasakiBrute Force 750KVF750B 4x4i
    2007KawasakiBrute Force 750KVF750C 4x4i
    2007KawasakiBrute Force 750KVF750D 4x4i NRA
    2006KawasakiBrute Force 750KVF750A 4x4i
    2006KawasakiBrute Force 750KVF750B 4x4i
    2006KawasakiBrute Force 750KVF750C 4x4i
    2005KawasakiBrute Force 750KVF750A 4x4i
    2005KawasakiBrute Force 750KVF750B 4x4i
