Monster Axles Front Axle & Bearing for Polaris RZR 900 & XP 900 11-14, XP Series

Location on vehicle: Front,Left,Right

PO-313XP/WB-1628
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

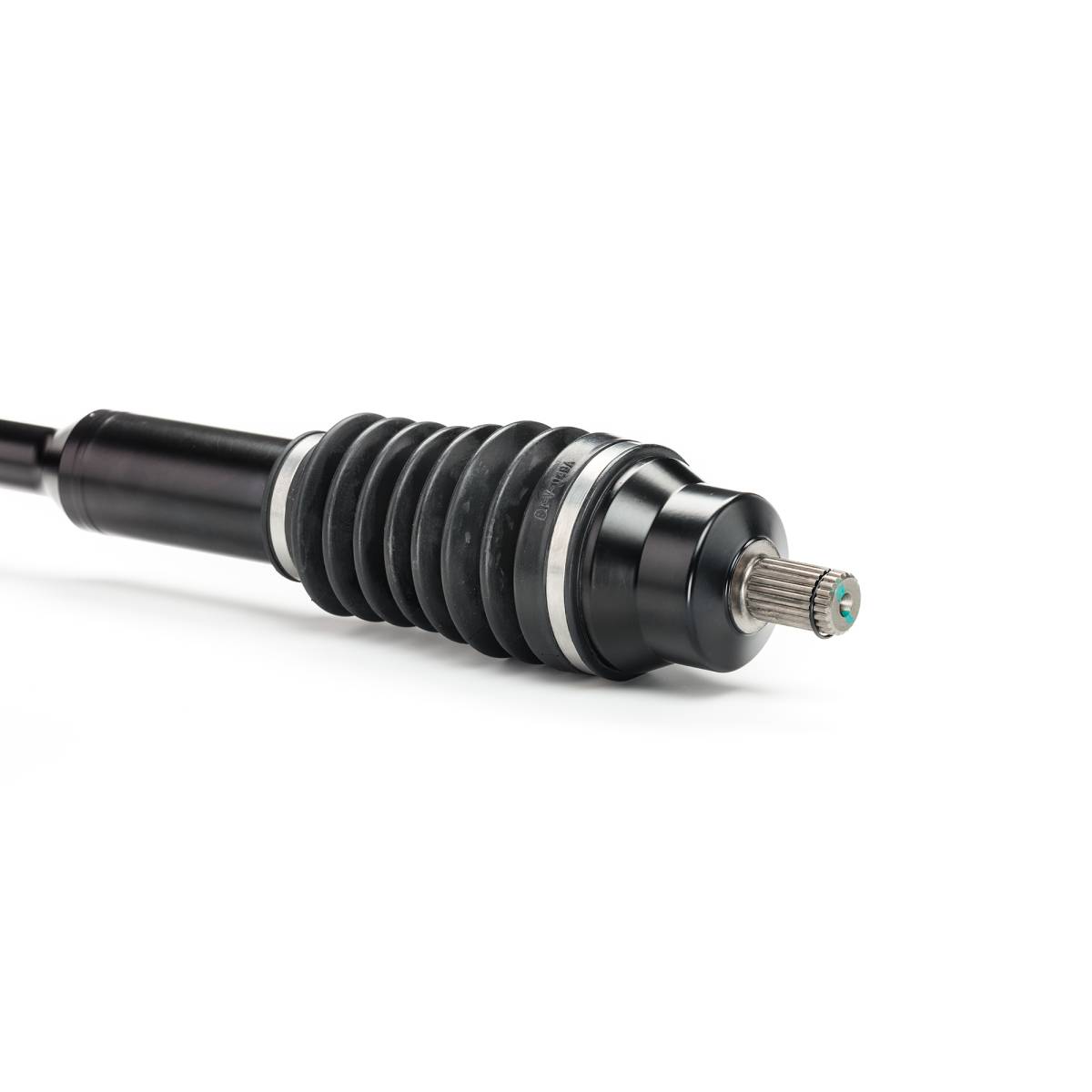

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

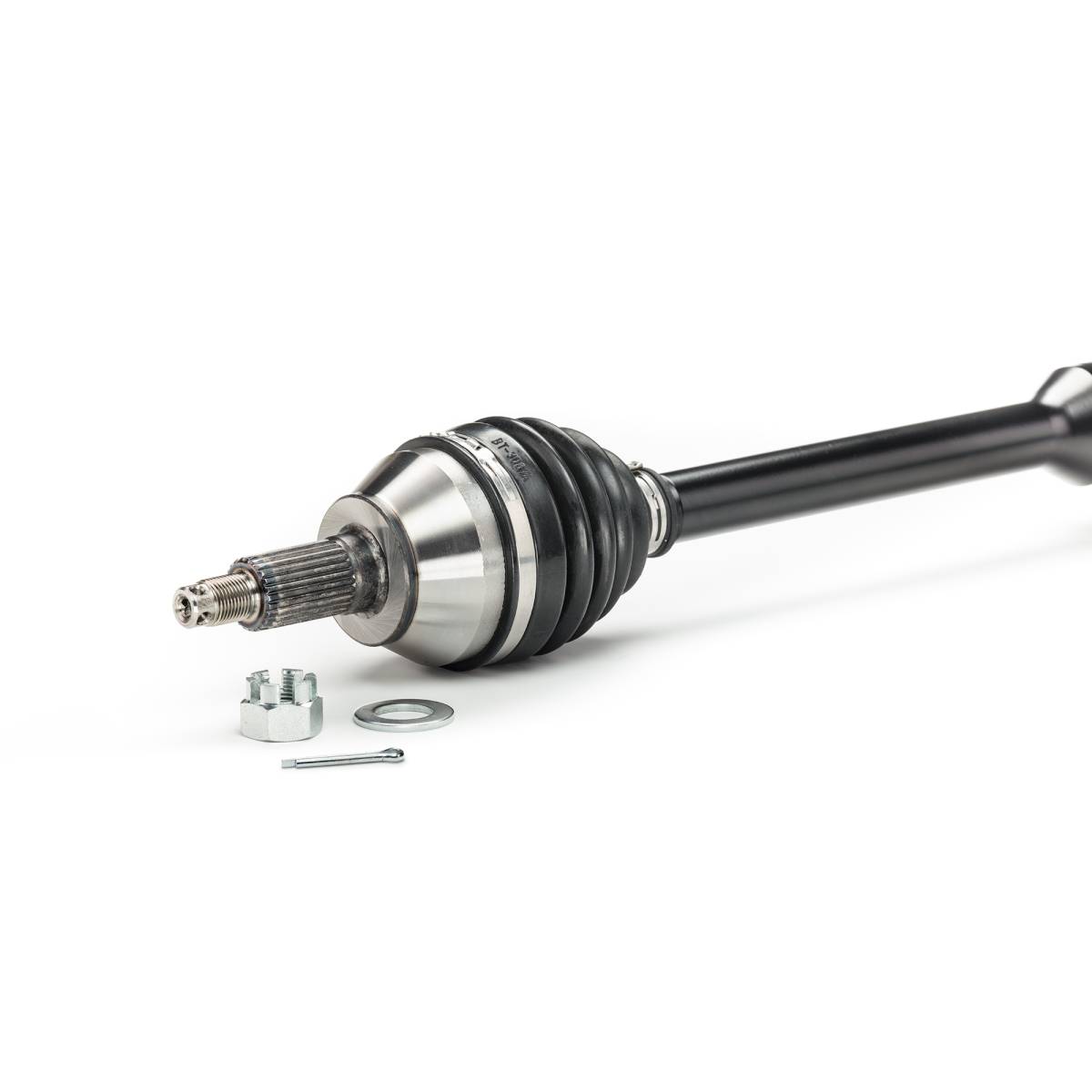

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Fits FRONT, LEFT or RIGHT: 2011-2014 RZR 900 & RZR XP 900, 2012-2014 RZR4 900 & RZR XP4 900.

Contact us to inquire about replacement parts.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $179.95
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2014PolarisRZR 4 900LE EPS
2012PolarisRZR 4 XP 900--
2012PolarisRZR 4 XP 900EPS
2012PolarisRZR 4 XP 900LE EPS
2014PolarisRZR 900--
2014PolarisRZR 900LE EPS
2014PolarisRZR 900Pursuit
2014PolarisRZR 900XC Edition
2013PolarisRZR XP 4 900--
2013PolarisRZR XP 4 900LE EPS
2013PolarisRZR XP 900EFI
2013PolarisRZR XP 900Jagged X Edition HO
2013PolarisRZR XP 900LE
2013PolarisRZR XP 900LE EPS
2013PolarisRZR XP 900Walker Evans Edition EPS
2012PolarisRZR XP 900EFI
2012PolarisRZR XP 900LE EFI
2011PolarisRZR XP 900--
2011PolarisRZR XP 900LE

Product Notes

  • Fits FRONT, LEFT or RIGHT on the following Polaris models: 2011-2014 RZR 900 & RZR XP 900, 2012-2014 RZR4 900 & RZR XP4 900. Set includes 1 axle & 1 wheel bearing.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # (axle) 1332825, (bearing) 3514627, 3514699. Compressed axle length: 747 mm Inner splines: 22, Outer splines: 26. Comes with a 1 year limited warranty (excluding torn boots).

  • What's In The Box

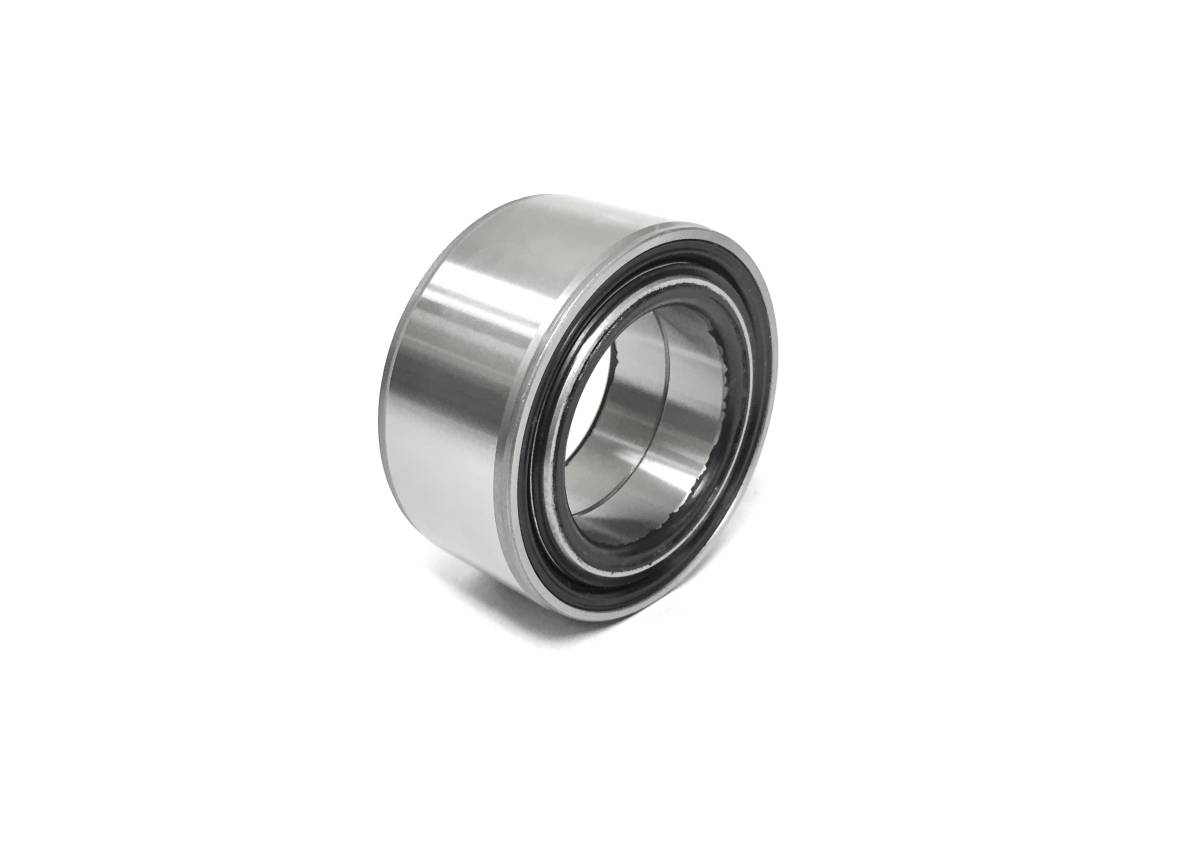

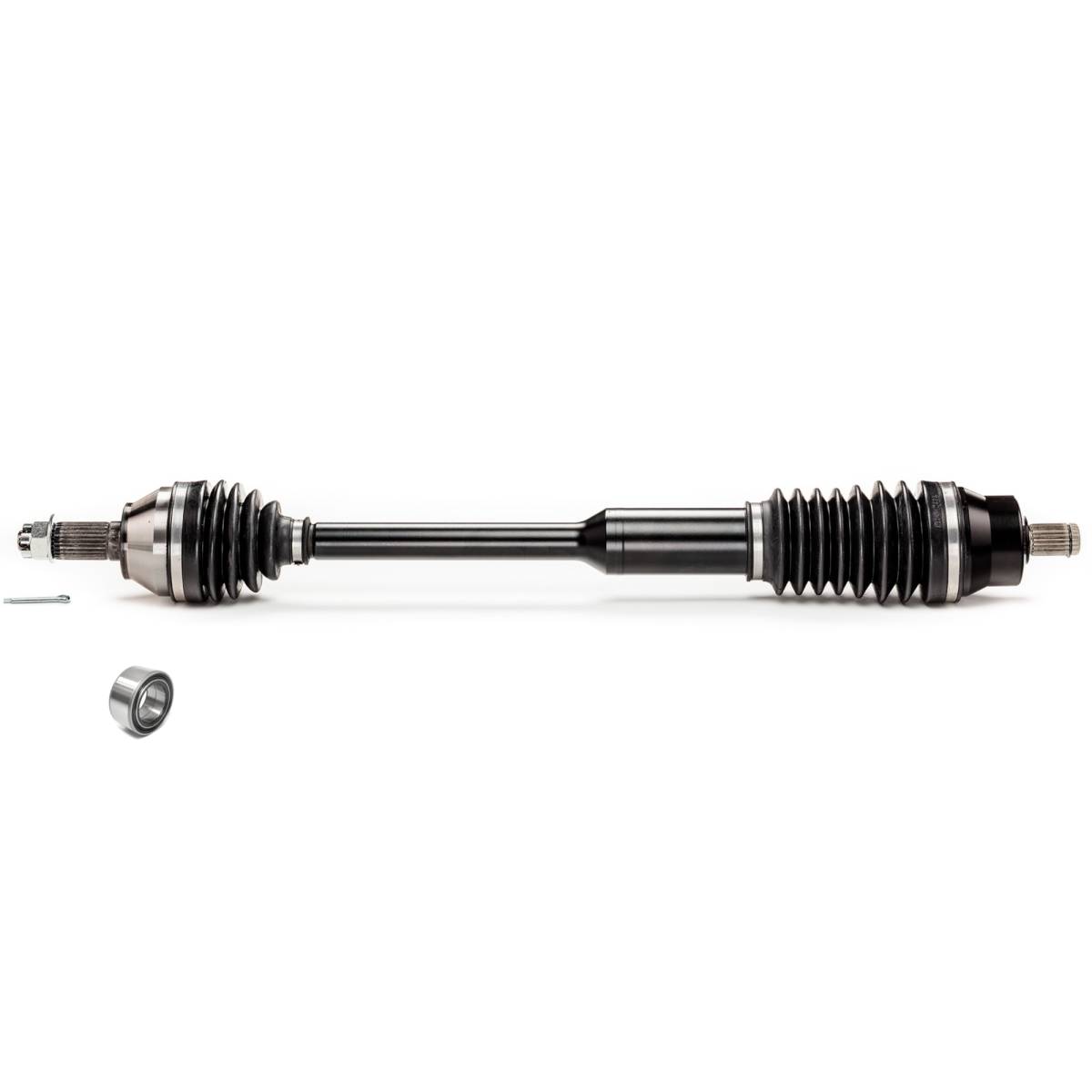

  • 1 axle & 1 wheel bearing
  • Product Videos

    Warranty

    1 year, one-time repair/ replace. Buyer pays shipping

    Details

    • PO-313XP/WB-1628
    • PO-313XP/WB-1628
    • CUSTOM
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 19.1 lbs.
    • W6.0000” x H5.0000” x L33.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
