Front CV Axle Pair for Suzuki King Quad 400 4x4 2008-2019

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
SK-301/SK-302

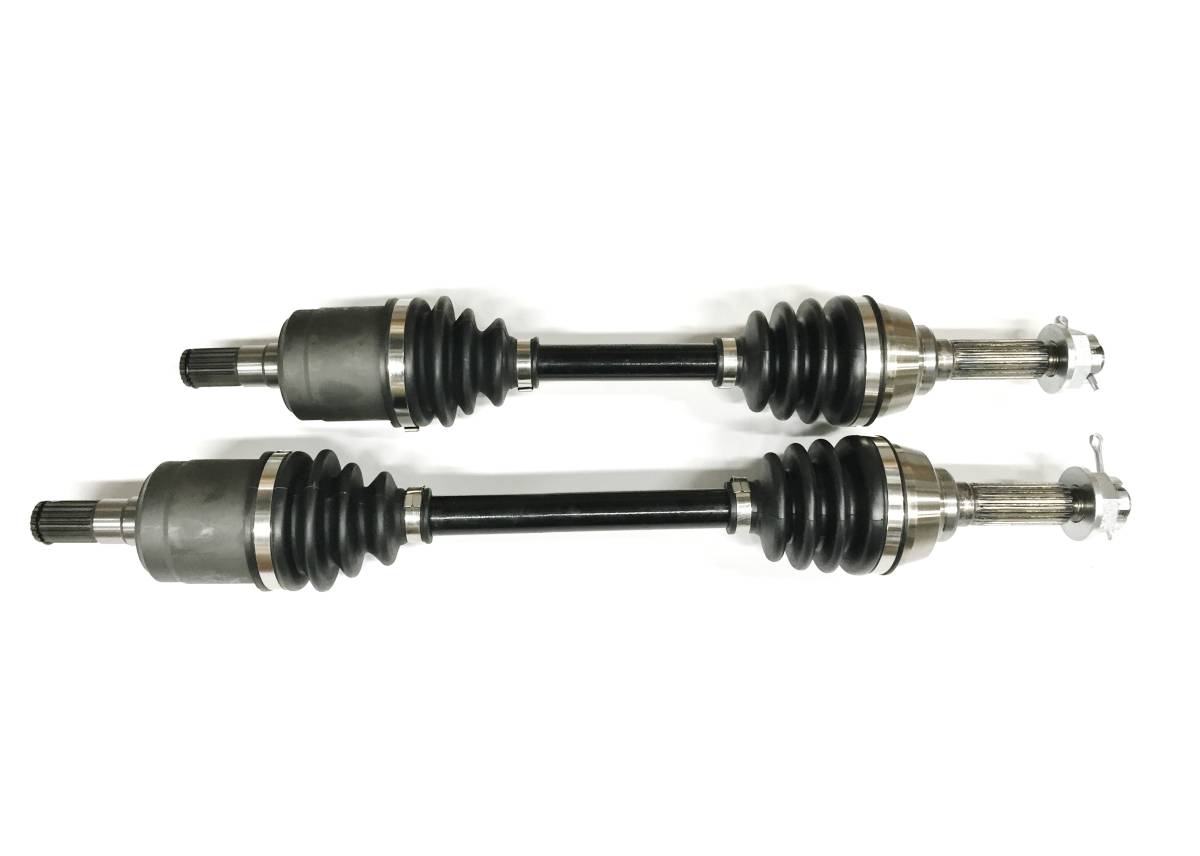

This is a pair of new Front CV axles for a Suzuki ATV.

They will fit the following 4x4 applications:

2008-2021 ..... King Quad 400 LT-A400

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 20 (both)
  • Outboard CV joint spline count: 20 (both)
  • Compressed overall axle length: Left 469 mm, Right 519 mm
  • Replaces Suzuki OEM # (left) 54902-27H00, 54902-27H01, (right) 54901-27H00, 54901-27H01
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $129.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2021SuzukiKing Quad 400LTA400F 4x4 ASi
2021SuzukiKing Quad 400LTA400F 4x4 ASi Camo
2021SuzukiKing Quad 400LTA400F 4x4 ASi SE+
2021SuzukiKing Quad 400LTF400F 4x4 FSi
2021SuzukiKing Quad 400LTF400F 4x4 FSi Camo
2020SuzukiKing Quad 400LTA400F 4x4 ASi
2020SuzukiKing Quad 400LTA400F 4x4 ASi+
2020SuzukiKing Quad 400LTA400F 4x4 ASi Camo
2020SuzukiKing Quad 400LTA400F 4x4 ASi SE+
2020SuzukiKing Quad 400LTF400F 4x4 FSi
2019SuzukiKing Quad 400LTA400F 4x4 ASi
2019SuzukiKing Quad 400LTA400F 4x4 ASi+
2019SuzukiKing Quad 400LTA400F 4x4 ASi Camo
2019SuzukiKing Quad 400LTF400F 4x4 FSi
2019SuzukiKing Quad 400LTF400F 4x4 FSi Camo
2018SuzukiKing Quad 400LTA400F 4x4 ASi
2018SuzukiKing Quad 400LTA400F 4x4 ASi SE
2018SuzukiKing Quad 400LTA400FC 4x4 Camo ASi
2018SuzukiKing Quad 400LTF400F 4x4 FSi
2017SuzukiKing Quad 400LTA400F 4x4 ASi
2017SuzukiKing Quad 400LTA400F 4x4 ASi SE
2017SuzukiKing Quad 400LTA400FC 4x4 Camo ASi
2017SuzukiKing Quad 400LTF400F 4x4 FSi
2016SuzukiKing Quad 400LTA400F 4x4 ASi
2016SuzukiKing Quad 400LTA400F 4x4 ASi Limited Edition
2016SuzukiKing Quad 400LTF400F 4x4 FSi
2015SuzukiKing Quad 400LTA400F 4x4 ASi
2015SuzukiKing Quad 400LTF400F 4x4 FSi
2014SuzukiKing Quad 400LTA400F 4x4 ASi
2014SuzukiKing Quad 400LTA400FZ 4x4 Limited ASi
2014SuzukiKing Quad 400LTF400F 4x4 FSi
2014SuzukiKing Quad 400LTF400FZ 4x4 Limited FSi
2013SuzukiKing Quad 400LTA400F 4x4 ASi
2013SuzukiKing Quad 400LTF400F 4x4 FSi
2012SuzukiKing Quad 400LTA400F 4x4 ASi
2012SuzukiKing Quad 400LTF400F 4x4 FSi
2011SuzukiKing Quad 400LTA400F 4x4 ASi
2011SuzukiKing Quad 400LTF400F 4x4 FSi
2010SuzukiKing Quad 400LTA400F 4x4 AS
2010SuzukiKing Quad 400LTF400F 4x4 FS
2009SuzukiKing Quad 400LTA400F 4x4
2009SuzukiKing Quad 400LTA400F 4x4 AS
2009SuzukiKing Quad 400LTA400FQ 4x4 Anniversary Edition AS
2009SuzukiKing Quad 400LTA400FQ 4x4 Anniversary Edition FS
2009SuzukiKing Quad 400LTF400F 4x4 FS
2008SuzukiKing Quad 400LTA400F 4x4 AS
2008SuzukiKing Quad 400LTF400F 4x4 FS

Product Notes

  • Fits FRONT LEFT & RIGHT on the 2008-2021 Suzuki King Quad 400 4x4 ATV.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length: Left 469 mm, Right 519 mm * Inboard Spline Count: 20 (both) * Outboard Spline Count: 20 (both).
  • Replaces OEM # (left) 54902-27H00, 54902-27H01, (right) 54901-27H00, 54901-27H01.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • SK-301/SK-302
    • SK-301/SK-302
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 16.0 lbs.
    • W10.0000” x H5.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
