CV Axle for Arctic Cat 400 & 500 FIS 4x4 2003-2004 0402-907 0502-544

Location on vehicle: Rear,Left,Right

AC-244

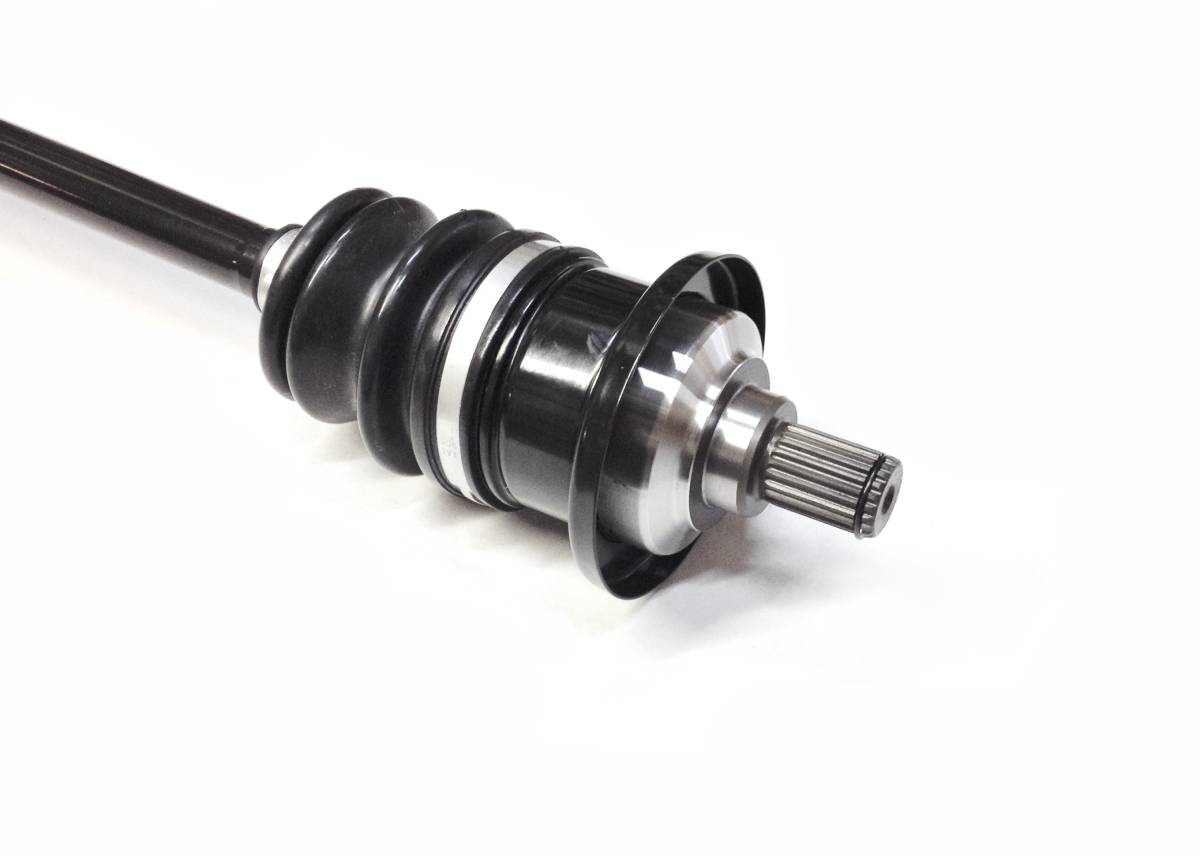

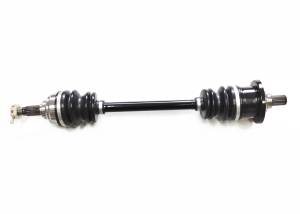

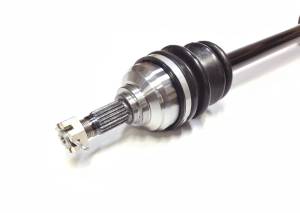

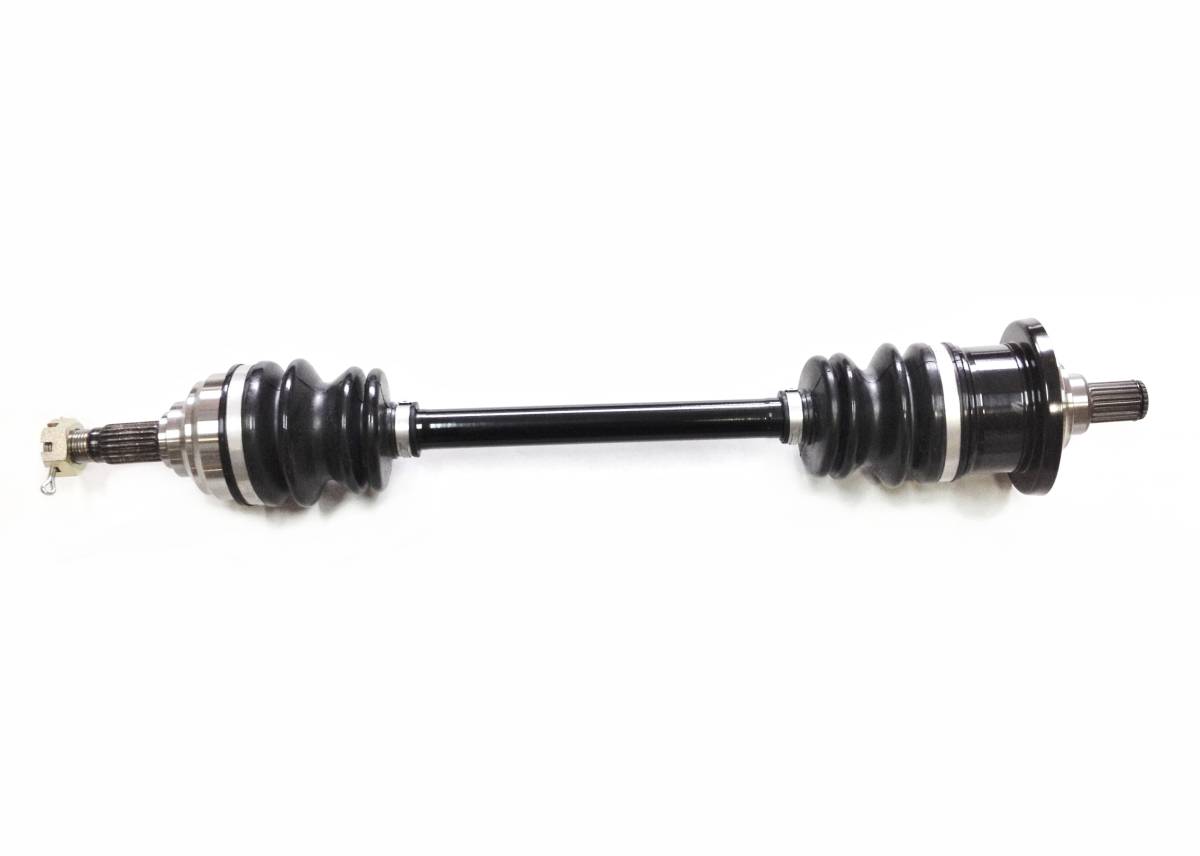

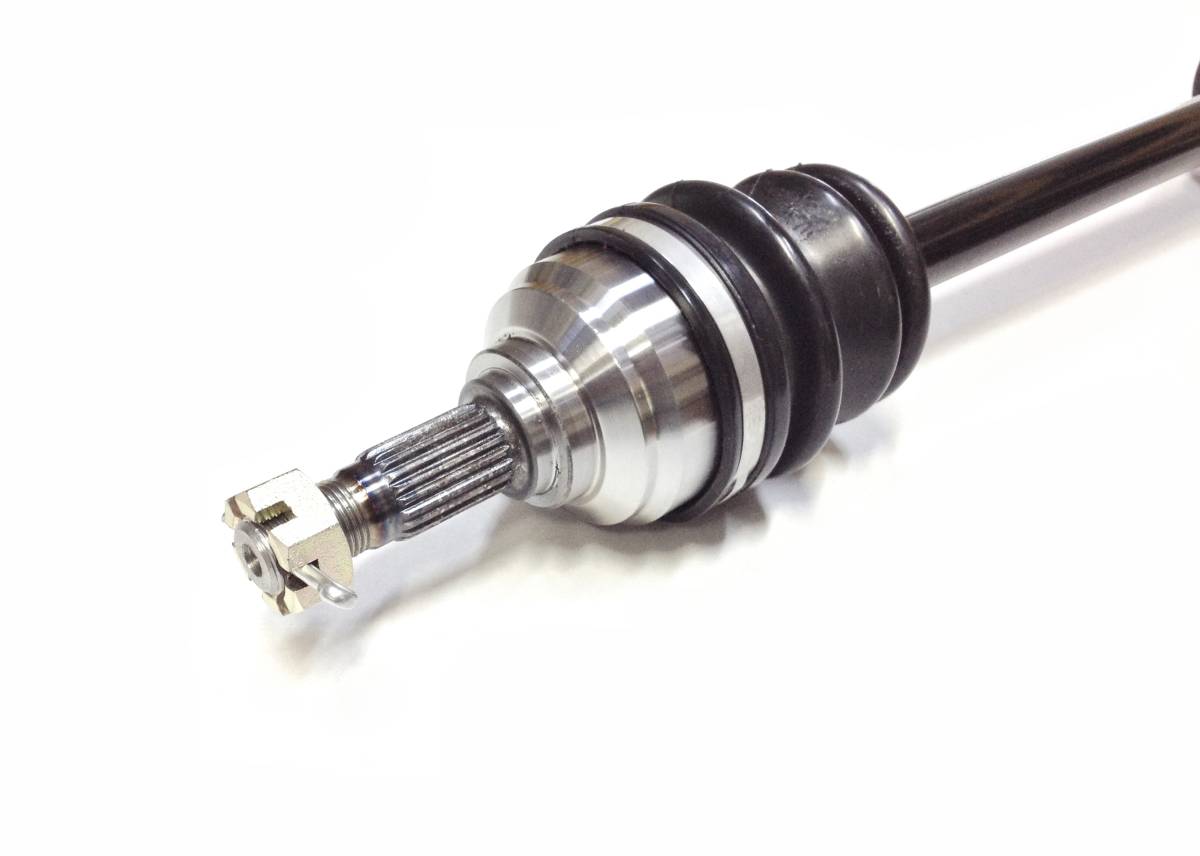

This is a new Front or Rear CV axle for an Arctic Cat ATV.

It will fit the following 4x4 models:

2003-2004 ... 400 FIS MT/AT, TBX 400

2003-2004 ... 500 FIS MT/AT, TBX 500, & TRV 500

Front or Rear, Left or Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 21
  • Compressed overall axle length: 548 mm
  • Replaces Arctic Cat OE # 0402-907, 0502-544, 1502-442
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $84.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2004Arctic Cat4004x4 Automatic
2004Arctic Cat4004x4 MRP
2004Arctic Cat4004x4 MRP Automatic
2004Arctic Cat4004x4 TBX Automatic
2003Arctic Cat4004x4 Automatic
2003Arctic Cat4004x4 Automatic EFI
2003Arctic Cat4004x4 EFI
2003Arctic Cat4004x4 MRP
2003Arctic Cat4004x4 MRP Automatic
2004Arctic Cat5004X4
2004Arctic Cat5004x4 Automatic
2004Arctic Cat5004x4 MRP
2004Arctic Cat5004x4 MRP Automatic
2004Arctic Cat5004x4 TBX Automatic
2004Arctic Cat5004x4 TRV Automatic
2003Arctic Cat5004X4
2003Arctic Cat5004x4 Automatic
2003Arctic Cat5004x4 Automatic EFI
2003Arctic Cat5004x4 EFI
2003Arctic Cat5004x4 MRP
2003Arctic Cat5004x4 MRP Automatic
2003Arctic Cat5004x4 TBX Automatic
2003Arctic Cat5004x4 TRV Automatic

Product Notes

  • Fits all 4 positions on the following Arctic Cat ATV models: 2003-2004 400 FIS (MT/AT), 2003-2004 TBX 400/500, 2003-2004 500 FIS (MT/AT), 2003-2004 TRV 500 4x4.
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 0402-907, 0502-544, 1502-442. Compressed length: 548 mm, Inboard spline count: 21, Outboard spline count: 21.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

  • 1 axle
  • Warranty

    1 year factory defect limited warranty

    Details

    • AC-244
    • AC-244
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 9.5 lbs.
    • W5.0000” x H5.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
