Rear CV Axle Pair for Honda Pioneer 500 2015-2016 4x4

Location on vehicle: Rear,Left,Right

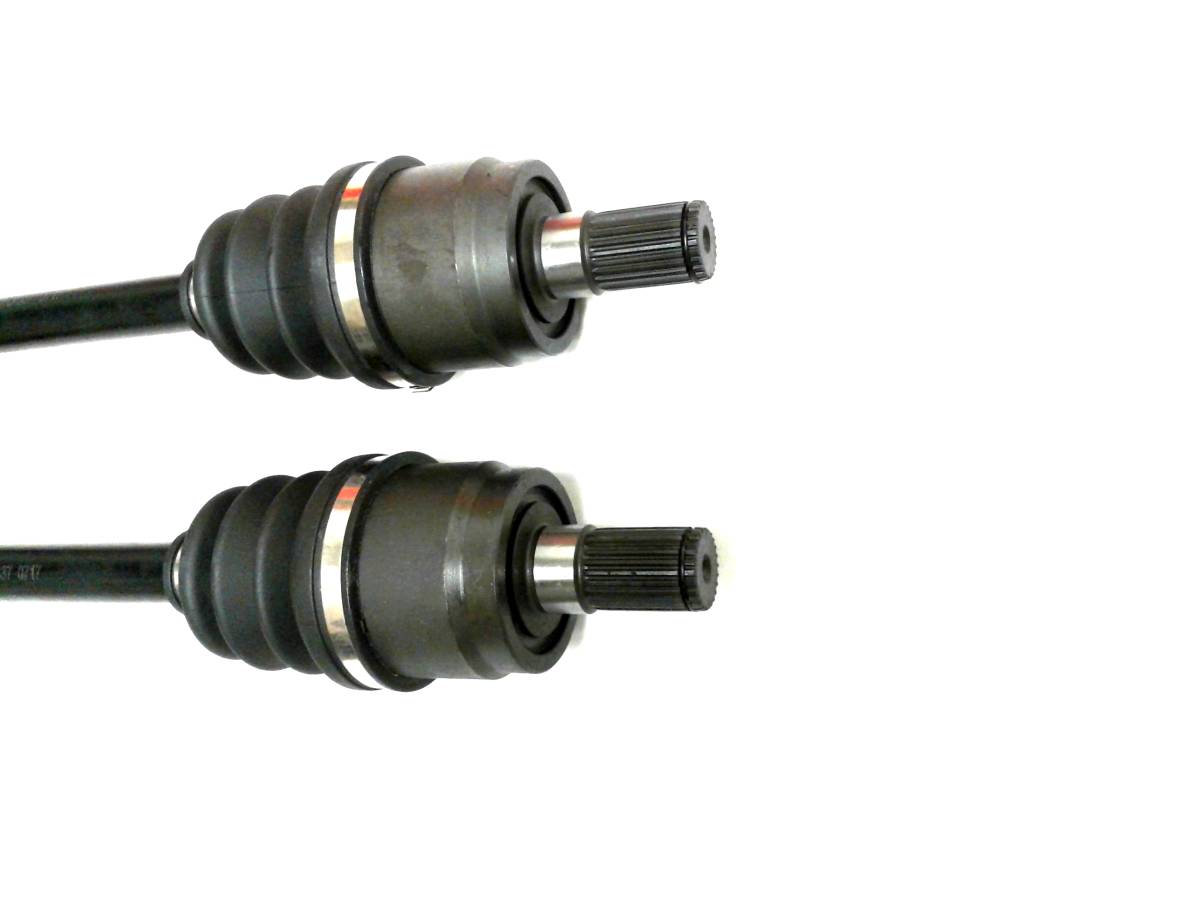

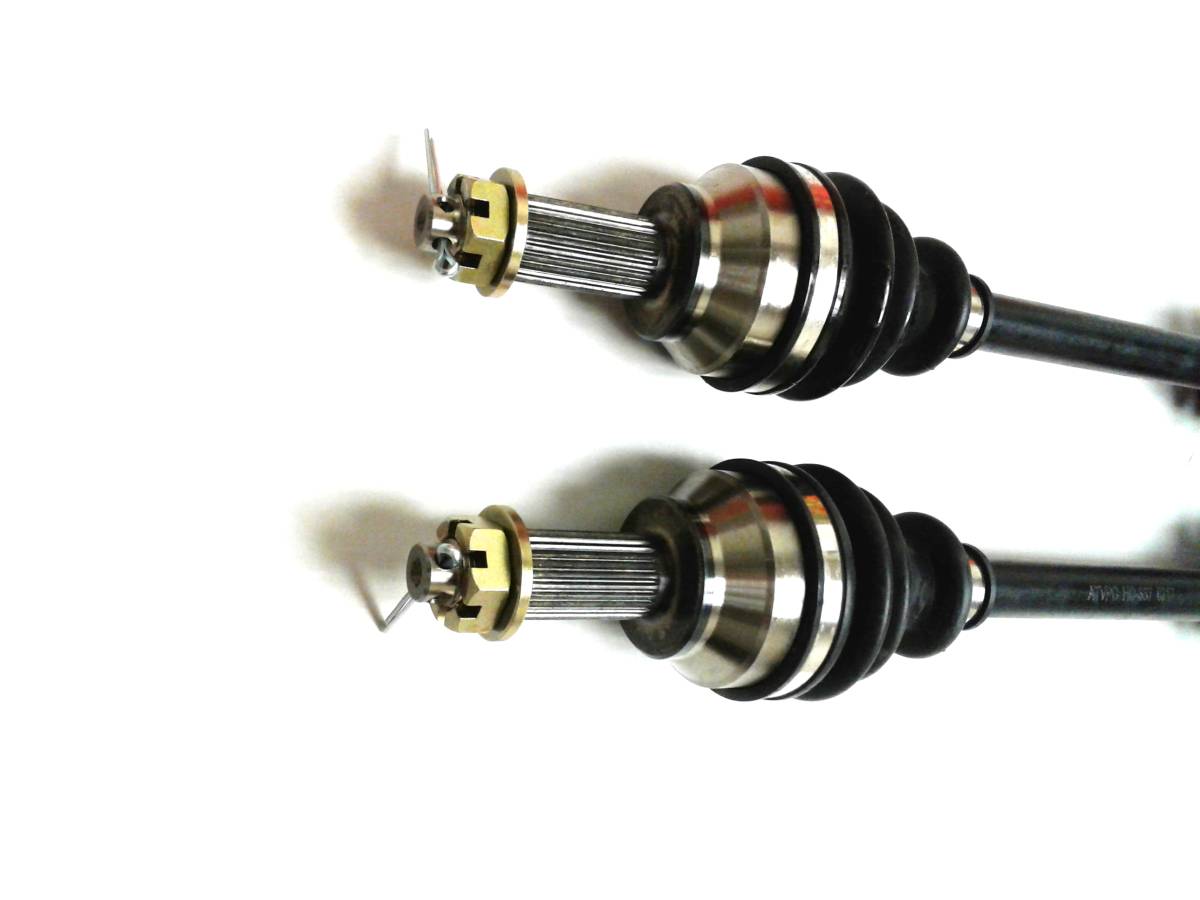

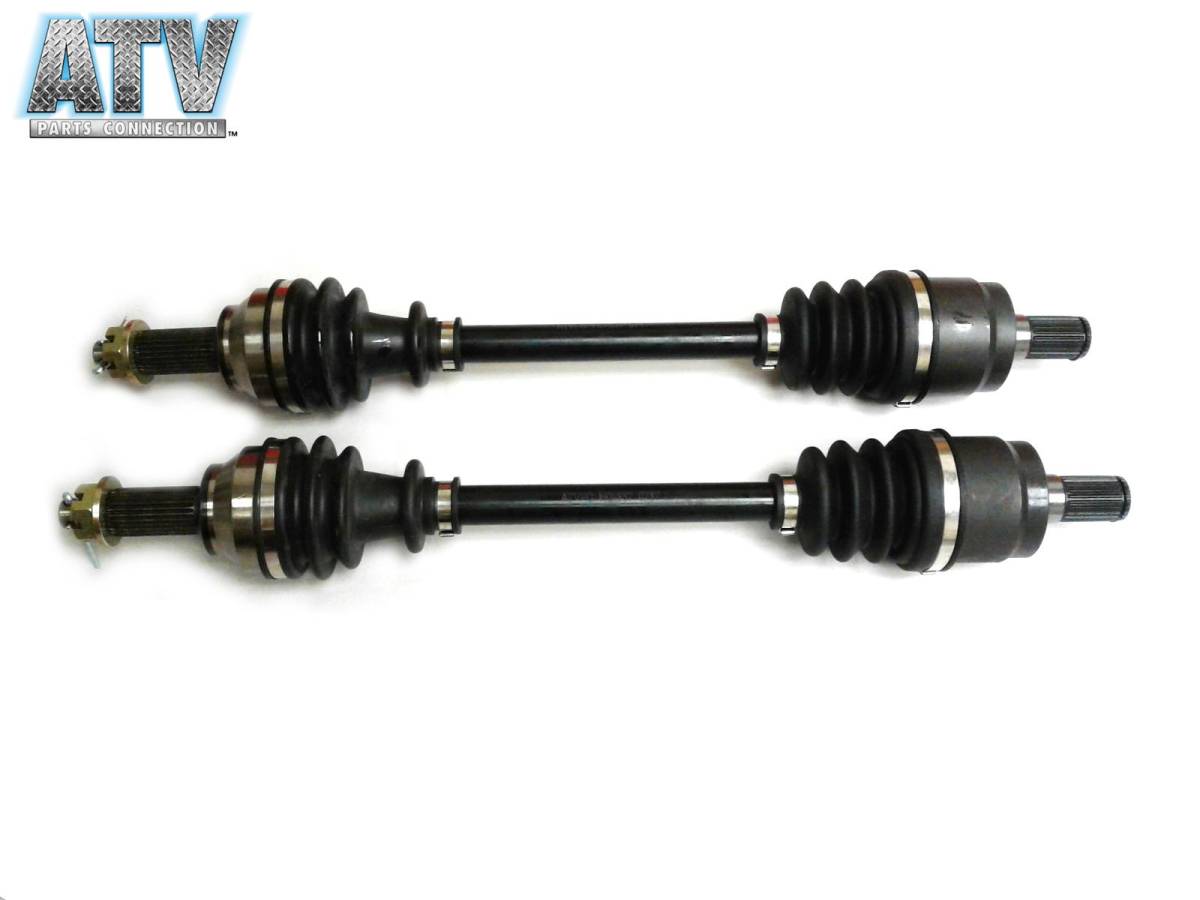

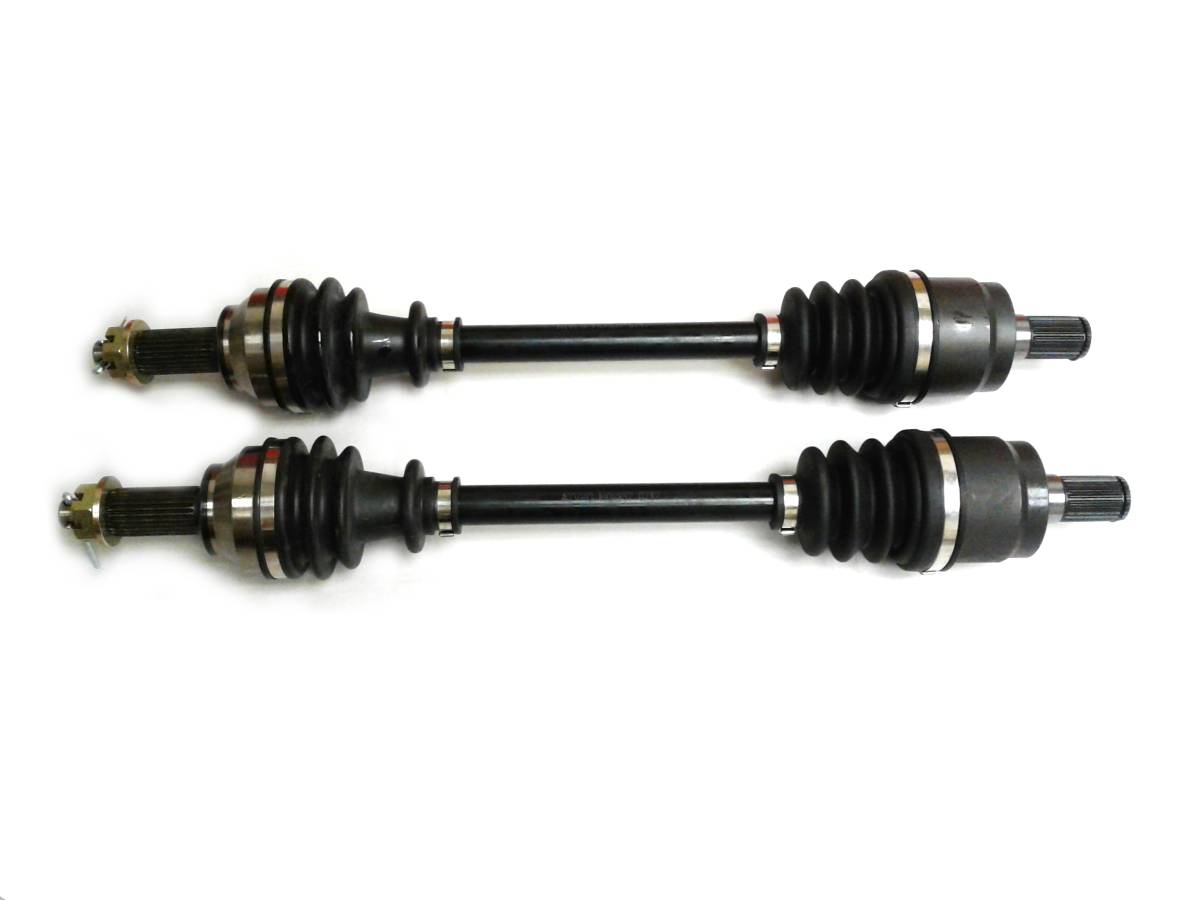

This is a pair of new Rear CV axles for a Honda UTV.

They fit the following 4x4 models:

2015-2016 ... Pioneer 500

Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 25 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: 562 mm (both)
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $119.99
Free Ground Shipping


1 year factory defect limited warranty

Product Notes

  • Fits 2015-2016 Pioneer 500 4x4 (SXS500 - all models).
  • Axles feature a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.
  • Replaces OE # 42250-HL5-A01, 42350-HL5-A01, 42220-HL3-A01.
  • Compressed Length: 562 mm (both), Inboard Spline Count: 25 (both), Outboard Spline Count: 26 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    2016HondaPioneer 500SXS500M2
    2015HondaPioneer 500SXS500M2


    • HO-337/HO-337
    • HO-337/HO-337
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 18.5 lbs.
    • W5.0000” x H10.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
