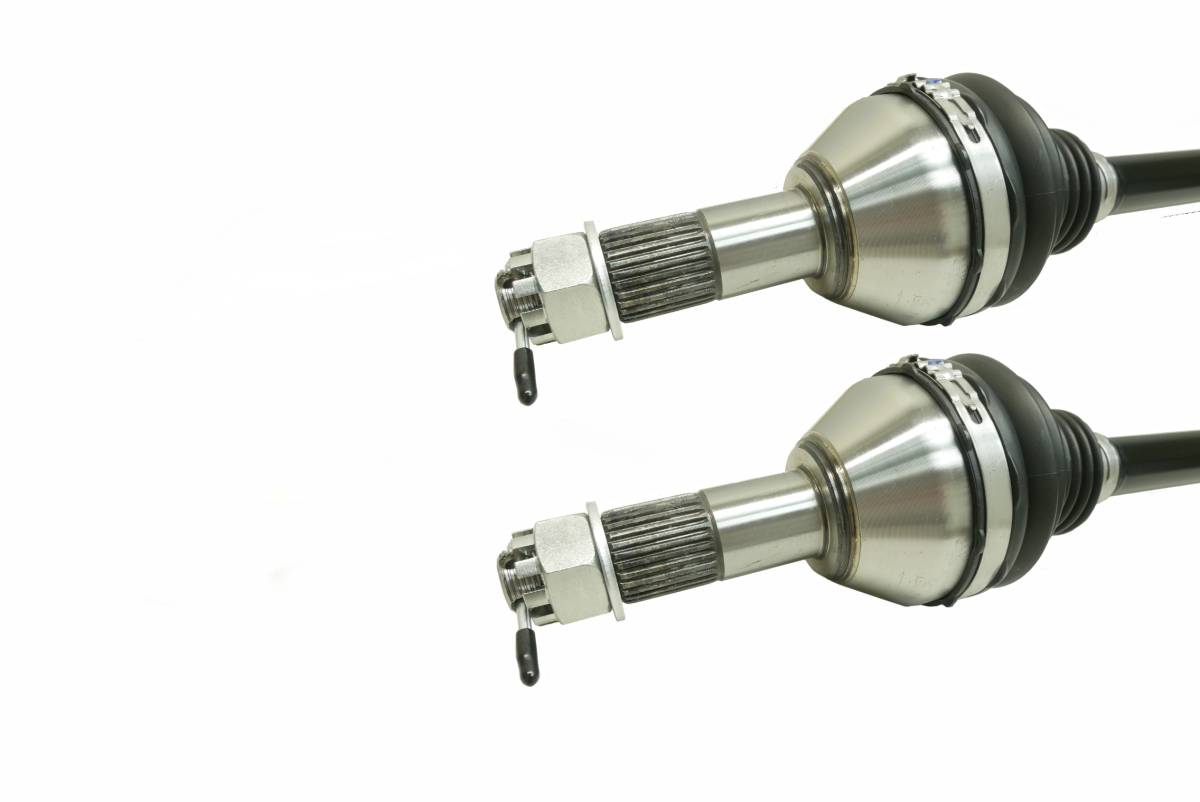

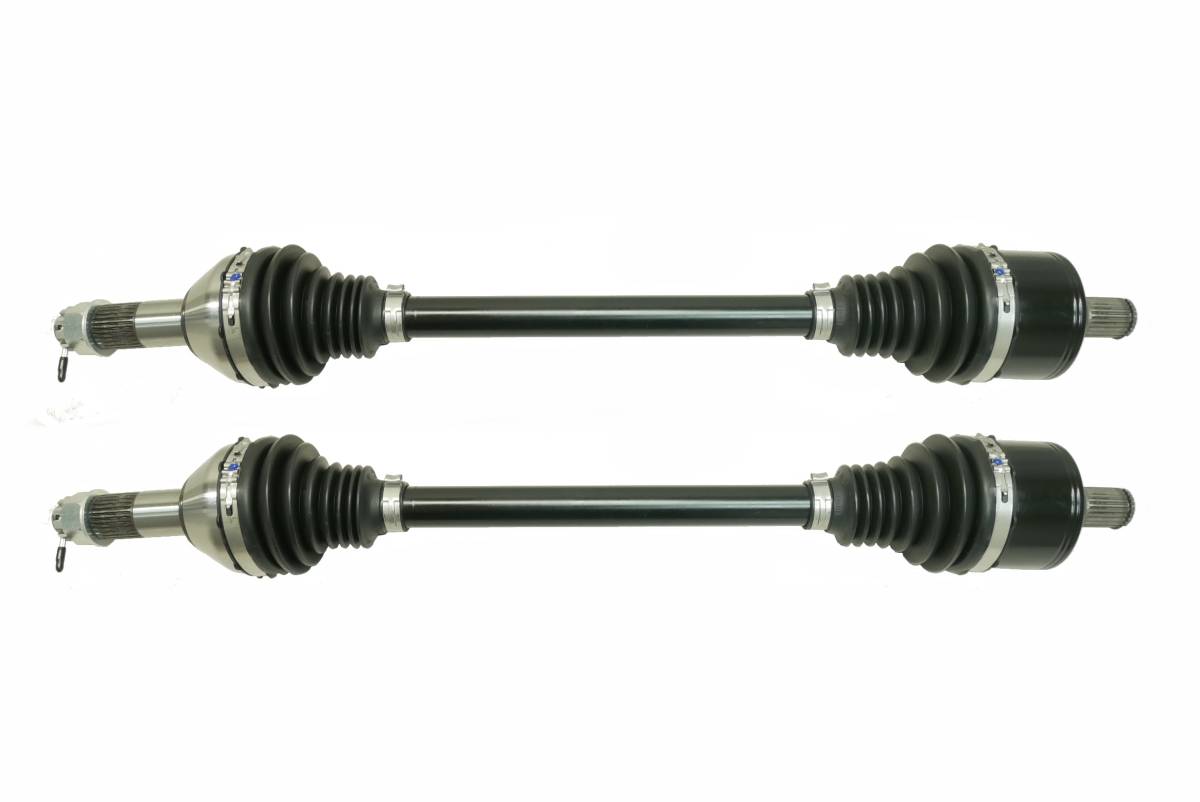

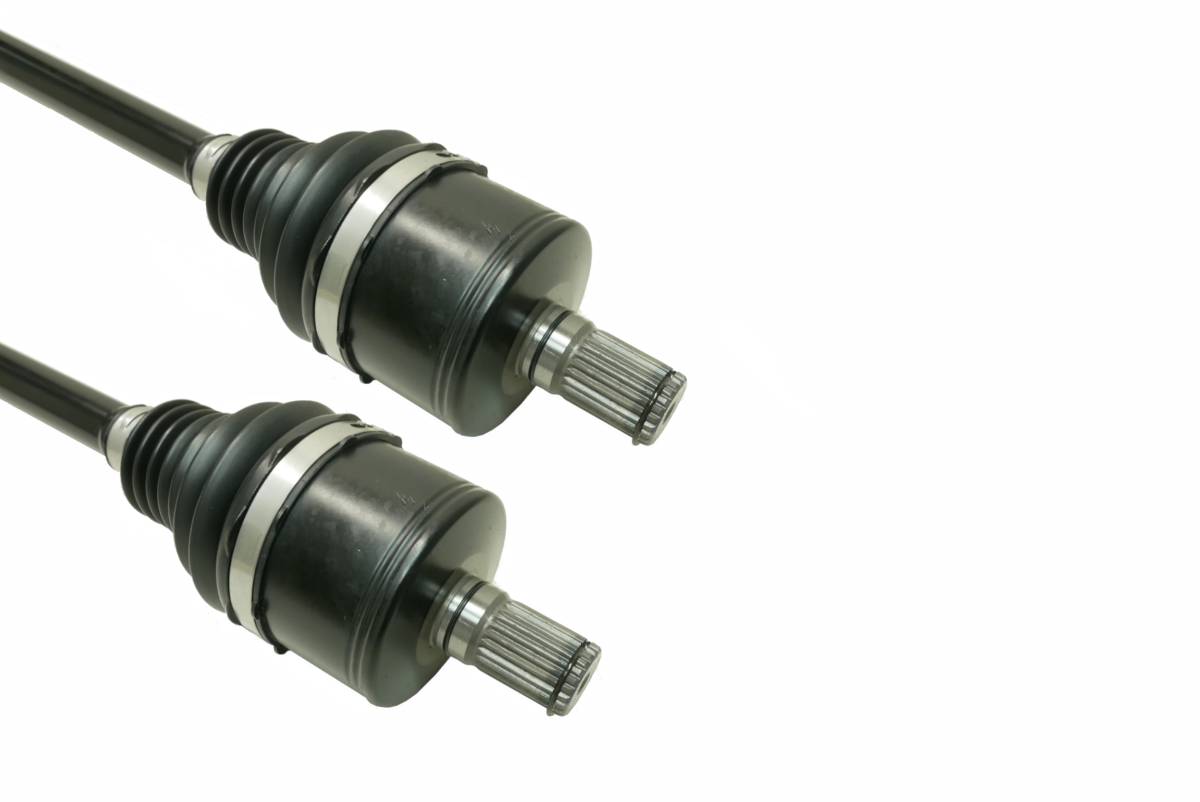

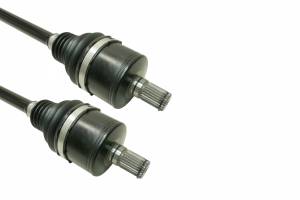

Rear CV Axle Pair for Can-Am Defender HD7 HD9, 705503100

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
CA-631/CA-631
This is a pair of new CV axles for a Can-Am UTV.

They fit rear, left and right on the following models:

2022-2024 ... Defender HD7

2022-2024 ... Defender MAX HD7

2022 ... Defender HD9 (Base, DPS, XT)

2022 ... Defender MAX HD9 (Base, DPS, XT)

*made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 24 (both)
  • Outboard CV joint spline count: 29 (both)
  • Compressed overall axle length: 671 mm (both)
  • Replaces OEM # 705503100
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $181.29
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2024Can-AmDefender HD74X4
2024Can-AmDefender HD74x4 DPS
2024Can-AmDefender HD74x4 XT
2023Can-AmDefender HD74X4
2023Can-AmDefender HD74x4 DPS
2022Can-AmDefender HD74X4
2022Can-AmDefender HD74x4 DPS
2022Can-AmDefender HD94X4
2022Can-AmDefender HD94x4 DPS
2022Can-AmDefender HD94x4 XT DPS
2024Can-AmDefender Max HD74x4 DPS
2023Can-AmDefender Max HD74X4
2023Can-AmDefender Max HD74x4 DPS
2022Can-AmDefender Max HD74X4
2022Can-AmDefender Max HD94X4
2022Can-AmDefender Max HD94x4 DPS
2022Can-AmDefender Max HD94x4 XT DPS

Product Notes

  • Fits rear, left and right on the following Can-Am models: 2022-2024 Defender HD7, 2022-2024 Defender MAX HD7, 2022 Defender HD9 (Base, DPS, XT), 2022 Defender MAX HD9 (Base, DPS, XT). Set includes 2 axles (as pictured).
  • Features stronger than OEM, 4340 Chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # 705503100. Compressed overall axle length: 671 mm (both), Inboard spline count: 24 (both), Outboard spline count: 29 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-631/CA-631
    • CA-631/CA-631
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 28.0 lbs.
    • W10.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
