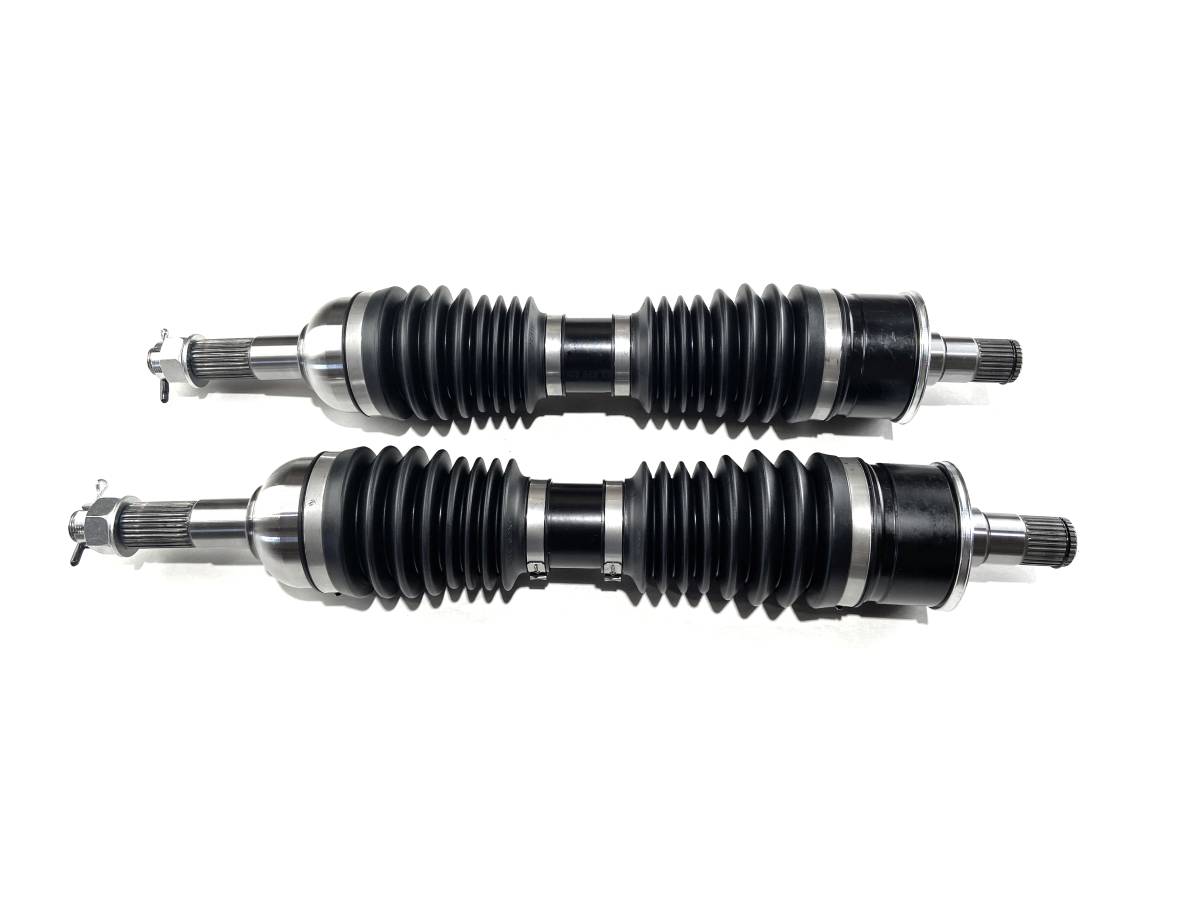

Monster Axles Rear Pair for CF-Moto CForce 800 1000 9AY0-280300-00001, XP Series

Location on vehicle: Rear,Left,Right

CF-813XP/CF-813XP
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

Fits Fits REAR, LEFT & RIGHT on the following CF-Moto ATV models: 2018-2022 CForce 800, 2018-2023 CForce 1000.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $339.95
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2023CF-MotoCFORCE 800XC EPS
2022CF-MotoCFORCE 800XC EPS
2021CF-MotoCFORCE 800XC EPS
2020CF-MotoCFORCE 800XC EPS
2019CF-MotoCFORCE 800XC EPS
2018CF-MotoCFORCE 800XC EPS
2023CF-MotoCFORCE 1000--
2023CF-MotoCFORCE 1000Overland
2022CF-MotoCFORCE 1000--
2022CF-MotoCFORCE 1000Overland
2021CF-MotoCFORCE 1000Overland

Product Notes

  • Fits REAR, LEFT & RIGHT on the following CF-Moto ATV models: 2018-2022 CForce 800, 2018-2023 CForce 1000. Set includes 2 axles.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • CF-Moto OEM # 9AY0-280300-00001. Compressed Length - 538 mm (both), Inboard Spline Count - 28 (both), Outboard Spline Count - 27 (both). Comes with a 2 year limited warranty (excluding torn boots).

  • What's In The Box

  • 2 axles
  • Warranty

    Comes with a 2 year limited warranty (excluding torn boots)

    Details

    • CF-813XP/CF-813XP
    • CF-813XP/CF-813XP
    • CUSTOM
    • Monster Axles
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 34.0 lbs.
    • W10.0000” x H5.0000” x L24.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
