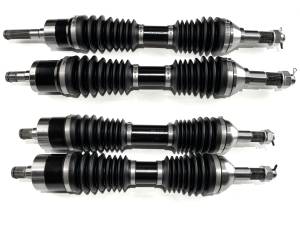

Monster Axles Full Axle Set for Can-Am ATV, 705402235, 705402236, XP Series
Location on vehicle: Front,Rear,Left,Right
Fits the following Can-Am ATVs (excluding any XMR models): 2019-2023 Outlander 650/850/1000 4x4 (including MAX models), 2019-2022 Renegade 570/850, & 2019-2023 Renegade 1000.
A high-performance axle that can fit stock length all the way up to a 4" lift kit.
Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.
More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).
Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.
Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.
Contact us to inquire about replacement parts.
Application List
Year | Make | Model | Submodel | Notes |
---|---|---|---|---|
2022 | Can-Am | Outlander 650 | 4X4 | |
2022 | Can-Am | Outlander 650 | 4X4 Mossy Oak Hunting Edition | |
2022 | Can-Am | Outlander 650 | 4x4 DPS | |
2022 | Can-Am | Outlander 650 | 4x4 XT DPS | |
2021 | Can-Am | Outlander 650 | 4X4 | |
2021 | Can-Am | Outlander 650 | 4X4 Mossy Oak Hunting Edition | |
2021 | Can-Am | Outlander 650 | 4x4 DPS | |
2021 | Can-Am | Outlander 650 | 4x4 XT DPS | |
2020 | Can-Am | Outlander 650 | 4X4 | |
2020 | Can-Am | Outlander 650 | 4X4 Mossy Oak Hunting Edition | |
2020 | Can-Am | Outlander 650 | 4x4 DPS | |
2020 | Can-Am | Outlander 650 | 4x4 XT DPS | |
2019 | Can-Am | Outlander 650 | 4X4 | |
2019 | Can-Am | Outlander 650 | 4x4 DPS | |
2019 | Can-Am | Outlander 650 | 4x4 North Edition DPS | |
2019 | Can-Am | Outlander 650 | 4x4 XT DPS | |
2022 | Can-Am | Outlander 850 | 4X4 | |
2022 | Can-Am | Outlander 850 | 4x4 DPS | |
2022 | Can-Am | Outlander 850 | 4x4 XT DPS | |
2022 | Can-Am | Outlander 850 | 4x4 XTP DPS | |
2021 | Can-Am | Outlander 850 | 4X4 | |
2021 | Can-Am | Outlander 850 | 4x4 DPS | |
2021 | Can-Am | Outlander 850 | 4x4 North Edition DPS | |
2021 | Can-Am | Outlander 850 | 4x4 XT DPS | |
2021 | Can-Am | Outlander 850 | 4x4 XTP DPS | |
2020 | Can-Am | Outlander 850 | 4X4 | |
2020 | Can-Am | Outlander 850 | 4x4 DPS | |
2020 | Can-Am | Outlander 850 | 4x4 North Edition DPS | |
2020 | Can-Am | Outlander 850 | 4x4 XT DPS | |
2020 | Can-Am | Outlander 850 | 4x4 XTP DPS | |
2019 | Can-Am | Outlander 850 | 4X4 | |
2019 | Can-Am | Outlander 850 | 4x4 DPS | |
2019 | Can-Am | Outlander 850 | 4x4 North Edition DPS | |
2019 | Can-Am | Outlander 850 | 4x4 XT-P DPS | |
2019 | Can-Am | Outlander 850 | 4x4 XT DPS | |
2021 | Can-Am | Outlander 1000R | 4x4 XT-P DPS | |
2021 | Can-Am | Outlander 1000R | 4x4 XT DPS | |
2020 | Can-Am | Outlander 1000R | 4x4 XT-P DPS | |
2020 | Can-Am | Outlander 1000R | 4x4 XT DPS | |
2019 | Can-Am | Outlander 1000R | 4x4 DPS | |
2019 | Can-Am | Outlander 1000R | 4x4 Mossy Oak Hunting Edition DPS | |
2019 | Can-Am | Outlander 1000R | 4x4 XT-P DPS | |
2019 | Can-Am | Outlander 1000R | 4x4 XT DPS | |
2022 | Can-Am | Outlander Max 650 | 4x4 DPS | |
2022 | Can-Am | Outlander Max 650 | 4x4 XT DPS | |
2022 | Can-Am | Outlander Max 650 | 6x6 DPS | |
2021 | Can-Am | Outlander Max 650 | 4x4 DPS | |
2021 | Can-Am | Outlander Max 650 | 4x4 XT DPS | |
2021 | Can-Am | Outlander Max 650 | 6x6 DPS | |
2020 | Can-Am | Outlander Max 650 | 4x4 DPS | |
2020 | Can-Am | Outlander Max 650 | 4x4 XT DPS | |
2020 | Can-Am | Outlander Max 650 | 6x6 DPS | |
2019 | Can-Am | Outlander Max 650 | 4x4 DPS | |
2019 | Can-Am | Outlander Max 650 | 4x4 North Edition DPS | |
2019 | Can-Am | Outlander Max 650 | 4x4 XT DPS | |
2019 | Can-Am | Outlander Max 650 | 6x6 DPS | |
2022 | Can-Am | Outlander Max 850 | 4x4 XT DPS | |
2022 | Can-Am | Outlander Max 850 | 4x4 XTP DPS | |
2021 | Can-Am | Outlander Max 850 | 4x4 North Edition DPS | |
2021 | Can-Am | Outlander Max 850 | 4x4 XT DPS | |
2021 | Can-Am | Outlander Max 850 | 4x4 XTP DPS | |
2020 | Can-Am | Outlander Max 850 | 4x4 North Edition DPS | |
2020 | Can-Am | Outlander Max 850 | 4x4 XT DPS | |
2020 | Can-Am | Outlander Max 850 | 4x4 XTP DPS | |
2019 | Can-Am | Outlander Max 850 | 4x4 North Edition DPS | |
2019 | Can-Am | Outlander Max 850 | 4x4 XT DPS | |
2019 | Can-Am | Outlander Max 850 | 4x4 XTP DPS | |
2022 | Can-Am | Outlander Max 1000 | 6x6 XT | |
2021 | Can-Am | Outlander Max 1000 | 6x6 XT | |
2022 | Can-Am | Outlander Max 1000R | 4x4 LTD DPS | |
2022 | Can-Am | Outlander Max 1000R | 4x4 XT DPS | |
2022 | Can-Am | Outlander Max 1000R | 4x4 XTP DPS | |
2021 | Can-Am | Outlander Max 1000R | 4x4 LTD DPS | |
2021 | Can-Am | Outlander Max 1000R | 4x4 XT DPS | |
2021 | Can-Am | Outlander Max 1000R | 4x4 XTP DPS | |
2020 | Can-Am | Outlander Max 1000R | 4x4 LTD DPS | |
2020 | Can-Am | Outlander Max 1000R | 4x4 XT DPS | |
2020 | Can-Am | Outlander Max 1000R | 4x4 XTP DPS | |
2020 | Can-Am | Outlander Max 1000R | 6x6 XT | |
2019 | Can-Am | Outlander Max 1000R | 4x4 LTD DPS | |
2019 | Can-Am | Outlander Max 1000R | 4x4 XT DPS | |
2019 | Can-Am | Outlander Max 1000R | 4x4 XTP DPS | |
2019 | Can-Am | Outlander Max 1000R | 6x6 XT | |
2022 | Can-Am | Renegade 570 | 4X4 | |
2021 | Can-Am | Renegade 570 | 4X4 | |
2020 | Can-Am | Renegade 570 | 4X4 | |
2019 | Can-Am | Renegade 570 | 4X4 | |
2022 | Can-Am | Renegade 850 | 4X4 | |
2022 | Can-Am | Renegade 850 | 4x4 XXC DPS | |
2021 | Can-Am | Renegade 850 | 4X4 | |
2021 | Can-Am | Renegade 850 | 4x4 XXC DPS | |
2020 | Can-Am | Renegade 850 | 4X4 | |
2020 | Can-Am | Renegade 850 | 4x4 XXC DPS | |
2019 | Can-Am | Renegade 850 | 4X4 | |
2019 | Can-Am | Renegade 850 | 4x4 XXC DPS | |
2022 | Can-Am | Renegade 1000R | 4x4 XXC DPS | |
2021 | Can-Am | Renegade 1000R | 4x4 XXC DPS | |
2020 | Can-Am | Renegade 1000R | 4x4 XXC DPS | |
2019 | Can-Am | Renegade 1000R | 4X4 | |
2019 | Can-Am | Renegade 1000R | 4x4 XXC DPS |
Product Notes
What's In The Box
Warranty
Details
- CA-231XP/CA-232XP/CA-311XP/CA-312XP
- CA-231XP/CA-232XP/CA-311XP/CA-312XP
- MONSTER AXLES
- Available
- New
Shipping Information
- Item Requires Shipping
- 70.0 lbs.
- W10.0000” x H10.0000” x L32.0000”
- Free Ground Shipping
- Free Shipping - Same Day If Ordered Before 3 EST
