Precision Front CV Axles & Brgs for Can-Am 72" 705401829, 705401830, Left & Right, Quality Tested, Heat-Treated, 4140 Chromoly Steel, Exact Fit, ATVPC

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
CA-123/CA-223/WB-1751/WB-1751

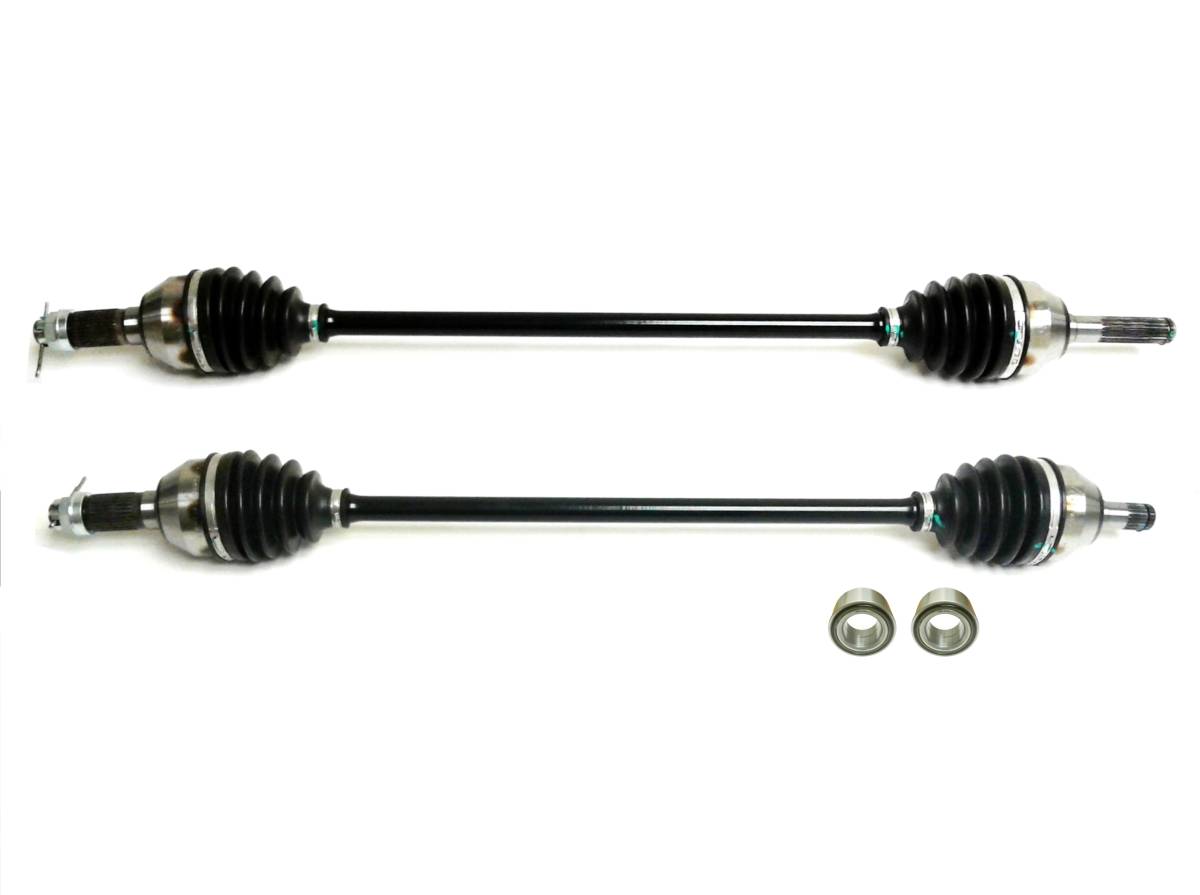

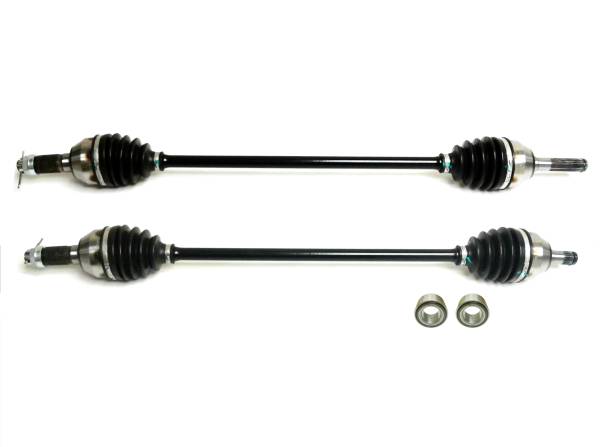

This is a pair of cv axles with wheel bearings for a Can-Am 72" Maverick XRS.

They fit front, left & right on the following models:

2017-2018 ... X3 XRS & Turbo R XRS

2017-2018 ... MAX X3 XRS & Turbo R XRS (models without Smart Lok)

2021 ... X3 Turbo R DS- RS

2021 ... MAX Turbo R- RS

*Axles made as OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • inobard CV joint spline count: 21 (both)
  • outboard CV joint spline count: 29 (both)
  • Compressed overall axle length: left - 876 mm, right - 831 mm
  • Replaces OEM # (axles) 705401830, 705402099, 705401829, 705402100
  • Replaces OEM # (bearings) 293350129, 293350151
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $184.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2021Can-AmMaverick X3 Max R4x4 RS Turbo DPS
2018Can-AmMaverick X3 Max R4x4 XRS Turbo DPSmodels without Smart Lok
2017Can-AmMaverick X3 Max R4x4 XRS Turbo DPS
2021Can-AmMaverick X3 R4x4 RS Turbo DPS
2018Can-AmMaverick X3 R4x4 XRS Turbo DPS
2017Can-AmMaverick X3 R4x4 XRS Turbo DPS

Product Notes

  • Fits front, left & right on the following Can-Am Maverick 72" XRS models: 2017-2018 X3 XRS & Turbo R XRS, 2017-2018 MAX X3 XRS & Turbo R XRS (models without Smart Lok), 2021 X3 Turbo R DS- RS, 2021 MAX Turbo R- RS.
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (left) 705401830, 705402099, & (right) 705401829, 705402100, (bearings) 293350129, 293350151. Compressed length: left - 876 mm, right - 831 mm, Inboard spline count: 21 (both), Outboard spline count: 29 (both).
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 2 axles, 2 wheel bearings

    • Warranty

    Limited 2 year, one-time warranty

    Details

    • CA-123/CA-223/WB-1751/WB-1751
    • CA-123/CA-223/WB-1751/WB-1751
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 32.0 lbs.
    • W10.0000” x H5.0000” x L39.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
