Front CV Axles & Bearings for Can-Am 705401686, 705401687, 64" Maverick X3 Turbo STD & XDS 2017-2021, Left & Right, Quality Tested, Heat-Treated, 4140 Chromoly Steel, Exact Fit, ATVPC

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
CA-126/CA-226/WB-1751/WB-1751

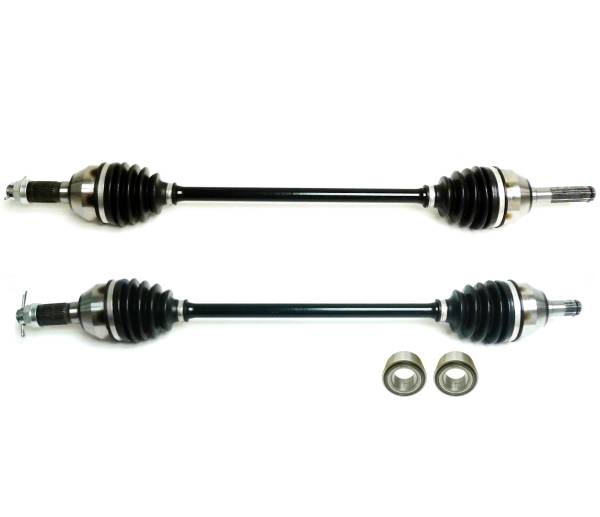

This is a set of new cv axles with wheel bearings for a 64" Can-Am Maverick X3.

They fit front, left & right on the following models:

2017 ... X3 STD, XDS-DPS

2017 ... X3 MAX STD, MAX XDS-DPS

2018 ... X3 STD, 900 HO, Turbo R STD, XDS-DPS

2018 ... X3 MAX Turbo STD

2019 ... X3 Turbo, Turbo R STD

2019 ... X3 MAX Turbo R

2020 ... X3 Turbo STD, Turbo R STD

2020 ... X3 MAX Turbo STD, MAX Turbo R STD

2021 ... X3 Turbo - DS, Turbo R - DS

2021 ... X3 MAX Turbo, MAX Turbo R - DS

*Axles made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Replaces OEM # (left) 705401686, 705402097, (right) 705401687, 705402098, (bearings) 293350129, 293350151
  • Compressed overall axle length: left - 778 mm, right - 735 mm

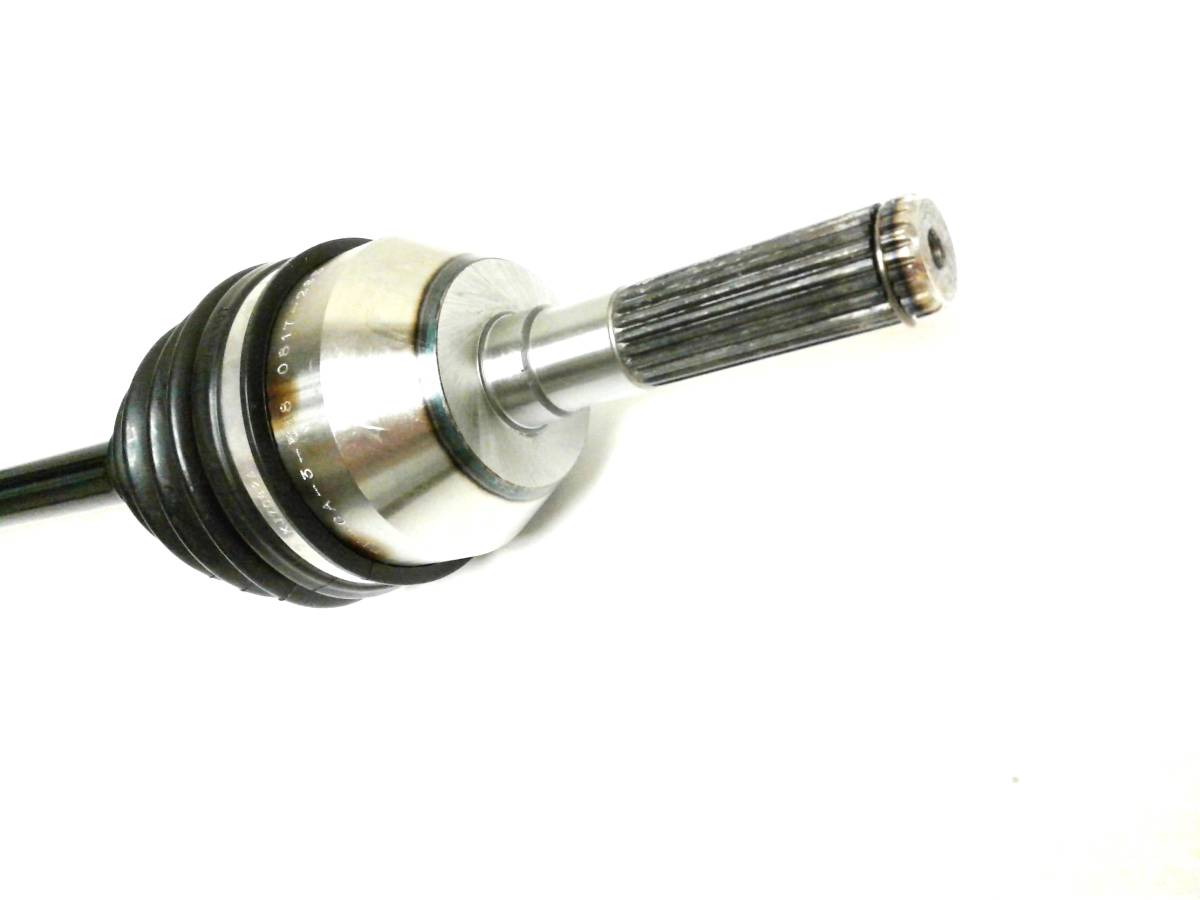

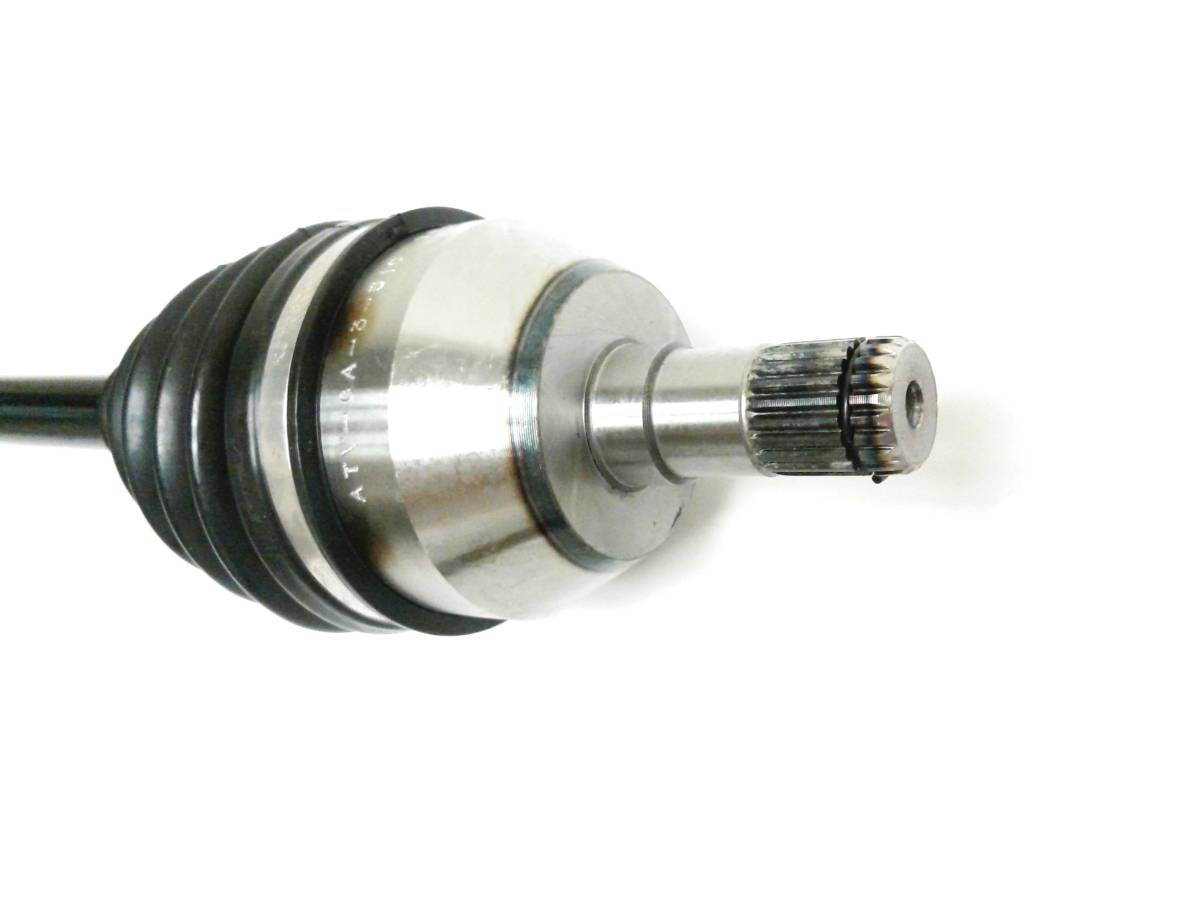

  • inobard CV joint spline count: 21 (both)

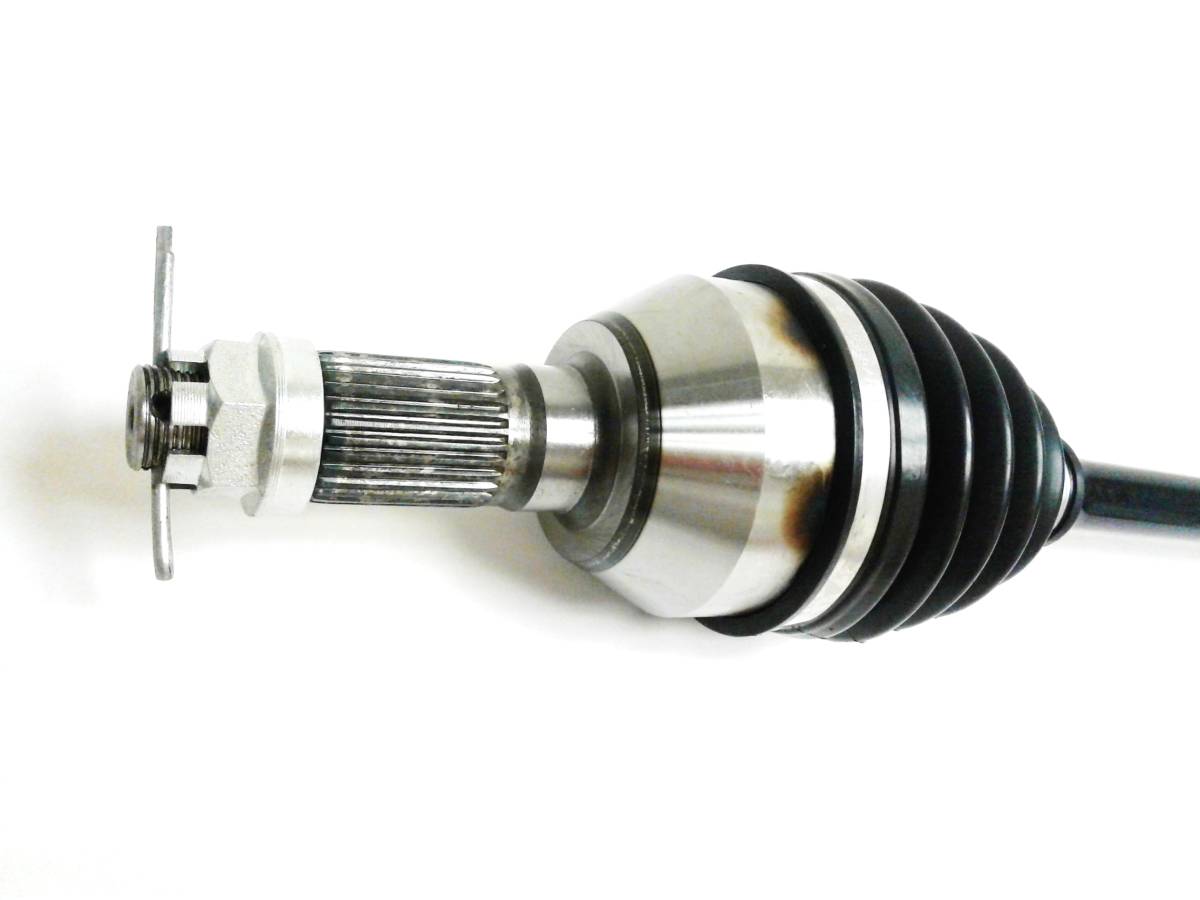

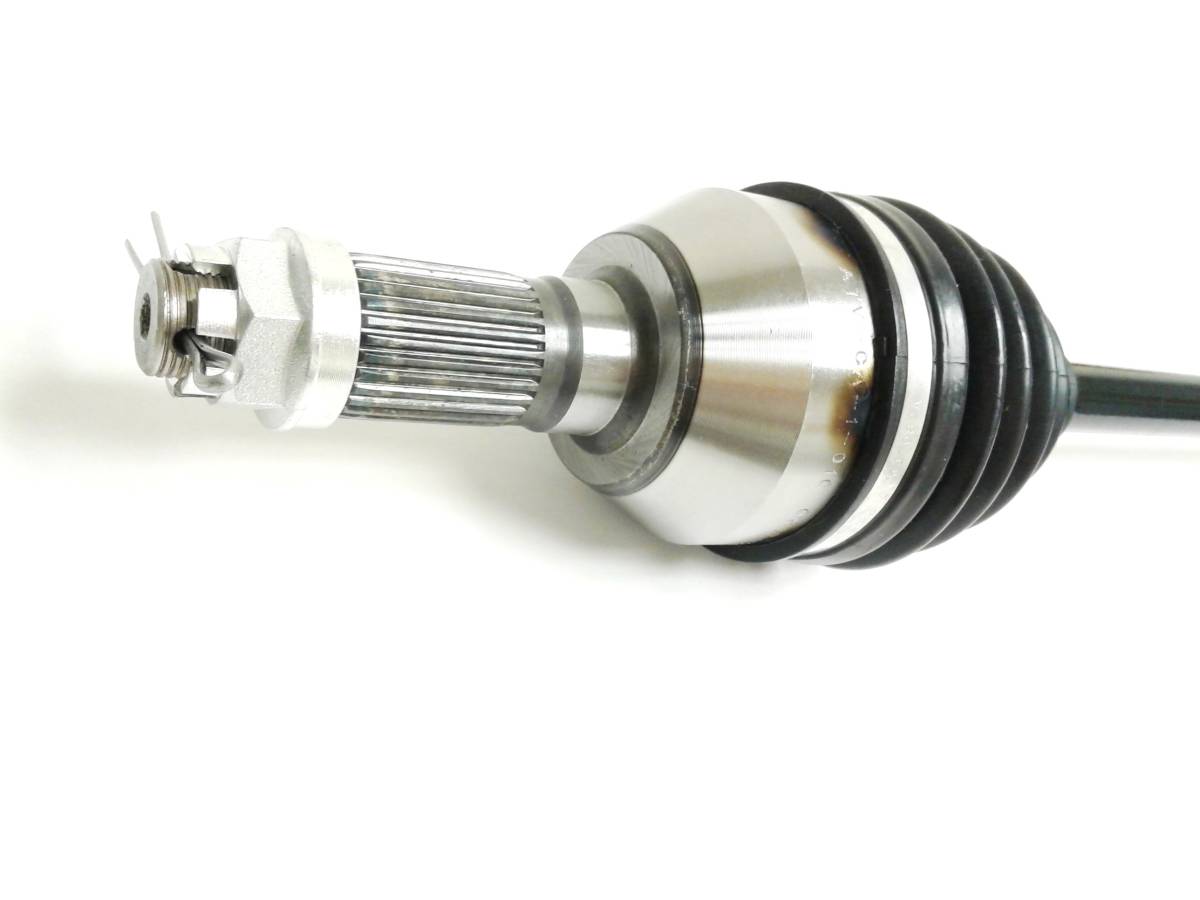

  • outboard CV joint spline count: 29 (both)
Limited Supply: only 5 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $189.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2021Can-AmMaverick X34x4 DS Turbo DPS
2020Can-AmMaverick X34x4 Turbo DPS
2019Can-AmMaverick X34x4 Turbo DPS
2018Can-AmMaverick X34x4 Turbo DPS
2017Can-AmMaverick X34x4 Turbo DPS
2018Can-AmMaverick X3 900 HO4x4 DPS
2021Can-AmMaverick X3 Max4x4 DS Turbo DPS
2020Can-AmMaverick X3 Max4x4 Turbo DPS
2018Can-AmMaverick X3 Max4x4 Turbo DPS
2021Can-AmMaverick X3 Max R4x4 DS Turbo DPS
2020Can-AmMaverick X3 Max R4x4 DS Turbo DPS
2019Can-AmMaverick X3 Max R4x4 Turbo DPS
2018Can-AmMaverick X3 Max R4x4 Turbo DPS
2018Can-AmMaverick X3 Max R4x4 XDS Turbo DPS
2021Can-AmMaverick X3 R4x4 DS Turbo DPS
2020Can-AmMaverick X3 R4x4 DS Turbo DPS
2019Can-AmMaverick X3 R4x4 Turbo DPS
2018Can-AmMaverick X3 R4x4 Turbo DPS
2018Can-AmMaverick X3 R4x4 XDS Turbo DPS
2017Can-AmMaverick X3 R4x4 Turbo DPS
2017Can-AmMaverick X3 R4x4 XDS Turbo DPS

Product Notes

  • Fits front, left & right on the following Can-Am 64" models: 2017: X3 STD, XDS-DPS, X3 MAX STD, MAX XDS-DPS, 2018: X3 STD, 900 HO, Turbo R STD, XDS-DPS, MAX Turbo STD. 2019: X3 Turbo, Turbo R STD, MAX Turbo R, 2020: X3 Turbo STD, Turbo R STD, MAX Turbo STD, MAX Turbo R STD, 2021: X3 Turbo - DS, Turbo R - DS, MAX Turbo, MAX Turbo R - DS.
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (left) 705401686, 705402097, (right) 705401687, 705402098, (bearings) 293350129, 293350151. Inboard splines: 21 (both), Outboard splines: 29 (both), Compressed axle length: left - 778 mm, right - 735 mm.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 2 axles, 2 wheel bearings

    • Warranty

    Limited 2 year, one-time warranty

    Details

    • CA-126/CA-226/WB-1751/WB-1751
    • CA-126/CA-226/WB-1751/WB-1751
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 32.0 lbs.
    • W5.0000” x H10.0000” x L35.0000”
