Front Axle Pair with Bearings for Can-Am Maverick X3 72" Turbo, 705402048

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
CA-127/CA-127/WB-1751/WB-1751

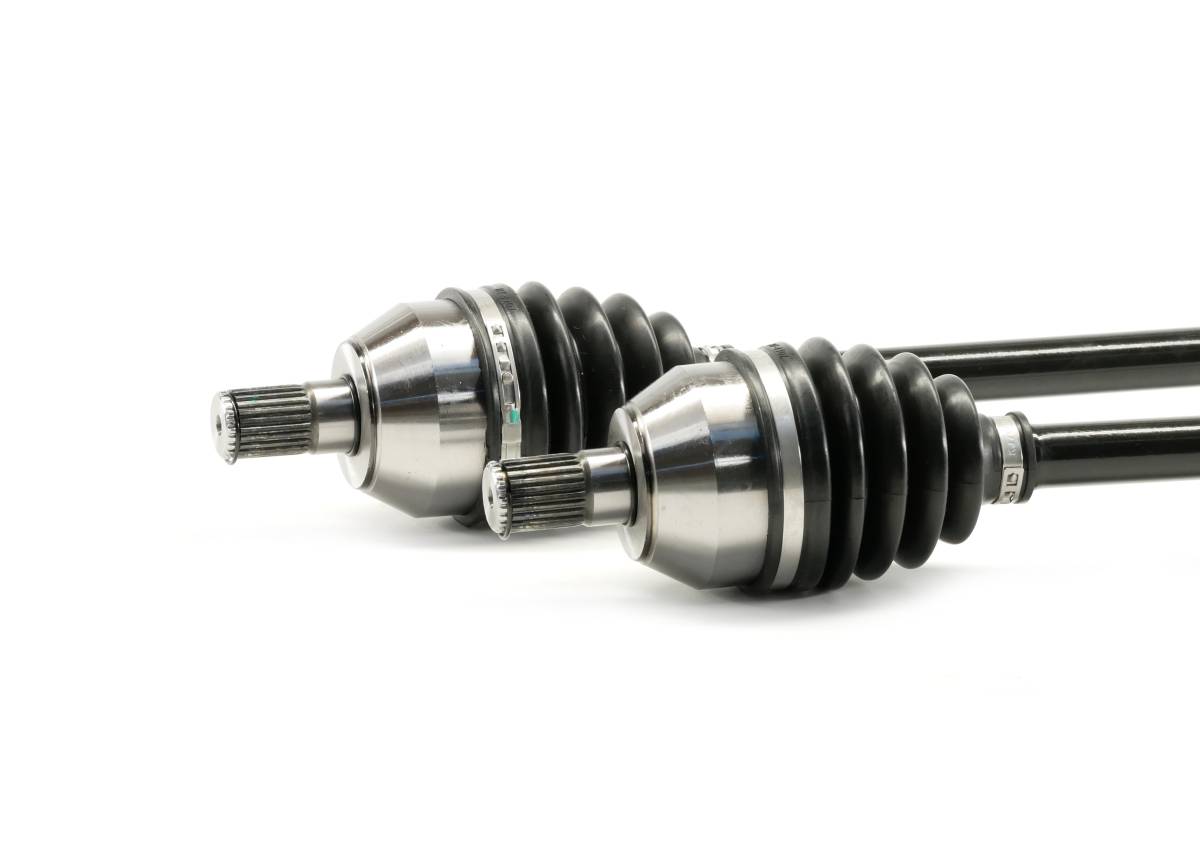

This is a pair of CV axles with wheel bearings for a Can-Am SXS.

They fit FRONT, LEFT & RIGHT on the following models:

2018-2019 ... Turbo R: XRC, XMR, XRS (with Smart Lok)

2022 ... Turbo RR RS

2019 ... Max Turbo R XRS

2020-2022 ... Turbo RR/MAX Turbo RR: XRC, XMR, XRS

*made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Uses high-performance moly grease to keep vital components lubricated
  • Fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 24 (both)
  • Outboard CV joint spline count: 29 (both)
  • Compressed overall axle length: 849.5 mm (both)
  • Replaces OEM # (axles) 705402048, (bearings) 293350129, 293350151
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $204.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following Can-Am Maverick X3 72" models: 2018-2019 Turbo R: XRC, XMR, XRS (with Smart Lok), 2022 Turbo RR RS, 2019 Max Turbo R XRS, 2020-2022 Turbo RR/MAX Turbo RR: XRC, XMR, XRS. Set includes 2 axles.
  • Features a stronger than OEM, 4340 chromoly steel bar. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures. Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out. Set includes 2 axles & 2 wheel bearings.
  • Replaces OEM # (axles) 705402048, (bearings) 293350129, 293350151. Inboard spline count: 24, Outboard spline count: 29, Compressed axle length: 845.5 mm. Please note the Maverick X3 has 64" and 72" models, and these will only fit the 72" models referenced above.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

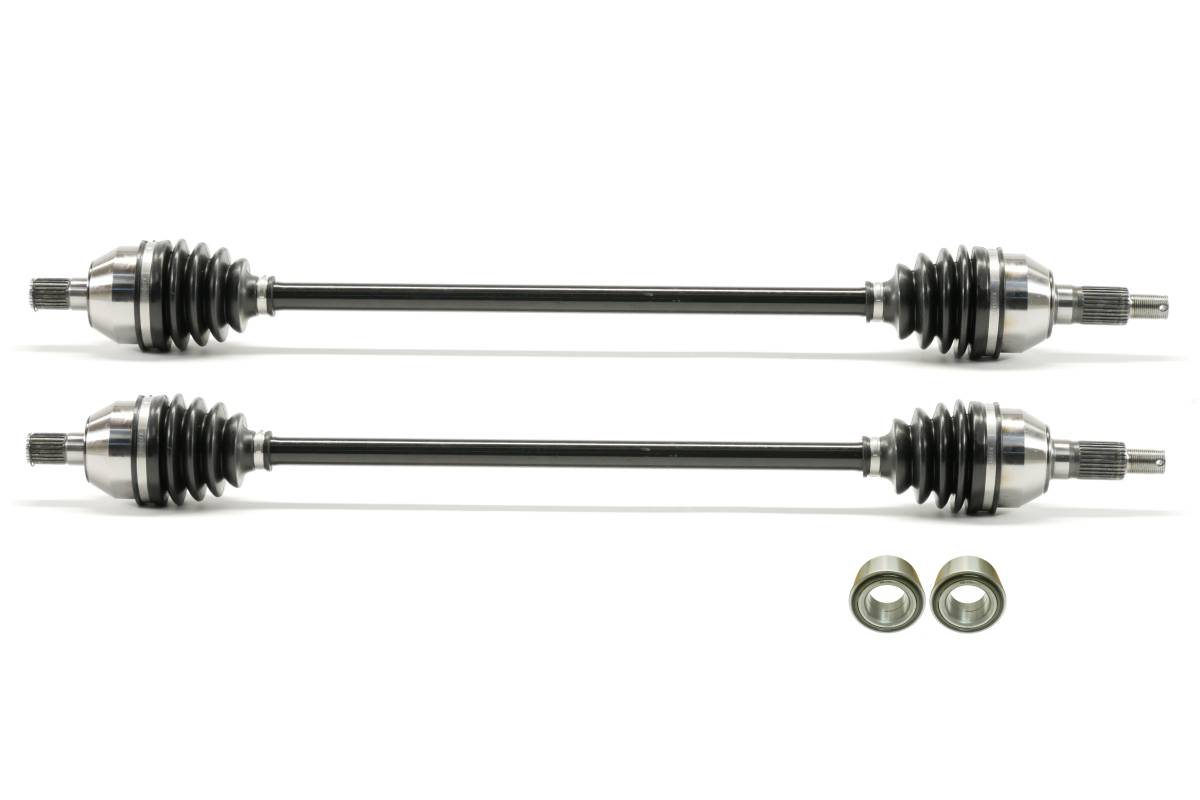

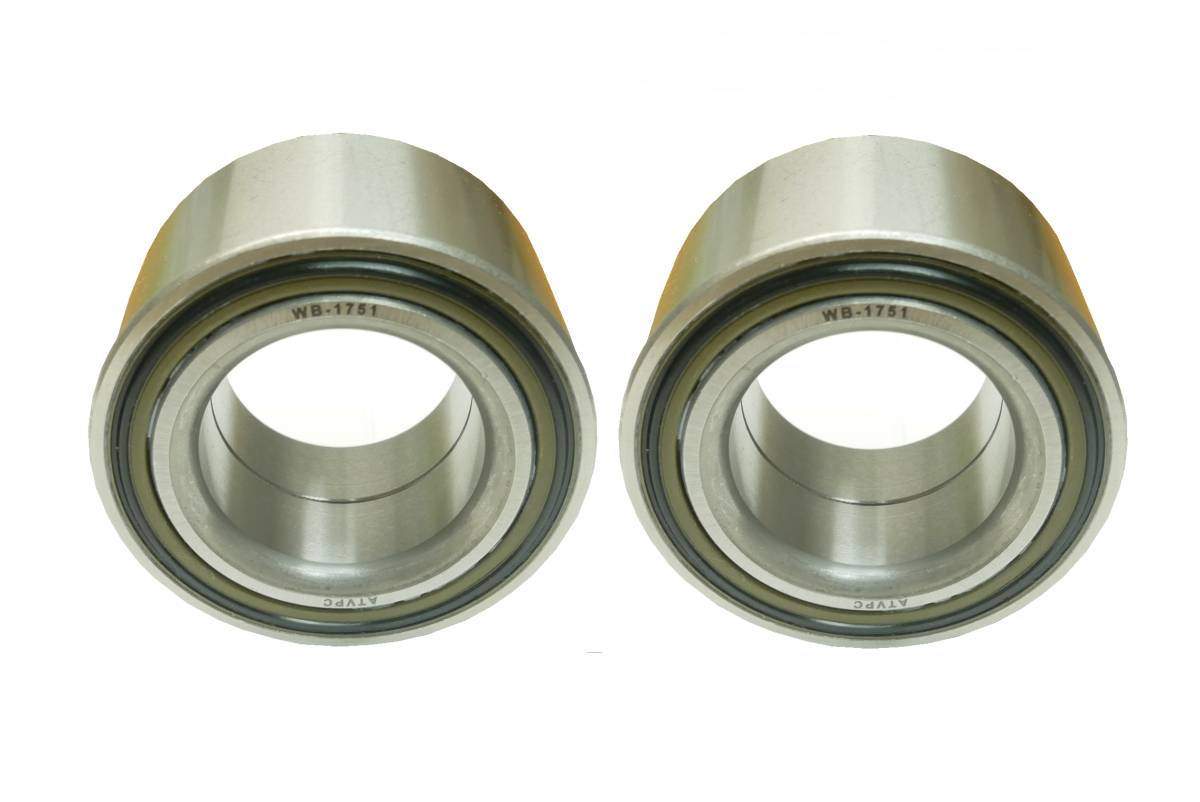

  • 2 axles, 2 wheel bearings

    • Application List

    YearMakeModelSubmodelNotes
    2019Can-AmMaverick X3 Max R4x4 XRS Turbo DPS
    2022Can-AmMaverick X3 Max RR4x4 XMR Turbo DPS
    2022Can-AmMaverick X3 Max RR4x4 XRS Turbo DPS
    2021Can-AmMaverick X3 Max RR4x4 XMR Turbo DPS
    2021Can-AmMaverick X3 Max RR4x4 XRS Turbo DPS
    2020Can-AmMaverick X3 Max RR4x4 XMR Turbo DPS
    2020Can-AmMaverick X3 Max RR4x4 XRS Turbo DPS
    2019Can-AmMaverick X3 R4x4 XMR Turbo DPS
    2019Can-AmMaverick X3 R4x4 XRC Turbo DPS
    2019Can-AmMaverick X3 R4x4 XRS Turbo DPS
    2018Can-AmMaverick X3 R4x4 XMR Turbo DPS
    2018Can-AmMaverick X3 R4x4 XRC Turbo DPS
    2018Can-AmMaverick X3 R4x4 XRS Turbo DPSmodels with Smart Lok
    2022Can-AmMaverick X3 RR4x4 RS Turbo DPS
    2022Can-AmMaverick X3 RR4x4 XMR Turbo DPS 72
    2022Can-AmMaverick X3 RR4x4 XRC Turbo DPS 72
    2021Can-AmMaverick X3 RR4x4 XMR Turbo DPS
    2021Can-AmMaverick X3 RR4x4 XRC Turbo DPS
    2021Can-AmMaverick X3 RR4x4 XRS Turbo DPS
    2020Can-AmMaverick X3 RR4x4 XMR Turbo DPS
    2020Can-AmMaverick X3 RR4x4 XRC Turbo DPS
    2020Can-AmMaverick X3 RR4x4 XRS Turbo DPS
