Rear CV Axles & Bearings for Can-Am 705502154, 64" Maverick X3 Turbo R RR, Left & Right, Quality Tested, Heat-Treated, 4140 Chromoly Steel, Exact Fit, ATVPC

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
CA-329/CA-329/WB-1751/WB-1751

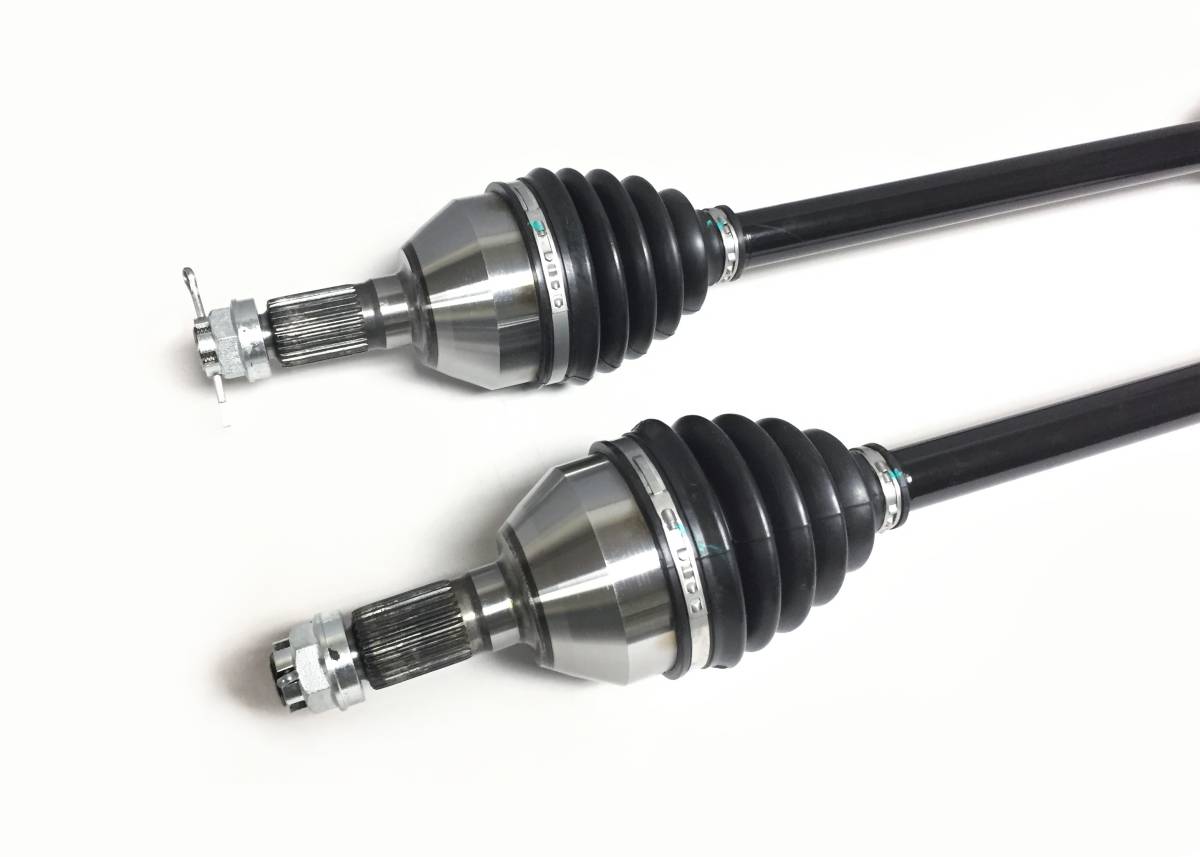

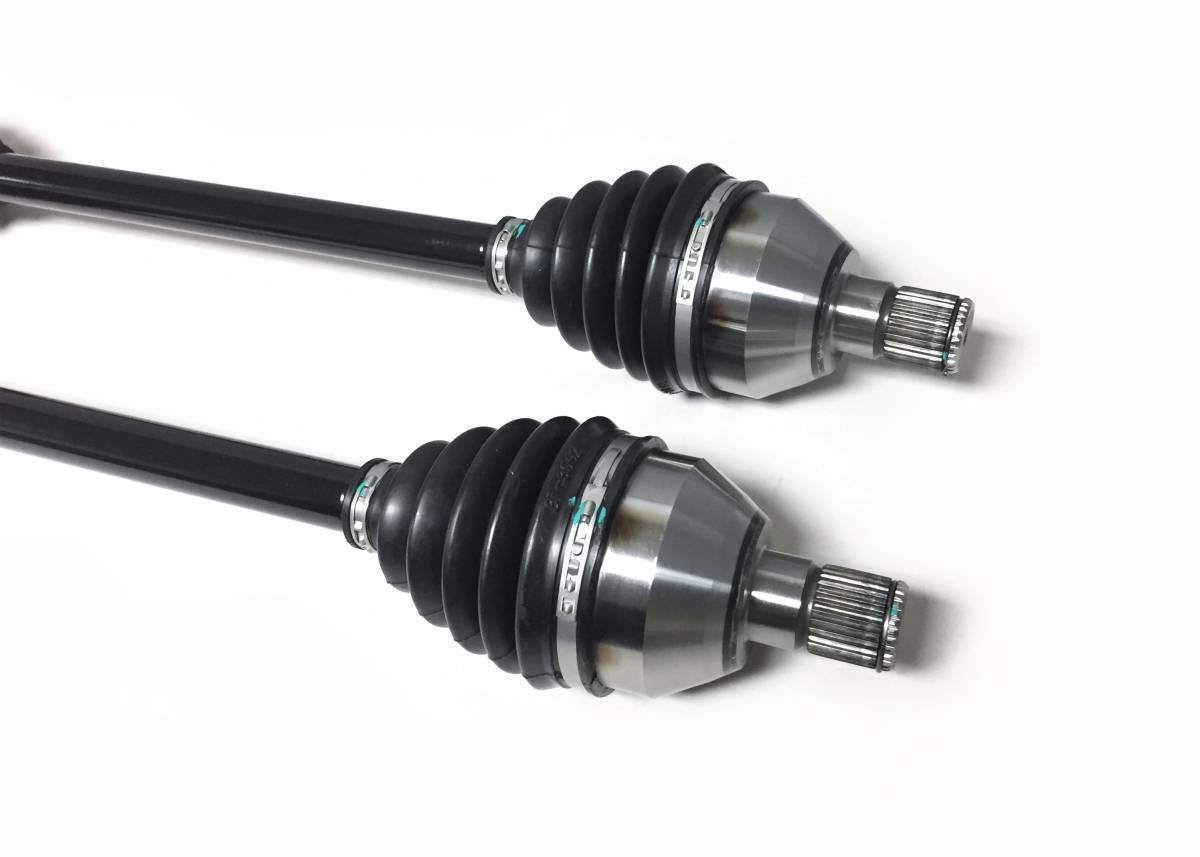

This is a pair of CV axles with wheel bearings for a Can-Am Maverick X3.

Will fit rear, left & right on the following 64" models:

2017-2022 ... X3 Turbo/Turbo R (STD, XDS, DS)

2018-2021 ... X3 Turbo XMR/XRC

2017-2022 ... X3 MAX/X3 MAX Turbo (STD, XDS, DS) - excluding XMR/XRS

2018-2021 ... X3 Max Turbo R (STD, XDS)

2020-2022 ... X3/X3 MAX Turbo RR XDS

*Made as stock replacement and not guaranteed to work on lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • inobard CV joint spline count: 30 (both)
  • outboard CV joint spline count: 29 (both)
  • Compressed overall axle length: 741 mm (both)
  • Replaces OEM # 705502154, 293350129, 293350151, 293350109
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $214.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2023Can-AmMaverick X34x4 DS Turbo DPS
2022Can-AmMaverick X34x4 DS Turbo DPS
2021Can-AmMaverick X34x4 DS Turbo DPS
2020Can-AmMaverick X34x4 Turbo DPS
2019Can-AmMaverick X34x4 Turbo DPS
2018Can-AmMaverick X34x4 Turbo DPS
2022Can-AmMaverick X3 Max4x4 DS Turbo DPS
2021Can-AmMaverick X3 Max4x4 DS Turbo DPS
2020Can-AmMaverick X3 Max4x4 Turbo DPS
2019Can-AmMaverick X3 Max4x4 Turbo DPS
2018Can-AmMaverick X3 Max4x4 Turbo DPS
2021Can-AmMaverick X3 Max R4x4 DS Turbo DPS
2020Can-AmMaverick X3 Max R4x4 DS Turbo DPS
2019Can-AmMaverick X3 Max R4x4 Turbo DPS
2019Can-AmMaverick X3 Max R4x4 XDS Turbo DPS
2018Can-AmMaverick X3 Max R4x4 Turbo DPS
2018Can-AmMaverick X3 Max R4x4 XDS Turbo DPS
2017Can-AmMaverick X3 Max R4x4 Turbo DPS
2017Can-AmMaverick X3 Max R4x4 XDS Turbo DPS
2021Can-AmMaverick X3 Max RR4x4 XDS Turbo DPS
2020Can-AmMaverick X3 Max RR4x4 XDS Turbo DPS
2021Can-AmMaverick X3 R4x4 DS Turbo DPS
2020Can-AmMaverick X3 R4x4 DS Turbo DPS
2019Can-AmMaverick X3 R4x4 Turbo DPS
2019Can-AmMaverick X3 R4x4 XDS Turbo DPS
2018Can-AmMaverick X3 R4x4 Turbo DPS
2018Can-AmMaverick X3 R4x4 XDS Turbo DPS
2017Can-AmMaverick X3 R4x4 Turbo DPS
2017Can-AmMaverick X3 R4x4 XDS Turbo DPS
2023Can-AmMaverick X3 RR4x4 XDS Turbo DPS
2021Can-AmMaverick X3 RR4x4 XDS Turbo DPS
2020Can-AmMaverick X3 RR4x4 XDS Turbo DPS

Product Notes

  • Fits rear, left & right on the following Can-Am Maverick X3 64" models: 2017-2022 X3 Turbo/Turbo R/MAX (STD, XDS, DS) -excluding XMR/XRS, 2018-2021 X3 Turbo XMR/XRC, 2018-2021 X3 Max Turbo R (STD, XDS), 2020-2022 X3/X3 MAX Turbo RR XDS.
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # 705502154, 293350129, 293350151, 293350109. Please note this is for 64" models. Inboard CV joint spline count: 30 (both), Outboard CV joint spline count: 29 (both), Compressed overall axle length: 741 mm (both).
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

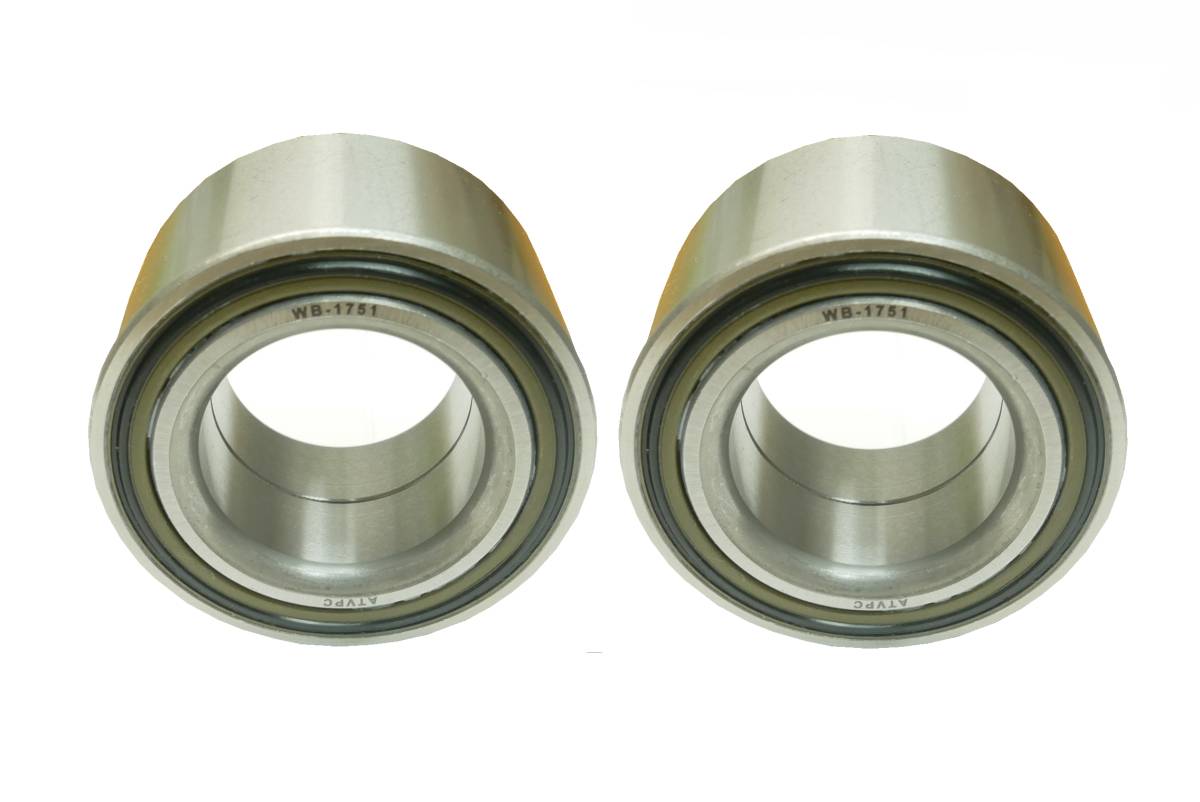

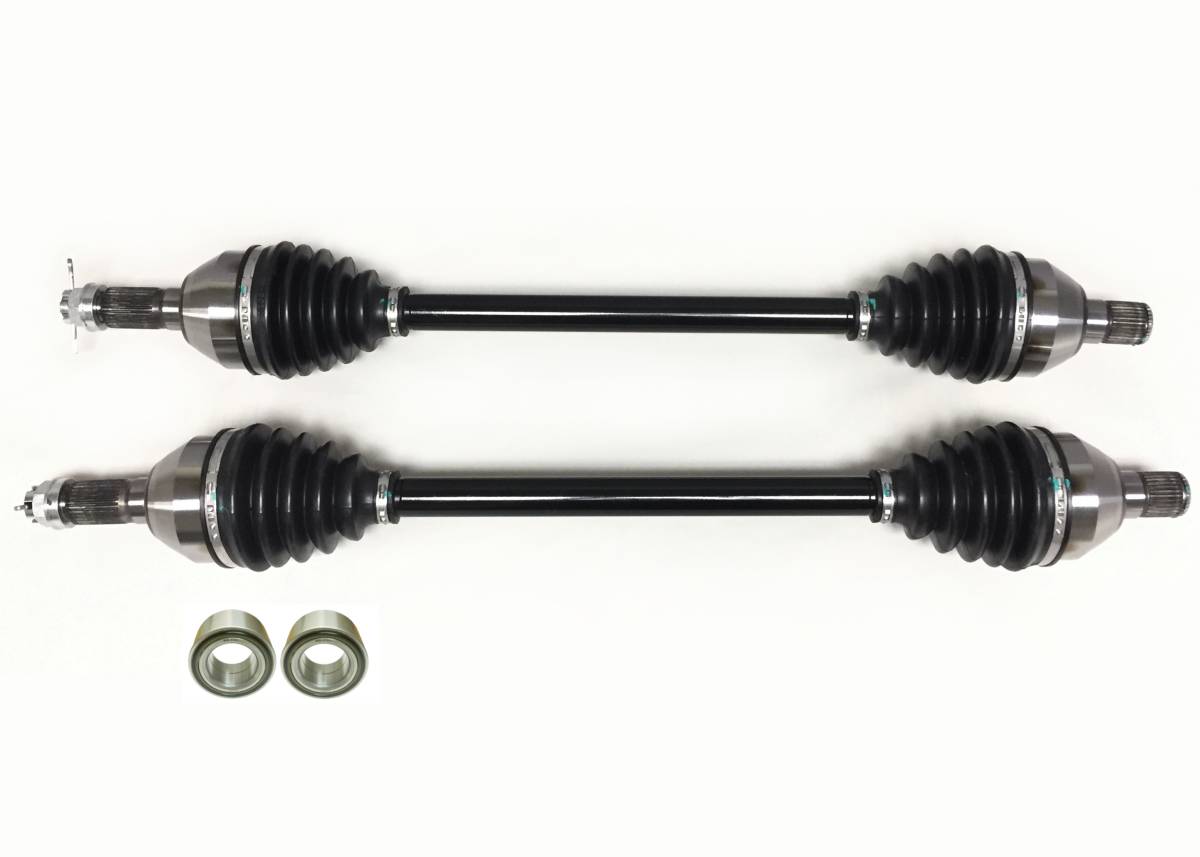

  • 2 axles, 2 wheel bearings

    • Warranty

    Limited 2 year, one-time warranty

    Details

    • CA-329/CA-329/WB-1751/WB-1751
    • CA-329/CA-329/WB-1751/WB-1751
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 33.0 lbs.
    • W10.0000” x H6.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
