Rear Axle Pair with Bearings for Can-Am Maverick X3 XDS XMR & XRC, 64" 705502154

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
CA-329/CA-329/WB-1751/WB-1751

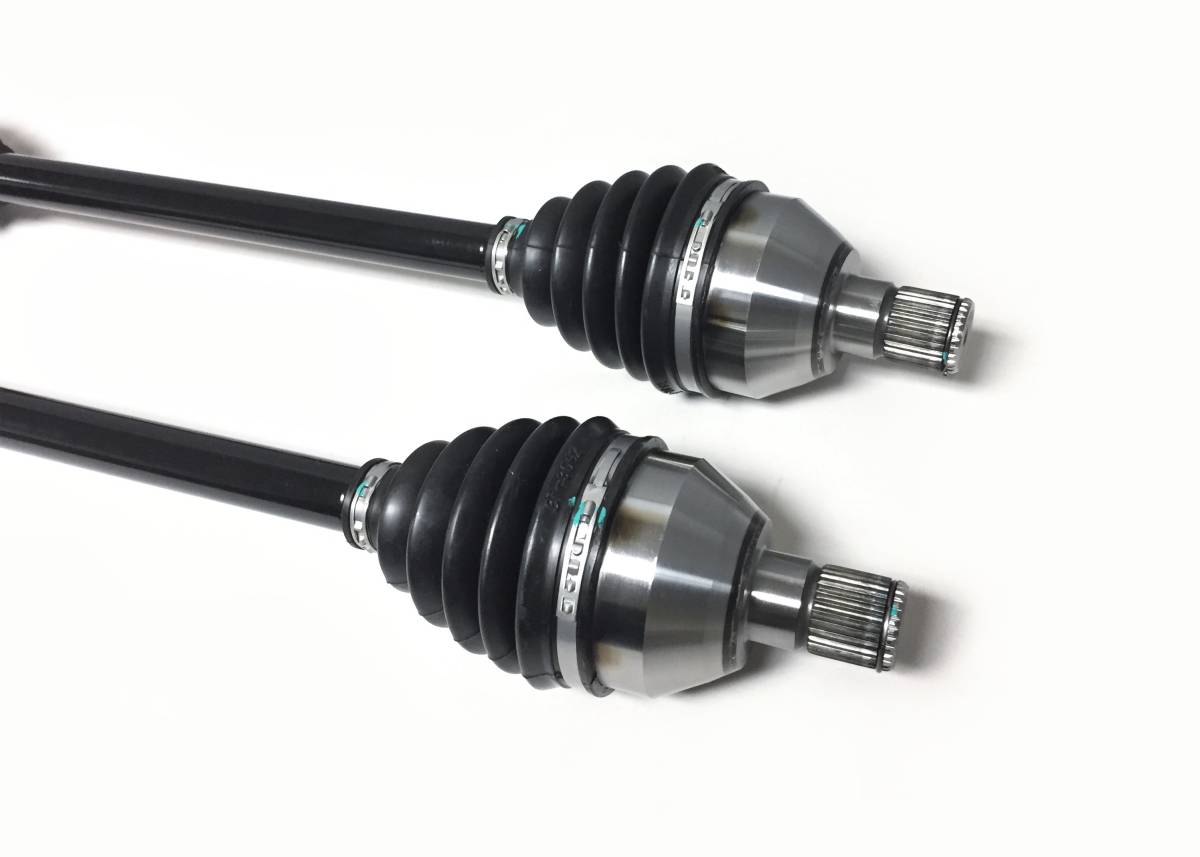

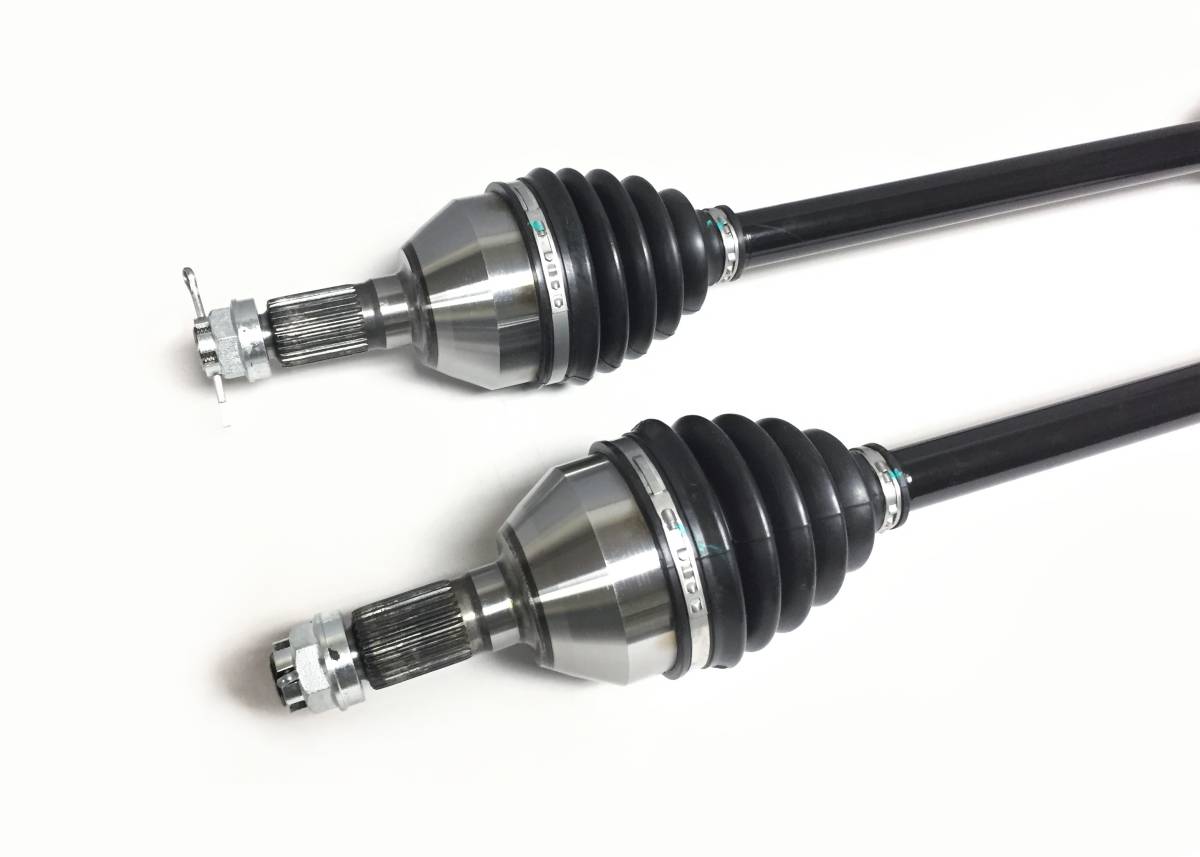

This is a pair of CV axles with wheel bearings for a Can-Am Maverick X3.

Will fit REAR, LEFT & RIGHT on the following 64" models:

2017-2022 ... X3 Turbo/Turbo R (STD, XDS, DS)

2018-2021 ... X3 Turbo XMR/XRC

2017-2022 ... X3 MAX/X3 MAX Turbo (STD, XDS, DS) - excluding XMR/XRS

2018-2021 ... X3 Max Turbo R (STD, XDS)

2020-2022 ... X3/X3 MAX Turbo RR XDS

*Made as stock replacement and not guaranteed to work on lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 30 (both)
  • Outboard CV joint spline count: 29 (both)
  • Compressed overall axle length: 741 mm (both)
  • Replaces OEM # 705502154, 293350129, 293350151, 293350109
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $189.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2023Can-AmMaverick X34x4 DS Turbo DPS
2022Can-AmMaverick X34x4 DS Turbo DPS
2021Can-AmMaverick X34x4 DS Turbo DPS
2020Can-AmMaverick X34x4 Turbo DPS
2019Can-AmMaverick X34x4 Turbo DPS
2018Can-AmMaverick X34x4 Turbo DPS
2022Can-AmMaverick X3 Max4x4 DS Turbo DPS
2021Can-AmMaverick X3 Max4x4 DS Turbo DPS
2020Can-AmMaverick X3 Max4x4 Turbo DPS
2019Can-AmMaverick X3 Max4x4 Turbo DPS
2018Can-AmMaverick X3 Max4x4 Turbo DPS
2021Can-AmMaverick X3 Max R4x4 DS Turbo DPS
2020Can-AmMaverick X3 Max R4x4 DS Turbo DPS
2019Can-AmMaverick X3 Max R4x4 Turbo DPS
2019Can-AmMaverick X3 Max R4x4 XDS Turbo DPS
2018Can-AmMaverick X3 Max R4x4 Turbo DPS
2018Can-AmMaverick X3 Max R4x4 XDS Turbo DPS
2017Can-AmMaverick X3 Max R4x4 Turbo DPS
2017Can-AmMaverick X3 Max R4x4 XDS Turbo DPS
2021Can-AmMaverick X3 Max RR4x4 XDS Turbo DPS
2020Can-AmMaverick X3 Max RR4x4 XDS Turbo DPS
2021Can-AmMaverick X3 R4x4 DS Turbo DPS
2020Can-AmMaverick X3 R4x4 DS Turbo DPS
2019Can-AmMaverick X3 R4x4 Turbo DPS
2019Can-AmMaverick X3 R4x4 XDS Turbo DPS
2018Can-AmMaverick X3 R4x4 Turbo DPS
2018Can-AmMaverick X3 R4x4 XDS Turbo DPS
2017Can-AmMaverick X3 R4x4 Turbo DPS
2017Can-AmMaverick X3 R4x4 XDS Turbo DPS
2023Can-AmMaverick X3 RR4x4 XDS Turbo DPS
2021Can-AmMaverick X3 RR4x4 XDS Turbo DPS
2020Can-AmMaverick X3 RR4x4 XDS Turbo DPS

Product Notes

  • Fits REAR, LEFT & RIGHT on the following Can-Am Maverick X3 64" models: 2017-2022 X3 Turbo/Turbo R/MAX (STD, XDS, DS) -excluding XMR/XRS, 2018-2021 X3 Turbo XMR/XRC, 2018-2021 X3 Max Turbo R (STD, XDS), 2020-2022 X3/X3 MAX Turbo RR XDS.
  • Features stronger than OEM, 4340 chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures. Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # 705502154, 293350129, 293350151, 293350109. Please note this is for 64" models. Inboard CV joint spline count: 30 (both), Outboard CV joint spline count: 29 (both), Compressed overall axle length: 741 mm (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

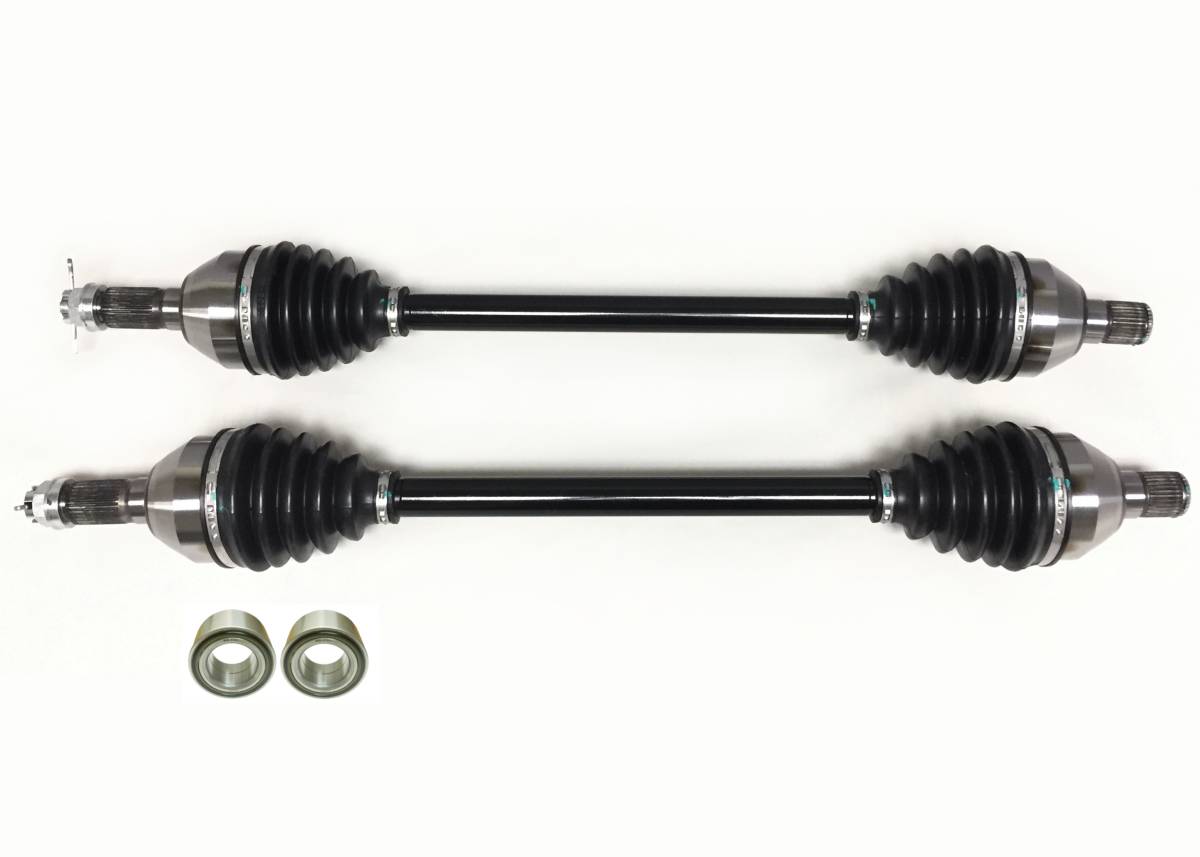

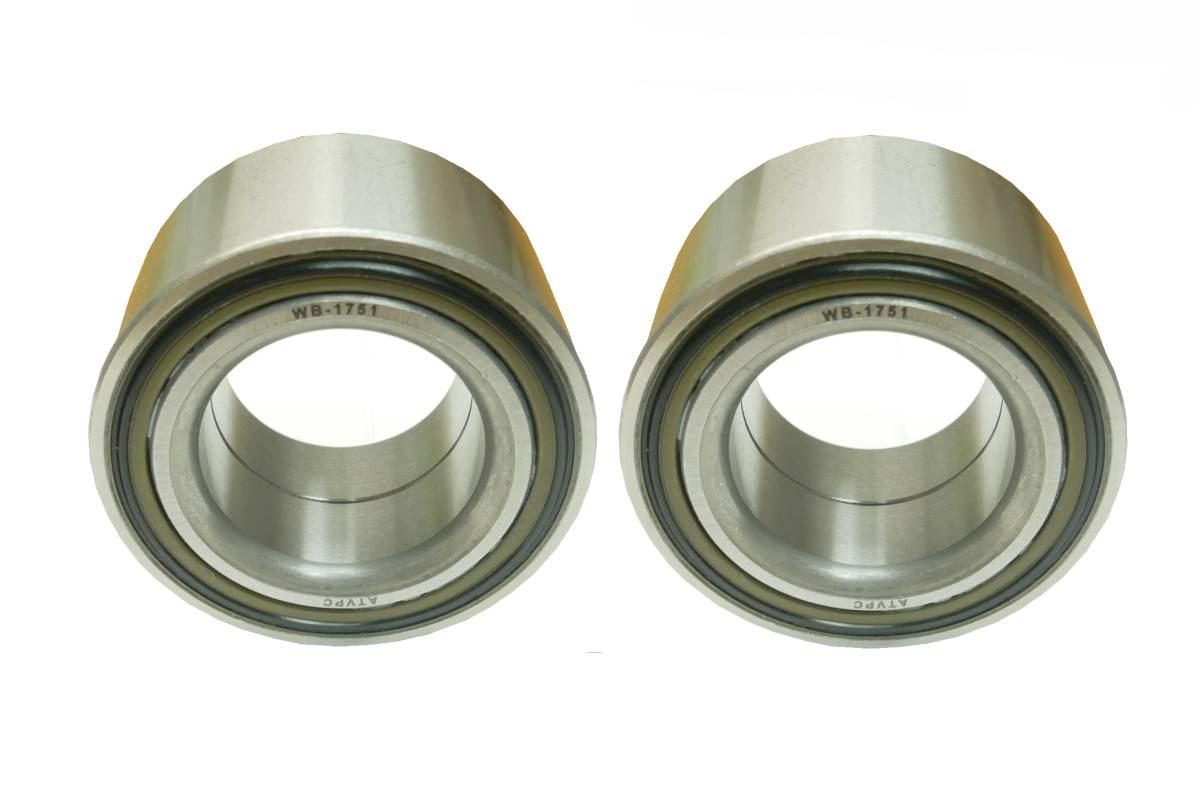

  • 2 axles, 2 wheel bearings

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-329/CA-329/WB-1751/WB-1751
    • CA-329/CA-329/WB-1751/WB-1751
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New
